DAF 95XF. Manual - part 351





5

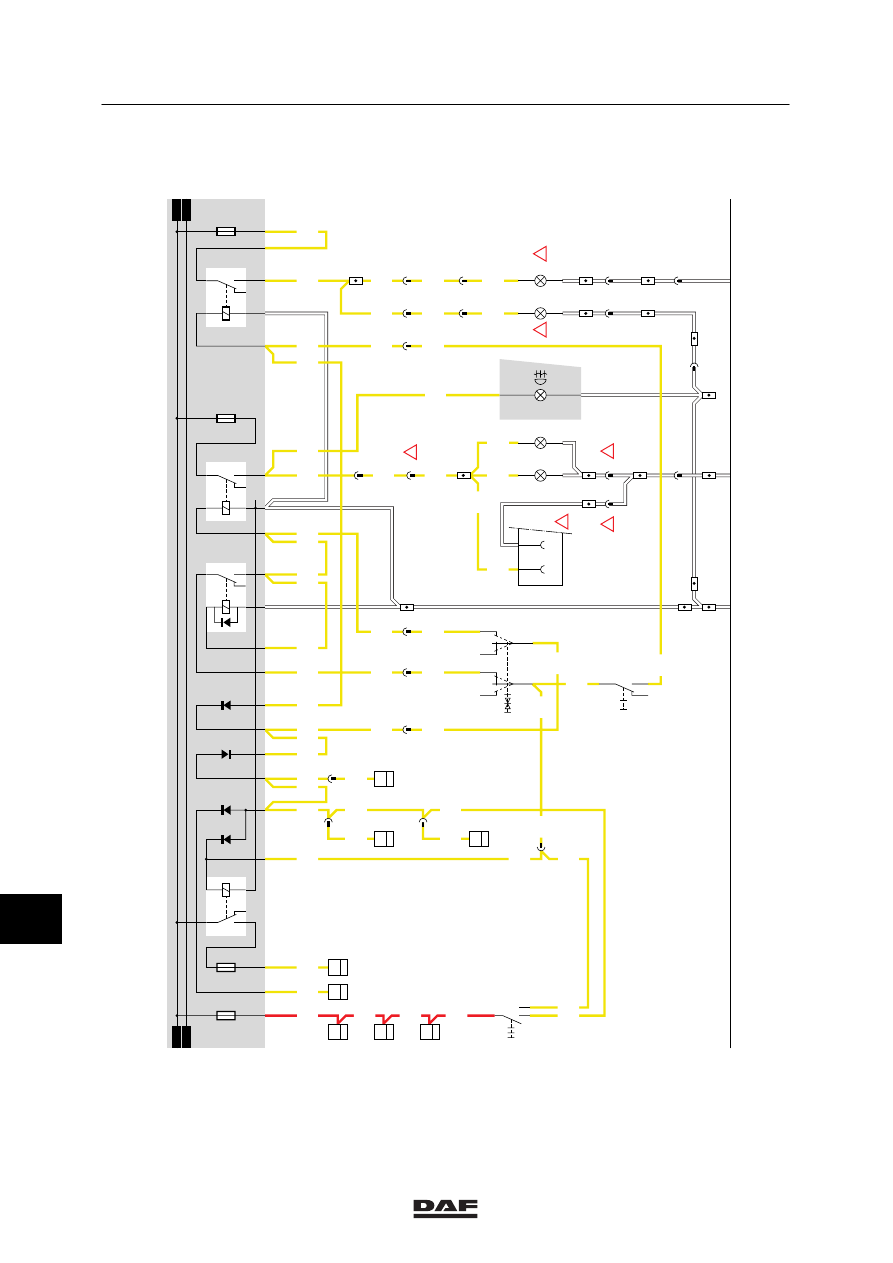

MODIFICATIONS TO THE ELECTRICAL INSTALLATION

Modifications to the electrical installation from chassis number 0E477514

4-16

11. FRONT AND REAR FOG LIGHTS

There are three possible situations:
-

Rear fog lights only.

-

Front fog lights only.

-

Front and rear fog lights.

REAR FOG LIGHTS (standard)
The rear fog lights can only be activated in
combination with the dipped beam.
If the lighting switch (C622) is switched into the
”dipped beam” position (connection between the
contacts 2 and 4), a voltage is applied through
wire 1101, switch C622, wire 2110 and the diode
for rear fog light/dipped beam (D600), to switch
rear fog lights with contact 3 of transfer relay
(C863). A voltage is also applied to contact 6 of
switch C863 and to contact 5 of the front fog
light switch (C728) through the diode for the light
switch (D609) and wire 2100.
The rear-light/side light (G000) is energised.
This will cause the contacts 30 and 87 to be
closed. A voltage is applied to the position,
marker and tail lights on the left and right-hand
sides of the vehicle respectively through the fuse
for the rear left side-light (E000) and the fuse for
the rear right side-light (E001).

If switch C863 is engaged (connection between
contacts 3 - 1 and 6 - 2), a voltage is applied to
connection point 1 of the rear fog light transfer
microrelay (G392) and to connection point 85 of
the rear fog light relay (G005). Both relays are
energised.
A voltage is applied to the left and right rear fog
lights through the rear fog lights fuse (E010) and
contacts 30 and 87 of relay G005. The rear fog
lights will now come on.

Microrelay G392 ensures that a connection is
made between contact 2 of switch C863,
through wire 2171, contacts 3 - 5 of relay G392
and wire 2150 at connection point 85 of the rear
fog light relay G005. This relay will remain
activated until the connections 3 - 7 and 6 - 8
are made for a short time with the aid of switch
G863. That is when the coil of relay G392 will be
de-energised. The connection between contacts
3 - 5 will be broken at the same time, so that
G005 will be de-energised as well. The rear fog
lights will now go out.

11

ǹ 0209

5

Modifications to the electrical installation from chassis number 0E477514

MODIFICATIONS TO THE ELECTRICAL INSTALLATION

4-17

FRONT FOG LIGHTS (option)
The front fog lights can be activated in
combination with town light and with the dipped
beam.

Fog lights in combination with town light.
If the lighting switch C622 is switched into “town
light” position (connection between contacts 2
and 1), a voltage is applied to contact 6 of switch
C863, to contact 5 of the front fog light switch
(C728) and to connection point 85 of relay G000
through wire 2100.
Relay G000 is activated. This will cause the
contacts 30 and 87 to be closed. A voltage is
applied to the position, marker and tail lights on
the left and right-hand sides of the vehicle
respectively through fuses E000 and E001.

If switch C728 is engaged, the voltage will be
applied to connection point 85of the front fog
light relay (G004) through the contacts 5 - 1 of
switch C728 and wire 2140. The coil will be
energised, and the contacts 30 and 87 will close
as a result. A voltage is now applied to the front
fog lights through wire 1000, the front fog lights
fuse (E009), wire 2141, contacts 30 and 87 and
wire 2142.

Front and rear fog lights in combination with
the dipped beam
If the lighting switch C622 is switched into
“dipped beam” position (connection between
contacts 2 and 4), a voltage is applied to contact
3 of switch C863, to contact 5 of switch C728
and to connection point 85 of relay G000
through diode D609. An identical voltage is
applied to connection point 6 of switch C863 and
connection point 5 of switch C728 through wire
2100.
The operation is the same as the operation
described above, however, both switches need
to be engaged.

VARIANTS

Location

27
29,33

Connector 495 is only used in the
case of an FA. Connector 493 is
used in the case of an FT.
Connector A001 is only used in the
case of an FA. Connector A003 is
used in the case of an FT.

43,48

The left and right front fog lights
(C008 and C009 respectively) are
not standard.

11

ǹ 0209

5

MODIFICATIONS TO THE ELECTRICAL INSTALLATION

Modifications to the electrical installation from chassis number 0E477514

4-18

11

1316630/24-29

EL000392

1

23456789

1

0

1

1

1

2

1

3

1

4

1

5

1

6

1

7

1

8

1

9

2

0

2

1

2

2

2

3

2

4

2

5

2

6

2

7

2

8

2

9

3

0

3

1

3

2

3

3

3

4

3

5

3

6

3

7

3

8

3

9

4

0

4

1

4

2

4

3

4

4

4

5

4

6

4

7

4

8

4

9

5

0

5

1

5

2

5

3

1101

2110

1101

1101

1101

2100

2100

2100

2100

2100

2100

2140

2115

2100

2152

2152

2152

2152

2152

2152

2152

2142

2142

2142

2142

2142

2142

2142

2152

2140

2140

2141

2152

2110

2110

2110

2110

2110

2110

2154

2102

2110
2110

2140

2171

2115

2115

2115

2115

2150

2150

2150

2150
2150

2110

2115

2171

2171

2150

2150

2140

2140

2110

14/403

22/401

24/401

14/402

28/401

2/231

4/231

1/231

30/403

31/403

22/403

5/202

2/200

5/401

C009

2

3

C008

2

3

2/401

8

288

8

286

7

284

8

281

12

288

18

281

C622

C775

4

10

33/400

C010

1

8

C775

7

10

D853 B15

7

D852 B10

6

C764

5

33

C728

5

71

0I

18

286

!

12

284

!

24/400

9

115

4

186

17

176

18

176

7

176

6

176

7

495

D

115

11

495

12

495

A001

71

C024

4

8

C025

4

8

!

!

!

!

33/402

4/401

D852

4

176

176

5

B130

3

33

C764

5

33

C764

5

33

B129

3

33

281

44

6

C863

82

71

3

11/402

27/401

28/403

6/401

6/401

19/401

30/401

D878

1010

1000

1010

1000

2154

E084

10A

D610

D609

2115

D601

2110

D600

30

86

85

87A

8

7

G005

2150

2171

2150

E010

10A

30

86

85

87A

8

7

G004

2140

2151

E009

10A

2141

G392

3

1

24

5

E000

10A

2101

M

30

86

85

87A

87

G000

2100

11

ǹ 0209

5

Modifications to the electrical installation from chassis number 0E477514

MODIFICATIONS TO THE ELECTRICAL INSTALLATION

4-19

27. AGS

SEE THE SYSTEM MANUAL FOR MORE
INFORMATION.
