DOOR GLASS

REMOVAL

(1) Remove door trim panel and inner belt weath-

erstrip.

(2) Connect power window switch or install crank

and lower window to 50 mm (2 in.) from bottom of
travel.

(3) Loosen bolts holding rear lower run channel to

inner door panel (Fig. 6).

(4) Separate rear run channel from door.
(5) Loosen screws holding regulator roller channel

to glass.

(6) Slide roller channel rearward to allow screw

heads to pass through key hole slots in channel.

(7) Separate glass from roller channel.
(8) Lift glass upward and out of the opening at top

of door.

INSTALLATION

(1) Lower door glass through opening at top of

door.

(2) Position door glass onto roller channel.
(3) Slide roller channel forward to allow screw

heads to engage key hole slots in channel.

(4) Tighten screws holding regulator roller channel

to glass.

(5) Position rear run channel on door.
(6) Tighten bolts holding rear lower run channel to

inner door panel.

(7) Install door trim panel and inner belt weather-

strip.

EXTERIOR HANDLE

REMOVAL

(1) Remove rear door trim panel.
(2) Close door glass.
(3) Disengage clip holding linkage to outside han-

dle.

(4) Remove linkage from outside handle (Fig. 7).
(5) Remove nuts holding outside handle to outer

door panel.

(6) Remove outside door handle from vehicle.

INSTALLATION

(1) Position outside door handle from vehicle.
(2) Install nuts attaching outside handle to outer

door panel.

(3) Connect linkage to outside handle (Fig. 7).
(4) Connect clip holding linkage to outside handle.
(5) Replace the clips attaching trim panel to

perimeter of door.

(6) Install rear door trim panel.

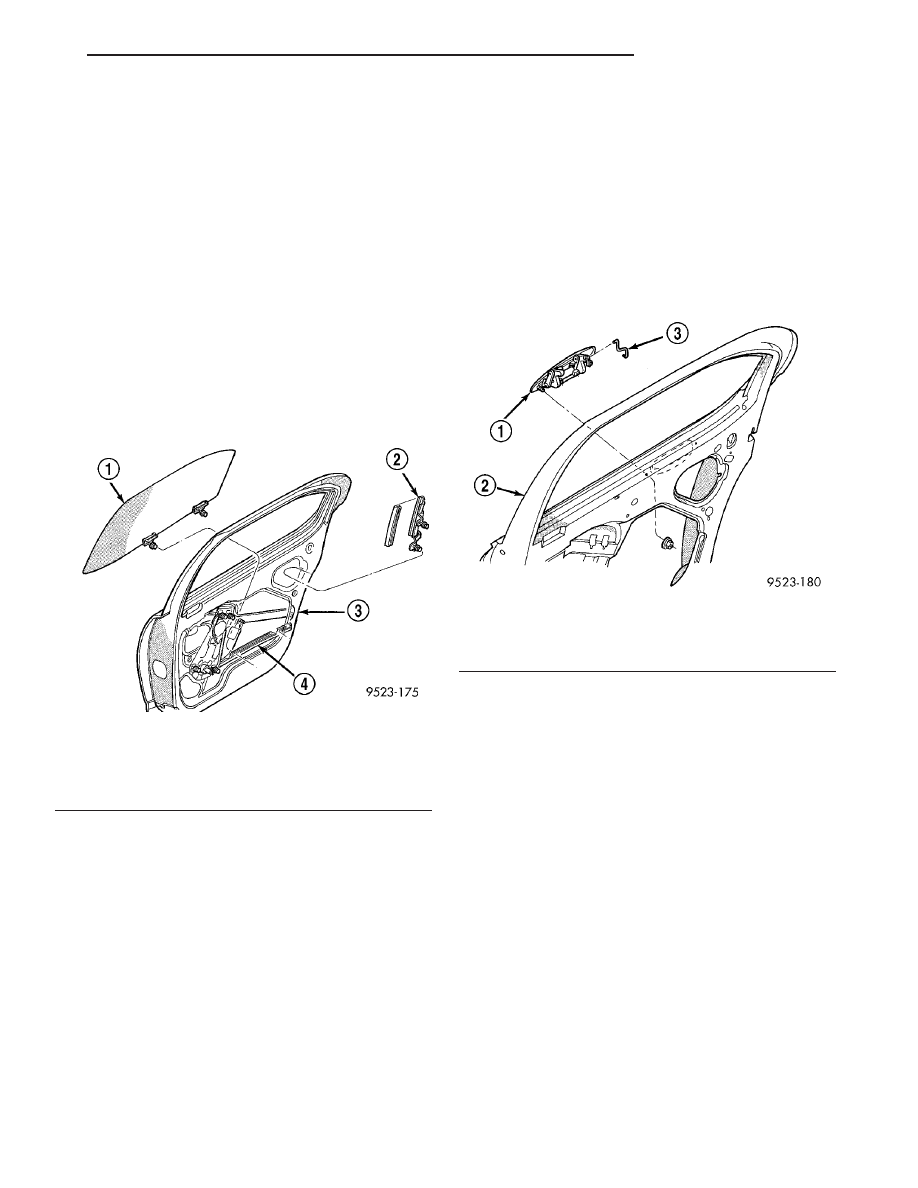

Fig. 6 Rear Door Glass

1 - REAR DOOR GLASS
2 - LOWER RUN CHANNEL
3 - REAR DOOR
4 - LIFT CHANNEL

Fig. 7 Rear Door Outside Handle

1 - OUTSIDE DOOR HANDLE
2 - REAR DOOR
3 - LINKAGE

JR

DOORS - REAR

23 - 53

HINGE

REMOVAL

(1) Remove the door. (Refer to 23 - BODY/DOORS

- REAR/DOOR - REMOVAL)

(2) Mark hinge attachment locations with a grease

pencil or other suitable device to aid installation.

(3) Remove the bolts and nuts and remove the

hinges (Fig. 8).

INSTALLATION

(1) If necessary, paint new door hinge prior to

installation.

(2) Loosely install bolts attaching hinge to lower

B-pillar.

(3) Door on a suitable lifting device position door

to the hinge on vehicle.

(4) Loosely install nuts attaching hinge to door end

frame (Fig. 9).

(5) Align hinge to marks made previously and

tighten bolts and nuts to 28 N·m (20 ft. lbs.) torque.

(6) Install bolts attaching door check strap to

lower A-pillar.

(7) Verify door fit and operation. Adjust door hinge

for proper door alignment, as necessary. (Refer to 23 -
BODY/DOORS - REAR/DOOR - ADJUSTMENTS).

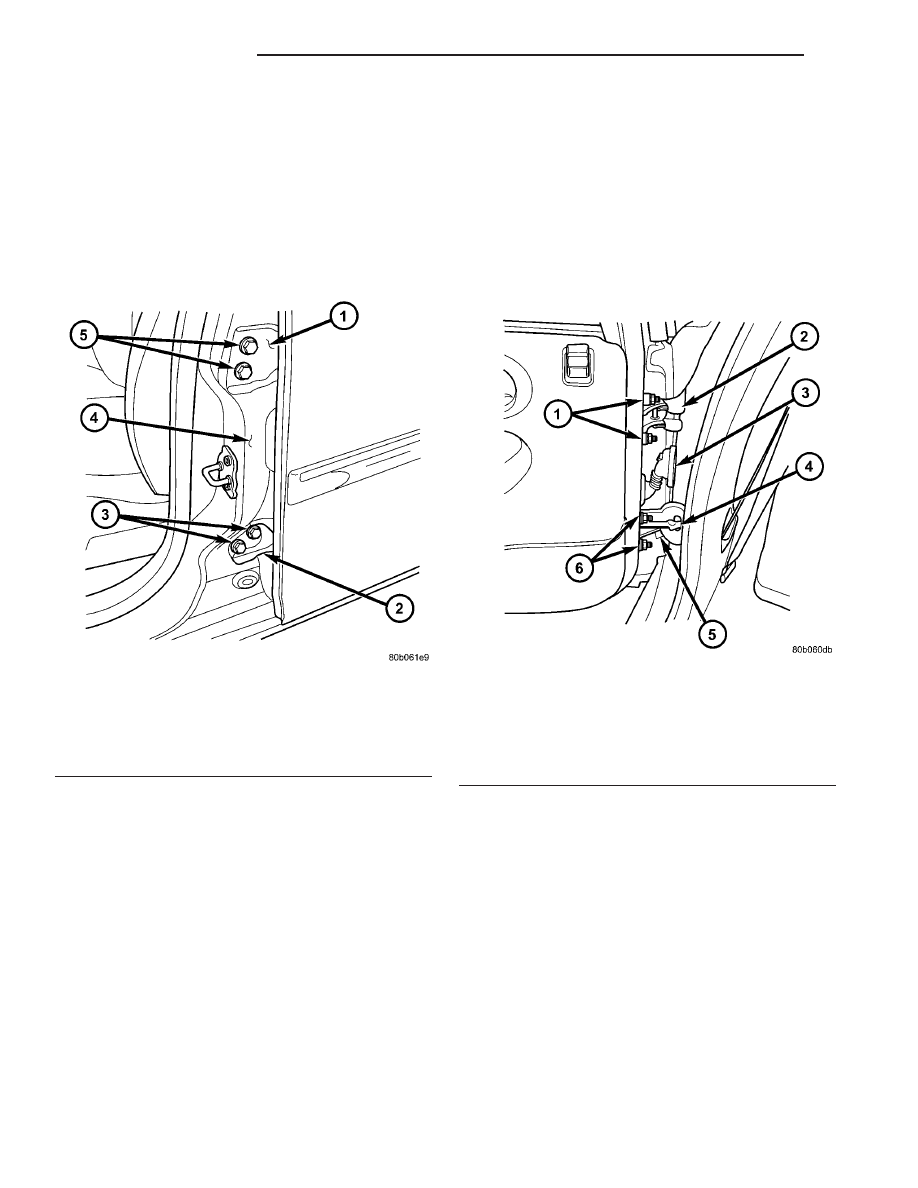

Fig. 8 REAR DOOR HINGES

1 - UPPER HINGE
2 - LOWER HINGE
3 - LOWER HINGE BOLTS
4 - B-PILLAR
5 - UPPER HINGE BOLTS

Fig. 9 REAR DOOR/HINGES

1 - UPPER HINGE NUTS
2 - UPPER HINGE
3 - ELECTRICAL CONNECTOR
4 - CHECK STRAP
5 - LOWER HINGE
6 - LOWER HINGE NUTS

23 - 54

DOORS - REAR

JR

LATCH

REMOVAL

(1) Remove rear door trim panel.
(2) Close door glass.
(3) Remove lower rear run channel.
(4) Disengage clips attaching linkage rods to door

latch.

(5) Remove linkage rods from latch (Fig. 10).
(6) Remove screws attaching latch to door end

frame.

(7) Remove latch from door.

INSTALLATION

CAUTION: Do not close door before adjusting the
door latch, door may fail to open.

(1) Place rear door latch into position.
(2) Install screws attaching latch to door end

frame.

(3) Install linkage rods from latch.
(4) Engage clips attaching linkage rods to door

latch.

(5) Install lower rear run channel.
(6) Open door glass.
(7) Install rear door trim panel.

LATCH STRIKER

REMOVAL

(1) Mark outline of door latch striker on C-pillar to

aid installation.

(2) Remove screws attaching door latch striker to

C-pillar (Fig. 11).

(3) Remove door latch striker from vehicle.

NOTE: Be sure to check for any shims between
door latch striker and C-pillar. If any shims are
found, they must be reinstalled with the new door
latch striker to maintain proper door operation.

INSTALLATION

(1) Position door latch striker and any shims on

vehicle.

(2) Loosely install screws attaching latch striker to

C-pillar.

(3) Align latch striker to marks on C-pillar made

previously.

(4) Tighten all fasteners.
(5) Verify door fit and operation. Adjust door latch

striker as necessary.

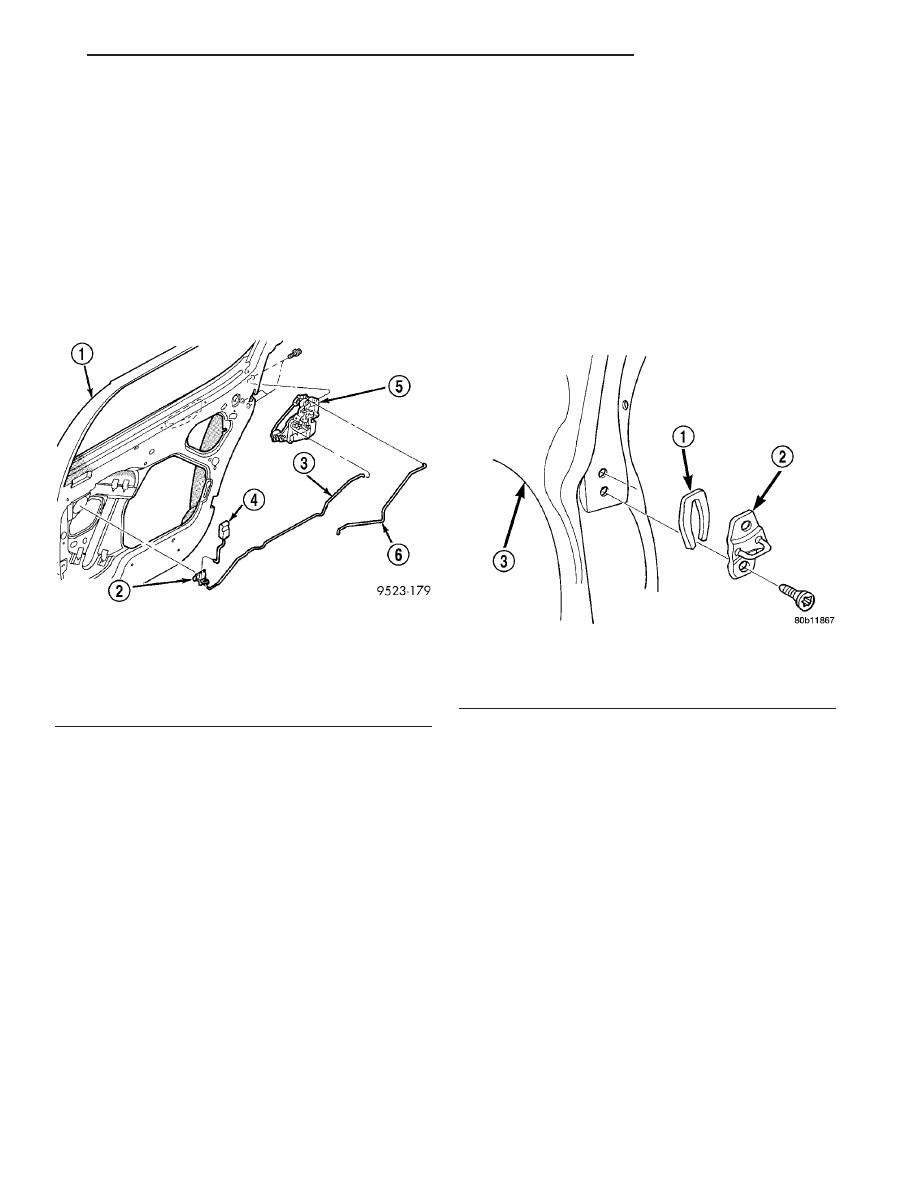

Fig. 10 Rear Door Latch

1 - REAR DOOR
2 - BELL CRANK
3 - LOCK LINKAGE
4 - LOCK BUTTON
5 - LATCH
6 - LATCH LINKAGE

Fig. 11 Rear Door Latch Striker

1 - SHIM
2 - STRIKER
3 - QUARTER PANEL

JR

DOORS - REAR

23 - 55

TRIM PANEL

REMOVAL

(1) Open rear door.
(2) Lower window.
(3) Open the screw cap from bottom of arm rest

pull cup and remove the screw (Fig. 12).

(4) Open the screw cap from behind door latch

handle and remove the screw.

(5) Remove the screws along the bottom of the

trim panel.

(6) Using a trim stick C-4755 or equivalent, disen-

gage clips holding perimeter of trim panel to rear
door.

(7) Remove trim panel from inner belt weather-

strip at top of door.

(8) Disconnect wiring harness at door opening.
(9) Remove top of trim panel from door.
(10) Disengage clip holding linkage to latch handle

(Fig. 13).

(11) Remove linkage from latch handle.
(12) Lift trim up and off lock button.
(13) Remove rear door trim panel from vehicle.

INSTALLATION

(1) Position rear door trim panel on vehicle.
(2) Connect linkage to latch handle.
(3) Engage clip holding linkage to latch handle.
(4) Connect wiring harness at door opening.
(5) Position the lock knob through the trim panel

and engage trim panel from inner belt weatherstrip
at top of door.

(6) Align the clips attaching perimeter of trim

panel to rear door with the grommets and engage.

(7) Install screws attaching door trim panel to

door. (Fig. 12)

(8) Install screw holding door latch handle to door

and close the screw cap.

(9) Install screw from bottom of arm rest pull cup

and close the screw cap.

(10) Connect battery.

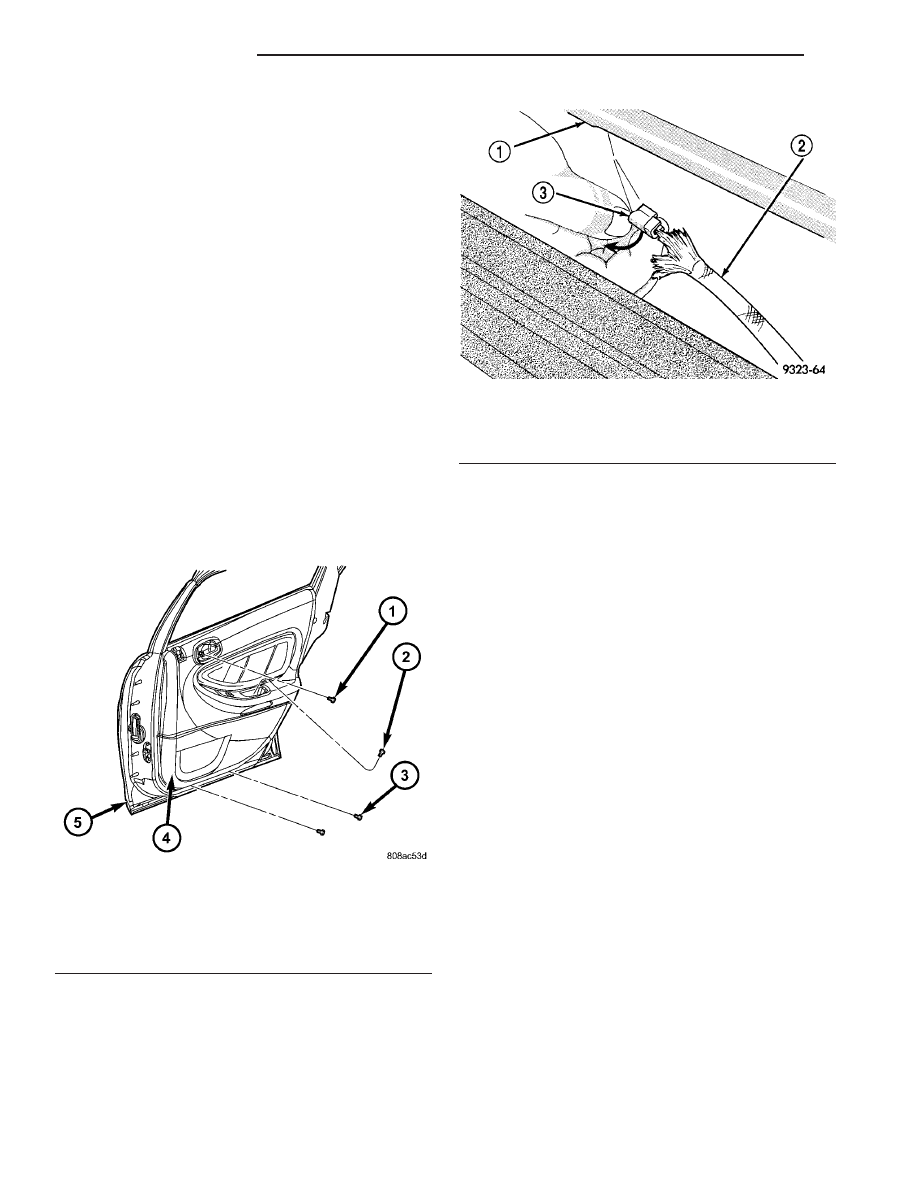

Fig. 12 Rear Door Trim Panel

1 - SCREW
2 - SCREW
3 - SCREW
4 - REAR DOOR TRIM PANEL
5 - REAR DOOR

Fig. 13 Linkage Clip

1 - DOOR TRIM PANEL
2 - LATCH RELEASE ROD
3 - CLIP
