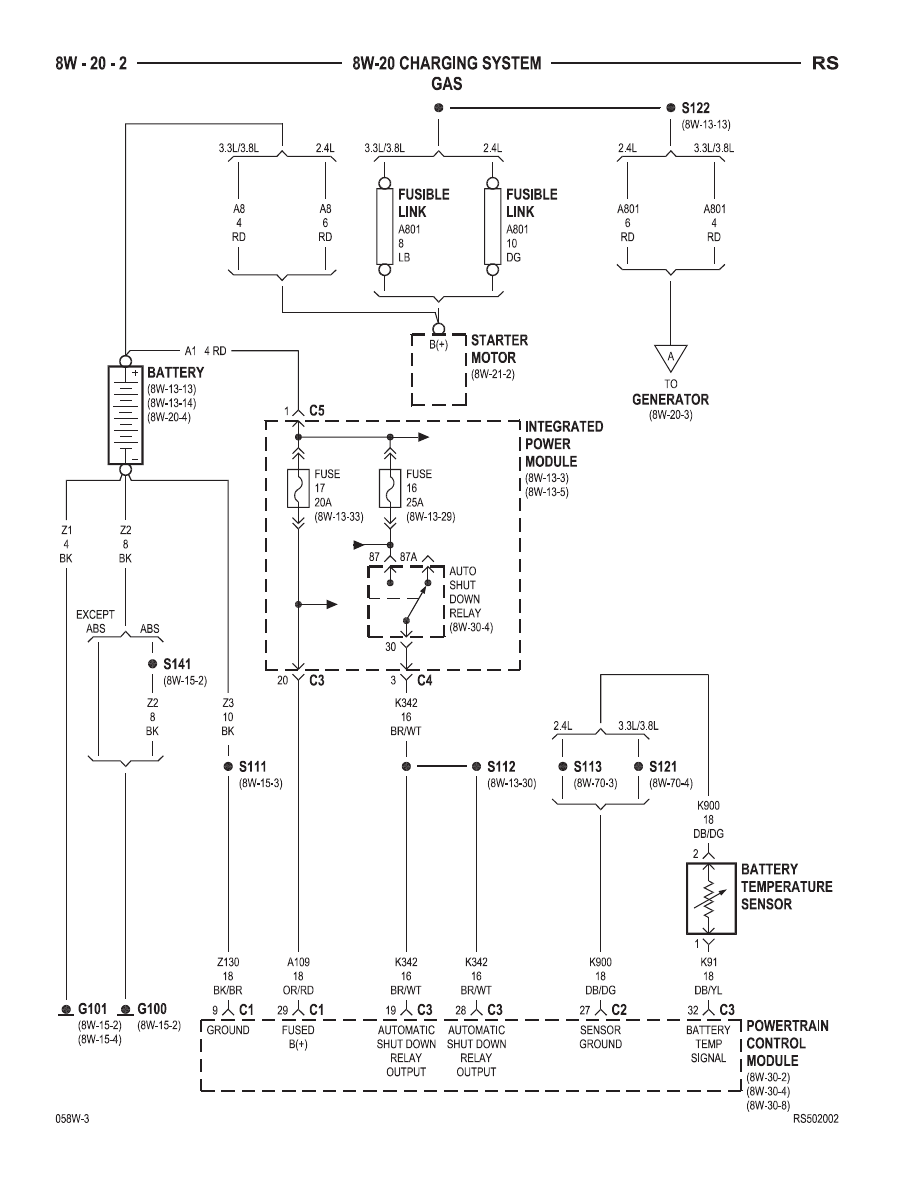

8W-20 CHARGING SYSTEM
Component
Page
Auto Shut Down Relay . . . . . . . . . . . . . . . . 8W-20-2
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 4
Battery Temperature Sensor . . . . . . . . . 8W-20-2, 4

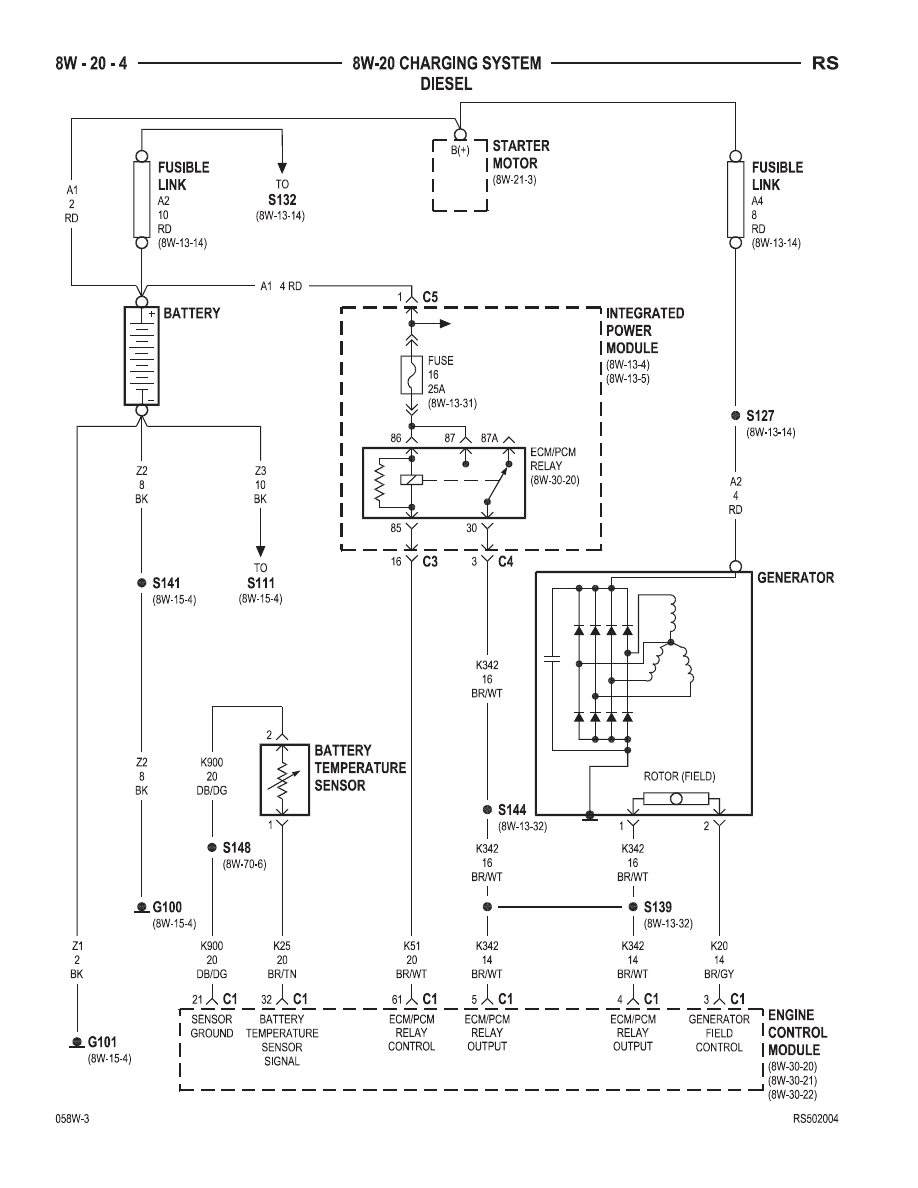

ECM/PCM Relay . . . . . . . . . . . . . . . . . . . . 8W-20-4
Engine Control Module . . . . . . . . . . . . . . . . 8W-20-4
Fuse 16 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 4
Fuse 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20-2
Fusible Link . . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 4
Component
Page
G100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 4
G101 . . . . . . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 3, 4

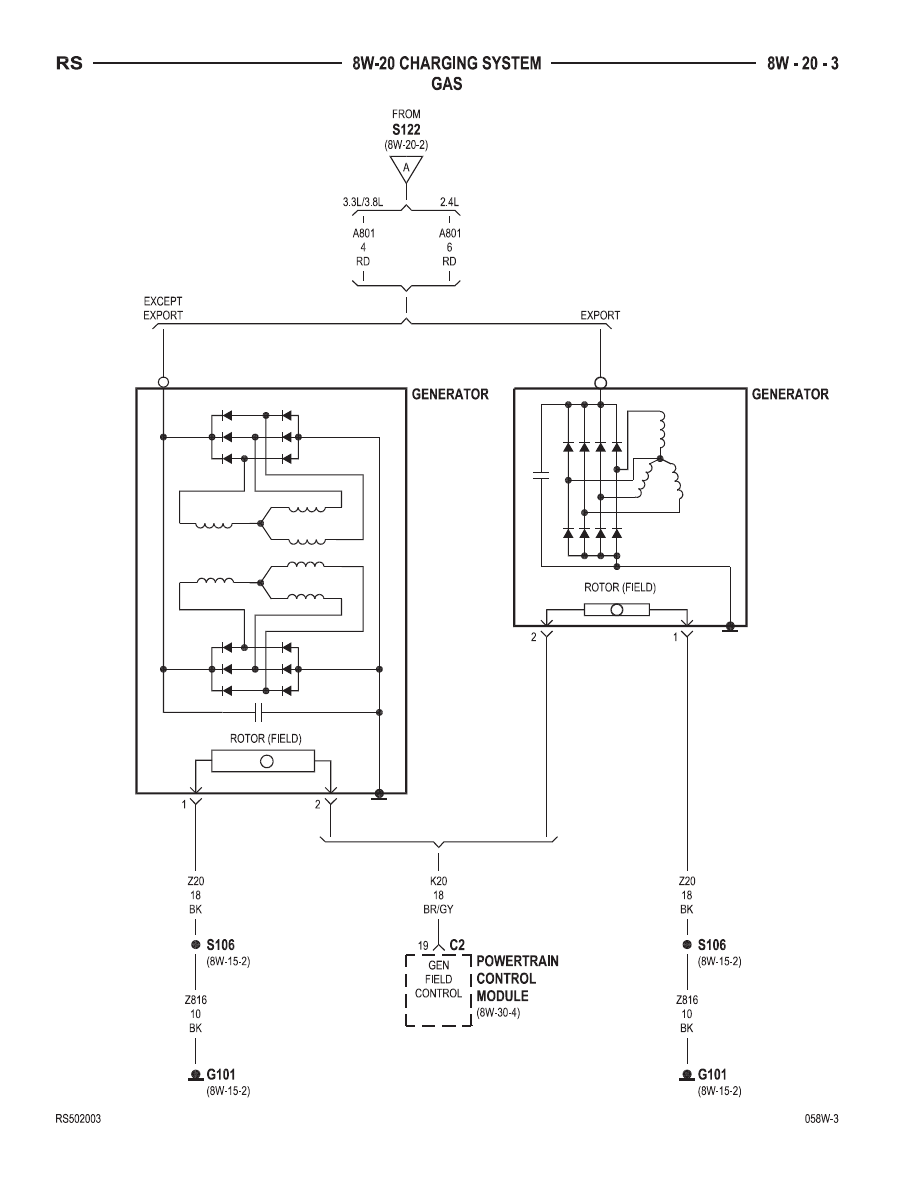

Generator . . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 3, 4
Integrated Power Module . . . . . . . . . . . . 8W-20-2, 4
Powertrain Control Module . . . . . . . . . . 8W-20-2, 3
Starter Motor . . . . . . . . . . . . . . . . . . . . . 8W-20-2, 4
RS
8W-20 CHARGING SYSTEM
8W - 20 - 1
