When the ORC monitors a problem in any of the

dual front airbag system circuits or components,
including the seat belt tensioners, it stores a Diag-
nostic Trouble Code (DTC) in its memory and sends
an electronic message to the EMIC to turn on the
airbag indicator. Proper testing of the supplemental
restraint system components, the Programmable
Communications Interface (PCI) data bus, the elec-
tronic message inputs to and outputs from the EMIC
or the ORC, as well as the retrieval or erasure of a
DTC from the ORC or the EMIC requires the use of
a scan tool. Refer to the appropriate diagnostic infor-
mation.

OCCUPANT CLASSIFICATION SYSTEM

The Occupant Classification System (OCS) auto-

matically suppresses or enables passenger airbag and
seat belt tensioner operation based upon whether or
not the passenger side front seat is occupied and, if
the seat is occupied, classifies the size of the occu-
pant and whether the seat is occupied by a child
seat.

The OCS has an Occupant Classification Module

(OCM) that monitors inputs from the seat weight
bladder pressure sensor under the passenger side
front seat cushion and from the belt tension sensor
on the passenger side front seat belt lower anchor.
Based upon those inputs the microprocessor within
the OCM classifies the occupant of the passenger
side front seat. The OCM then sends electronic occu-
pant classification messages to the ORC. The micro-
processor and programming of the ORC uses these
occupant

classification

messages

to

determine

whether to enable or disable the deployment circuits
for the passenger airbag and seat belt tensioner.

The OCS electrical circuits and components are

continuously monitored by the OCM, and the OCM is
continuously monitored by the ORC. A passenger air-
bag ON/OFF indicator is located in the instrument
panel center stack area. This indicator receives bat-
tery current whenever the ignition switch is in the
ON or START positions, and illuminates only when
the ORC pulls the indicator control circuit to ground.
The indicator illuminates for about seven seconds as
a bulb test each time the ignition switch is turned to
the ON or START positions. Following the bulb test,
the indicator is turned ON or OFF by the ORC based
upon the electronic occupant classification messages
received from the OCM. This indicator is illuminated
whenever the passenger airbag and seat belt ten-
sioner operation has been suppressed, and is turned
OFF whenever they are enabled or when the passen-
ger seat is classified as empty.

When the OCM monitors a problem in any of the

OCS circuits or components, it stores a fault code or
DTC in its memory circuit and sends an electronic

message to the ORC. The ORC then sends an elec-
tronic message to the EMIC to turn ON the airbag
indicator. If for any reason the OCM is unable to
classify the occupant it sends an electronic message
to the ORC, and the ORC suppresses passenger air-
bag and seat belt tensioner operation. Proper testing
of the OCS components, the Programmable Commu-
nications Interface (PCI) data bus, the electronic
message inputs to and outputs from the OCM, the
EMIC or the ORC, as well as the retrieval or erasure
of a DTC’s, requires the use of a scan tool. Refer to
the appropriate diagnostic information.

WARNINGS

Disconnect and isolate the battery negative

cable before beginning any airbag system com-
ponent diagnosis, testing, removal, or installa-
tion procedures. Allow system capacitor to
discharge for two minutes before beginning any
component testing or service. This will disable
the airbag system. Failure to disconnect the
battery negative cable may result in accidental
airbag deployment, personal injury, or death.

Do not place an intact undeployed airbag

face down on a solid surface. The airbag will
propel into the air if accidentally deployed and
may result in personal injury or death.

When carrying or handling an undeployed

airbag, the trim side (face) of the airbag should
be pointing towards the body to minimize pos-
sibility

of

injury

if

accidental

deployment

occurs. Failure to do this may result in per-
sonal injury or death.

Replace

airbag

system

components

with

Mopar

replacement parts. Substitute parts

may appear interchangeable, but internal dif-
ferences may result in inferior occupant protec-
tion. Failure to do so may result in occupant
personal injury or death.

Wear safety glasses, rubber gloves, and long

sleeved clothing when cleaning powder residue
from vehicle after airbag deployment. Sodium
hydroxide

powder

residue

emitted

from

a

deployed

airbag

can

cause

skin

irritation.

Flush affected area with cool water if irritation
is experienced. If nasal or throat irritation is
experienced, exit the vehicle for fresh air until
the irritation ceases. If irritation continues, see
a physician.

Do not use a replacement airbag that is not in

the original packaging. This may result in
improper

deployment,

personal

injury,

or

death.

The factory installed fasteners, screws and

bolts used to fasten airbag components have a
special coating and are specifically designed

RS

RESTRAINTS

8O - 5

RESTRAINTS (Continued)

for the airbag system. Do not use substitute fas-
teners. Use only original equipment fasteners
listed

in

the

parts

catalog

when

fastener

replacement is required.

During, and following, any child restraint

anchor service, due to impact event or vehicle
repair, carefully inspect all mounting hard-
ware, tether straps, and anchors for proper
installation, operation, or damage. If a child
restraint anchor is found damaged in any way,
the anchor must be replaced. Failure to do this
may result in personal injury or death.

Deployed and nondeployed airbags may or

may not have live pyrotechnic material within
the airbag inflator. Do not dispose of driver/
passenger/seat/curtain/knee blocker airbags or
seat belt tensioners unless you are sure of com-
plete deployment. Refer to the Hazardous Sub-
stance Control System for proper disposal.
Dispose of deployed airbags and tensioners
consistent with state, provincial, local, and fed-
eral regulations.

After any airbag component testing or ser-

vice, do not connect the battery negative cable
(Refer

to

8

-

ELECTRICAL/RESTRAINTS

-

DIAGNOSIS AND TESTING - AIRBAG SYSTEM).
Personal injury or death may result if the sys-
tem test is not performed first.

If the vehicle is equipped with the Occupant

Classification System (OCS), do not connect the
battery negative cable before performing the
OCS Verification Test using the scan tool and
the appropriate diagnostic information. Per-
sonal injury or death may result if the system
test is not performed properly.

Never replace both the Occupant Restraint

Controller (ORC) and the Occupant Classifica-
tion Module (OCM) at the same time. If both
require replacement, replace one, then perform
the Airbag System test (Refer to 8 - ELECTRI-
CAL/RESTRAINTS - DIAGNOSIS AND TESTING
- AIRBAG SYSTEM) before replacing the other.
Both the ORC and the OCM store Occupant
Classification System (OCS) calibration data,
which they transfer to one another when one of
them is replaced. If both are replaced at the
same time, an irreversible fault will be set in
both modules and the OCS may malfunction
and cause personal injury or death.

DIAGNOSIS AND TESTING - AIRBAG SYSTEM

(1) With the battery negative remote cable discon-

nected, connect the scan tool to the Data Link Con-
nector (DLC).

(2) Turn the ignition key to the ON position, then

exit vehicle with the scan tool.

(3) After checking that no one is inside the vehicle,

connect the battery negative remote terminal.

(4) Read and record the ACTIVE Diagnostic Trou-

ble Code (DTC) data.

(5) Read and record any STORED DTC’s.
(6) Refer to the proper diagnostic information if

any DTC’s are found in Step 4 and Step 5.

(7) If the airbag warning lamp either fails to light,

or goes ON and stays ON, there is a system malfunc-
tion. To test the airbag warning lamp (bulb) opera-
tion in the cluster (Refer to 8 - ELECTRICAL/
INSTRUMENT

CLUSTER

-

DIAGNOSIS

AND

TESTING). Refer to the proper diagnostic informa-
tion for any other system problems.

STANDARD PROCEDURE

STANDARD PROCEDURE - HANDLING
AIRBAGS

DEPLOYED AIRBAG

WARNING: The vehicle interior may contain a very
small amount of powder, a by-product of airbag
deployment. This powder can irritate the skin, eyes,
nose

and

throat.

Wear safety

glasses, rubber

gloves, and long sleeved clothing when cleaning
any of the powder residue from the vehicle. If you
find that the cleanup is irritating your skin, run cool
water over the affected area. Also, if you experience
nasal or throat irritation, exit the vehicle for fresh
air until the irritation ceases. If irritation continues,
see a physician.

UNDEPLOYED AIRBAG

WARNING: The airbags must be stored in its origi-
nal special container until used for service. At no
time should a source of electricity be permitted
near the inflator on the back of an airbag. When
carrying or handling an undeployed airbag, the trim
side of the airbag should be pointing toward the
body to minimize the possibility of personal injury
or death if accidental deployment occurs. Do not
place undeployed airbag face down on a solid sur-
face, the airbag will propel into the air if accidental
deployment occurs.

STANDARD PROCEDURE - SERVICE AFTER AN
AIRBAG DEPLOYMENT

DRIVER AIRBAG

After a Driver Airbag has been deployed due to a

collision, the following MUST be replaced:

8O - 6

RESTRAINTS

RS

RESTRAINTS (Continued)

• Driver Airbag

• Clockspring Assembly

• Steering Wheel

• Complete Steering Column Assembly w/Lower

Steering Column Coupler

All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

PASSENGER AIRBAG

After a Passenger Airbag has been deployed due to

a collision. the following MUST be replaced:

• Passenger Airbag

• Instrument Panel and Pad Assembly
All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

KNEE BLOCKER AIRBAG

After a Knee Blocker Airbag has been deployed due

to a collision. the following MUST be replaced:

• Knee Blocker Airbag

• Instrument Panel and Pad Assembly
All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

CURTAIN AIRBAG

After a Curtain Airbag has been deployed due to a

collision. the following MUST be replaced:

• Curtain Airbag Assembly

• Headliner

• A, B, and C-Pillar Trim on deployed side.

All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

OCCUPANT CLASSIFICATION SYSTEM (OCS)

After an impact event, either front, rear, or side,

the OCS system components need to be inspected
and replaced if found to be damaged.

This includes:
• Belt Tension Sensor

• Occupant Classification Module (OCM)

• Passenger Airbag ON/Off Indicator

• Seat Weight Bladder and Sensor

WARNING:

Never

replace

both

the

Occupant

Restraint Controller (ORC) and the Occupant Clas-
sification Module (OCM) at the same time. If both
require replacement, replace one, then perform the
Airbag System test (Refer to 8 - ELECTRICAL/RE-
STRAINTS - DIAGNOSIS AND TESTING - AIRBAG
SYSTEM) before replacing the other. Both the ORC
and the OCM store Occupant Classification System
(OCS) calibration data, which they transfer to one
another when one of them is replaced. If both are
replaced at the same time, an irreversible fault will
be set in both modules and the OCS may malfunc-
tion and result in personal injury or death.

Whether replaced or not, the OCS must be re-ze-

roed to make sure that the system in within proper
parameters to sense the occupants weight correctly.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

WARNING: Following successful completion of the
Airbag System test procedure, the Occupant Classi-
fication System Verification Test must be done
using a scan tool and the appropriate diagnostic
information. Personal injury or death may result if
the system test is not performed.

RS

RESTRAINTS

8O - 7

RESTRAINTS (Continued)

SEAT BELTS AND TENSIONERS

After a frontal impact where an airbag has been

deployed due to a collision. the following MUST be
replaced:

• Front Seat Belt Buckle (driver and passenger)

with integral Tensioners.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

All other seat belts should be closely inspected for

cuts, tears, fraying, or damage in any way following
any frontal impact or airbag deployment. The other
seat belts are to be replaced when visible damage is
incurred. Inspect the Lower Anchors and Tether for
CHildren (LATCH) child restraint anchors for dam-
age after an impact event and replace as needed.

CLEAN UP PROCEDURE

Roll or fold the airbag towards its mounting point

(i.e. instrument panel, steering wheel, knee blocker,
curtain, or seat back). Then tape the ripped cover
over the deployed airbag if applicable.

Use a vacuum cleaner to remove any residual pow-

der from the vehicle interior. Work from the outside
in to avoid kneeling or sitting in a contaminated
area. Vacuum the heater and A/C outlets as well (Fig.
4). If the heater or air conditioner was in RECIRC
mode at time of airbag deployment, operate blower
motor on low speed and vacuum powder residue
expelled from the heater and A/C outlets. Multiple
vacuum cleaning may be necessary to decontaminate
the interior of the vehicle.

BELT TENSION SENSOR

DESCRIPTION

Vehicles equipped with the Occupant Classification

System (OCS) include a belt tension sensor (Fig. 5).
This sensor is integral to the passenger side front
seat belt lower anchor which is secured to the lower
B-pillar, on the passenger side (Fig. 6). The belt ten-
sion sensor consists of a molded plastic housing, a
metal seat belt anchor loop, and a short pigtail wire.
The electronic circuitry of the belt tension sensor is
concealed and protected within the molded plastic
housing.

The belt tension sensor cannot be repaired and, if

faulty or damaged, the entire passenger side front
seat belt and retractor unit must be replaced (Refer
to

8

-

ELECTRICAL/RESTRAINTS/SEAT

BELT

OUTBOARD FRONT - REMOVAL).

OPERATION

The belt tension sensor is designed to sense the

relative cinch load applied to the passenger side front
seat belt, which provides a logic input to the micro-
processor of the Occupant Classification Module
(OCM). When a load is applied to the seat belt, the
changes in the load are measured by the belt tension
sensor through the seat belt lower anchor. As the
load changes, the circuitry of the belt tension sensor
changes the output voltage of the sensor.

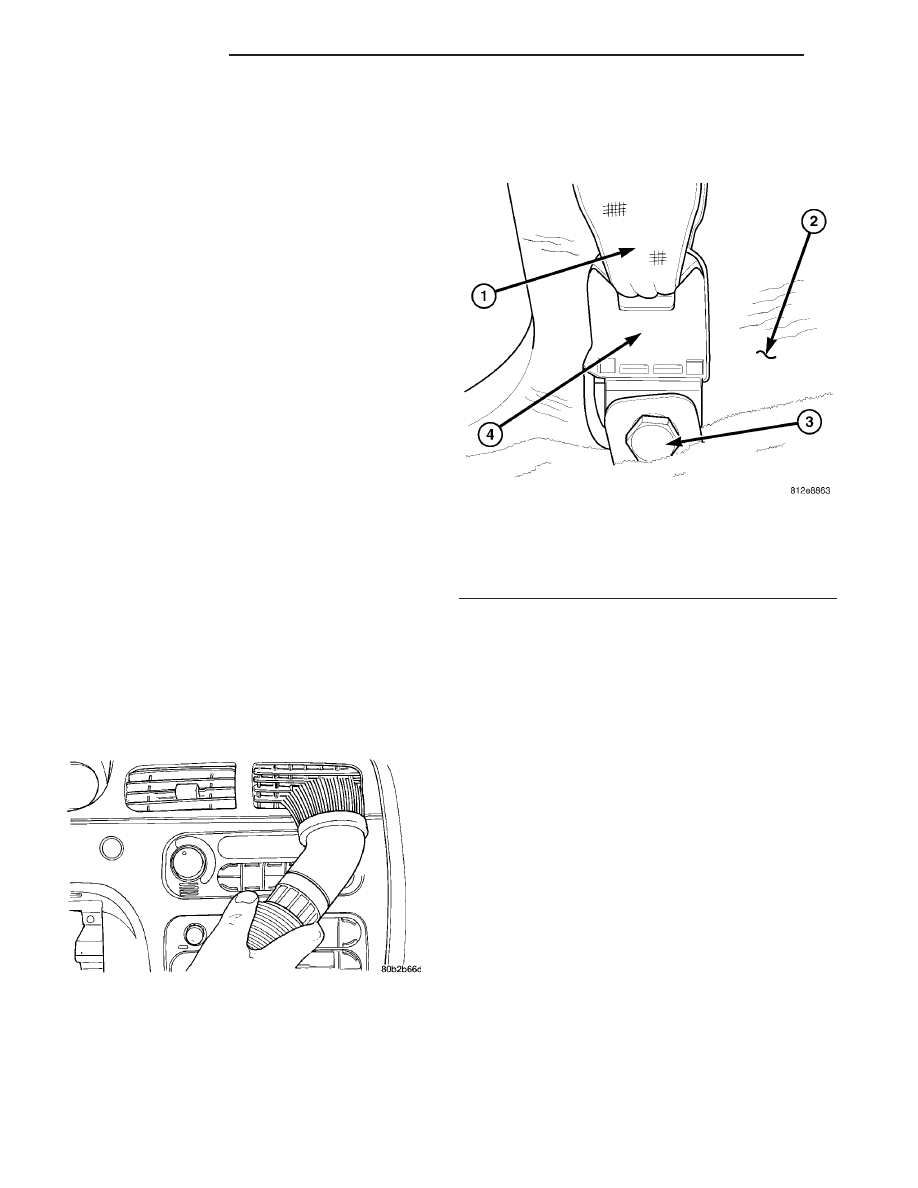

Fig. 4 VACUUM HEATER AND A/C OUTLETS -

TYPICAL

Fig. 5 BELT TENSION SENSOR

1 - SEAT BELT WEBBING
2 - B-PILLAR
3 - SEAT BELT LOWER ANCHOR BOLT
4 - BELT TENSION SENSOR

8O - 8

RESTRAINTS

RS

RESTRAINTS (Continued)















Content   ..  749  750  751  752   ..
