Fig.

224

UPPER

LADDER

(1

OF

2)

RS

BODY STRUCTURE

23 - 391

WELD LOCATIONS (Continued)

Fig.

225

UPPER

LADDER

(2

OF

2)

23 - 392

BODY STRUCTURE

RS

WELD LOCATIONS (Continued)

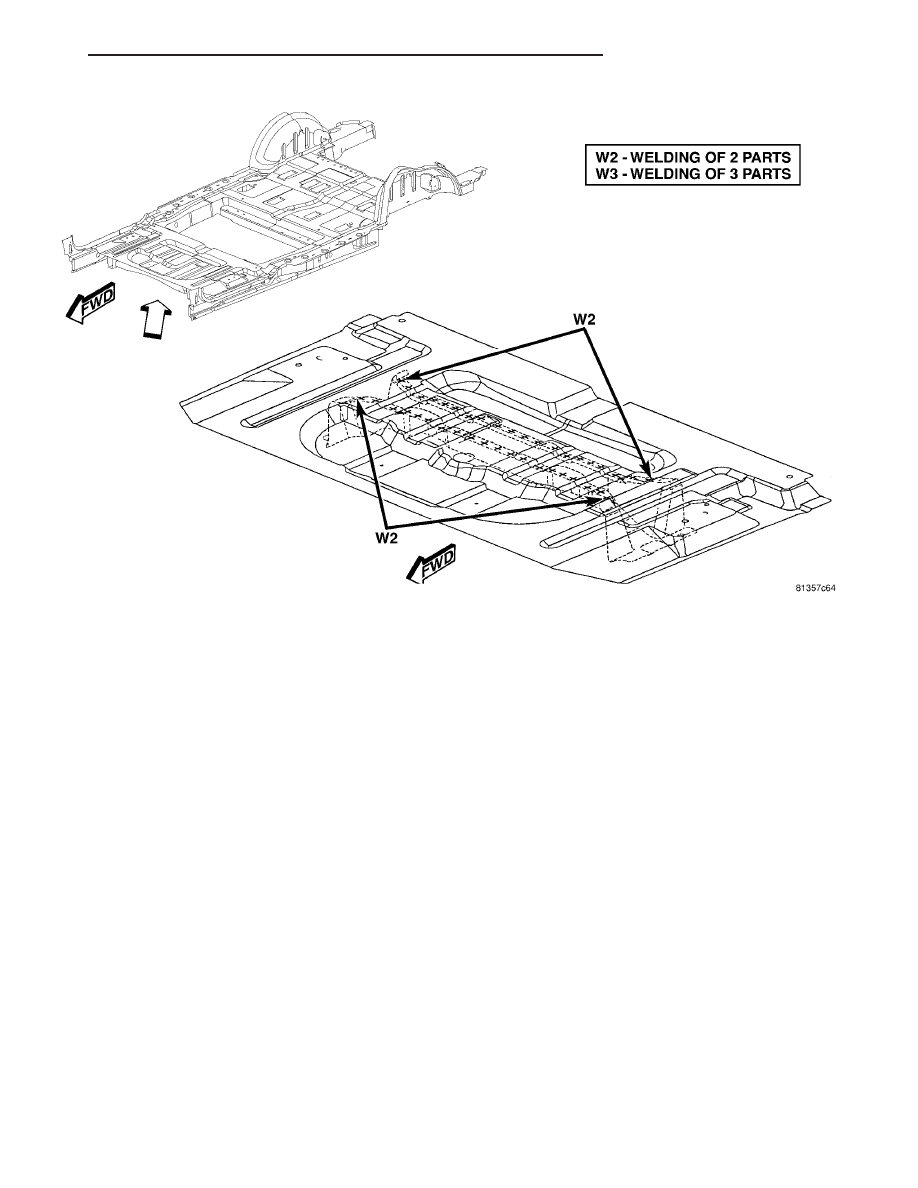

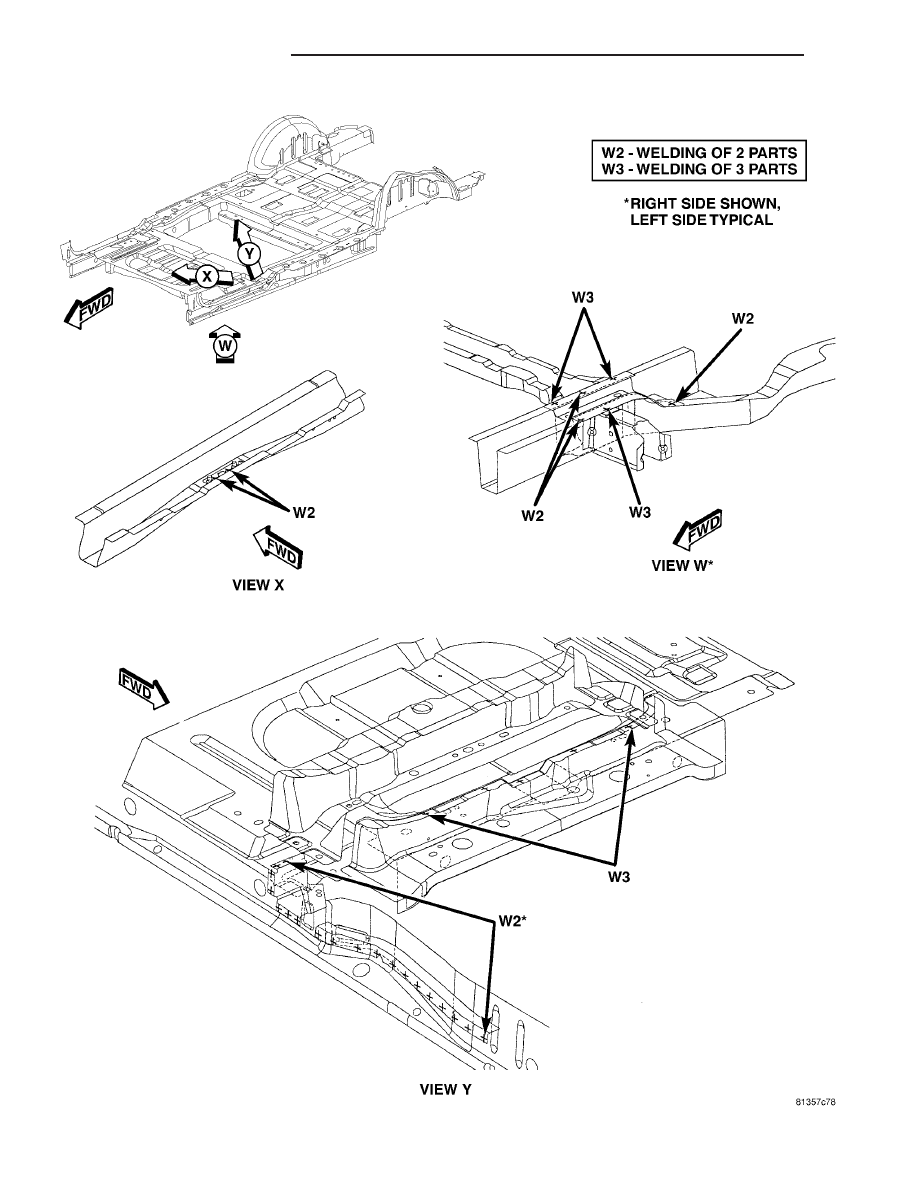

Fig. 226 UNDERBODY COMPLETE (1 OF 8)

RS

BODY STRUCTURE

23 - 393

WELD LOCATIONS (Continued)

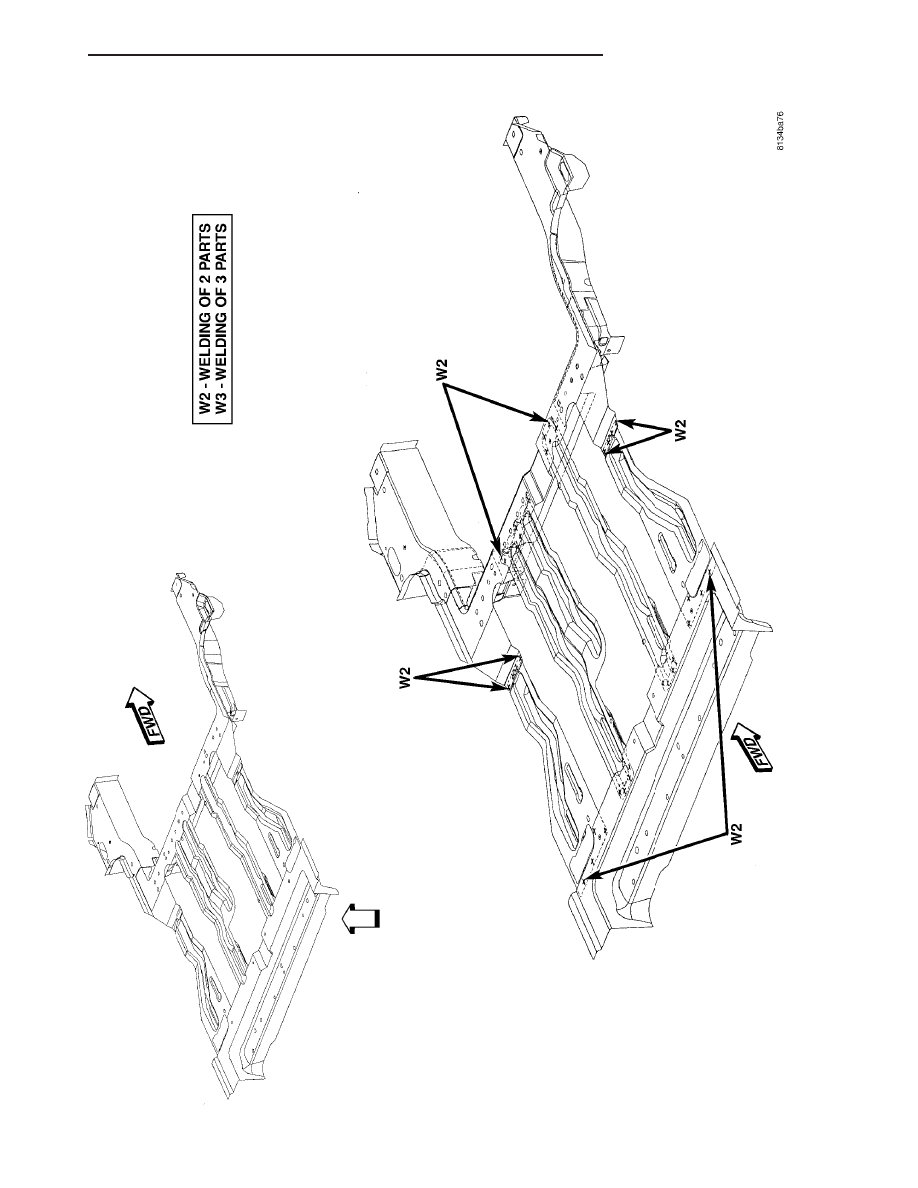

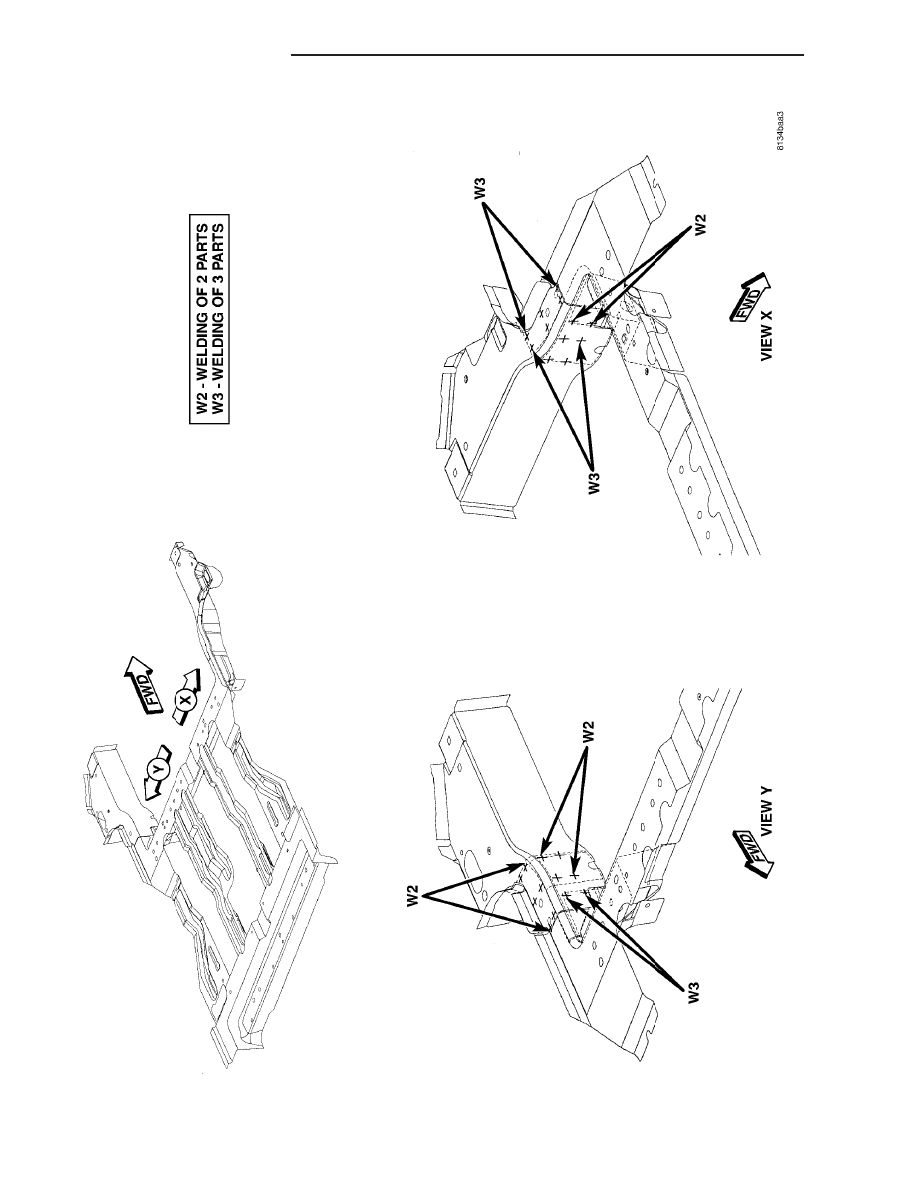

Fig. 227 UNDERBODY COMPLETE (2 OF 8)

23 - 394

BODY STRUCTURE

RS

WELD LOCATIONS (Continued)
