(43) Install battery (Fig. 207).
(44) Install battery hold-down clamp.
(45) Connect battery cables.
(46) Bleed brake hydraulic system. Refer to (Refer
to 5 - BRAKES - STANDARD PROCEDURE).
(47) Add power steering fluid as required.
(48) Check and adjust transaxle fluid level. Refer
to (Refer to 21 - TRANSMISSION/TRANSAXLE/AU-
TOMATIC - 41TE/FLUID - STANDARD PROCE-
DURE)
(49) AWD models: Check and adjust PTU fluid
level. Refer to procedure in this group.
(50) Align front end. Refer to (Refer to 2 - SUS-
PENSION/WHEEL
ALIGNMENT
-
STANDARD
PROCEDURE).
SCHEMATICS AND DIAGRAMS
4XTE TRANSAXLE HYDRAULIC SCHEMATICS

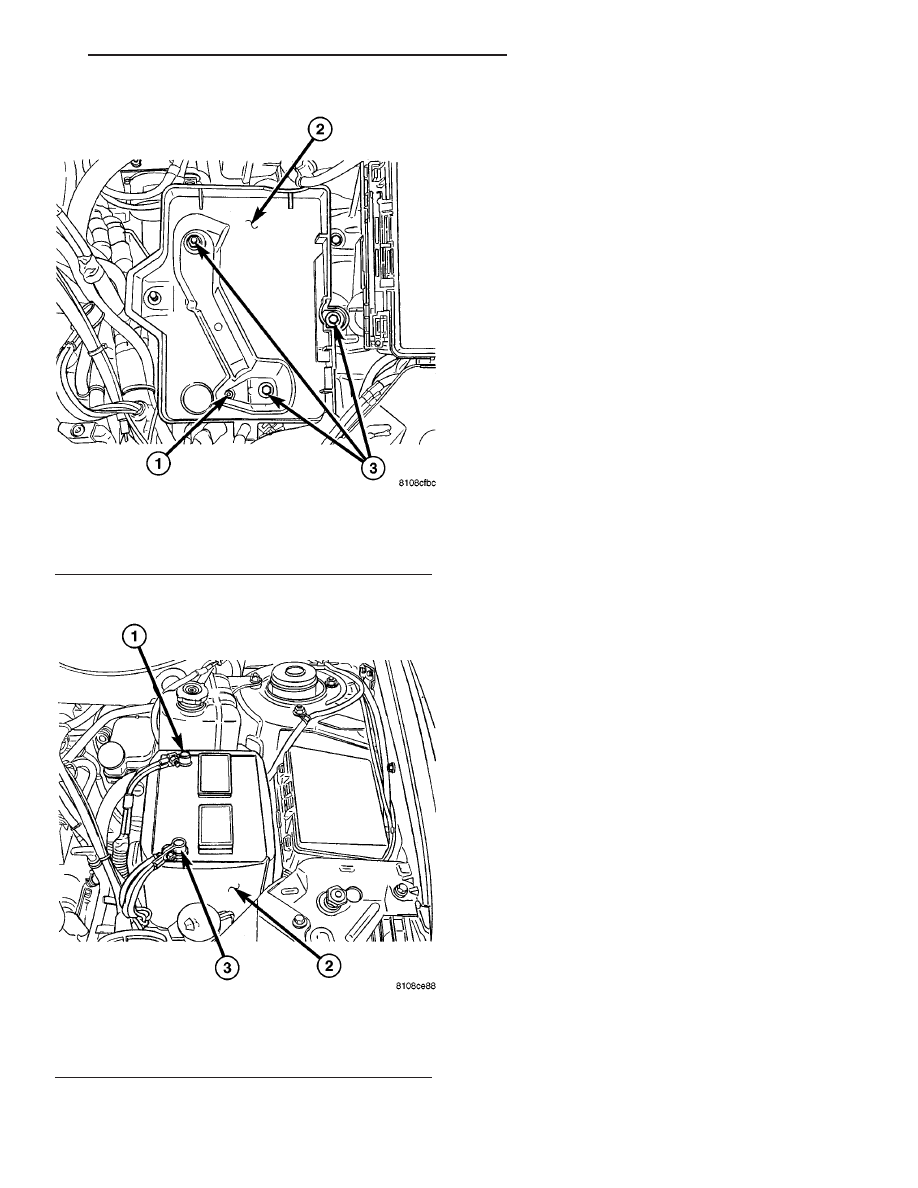

Fig. 206 Battery Tray
1 - DRAIN HOLE/HOSE ATTACHMENT
2 - BATTERY TRAY
3 - BOLTS
Fig. 207 Battery
1 - BATTERY POSITIVE CABLE
2 - THERMO-WRAP
3 - BATTERY NEGATIVE CABLE
CS
41AE/TE AUTOMATIC TRANSAXLE
21 - 71
41AE/TE AUTOMATIC TRANSAXLE (Continued)
