(10) Remove PTU from vehicle.

INSTALLATION

(1) Install PTU lower bracket.
(2) Install

PTU-to-transaxle

upper

bolts

and

torque to 54 N·m (40 ft. lbs.) (Fig. 3).

(3) Install PTU into position. Install two (2) lower

PTU-to-bracket bolts and torque to 28 N·m (21 ft.
lbs.) (Fig. 188).

(4) Install brace and bracket (Fig. 3).
(5) Install PTU heat shield (Fig. 190).
(6) Install PTU/rear mount bracket. Install and

torque six (6) bolts to 54 N·m (40 ft. lbs.). (Fig. 190).

(7) Torque oil pan-to-transaxle collar bolts to 54

N·m (40 ft. lbs.) (Fig. 2).

(8) Install propeller shaft assembly. (Refer to 3 -

DIFFERENTIAL

&

DRIVELINE/PROPELLER

SHAFT - INSTALLATION)

(9) Install right halfshaft assembly. (Refer to 3 -

DIFFERENTIAL & DRIVELINE/HALF SHAFT -
INSTALLATION)

(10) Install engine cradle crossmember. (Refer to

13 - FRAME & BUMPERS/FRAME/ENGINE CRA-
DLE CROSSMEMBER - INSTALLATION)

(11) Check and adjust PTU Fluid level. The PTU

holds 1.0L (2.1 pts.) of Mopar

t 75W-90 Gear and Axle

Lubricant.

SPECIFICATIONS - POWER TRANSFER UNIT

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Bolt, PTU-to-Transaxle

Lower

28

21

Bolt, PTU-to-Transaxle

Upper

54

40

Bolt, Mount/Bracket-to-

PTU

54

40

Plug, PTU Drain/Fill

35

26

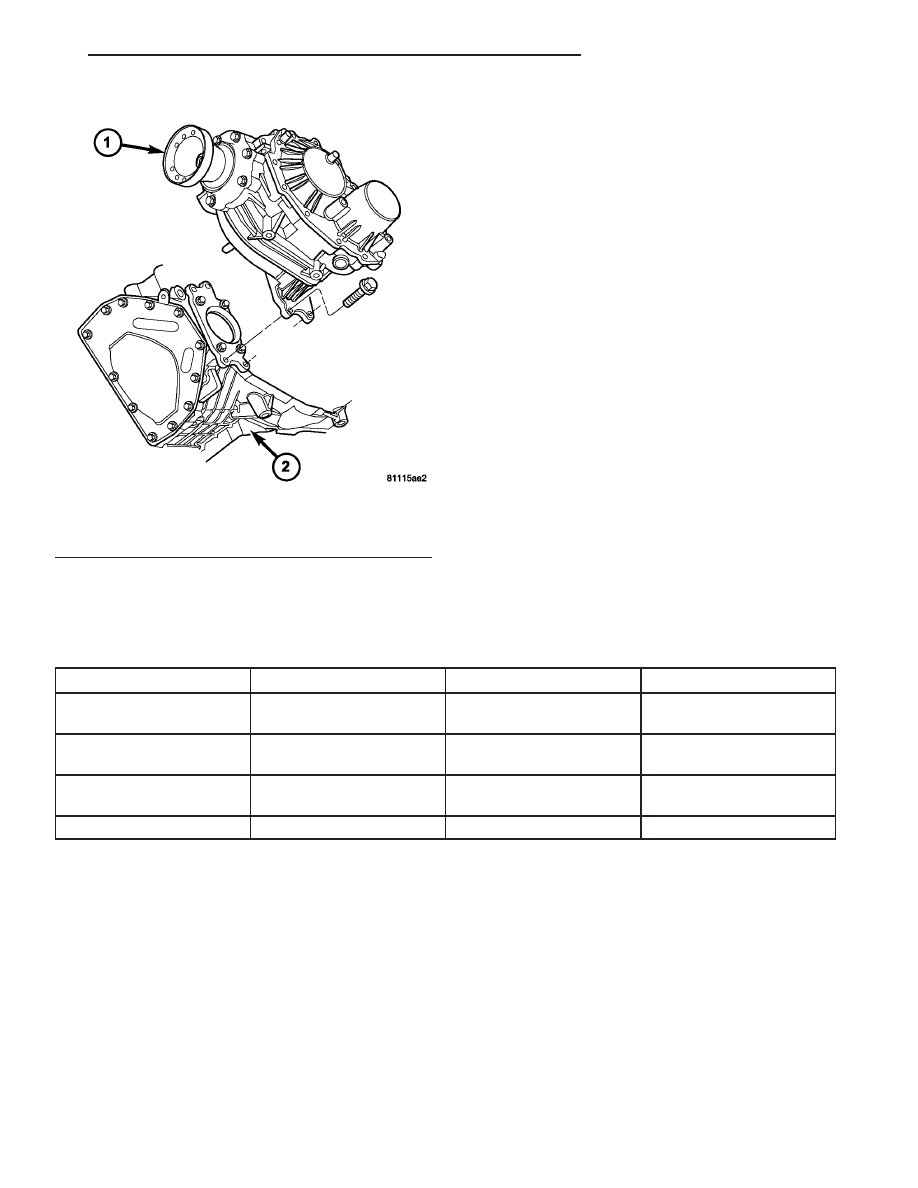

Fig. 4 Power Transfer Unit Lower Bolts

1 - POWER TRANSFER UNIT
2 - TRANSAXLE

CS

POWER TRANSFER UNIT

21 - 3

POWER TRANSFER UNIT (Continued)

SPECIAL TOOLS

DIFFERENTIAL CARRIER SEAL

REMOVAL

NOTE: The Power Transfer Unit must be removed
from the vehicle to replace this seal.

(1) Remove PTU from transaxle. (Refer to 21 -

TRANSMISSION/TRANSAXLE/POWER TRANSFER
UNIT - REMOVAL)

(2) Use a pry bar to remove seal from retainer

plate (Fig. 5). Be careful not to damage seal journal
when removing seal.

INSTALLATION

(1) Using a large socket, carefully install new seal.

The spring side of the seal must face the transaxle
differential.

(2) Install the PTU to the transaxle. (Refer to 21 -

TRANSMISSION/TRANSAXLE/POWER TRANSFER
UNIT - INSTALLATION)

(3) Check PTU fluid level. (Refer to 21 - TRANS-

MISSION/TRANSAXLE/POWER TRANSFER UNIT -
STANDARD PROCEDURE)

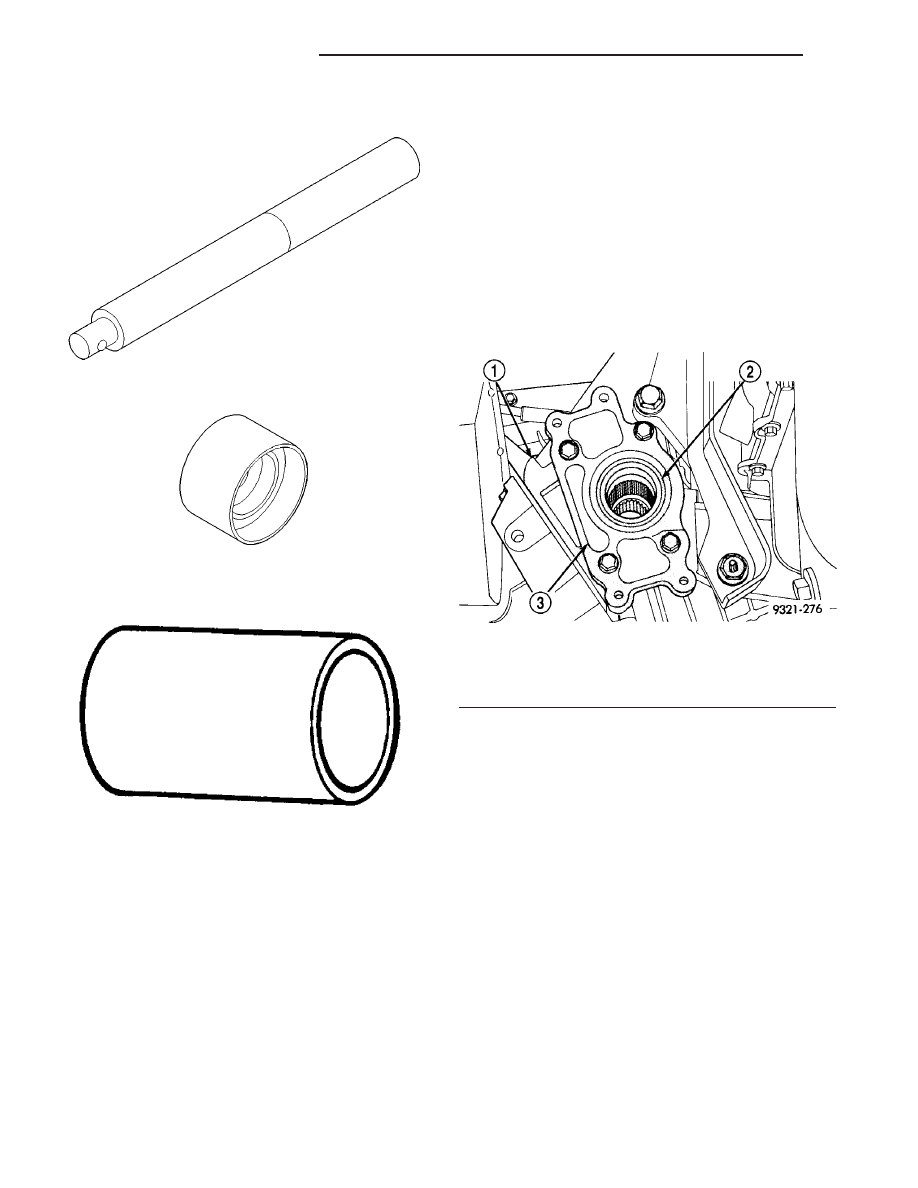

Universal Handle C-4171

Installer 6536-A

Installer, 9321

Fig. 5 Transaxle Differential Carrier Seal

1 - TRANSAXLE CASE
2 - DIFFERENTIAL CARRIER SEAL
3 - RETAINER PLATE

21 - 4

POWER TRANSFER UNIT

CS

POWER TRANSFER UNIT (Continued)

END COVER BALL BEARING

REMOVAL

(1) Remove right halfshaft assembly (Refer to 3 -

DIFFERENTIAL & DRIVELINE/HALF SHAFT -
REMOVAL).

(2) Remove outer halfshaft seal (Fig. 6).

(3) Remove snap ring (Fig. 7).

(4) Remove bearing (slip-fit) (Fig. 8).

INSTALLATION

(1) Install bearing assembly (Fig. 8).
(2) Install snap ring (Fig. 7).

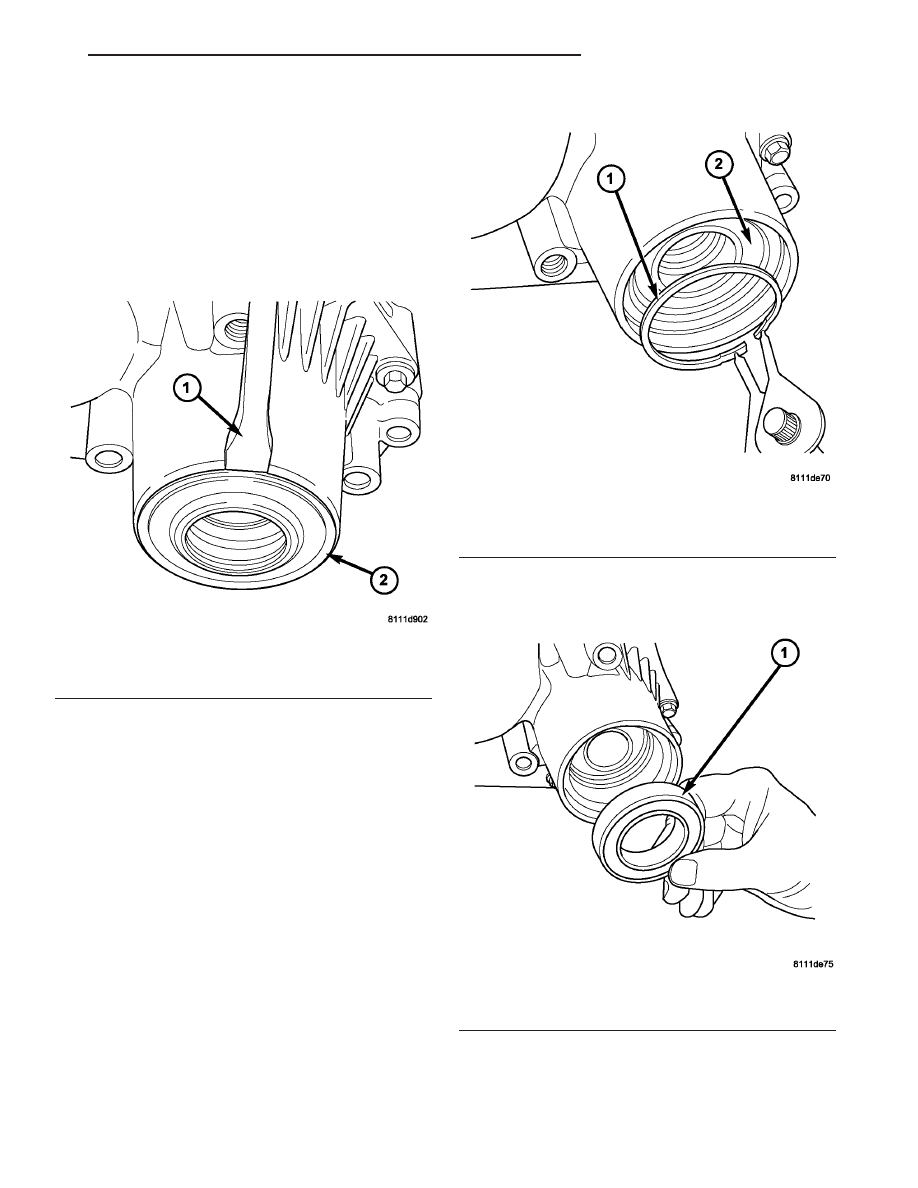

Fig. 6 Outer Halfshaft Seal Removal

1 - SCREWDRIVER
2 - SEAL

Fig. 7 Snap Ring Removal/Installation

1 - SNAP RING
2 - BEARING

Fig. 8 Bearing Removal/Installation

1 - BEARING

CS

POWER TRANSFER UNIT

21 - 5

(3) Using Tools C4171 and 6536A, install outer

halfshaft seal (Fig. 9).

(4) Install right halfshaft assembly. (Refer to 3 -

DIFFERENTIAL & DRIVELINE/HALF SHAFT -
INSTALLATION)

(5) Check and adjust PTU fluid level. (Refer to 21 -

TRANSMISSION/TRANSAXLE/POWER TRANSFER
UNIT - STANDARD PROCEDURE)

INPUT SHAFT SEAL

REMOVAL

(1) Remove power transfer unit. (Refer to 21 -

TRANSMISSION/TRANSAXLE/POWER TRANSFER
UNIT - REMOVAL)

(2) Using drill and suitable bit, drill hole in input

shaft seal to facilitate removal with slide hammer
(Fig. 10). Use care not to damage the shaft seal-
ing surface.

(3) Using slide hammer and suitable screw, remove

input shaft seal.

INSTALLATION

(1) Using Tools C4171 and 9321, install input shaft

seal (Fig. 11).

(2) Install Power Transfer Unit. (Refer to 21 -

TRANSMISSION/TRANSAXLE/POWER TRANSFER
UNIT - INSTALLATION)

Fig. 9 Outer Halfshaft Seal Installation

1 - TOOL C-4171
2 - TOOL 6536A
3 - SEAL

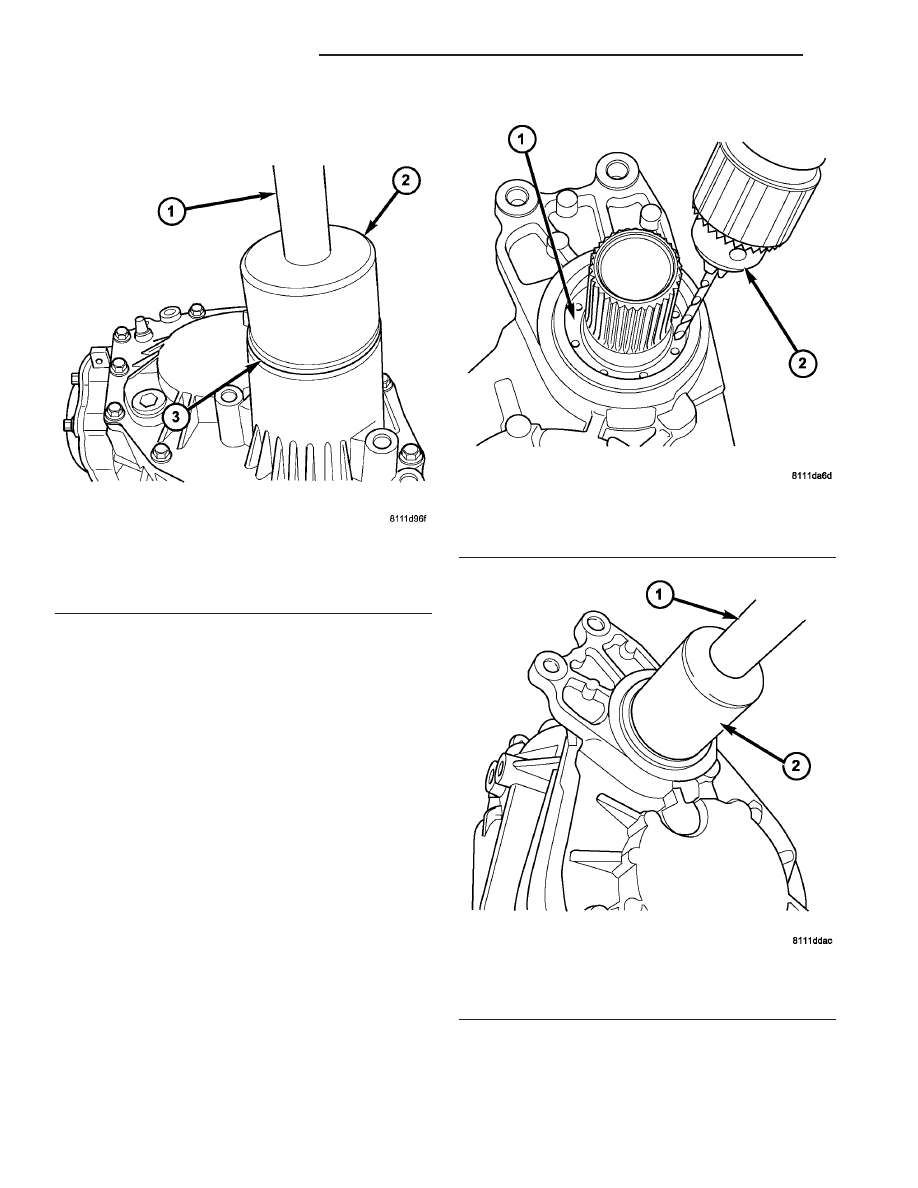

Fig. 10 Preparing Seal for Removal

1 - INPUT SHAFT SEAL
2 - DRILL AND BIT

Fig. 11 Input Shaft Seal Installation

1 - TOOL C-4171
2 - TOOL 9321

21 - 6

POWER TRANSFER UNIT

CS

END COVER BALL BEARING (Continued)
