INSPECTION - TENSIONER PULLEY ASSEMBLY
NOTE: The tensioner pulley, bracket, and pivot bolt
is serviced as an assembly.
(1) Inspect pulley for free movement. Replace if
pulley is loose, seized, or rough turning (Fig. 182).
(2) Inspect pulley bearing and seal. Replace if
damaged.
(3) Inspect pivot bolt for free movement in assem-
bly housing. Replace assembly if seized or excessive
looseness.
INSTALLATION
INSTALLATION - TENSIONER PULLEY
ASSEMBLY
(1) Install the timing belt tensioner pulley (1) (Fig.
183) assembly. Tighten the pivot bolt (2) to 61 N·m
(45 ft. lbs.).
(2) Install the timing belt. (Refer to 9 - ENGINE/
VALVE TIMING/TIMING BELT AND SPROCKETS -
INSTALLATION - TIMING BELT)
TENSIONER
(1) For timing belt tensioner installation procedure
(Refer to 9 - ENGINE/VALVE TIMING/TIMING
BELT AND SPROCKETS - INSTALLATION - TIM-
ING BELT).

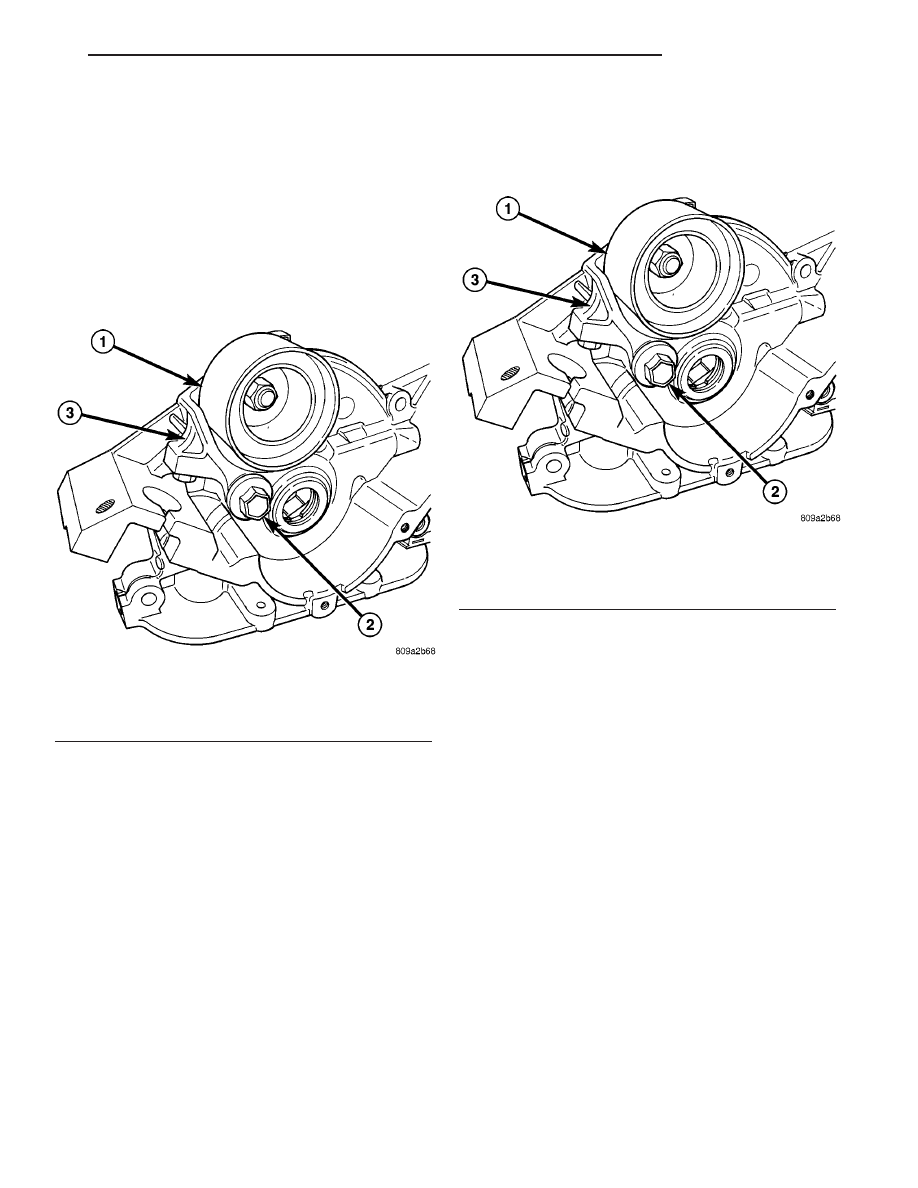

Fig. 182 TENSIONER PULLEY
1 - TENSIONER PULLEY
2 - PIVOT BOLT
3 - TENSIONER BRACKET
Fig. 183 TENSIONER PULLEY
1 - TENSIONER PULLEY
2 - PIVOT BOLT
3 - TENSIONER BRACKET
