the seat belt by assuring that the belt is tight about
the occupant early in a collision. Tensioners are
designed to work for all size occupants.

These devices are not a substitute for proper seat

belt placement by the occupant. The seat belt still
must be worn snugly and positioned properly.

The tensioners are triggered by the Occupant

Restraint Controller (ORC). Like the front airbags,
the tensioners are single use items. After a collision
that is severe enough to deploy the airbags and ten-
sioners, both must be replaced.

PASSIVE RESTRAINTS - AIRBAG SYSTEM

The Passive Restraints are referred to as a supple-

mental restraint system because they were designed
and are intended to enhance the protection for the
occupants of the vehicle ONLY when used in con-
junction with the seat belts or active restraints. They
are referred to as passive restraints because the
vehicle occupants are not required to do anything to
make them operate; however, the vehicle occupants
must be wearing their seat belts in order to obtain
the maximum safety benefit from the supplemental
restraint system.

The supplemental restraint system electrical cir-

cuits are continuously monitored and controlled by a
microprocessor and software contained within the
Occupant Restraint Controller (ORC). An airbag indi-
cator in the Instrument Cluster illuminates for about
seven seconds as a bulb test each time the ignition
switch is turned to the ON or START positions. Fol-
lowing the bulb test, the airbag indicator is turned
ON or OFF by the ORC to indicate the status of the
supplemental restraint system. If the airbag indica-
tor comes on at any time other than during the bulb
test, it indicates that there is a problem in the sup-
plemental restraint system electrical circuits. Such a
problem may cause airbags not to deploy when
required, or to deploy when not required.

Deployment

of

the

supplemental

restraints

depends upon the angle and severity of an impact.
Deployment is not based upon vehicle speed; rather,
deployment is based upon the rate of deceleration as
measured by the forces of gravity (G force) upon the
impact sensors. When an impact is severe enough,
the microprocessor in the ORC signals the inflator of
the appropriate airbag units to deploy their airbag
cushions. The front seat belt tensioners are provided
with a deployment signal by the ORC in conjunction
with the front airbags and driver knee blocker air-
bag. During a frontal vehicle impact, the knee block-
ers work in concert with properly fastened and
adjusted seat belts to restrain both the driver and
the front seat passenger in the proper position for an
airbag deployment. The knee blockers also absorb
and distribute the crash energy from the driver and

the front seat passenger to the structure of the
instrument panel. The seat belt tensioner removes
the slack from the front seat belts to provide further
assurance that the driver and front seat passenger
are properly positioned and restrained for an airbag
deployment.

When the ORC monitors a problem in any of the

airbag system circuits or components, including the
seat belt tensioners, it stores a fault code or Diagnos-
tic Trouble Code (DTC) in its memory circuit and
sends an electronic message to the cluster to turn on
the airbag indicator. Proper testing of the airbag sys-
tem components, the Programmable Communications
Interface (PCI) data bus, the electronic message
inputs to and outputs from the cluster or the ORC,
as well as the retrieval or erasure of a DTC from the
ORC or cluster requires the use of a DRBIII

t scan

tool. Refer to the appropriate Body Diagnostic Proce-
dures manual.

The ORC determines if an impact is severe enough

to require the airbags to inflate. Based on the level of
collision severity, the ORC determines the proper
rate of inflation. The front airbag inflators are
designed to provide different rates of airbag inflation.
The ORC will not detect roll over collisions.

The ORC also monitors the readiness of the elec-

tronic parts of the system whenever the ignition
switch is in the START or ON positions. If the key is
in the OFF position, in the ACC position, or not in
the ignition switch, the front airbags are not on and
will not inflate.

The ORC sends a message to the cluster to turn on

the AIRBAG light in the instrument panel for 6 to 8
seconds when the ignition switch is first turned ON,
then turns the light OFF. If the ORC detects a mal-
function in any part of the system, the airbag light
will turn ON either momentarily or continuously.

When the ORC detects a collision requiring the

Front Airbags, it signals the inflator units. A large
quantity of nontoxic gas is generated to inflate the
front airbags. Different front airbag inflation rates
are possible, these rates are determined by the ORC
based on collision severity. The front airbag covers
separate and fold out of the way as the front airbags
inflate to their full size. The front airbags fully
inflate in about 50 milliseconds. This is only about
half of the time it takes you to blink your eyes. The
front airbags then quickly deflate while helping to
restrain the driver and front passenger. The driver’s
and passenger’s front airbag gas is vented through
the airbag material and small vent openings towards
the instrument panel. In this way the front airbags
do not interfere with your control of the vehicle.

The

Supplemental

Curtain

Airbags

are

designed to activate only in certain side collisions.
When the ORC detects a collision requiring the cur-

CS

RESTRAINTS

8O - 5

RESTRAINTS (Continued)

tain airbags to inflate, it signals the inflators on the
crash side of the vehicle. A quantity of nontoxic gas is
generated to inflate the curtain airbag. The inflating
curtain airbag pushes the outside edge of the head-
liner out of the way and inflates (in about the same
time it takes to blink your eyes). A properly belted
and seated occupant is less likely to be injured by the
force of the airbag or crash event. Items that are
positioned in the area where the curtain airbag
inflates can reduce the effectiveness of the airbag
and also increase the likelihood of injuries to the
occupants, this especially applies to children. The
curtain airbag is about 4 inches (10 cm) thick when
it is inflated.

When the ORC detects a collision requiring the

Knee Blocker Airbag, it signals the inflator unit. A
quantity of nontoxic gas is generated to inflate the
Knee Blocker Airbag. The Knee Blocker Airbag
inflates rearward towards the driver’s knees to help
protect the knees and position the driver for the best
interaction with the front airbag. The Knee Blocker
Airbag fully inflates in about 50 milliseconds, this is
only about half of the time it takes you to blink your
eyes. It then quickly deflates while helping to protect
the driver’s knees.

Knee Impact Blockers - Help protect the knees

and position you for the best interaction with the
front airbags.

Enhanced Accident Response - If the airbags

and seat belt tensioners deploy after an impact and
the electrical system remains functional, vehicles
equipped with power door locks will unlock automat-
ically. In addition, approximately 5 seconds after the
vehicle has stopped moving, the interior lights will
illuminate until the ignition switch is turned off.

WARNINGS

This system is a sensitive, complex unit. Dis-

connect and isolate the battery negative cable
before beginning airbag system component ser-
vice procedures. Allow system capacitor to dis-
charge for two minutes before removing airbag
components. This will disable the airbag sys-
tem. Failure to disconnect the battery could
result in accidental airbag deployment and pos-
sible personal injury or death.

Do not place an intact undeployed airbag

face down on a solid surface, the airbag will
propel into the air if accidentally deployed and
could result in personal injury or death. When
carrying or handling an undeployed airbag, the
trim side of the airbag should be pointing
towards the body to minimize possibility of per-
sonal injury or death if accidental deployment
occurs.

Replace

airbag

system

components

with

Mopar

replacement parts. Substitute parts

may appear interchangeable, but internal dif-
ferences may result in inferior occupant protec-
tion, personal injury or death.

Wear safety glasses, rubber gloves, and long

sleeved clothing when cleaning powder residue
from vehicle after airbag deployment. Powder
residue emitted from a deployed airbag can
cause skin irritation. Flush affected area with
cool water if irritation is experienced. If nasal
or throat irritation is experienced, exit the
vehicle for fresh air until the irritation ceases.
If irritation continues, see a physician.

Do not use a replacement airbag that is not in

the original packaging. Improper deployment
and occupant personal injury or death could
result.

The factory installed fasteners, screws and

bolts used to fasten airbag components are spe-
cifically designed for the airbag system. Do not
use

substitute

fasteners,

use

only

original

equipment fasteners listed in the parts catalog
when fastener replacement is required. Failure
to do so could result in occupant personal
injury or death.

Airbags should be stored in a cool dry loca-

tion away from excessive heat and static elec-
trical activity with the fabric airbag facing up,
a premature deployment could result causing
personal injury or death.

Deployed and nondeployed airbags may or

may not have live pyrotechnic material within
the airbag inflator. Do not dispose of airbags
unless you are sure of complete deployment.
Please refer to the Hazardous Substance Con-
trol System for proper disposal. Dispose of
deployed airbags in a manner consistent with
state, provincial, local, and federal regulations.

During, and following, any child restraint

anchor service, due to an impact event or vehi-
cle repair, carefully inspect all mounting hard-
ware, tether straps and anchors for proper
installation, operation, or damage. If a child
restraint anchor is found damaged in any way,
the anchor must be replaced. Failure to do so
could result in occupant personal injury or
death.

After any airbag component testing or ser-

vice, do not connect the battery negative cable
(Refer

to

8

-

ELECTRICAL/RESTRAINTS

-

DIAGNOSIS AND TESTING - AIRBAG SYSTEM).
Personal injury or death may result if the sys-
tem test is not performed first.

If the vehicle is equipped with the Occupant

Classification System (OCS), do not connect the

8O - 6

RESTRAINTS

CS

RESTRAINTS (Continued)

battery negative cable before performing the
OCS Verification Test using the scan tool and
the appropriate diagnostic information. Per-
sonal injury or death may result if the system
test is not performed properly.

Never replace both the Occupant Restraint

Controller (ORC) and the Occupant Classifica-
tion Module (OCM) at the same time. If both
require replacement, replace one, then perform
the Airbag System test (Refer to 8 - ELECTRI-
CAL/RESTRAINTS - DIAGNOSIS AND TESTING
- AIRBAG SYSTEM) before replacing the other.
Both the ORC and the OCM store Occupant
Classification System (OCS) calibration data,
which they transfer to one another when one of
them is replaced. If both are replaced at the
same time, an irreversible fault will be set in
both modules and the OCS may malfunction
and cause personal injury or death.

DIAGNOSIS AND TESTING - AIRBAG SYSTEM

(1) With the battery negative remote cable discon-

nected, connect the scan tool to the Data Link Con-
nector (DLC).

(2) Turn the ignition key to the ON position, then

exit vehicle with the scan tool.

(3) After checking that no one is inside the vehicle,

connect the battery negative remote terminal.

(4) Read and record the ACTIVE Diagnostic Trou-

ble Code (DTC) data.

(5) Read and record any STORED DTC’s.
(6) Refer to the proper diagnostic information if

any DTC’s are found in Step 4 and Step 5.

(7) If the airbag warning lamp either fails to light,

or goes ON and stays ON, there is a system malfunc-
tion. To test the airbag warning lamp (bulb) opera-
tion in the cluster (Refer to 8 - ELECTRICAL/
INSTRUMENT

CLUSTER

-

DIAGNOSIS

AND

TESTING). Refer to the proper diagnostic informa-
tion for any other system problems.

STANDARD PROCEDURE - SERVICE AFTER AN
AIRBAG DEPLOYMENT

DRIVER AIRBAG

After a Driver Airbag has been deployed due to a

collision, the following MUST be replaced:

• Driver Airbag

• Driver Airbag Trim Cover

• Clock Spring Assembly

• Steering Wheel

• Complete Steering Column Assembly w/Lower

Steering Column Coupler

All other airbag and vehicle components should be

closely inspected following any airbag deployment,

and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

PASSENGER AIRBAG

After a Passenger Airbag has been deployed due to

a collision. the following MUST be replaced:

• Passenger Airbag

• Instrument Panel and Pad Assembly
All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

KNEE BLOCKER AIRBAG

After a Knee Blocker Airbag has been deployed due

to a collision. the following MUST be replaced:

• Knee Blocker Airbag

• Instrument Panel and Pad Assembly
All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

CURTAIN AIRBAG

After a Curtain Airbag has been deployed due to a

collision. the following MUST be replaced:

• Curtain Airbag Assembly

• Headliner

• A, B, and C-Pillar Trim on deployed side.
All other airbag and vehicle components should be

closely inspected following any airbag deployment,
and should be replaced when visible damage is
incurred.

CS

RESTRAINTS

8O - 7

RESTRAINTS (Continued)

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

OCCUPANT CLASSIFICATION SYSTEM (OCS)

After an impact event, either front, rear, or side,

the OCS system components need to be inspected
and replaced if found to be damaged.

This includes:
• Belt Tension Sensor

• Occupant Classification Module (OCM)

• Passenger Airbag Disabled Indicator

• Seat Weight Bladder and Sensor

WARNING:

Never

replace

both

the

Occupant

Restraint Controller (ORC) and the Occupant Clas-
sification Module (OCM) at the same time. If both
require replacement, replace one, then perform the
Airbag System test (Refer to 8 - ELECTRICAL/RE-
STRAINTS - DIAGNOSIS AND TESTING - AIRBAG
SYSTEM) before replacing the other. Both the ORC
and the OCM store Occupant Classification System
(OCS) calibration data, which they transfer to one
another when one of them is replaced. If both are
replaced at the same time, an irreversible fault will
be set in both modules and the OCS may malfunc-
tion and result in personal injury or death.

Whether replaced or not, the OCS must be re-ze-

roed to make sure that the system in within proper
parameters to sense the occupants weight correctly.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

WARNING: Following successful completion of the
Airbag System test procedure, the Occupant Classi-
fication System Verification Test must be done
using a scan tool and the appropriate diagnostic
information. Personal injury or death may result if
the system test is not performed.

SEAT BELTS AND TENSIONERS

After a frontal impact where an airbag has been

deployed due to a collision. the following MUST be
replaced:

• Front Seat Belt and Retractor (driver and pas-

senger) with integral Tensioners.

All other seat belts should be closely inspected for

cuts, tears, fraying, or damage in any way following

any frontal impact or airbag deployment. The other
seat belts are to be replaced when visible damage is
incurred. Inspect the Lower Anchors and Tether for
CHildren (LATCH) child restraint anchors for dam-
age after an impact event and replace as needed.

WARNING: Do not connect the battery negative
cable (Refer to 8 - ELECTRICAL/RESTRAINTS -
DIAGNOSIS AND TESTING - AIRBAG SYSTEM). Per-
sonal injury or death may result if the system test
is not performed first.

CLEAN UP PROCEDURE

Roll or fold the airbag towards its mounting point

(i.e. instrument panel, steering wheel, or roof rail).
Then tape the ripped cover over the deployed airbag
if applicable.

Use a vacuum cleaner to remove any residual pow-

der from the vehicle interior. Work from the outside
in to avoid kneeling or sitting in a contaminated
area. Vacuum the heater and A/C outlets as well (Fig.
4). If the heater or air conditioner was in RECIRC
mode at time of airbag deployment, operate blower
motor on low speed and vacuum powder residue
expelled from the heater and A/C outlets. Multiple
vacuum cleaning may be necessary to decontaminate
the interior of the vehicle.

BELT TENSION SENSOR

DESCRIPTION

Vehicles equipped with the Occupant Classification

System (OCS) include a belt tension sensor (Fig. 5).
This sensor is integral to the passenger side front
seat belt lower anchor which is secured to the lower
B-pillar, on the passenger side (Fig. 5). The belt ten-
sion sensor consists of a molded plastic housing, a
metal seat belt anchor loop, and a short pigtail wire.
The electronic circuitry of the belt tension sensor is
concealed and protected within the molded plastic
housing.

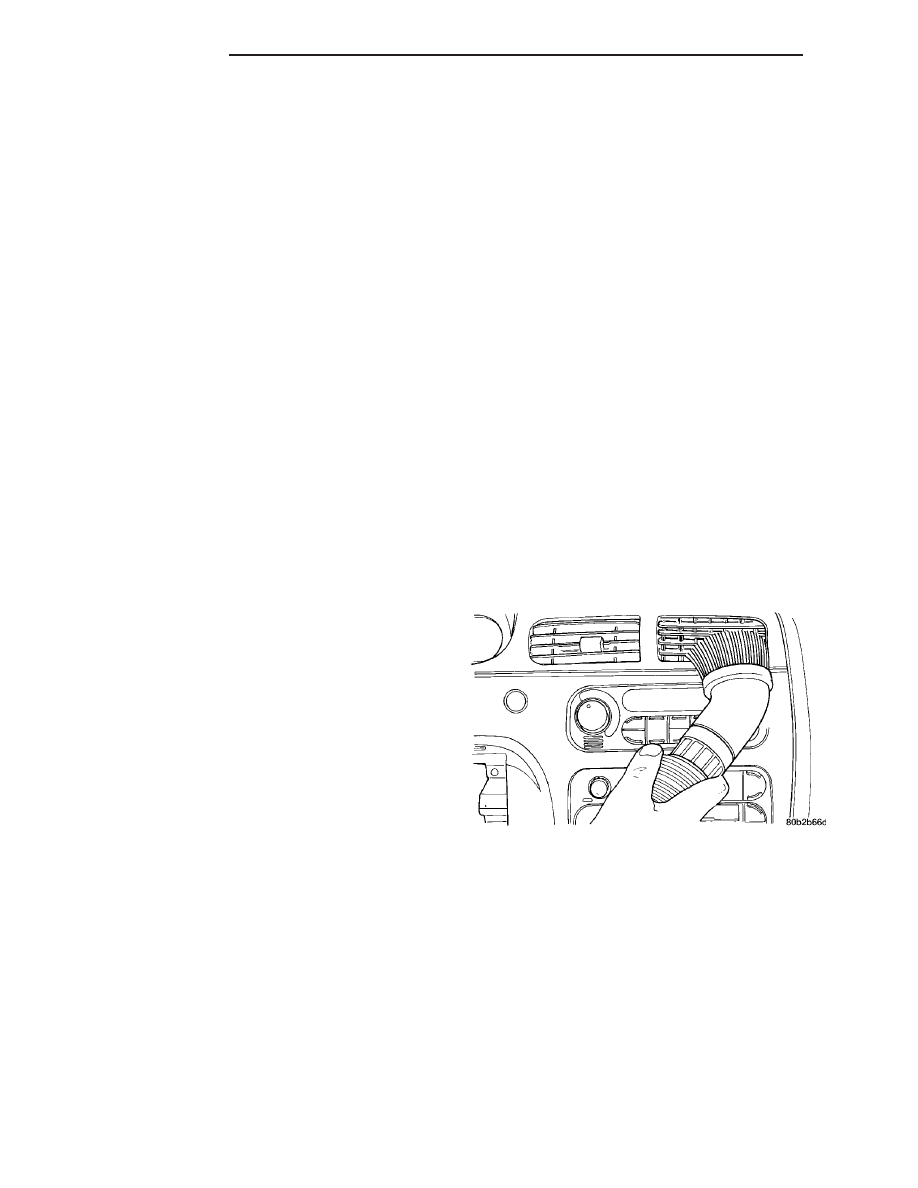

Fig. 4 VACUUM HEATER AND A/C OUTLETS -

TYPICAL

8O - 8

RESTRAINTS

CS

RESTRAINTS (Continued)















Content   ..  526  527  528  529   ..
