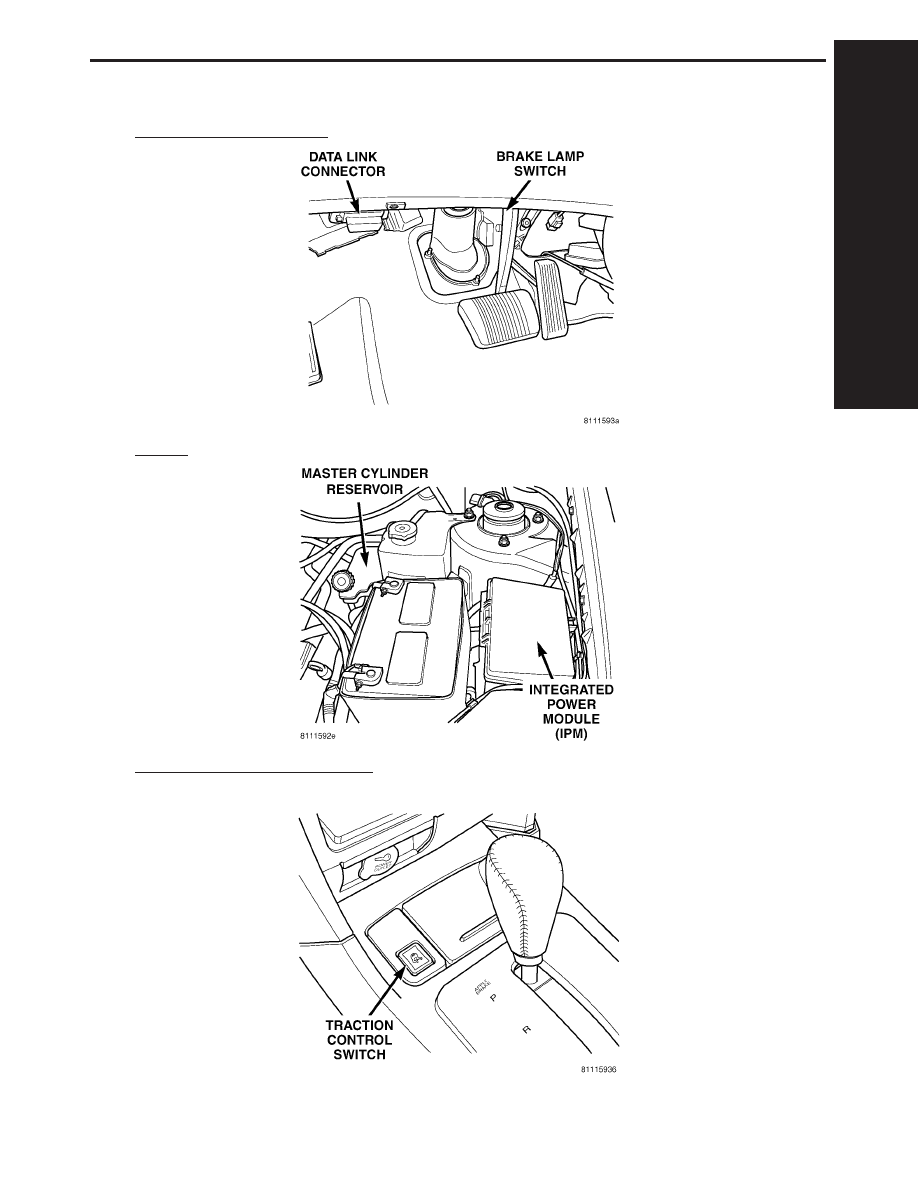

COMPONENT LOCATIONS

8.1

DATA LINK CONNECTOR

8.2

FUSES

8.3

TRACTION CONTROL SWITCH

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

47

COMPONENT LOCATIONS

8.4

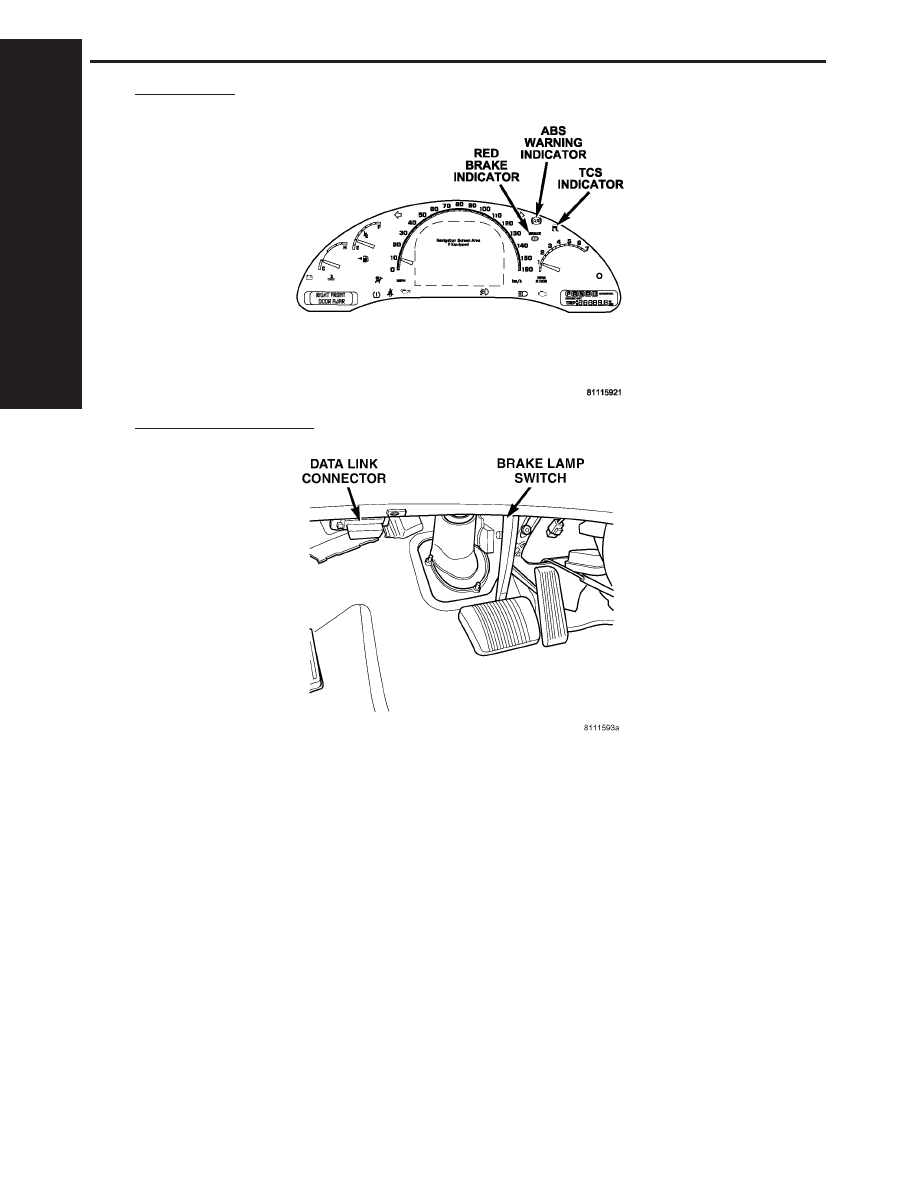

INDICATORS

8.5

BRAKE LAMP SWITCH

C

O

M

P

O
N

E

N

T

L

O

C
A

T

I

O
N

S

48

COMPONENT LOCATIONS

9.0

CONNECTOR PINOUTS

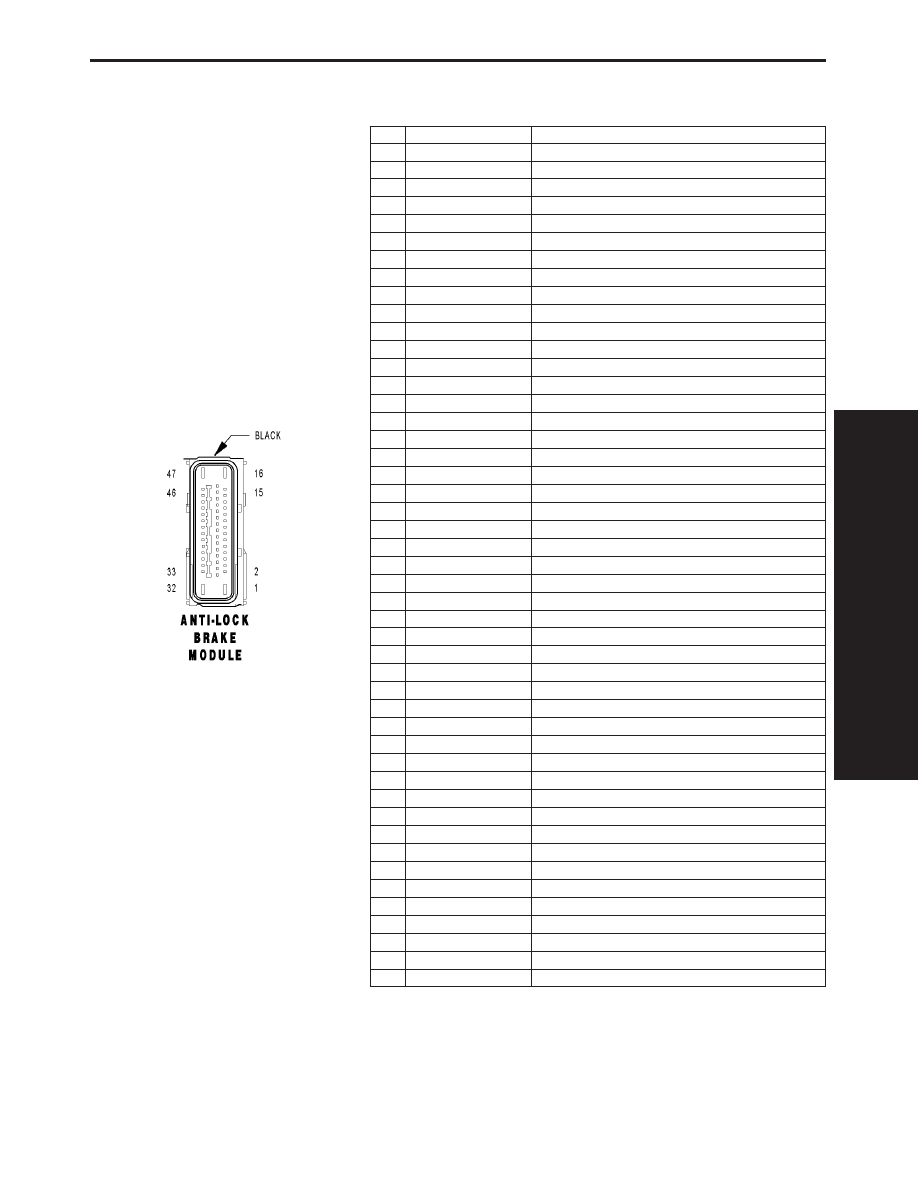

ANTI-LOCK BRAKE MODULE - BLACK 47 WAY

CAV

CIRCUIT

FUNCTION

1

A107 12TN/RD

FUSED B(+) (PUMP)

2

-

-

3

-

-

4

-

-

5

-

-

6

L51 18WT/DG

BRAKE LAMP SWITCH OUTPUT

7

-

-

8

F500 18DG/PK

FUSED RUN RELAY OUTPUT

9

-

-

10

D24 20WT/YL

FLASH ABS

11

D25 20WT/VT

PCI BUS

12

-

-

13

-

-

14

-

-

15

-

-

16

Z127 12BK/DG

GROUND

17

-

-

18

-

-

19

-

-

20

-

-

21

-

-

22

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

-

-

30

-

-

31

-

-

32

A111 12DG/RD

FUSED B(+) (VALVE)

33

B6 18DG/WT

RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

34

B7 18DG/VT

RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

35

-

-

36

B4 18DG/GY

LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY

37

B3 18DG/YL

LEFT REAR WHEEL SPEED SENSOR SIGNAL

38

-

-

39

-

-

40

-

-

41

-

-

42

B1 18DG/DB

RIGHT REAR WHEEL SPEED SENSOR SIGNAL

43

B2 18DG/LB

RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY

44

-

-

45

B9 18DG/LG

LEFT FRONT WHEEL SPEED SENSOR 12 VOLT SUPPLY

46

B8 18DG/TN

LEFT FRONT WHEEL SPEED SENSOR SIGNAL

47

Z107 12BK/LB

GROUND

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

49

CONNECTOR PINOUTS

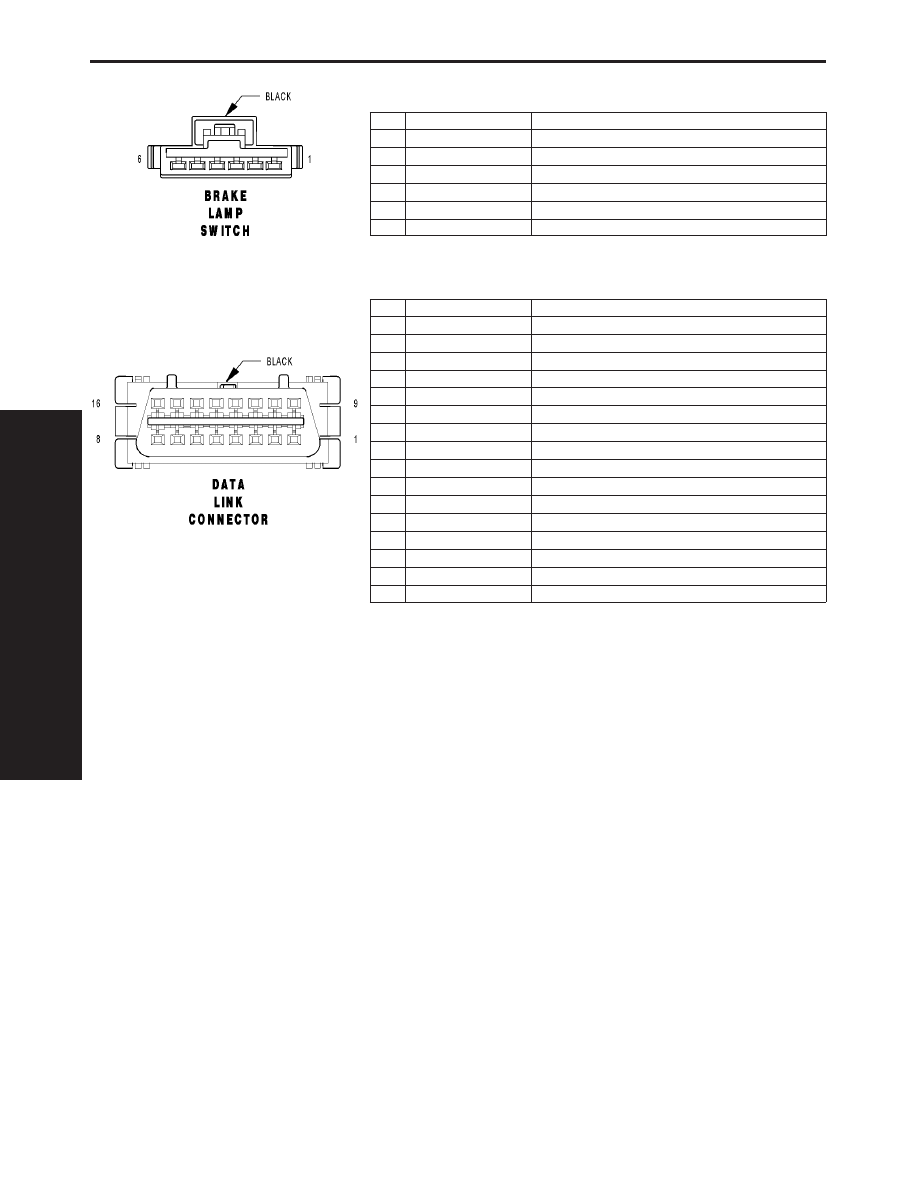

BRAKE LAMP SWITCH - BLACK 6 WAY

CAV

CIRCUIT

FUNCTION

1

L51 18WT/DG

BRAKE LAMP SWITCH OUTPUT

2

A108 18LG/RD

FUSED B(+)

3

V30 20VT/WT

SPEED CONTROL BRAKE SWITCH OUTPUT

4

V32 20VT/YL

S/C SUPPLY

5

Z429 20BK/OR

GROUND

6

B29 20DG/WT

BRAKE SWITCH SIGNAL

DATA LINK CONNECTOR - BLACK 16 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

D25 20WT/VT

PCI BUS

3

-

-

4

Z11 18BK/LG

GROUND

5

Z111 18BK/WT

GROUND

6

-

-

7

D21 20WT/GY

SCI TRANSMIT (PCM)

8

-

-

9

D123 20WT/BR

FLASH PROGRAM ENABLE

10

D24 20WT/YL

FLASH ABS

11

-

-

12

D20 20WT/LG

SCI RECEIVE (PCM)

13

-

-

14

-

-

15

D15 20BR/WT

SCI TRANSMIT (TCM)

16

A105 20DB/RD

FUSED B(+)

C

O
N
N

E

C

T

O

R

P

I

N
O
U

T
S

50

CONNECTOR PINOUTS
