INSTALLATION

(1) Install cable assy. into floor pan tunnel hole

and secure grommet. If necessary, use a synthetic
based lubricant to aid in grommet installation.

(2) Position cable into retainer clip (Fig. 40) and

tighten clip to secure cable. Route cable up towards
transaxle shift lever.

(3) Lower vehicle.
(4) Install cable to transaxle and tighten screw to

14 N·m (125 in. lbs.) (Fig. 35).

(5) Install cable to transaxle shift lever (Fig. 35).
(6) Connect cable to shifter conduit bracket and

shift pin. Install cable retaining clip (Fig. 39).

(7) Verify transaxle shift lever and floor shifter

lever are in the PARK position.

(8) Tighten cable adjuster nut (Fig. 38) to 23 N·m

(200 in. lbs.).

CAUTION: When installing forward console, the
console will contact nylon shift release plunger
(Fig. 37). If care is not used, plunger may break,
requiring shifter assembly replacement.

(9) Reinstall forward and rear floor consoles. Refer

to Group 23, Body, for the proper procedures.

(10) Install gearshift knob (Fig. 36) and tighten set

screw to 2 N·m (20 in.lbs.)..

(11) Verify proper cable adjustment. Engine starter

should only engage in PARK and NEUTRAL gear
shifter positions. If adjustment is required, refer to
Gearshift Linkage Adjustment in this group.

GEARSHIFT ASSEMBLY

REMOVAL

(1) Disconnect negative battery cable and isolate.
(2) Remove the gearshift knob set screw and knob

(Fig. 41).

(3) Remove the floor console (rear). Refer to Group

23, Body for the proper procedures.

CAUTION: When removing forward console, the
console will contact nylon shift release plunger
(Fig. 42). If care is not used, plunger may break,
requiring shifter assembly replacement.

(4) Remove the forward IP console (front). Refer to

Group 23, Body for the proper procedures.

(5) Loosen nut on shift cable adjust lever (Fig. 43).

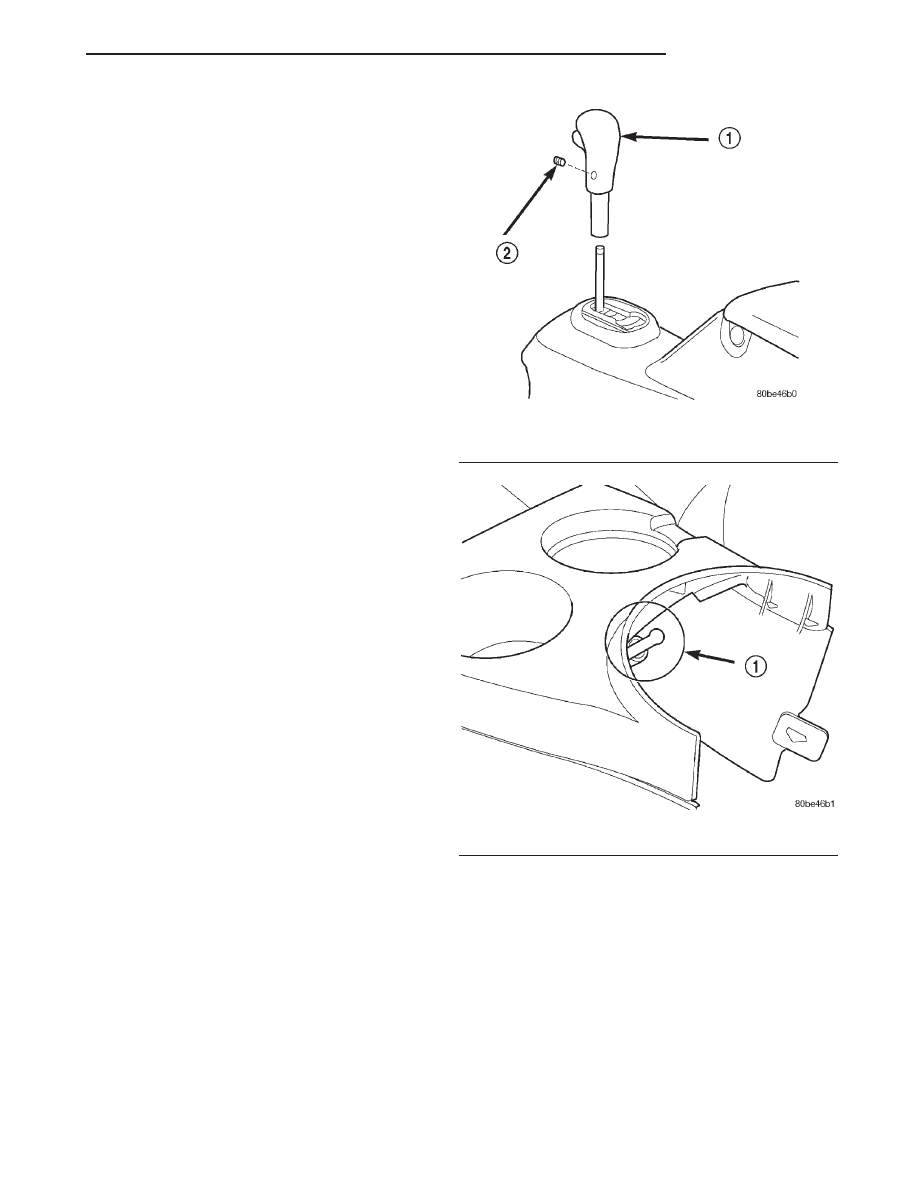

Fig. 41 Shifter Knob Removal/Installation

1 – SHIFTER KNOB
2 – SET SCREW

Fig. 42 Console/Shifter Contact Area

1 – AREA OF CONTACT

JX

TRANSAXLE

21 - 31

REMOVAL AND INSTALLATION (Continued)

(6) Using a flat blade pry tool, remove the shifter

cable core end from the shift lever pin (Fig. 44).

(7) Using a flat blade pry tool, pry the cable con-

duit clip up from the shifter bracket. Pull up on the
cable conduit and remove from bracket (Fig. 44).

(8) Release interlock cable adjuster end by insert-

ing pointed object into shift bracket to disengage lock
(Fig. 45). Unsnap the shifter/ignition interlock cable
adjuster end from the slot in the gearshift mecha-

nism bracket and disconnect cable core from shifter
assembly (Fig. 46).

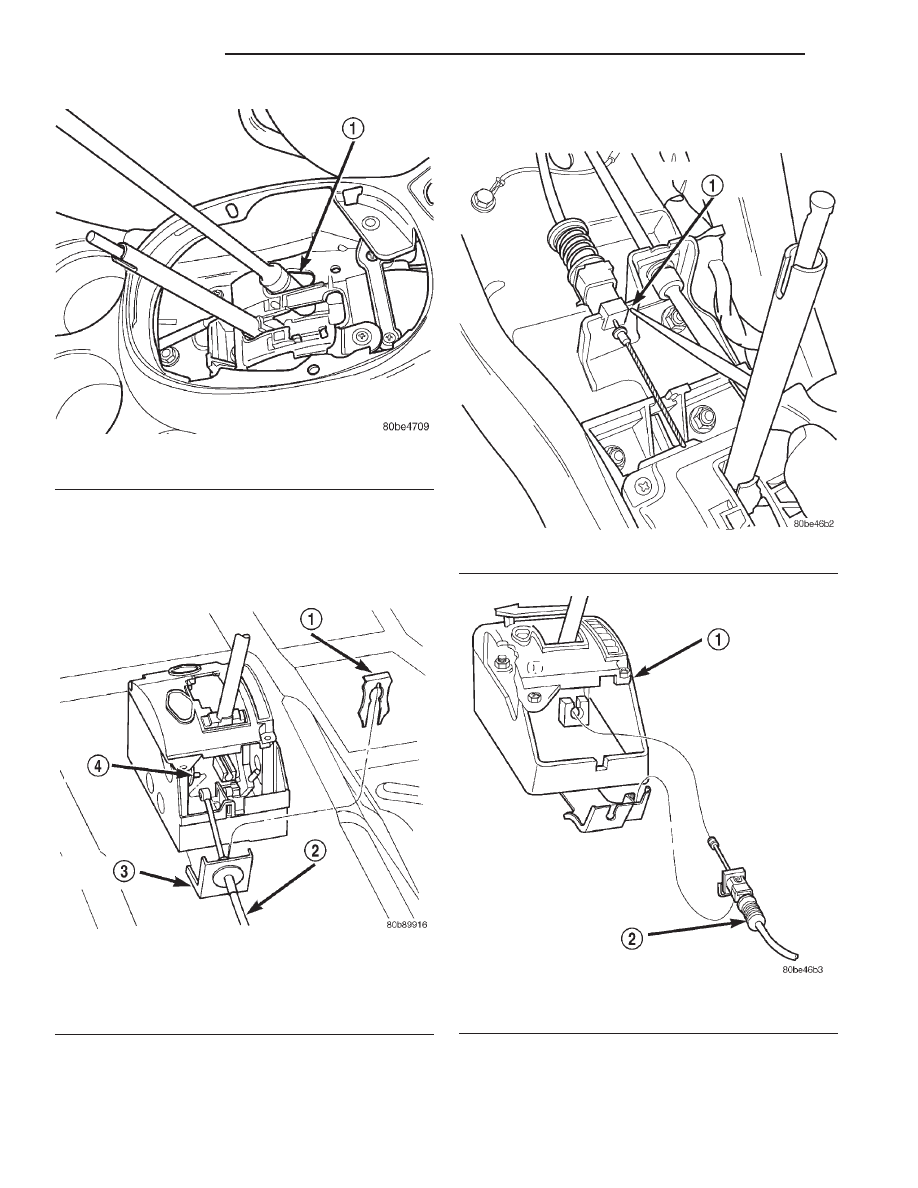

Fig. 43 Shift Cable Adjust Lever Nut

1 – ACCESS HOLE

Fig. 44 Gearshift Cable at Floor Shifter—Typical

1 – CLIP
2 – CABLE
3 – CONDUIT BRACKET
4 – SHIFT PIN

Fig. 45 Release Cable from Bracket at Retainer Lock

1 – RELEASE CABLE HERE

Fig. 46 Interlock Cable at Floor Shifter Assembly

1 – SHIFTER ASSEMBLY
2 – INTERLOCK CABLE

21 - 32

TRANSAXLE

JX

REMOVAL AND INSTALLATION (Continued)

(9) Disconnect Autostick connector (if equipped)

(Fig. 47).

(10) Remove the five nuts at the base of the shifter

assembly. Remove assembly from vehicle (Fig. 48).

INSTALLATION

(1) Install shifter assembly (Fig. 48). Tighten the

nuts to 17 N·m (150 in. lbs.).

(2) Install gearshift cable into conduit bracket and

onto shift pin. Install retainer clip (Fig. 44).

(3) Tighten cable adjuster nut (Fig. 43) to 23 N·m

(200 in. lbs.).

(4) Insert interlock cable core wire into interlock

adjustment lever groove. Make sure the interlock
cable slug is seated in the groove (Fig. 46).

(5) Insert interlock cable adjuster end into bracket

and snap into place (Fig. 46).

(6) Adjust the gearshift and interlock cables. Refer

to Adjustments in this group.

NOTE: Gearshift and Interlock cables MUST be
adjusted. Refer to the Adjustments section in this
group for proper procedures.

(7) If equipped with Autostick, connect the Auto-

stick connector (Fig. 47).

CAUTION: When installing forward console, the
console will contact nylon shift release plunger
(Fig. 42). If care is not used, plunger may break,
requiring shifter assembly replacement.

(8) Install the forward IP console (front). Refer to

Group 23, Body for the proper procedures.

(9) Install the floor console (rear). Refer to Group

23, Body for the proper procedures.

(10) Install the gearshift knob and tighten set

screw (Fig. 41) to 2 N·m (20 in.lbs.).

(11) Connect the battery negative cable.

AUTOSTICK

The autostick switch mechanism is incorporated

into the gearshift mechanism. If the switch needs to
be replaced, the gearshift mechanism must be
replaced. To replace the autostick switch, refer to
Gearshift Mechanism Replacement in this section.

BRAKE/TRANSMISSION SHIFT INTERLOCK
CABLE

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the gearshift knob set screw and knob

(Fig. 49).

(3) Remove the floor console (rear). Refer to Group

23, Body for the proper procedures.

CAUTION: When removing forward console, the
console will contact nylon shift release plunger
(Fig. 50). If care is not used, plunger may break,
requiring shifter assembly replacement.

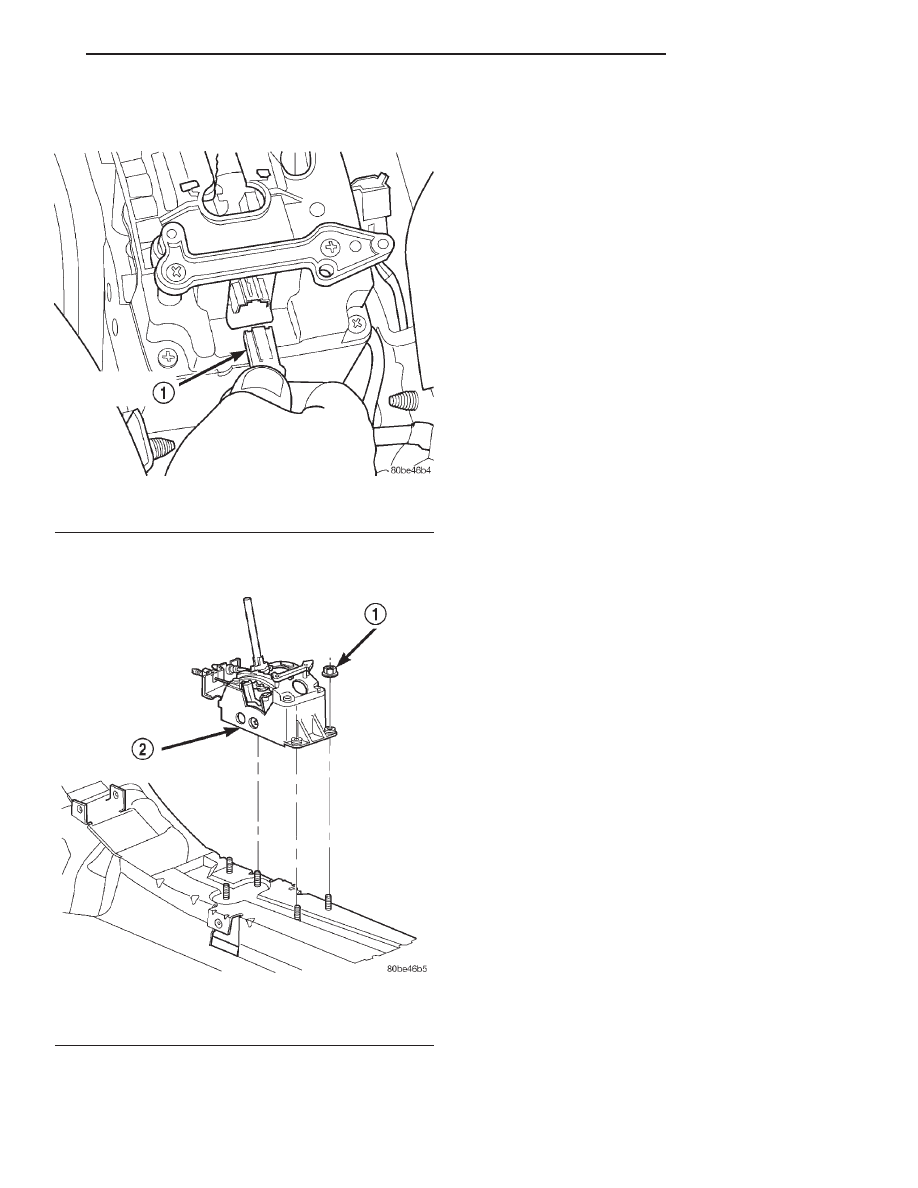

Fig. 47 Autostick Connector (if equipped)

1 – AUTOSTICK CONNECTOR

Fig. 48 Shifter Assembly

1 – NUTS (5)
2 – SHIFTER ASSEMBLY

JX

TRANSAXLE

21 - 33

REMOVAL AND INSTALLATION (Continued)

(4) Remove the forward IP console (front). Refer to

Group 23, Body for the proper procedures.

(5) Release interlock cable adjuster end by insert-

ing pointed object into shift bracket to disengage lock
(Fig. 51). Unsnap the shifter/ignition interlock cable
adjuster end from the slot in the gearshift mecha-
nism bracket and disconnect cable core from shifter
assembly (Fig. 52).

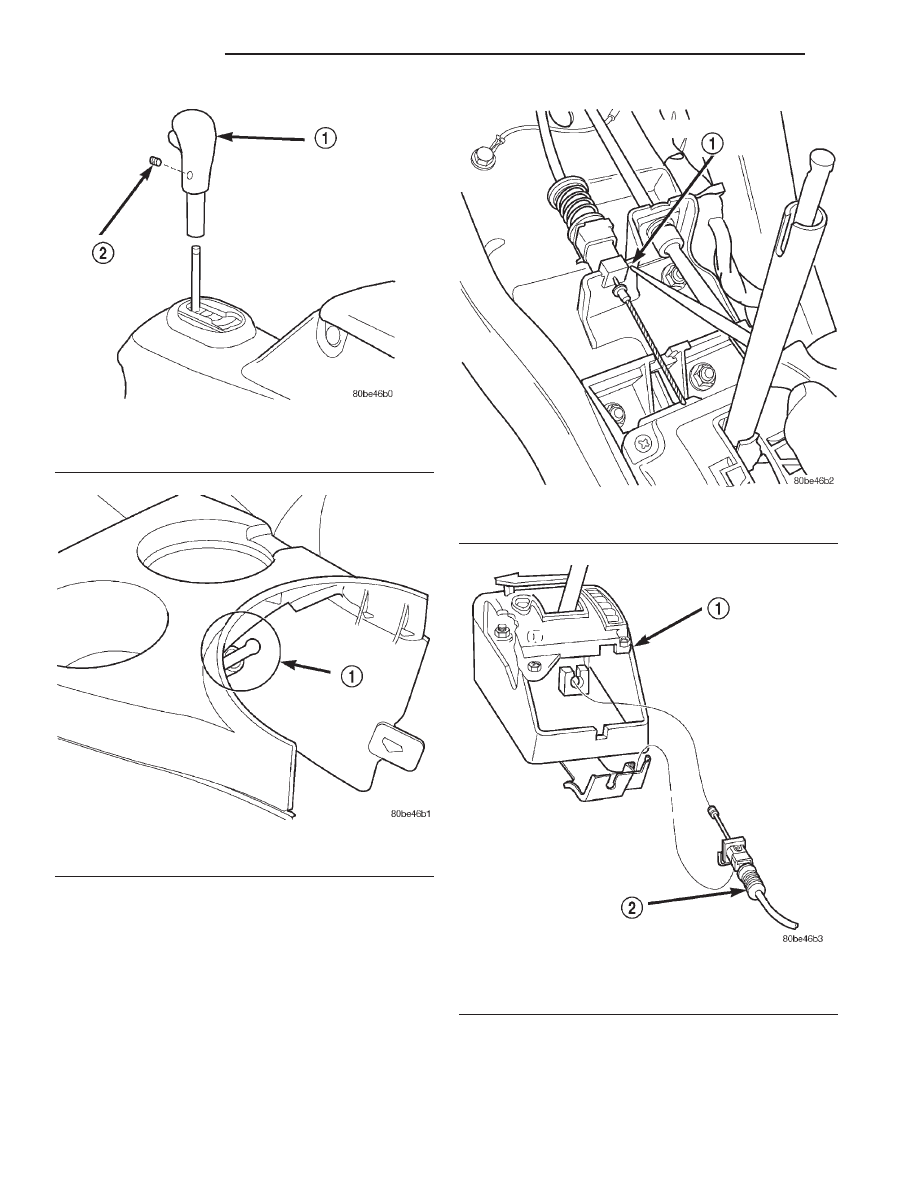

Fig. 49 Shifter Knob Removal/Installation

1 – SHIFTER KNOB
2 – SET SCREW

Fig. 50 Console/Shifter Contact Area

1 – AREA OF CONTACT

Fig. 51 Release Cable from Bracket at Retainer Lock

1 – RELEASE CABLE HERE

Fig. 52 Interlock Cable at Floor Shifter Assembly

1 – SHIFTER ASSEMBLY
2 – INTERLOCK CABLE

21 - 34

TRANSAXLE

JX

REMOVAL AND INSTALLATION (Continued)
