Locating the entry point of water that is leaking

into a cavity between panels can be difficult. The
trapped water may splash or run from the cavity,
often at a distance from the entry point. Most water
leaks of this type become apparent after accelerating,
stopping, turning, or when on an incline.

MIRROR INSPECTION METHOD

When a leak point area is visually obstructed, use

a suitable mirror to gain visual access. A mirror can
also be used to deflect light to a limited-access area
to assist in locating a leak point.

BRIGHT LIGHT LEAK TEST METHOD

Some water leaks in the luggage compartment can

be detected without water testing. Position the vehicle
in a brightly lit area. From inside the darkened lug-
gage compartment inspect around seals and body
seams. If necessary, have a helper direct a drop light
over the suspected leak areas around the luggage com-
partment. If light is visible through a normally sealed
location, water could enter through the opening.

PRESSURIZED LEAK TEST METHOD

When a water leak into the passenger compart-

ment cannot be detected by water testing, pressurize
the passenger compartment and soap test exterior of
the vehicle. To pressurize the passenger compart-
ment, close all doors and windows, start engine, and
set heater control to high blower in HEAT position. If
engine can not be started, connect a charger to the
battery to ensure adequate voltage to the blower.
With interior pressurized, apply dish detergent solu-
tion to suspected leak area on the exterior of the
vehicle. Apply detergent solution with spray device or
soft bristle brush. If soap bubbles occur at a body
seam, joint, seal or gasket, the leak entry point could
be at that location.

WIND NOISE

Wind noise is the result of most air leaks. Air leaks

can be caused by poor sealing, improper body compo-
nent alignment, body seam porosity, or missing plugs
in the engine compartment or door hinge pillar areas.
All body sealing points should be airtight in normal
driving conditions. Moving sealing surfaces will not
always seal airtight under all conditions. At times,
side glass or door seals will allow wind noise to be
noticed in the passenger compartment during high
cross winds. Over compensating on door or glass
adjustments to stop wind noise that occurs under
severe conditions can cause premature seal wear and
excessive closing or latching effort. After a repair pro-
cedure has been performed, test vehicle to verify
noise has stopped before returning vehicle to use.

Wind noise can also be caused by improperly fitted

exterior moldings or body ornamentation. Loose
moldings can flutter, creating a buzzing or chattering
noise. An open cavity or protruding edge can create a
whistling or howling noise. Inspect the exterior of the
vehicle to verify that these conditions do not exist.

VISUAL INSPECTION BEFORE TESTS

Verify that floor and body plugs are in place and

body components are aligned and sealed. If compo-
nent alignment or sealing is necessary, refer to the
appropriate section of this group for proper proce-
dures.

ROAD TESTING WIND NOISE

(1) Drive the vehicle to verify the general location

of the wind noise.

(2) Apply 50 mm (2 in.) masking tape in 150 mm

(6 in.) lengths along weatherstrips, weld seams or
moldings. After each length is applied, drive the vehi-
cle. If noise goes away after a piece of tape is applied,
remove tape, locate, and repair defect.

POSSIBLE CAUSE OF WIND NOISE

• Moldings standing away from body surface can

catch wind and whistle.

• Gaps in sealed areas behind overhanging body

flanges can cause wind-rushing sounds.

• Misaligned movable components.

• Missing or improperly installed plugs in pillars.

• Weld burn through holes.

SERVICE PROCEDURES

HEAT STAKING

(1) Remove trim panel.
(2) Bend or move the trim panel components at

the heat staked joints. Observe the heat staked loca-
tions and/or component seams for looseness.

(3) Heat stake the components.

(a) If the heat staked or component seam loca-

tion is loose, hold the two components tightly
together and using a soldering gun with a flat tip,
melt

the

material

securing

the

components

together. Do not over heat the affected area, dam-
age to the exterior of the trim panel may occur.

(b) If the heat staked material is broken or miss-

ing, use a hot glue gun to apply new material to
the area to be repaired. The panels that are being
heat staked must be held together while the apply-
ing the glue. Once the new material is in place, it
may be necessary to use a soldering gun to melt
the newly applied material. Do not over heat the
affected area, damage to the exterior of the trim
panel may occur.

300M

BODY

23 - 5

DIAGNOSIS AND TESTING (Continued)

(4) Allow the repaired area to cool and verify the

repair.

(5) Install trim panel.

REMOVAL AND INSTALLATION

AIR EXHAUSTER VENT

REMOVAL

(1) Open deck lid.
(2) Move trunk carpet to access the air exhauster

in the right/left rear corner of the trunk (Fig. 1).

(3) From inside trunk push the air exhauster out-

ward to release clips.

(4) Reach under fascia and pull air exhauster out-

ward from trunk side panel.

(5) Remove air exhauster from vehicle.

INSTALLATION

(1) Place air exhauster in position. Ensure that the

locator tab is aligned.

(2)

Engage the upper half of the air exhauster

then push the lower half in until the clips click into
place.

(3) Install trunk carpet into position.

A-PILLAR TRIM

REMOVAL

(1) Remove instrument panel end cap.
(2) Disengage clips attaching trim to A-pillar by

pulling on trim (Fig. 2).

(3) Slide A-pillar trim rearward, to disengaging

from instrument panel top cover.

(4) Remove A-pillar trim from vehicle.

INSTALLATION

(1) Slide A-pillar trim forward ensuring that the

trim engages with the instrument panel top cover.

(2) Engage clips to attach trim to A-pillar.
(3) Install instrument panel end cap.

B-PILLAR LOWER TRIM

REMOVAL

(1) Remove upper B-pillar trim.
(2) Remove bolt attaching seat belt to floor below

B-pillar (Fig. 3).

(3) Remove access door from above seat belt slot

on B-pillar trim.

(4) Disengage clips attaching lower trim to B-pil-

lar.

(5) Slide seat belt through the B-pillar trim.
(6) Remove B-pillar trim from vehicle.

INSTALLATION

(1) Slide seat belt through the B-pillar trim.
(2) Place B-pillar trim in position on vehicle.
(3) Engage clips to hold lower trim to B-pillar.
(4) Install access door above seat belt slot on B-pil-

lar trim.

(5) Install bolt to hold seat belt to floor below

B-pillar.

(6) Install upper B-pillar trim.
(7) Refit weatherstrip.

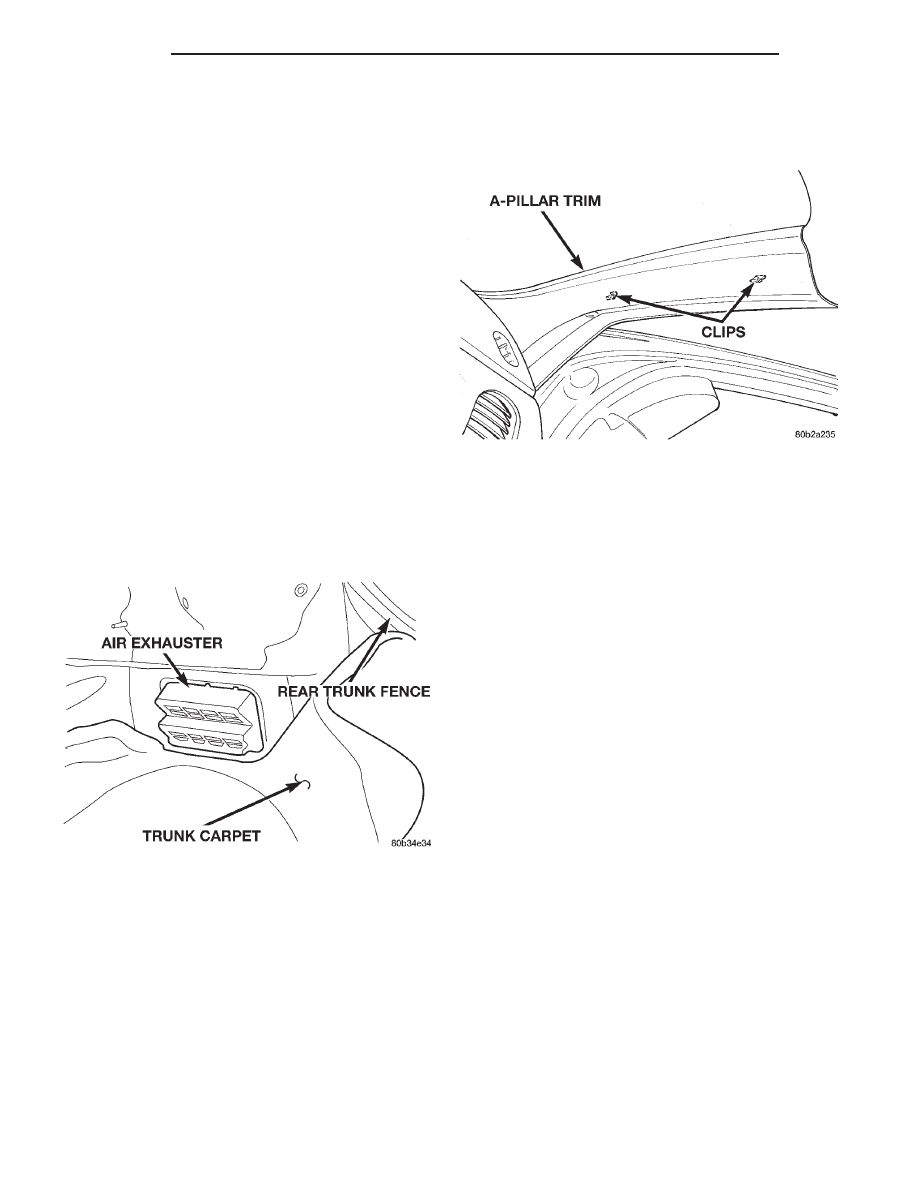

Fig. 1 Air Exhauster

Fig. 2 A-Pillar Trim

23 - 6

BODY

300M

SERVICE PROCEDURES (Continued)

B-PILLAR UPPER TRIM

REMOVAL

(1) Disengage shoulder belt turning loop cover.
(2) Remove bolt holding turning loop to shoulder

belt height adjuster.

(3) Remove turning loop from adjuster.
(4) Remove adjuster knob.
(5) Disengage clips holding upper trim to B-pillar

(Fig. 3).

(6) Remove B-pillar trim from vehicle.

INSTALLATION

(1) Place B-pillar trim in position on vehicle.
(2) Engage clips to hold upper trim to B-pillar.
(3) Place shoulder belt turning loop in position on

adjuster.

(4) Install bolt to hold turning loop to shoulder

belt height adjuster.

(5) Install shoulder belt turning loop cover.
(6) Refit weatherstrip.

BODY SIDE MOLDING AND APPLIQUE

STICK-ON BODY SIDE MOLDING REMOVAL
AND INSTALLATION

(1) Warm the effected stick-on molding and body

metal to approximately 38° C (100° F) using a suit-
able heat lamp or heat gun.

(2) Pull stick-on molding from painted surface.
(3) Remove adhesive tape residue from painted

surface of vehicle.

(4) If molding is to be reused, remove tape residue

from molding. Clean back of molding with Mopar

t

Super Kleen solvent or equivalent. Wipe molding dry
with lint free cloth. Apply new body side molding
(two sided adhesive) tape to back of molding.

(5) Clean body surface with Mopar

t Super Kleen

solvent or equivalent. Wipe surface dry with lint free
cloth.

(6) Apply a length of masking tape on the body,

parallel to the top edge of the molding to use as a
guide, if necessary.

(7) Remove protective cover from tape on back of

molding. Apply molding to body below the masking
tape guide.

(8) Remove masking tape guide and heat body and

molding, see step one. Firmly press molding to body
surface to assure adhesion.

CENTER CONSOLE

REMOVAL

(1) Remove center console shift bezel.
(2) Remove side panels (Fig. 5), or (Fig. 6).
(3) Remove fasteners attaching forward bracket to

instrument panel.

(4) Remove fasteners attaching bottom of console

storage bin to rear mounting bracket (Fig. 7).

(5) Remove center console from vehicle.

INSTALLATION

(1) Place center console in position on vehicle.
(2) Install fasteners to attach forward bracket to

instrument panel.

(3) Install fasteners to attach bottom of console

storage bin to rear mounting bracket.

(4) Install side panels.
(5) Install center console shift bezel.

CENTER CONSOLE ARMREST LATCH

REMOVAL

(1) Open armrest lid.
(2) Remove latch attaching screws.
(3) Remove latch from console.

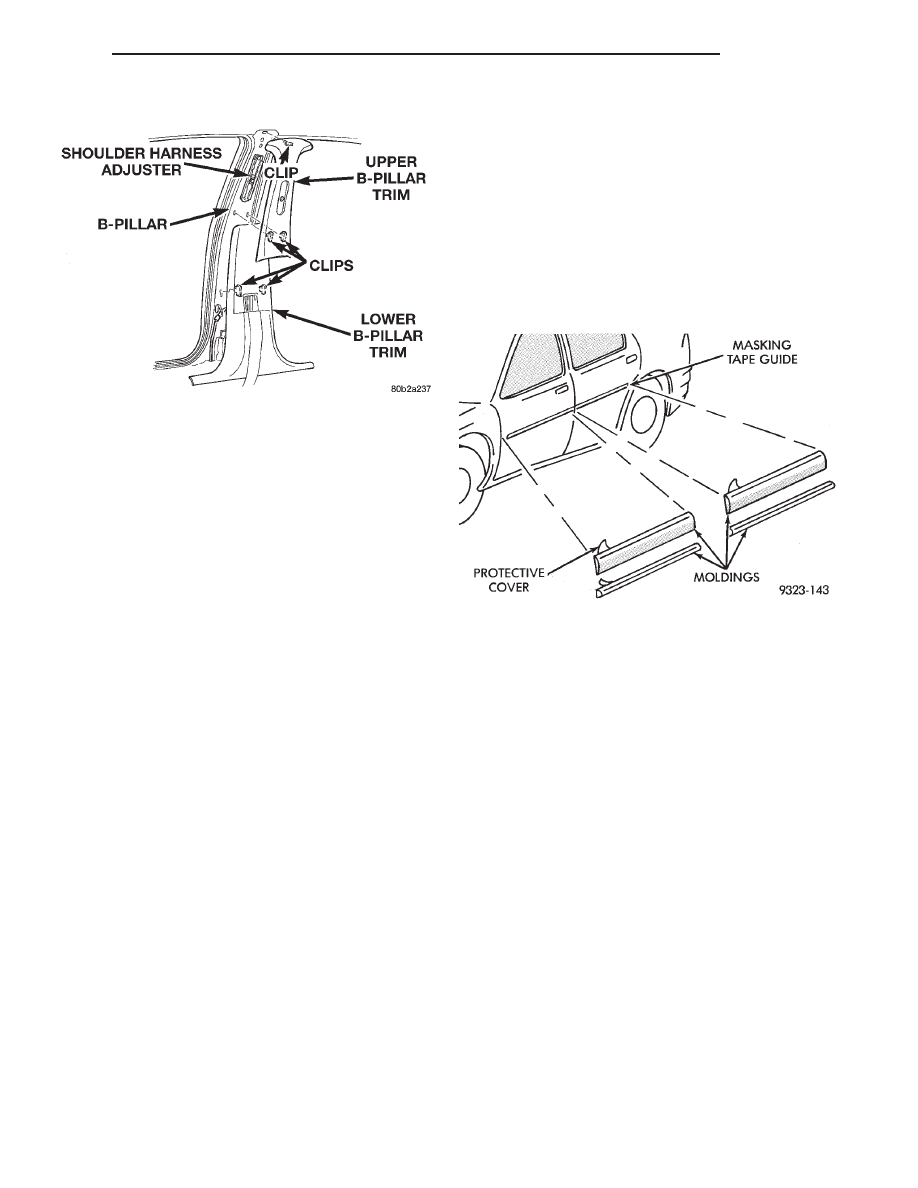

Fig. 3 B-Pillar Lower and Upper Trim

Fig. 4 Body Side Molding

300M

BODY

23 - 7

REMOVAL AND INSTALLATION (Continued)

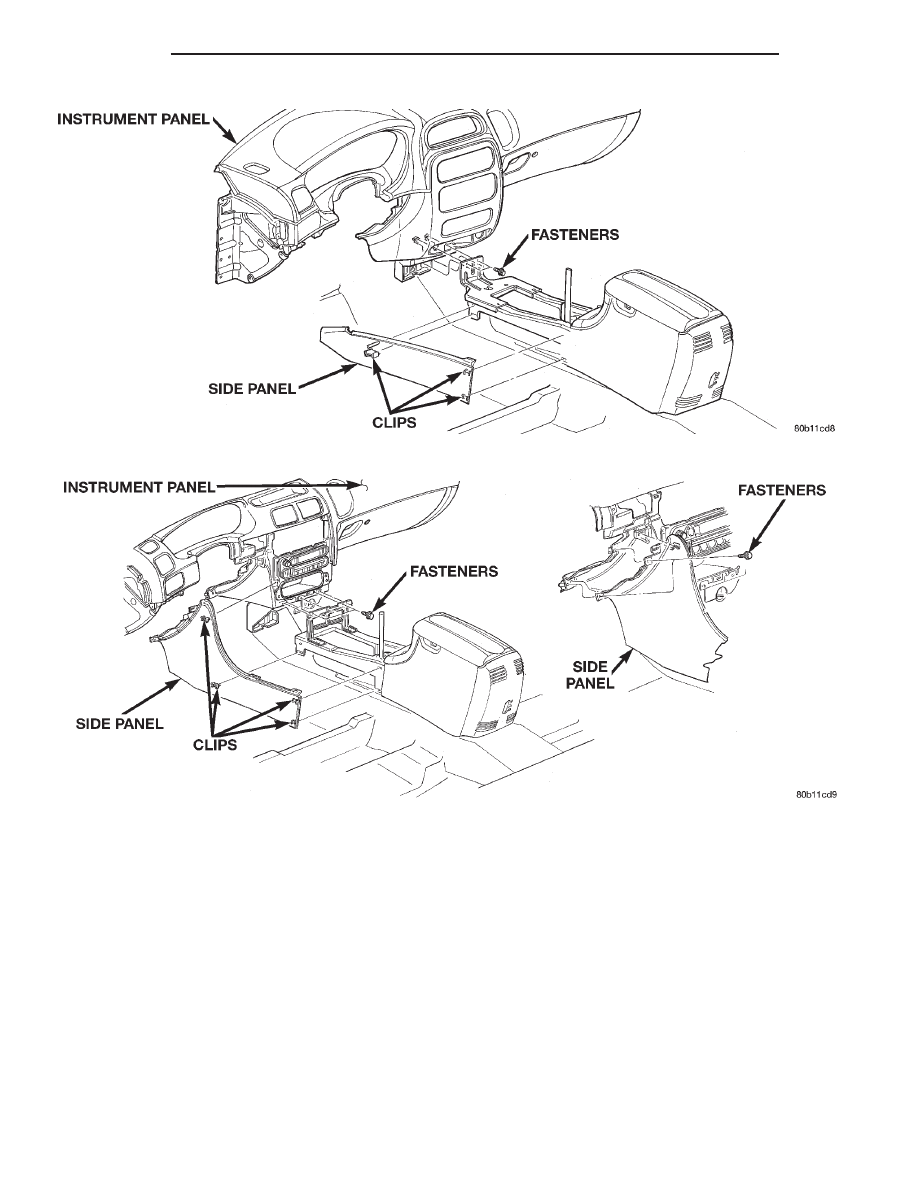

Fig. 5 Center Console Side Panels – Concorde

Fig. 6 Center Console Side Panels – Intrepid Shown – LHS/300M Similar

23 - 8

BODY

300M

REMOVAL AND INSTALLATION (Continued)
