ENGINE COOLANT TEMPERATURE SENSOR

The engine coolant temperature sensor is located

next to the thermostat housing (Fig. 63) or (Fig. 64).

REMOVAL

(1) With the engine cold, disconnect coolant sensor

electrical connector.

(2) Remove sensor.

INSTALLATION

(1) Install

engine

coolant

temperature

sensor.

Tighten sensor to 28 N·m (20 ft. lbs.) torque.

(2) Attach electrical connector to sensor.

VEHICLE SPEED SENSOR

For Removal/Installation of speed senors refer to

Group 21, Transaxle.

KNOCK SENSOR—3.2/3.5L

The engine uses one knock sensor. The sensor bolts

into the cylinder block, directly below the intake
manifold.

REMOVAL

(1) Remove intake manifold plenum refer to Group

11, Exhaust System and Intake Manifold.

(2) Disconnect electrical connector from knock sen-

sor (Fig. 65).

(3) Use a crows foot socket to remove the knock

sensors.

INSTALLATION

(1) Install knock sensor. Tighten knock sensor bolt

to 10 N·m (7 ft. lbs) torque. Over or under tight-
ening effects knock sensor performance result-
ing in possible improper spark control.

(2) Attach electrical connector to knock sensor.
(3) Install intake manifold plenum. Refer to Group

11, Exhaust System and Intake Manifold.

SPECIFICATIONS

VECI LABEL

If anything differs between the specifications found

on the Vehicle Emission Control Information (VECI)
label and the following specifications, use specifica-
tions on VECI label. The VECI label is located in the
engine compartment.

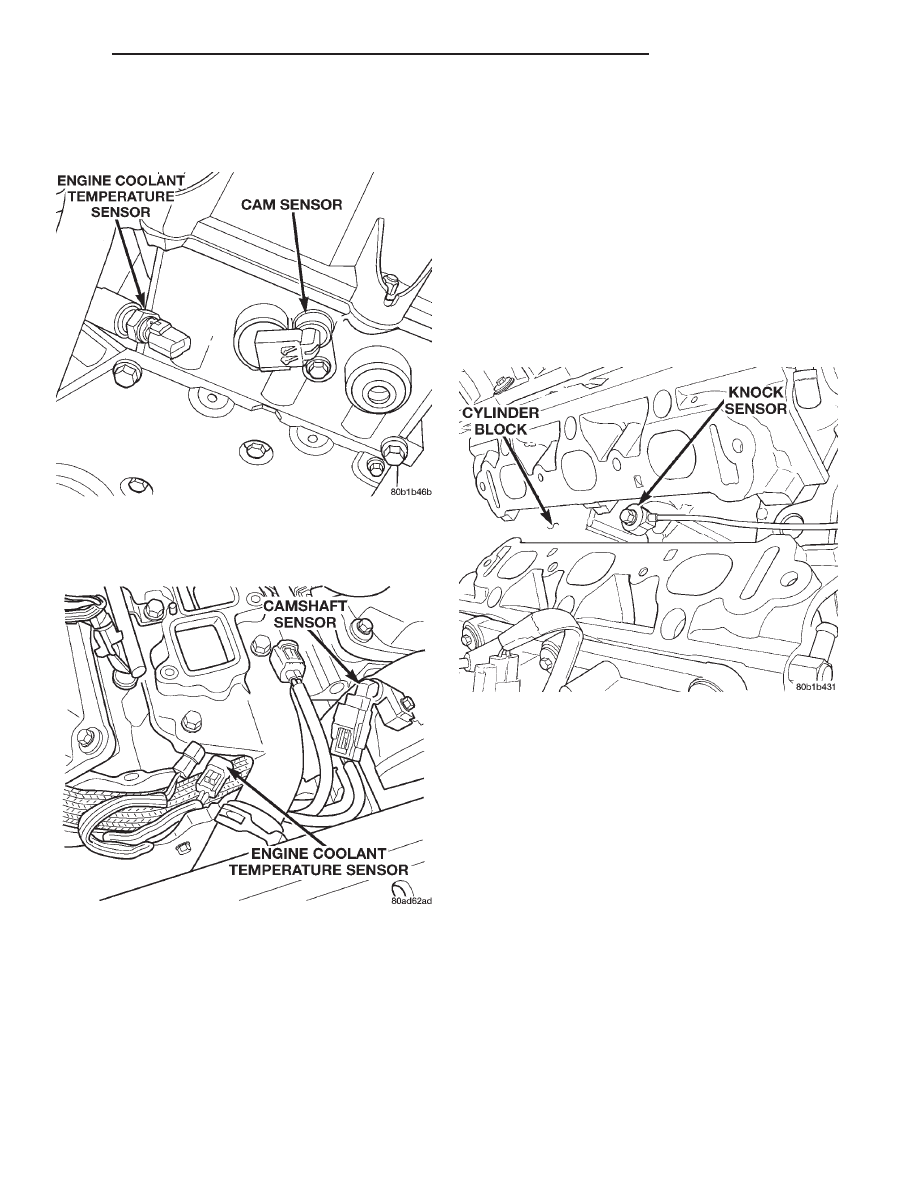

Fig. 63 Engine Coolant Temperature Sensor—2.7L

Engine

Fig. 64 Engine Coolant Temperature Sensor—3.2/

3.5L Engine

Fig. 65 Knock Sensor Location

300M

FUEL SYSTEM

14 - 47

REMOVAL AND INSTALLATION (Continued)

TORQUE

DESCRIPTION

TORQUE

Camshaft Position Semsor . . . . 12 N·m (105 in. lbs.)
Crankshaft Position Sensor

Mounting Bolts

. . . . . . . . . . . . 12 N·m (105 in. lbs.)

Engine Coolant Temperature Sensor . . . . . . 28 N·m

(20 ft. lbs.)

Idle Air Control Motor . . . . . . . . . 3 N·m (25 in. lbs.)
Air Temperature Sensor—3.2/3.5L . . . . . . . . 28 N·m

(20 ft. lbs.)

Knock Sensor bolt—3.2/3.5L . . . . . 10 N·m (7 ft. lbs.)
Knock Sensor—2.7L . . . . . . . . . . . 10 N·m (7 ft. lbs.)
Manifold Tuning Valve—3.2/3.5L . . . . . . . . . 11 N·m

(8 ft. lbs.)

MAP Sensor . . . . . . . . . . . . . . . . . 3 N·m (25 in. lbs.)
Oxygen Sensor . . . . . . . . . . . . . . 28 N·m (20 ft. lbs.)
Powertrain Control Module . . . . . 4 N·m (35 in. lbs.)
Throttle Body Mounting . . . . . . . 26 N·m (19 ft. lbs.)
Throttle Position Sensor . . . . . . . 3 N·m (25 in. lbs.)
Short Runner Valve . . . . . . . . . 6.7 N·m (60 in. lbs.)

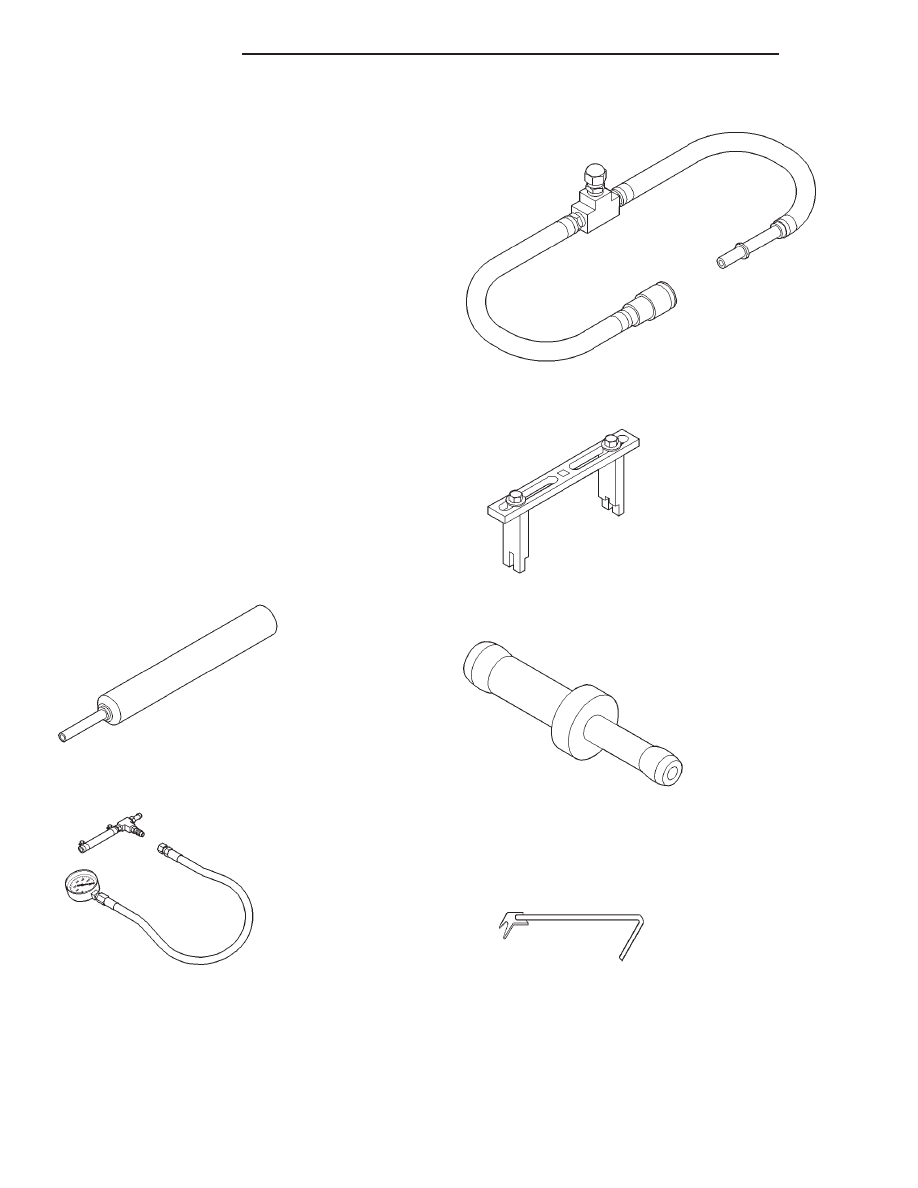

SPECIAL TOOLS

FUEL

Extractor C–4334

Pressure Gauge Assembly C–4799–B

Fuel Pressure Test Adapter 6539

Spanner Wrench 6856

Metering Orifice

Fuel Line Tool

14 - 48

FUEL SYSTEM

300M

SPECIFICATIONS (Continued)

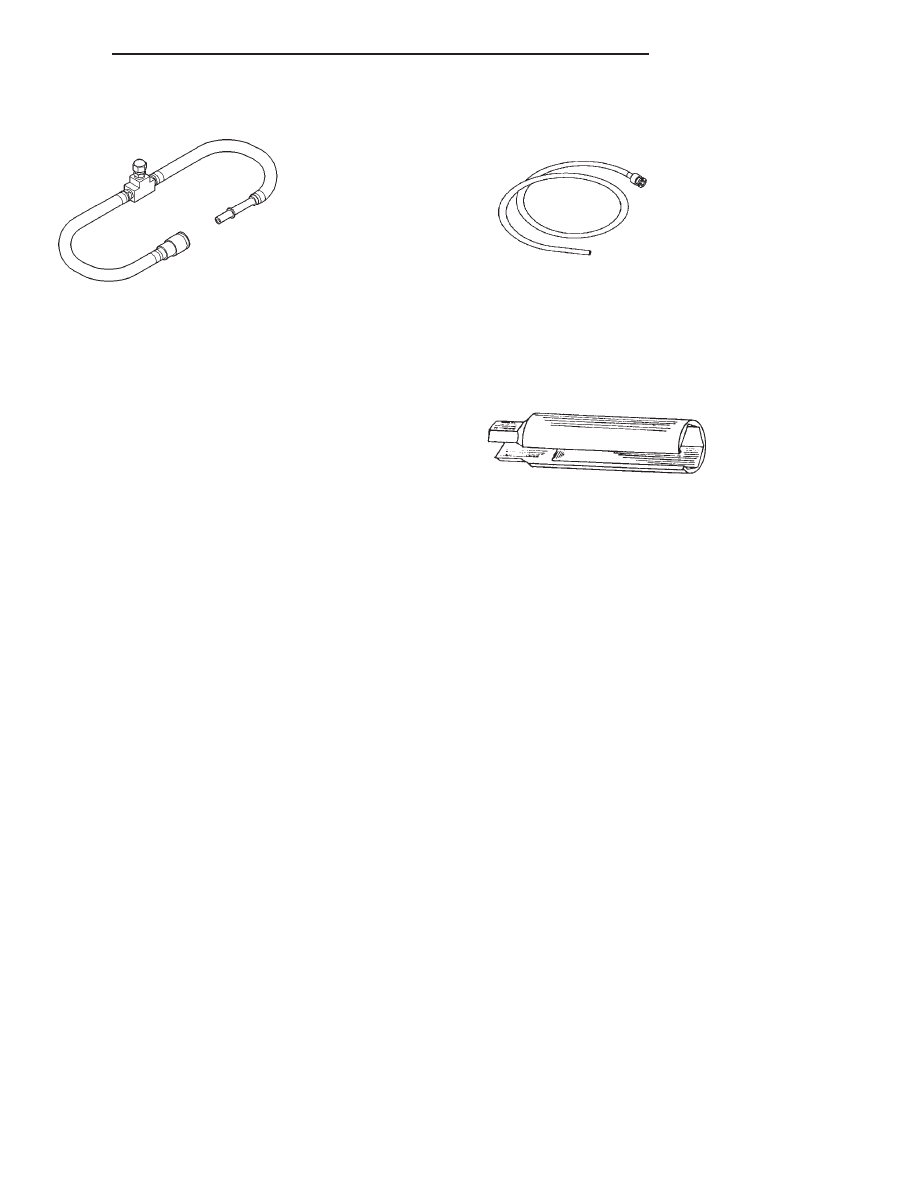

Fuel Line Adapter

Fuel Line Adapter 1/4

O2S (Oxygen Sensor) Remover/Installer—C-4907

300M

FUEL SYSTEM

14 - 49

SPECIAL TOOLS (Continued)
