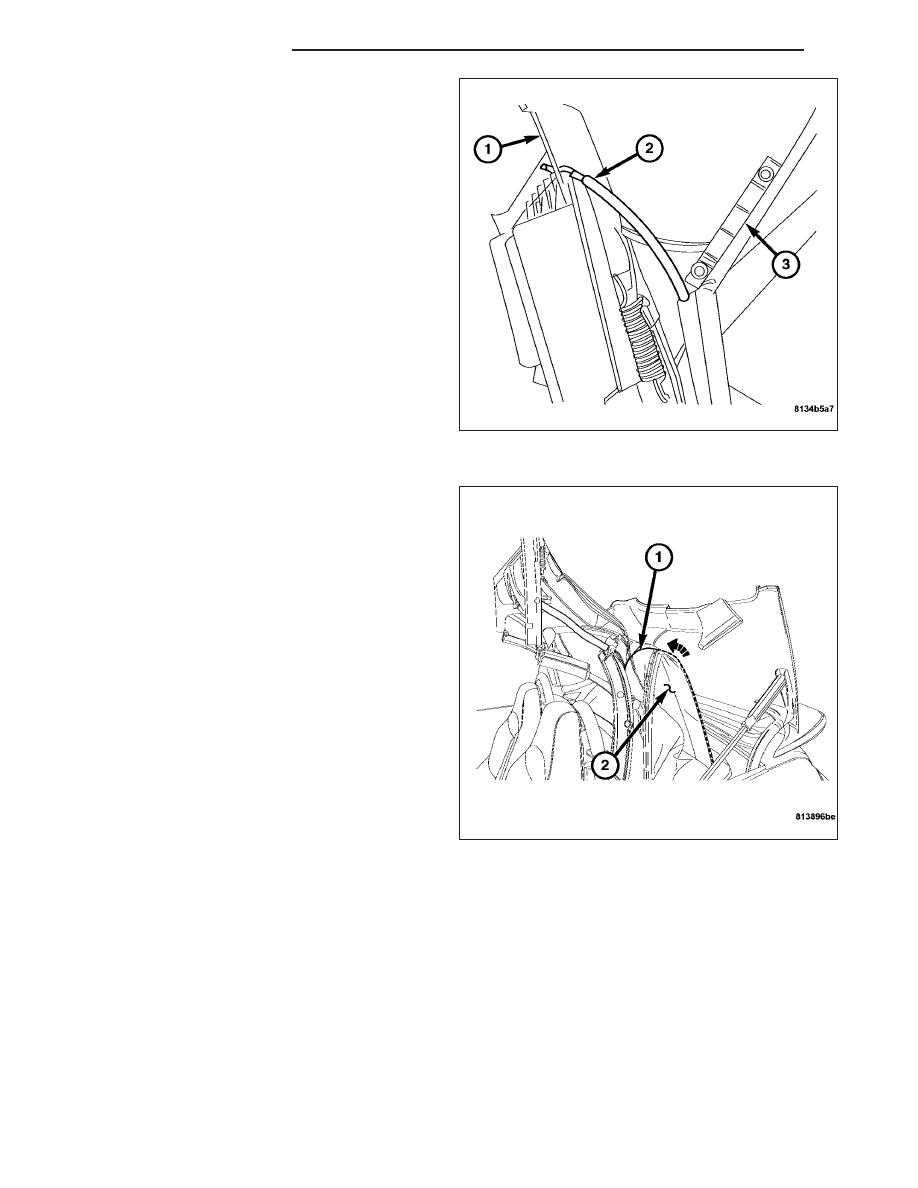

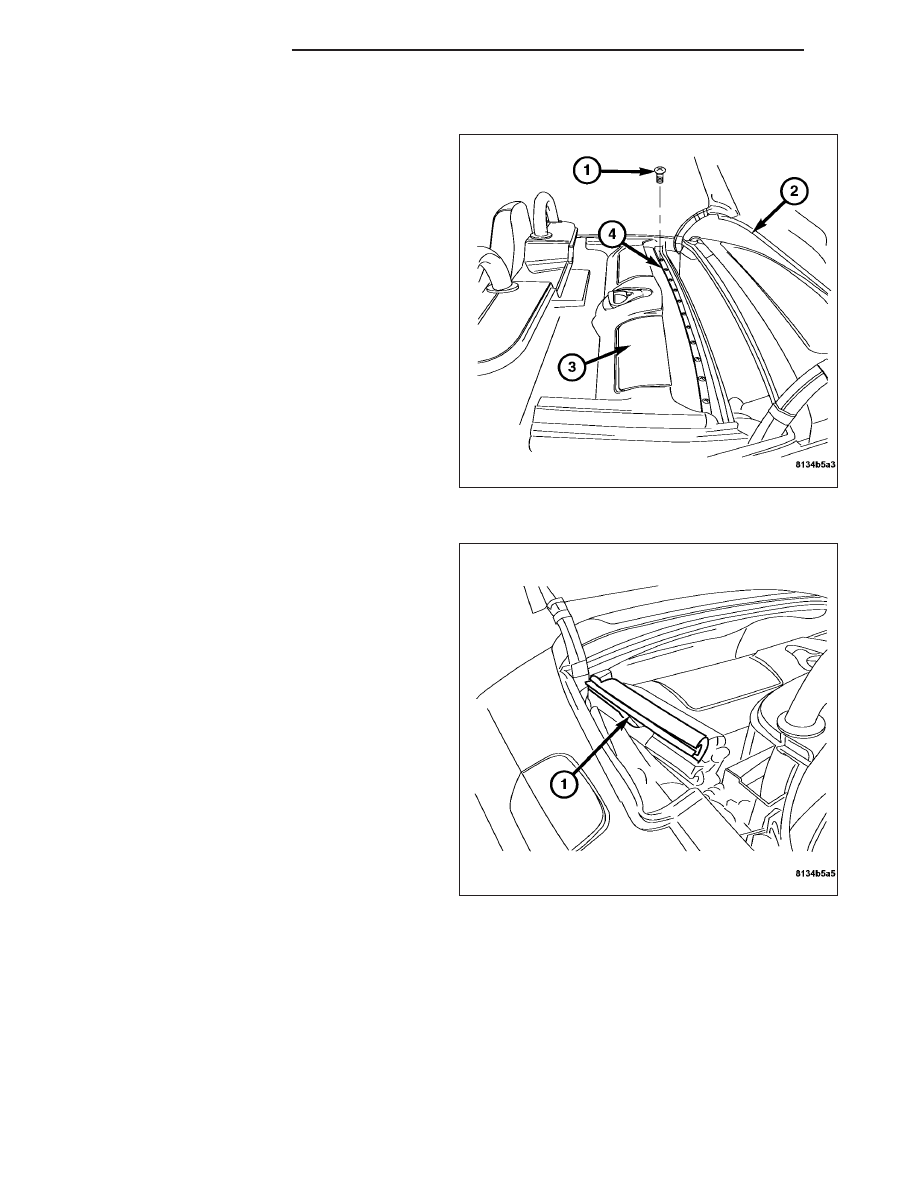

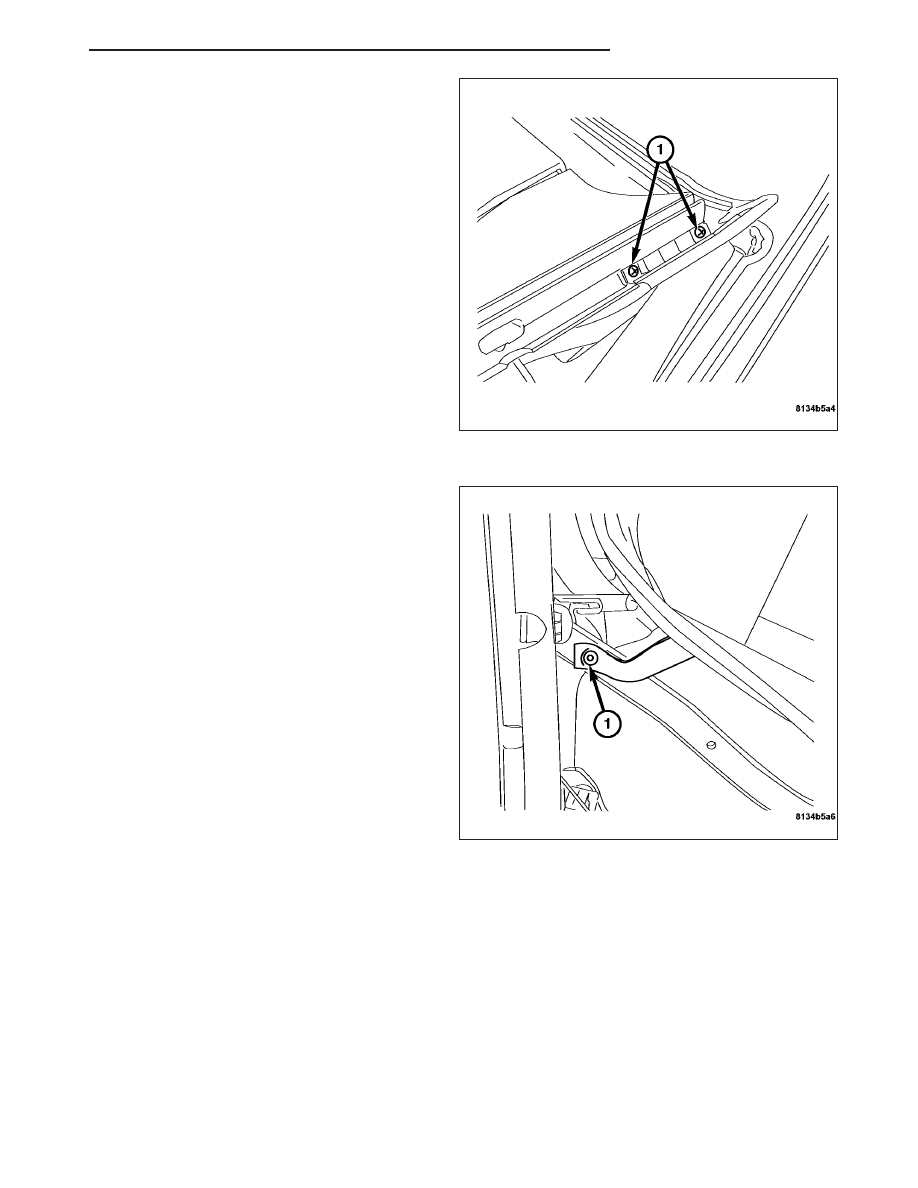

REMOVAL REMOVAL - TONNEAU COVER CYLINDER 1. Disconnect the negative battery cable. 2. Remove the left side trunk trim panel. Note: Do not disconnect the hydraulic lines from 3. Partially remove the hydraulic pump assembly (Refer to 23 - BODY/CONVERTIBLE TOP/HY- 4. Remove the hydraulic line retainers and disconnect the lines from the cylinder (1). 5. Remove the travel sensor from the cylinder (Refer to 23 - BODY/CONVERTIBLE TOP/HYDRAULIC 6. Remove the cylinder lower retainer (3) and remove the cylinder (1) from the pump bracket (2). REMOVAL - MAIN CYLINDER Note: Left side shown, right side similar. 1. Disconnect the negative battery cable. 2. Manually raise tonneau cover and support (Refer to 23 - BODY/CONVERTIBLE TOP - STANDARD 3. Remove the upper and lower cylinder retainers (2). 4. Remove the main cylinder (1) from the top frame assembly to gain access to the hydraulic lines and 5. Remove the hydraulic line retainers and remove lines from the cylinder. 6. Remove the travel sensors from the cylinder (left side only). ZH CONVERTIBLE TOP 23 - 495 |
