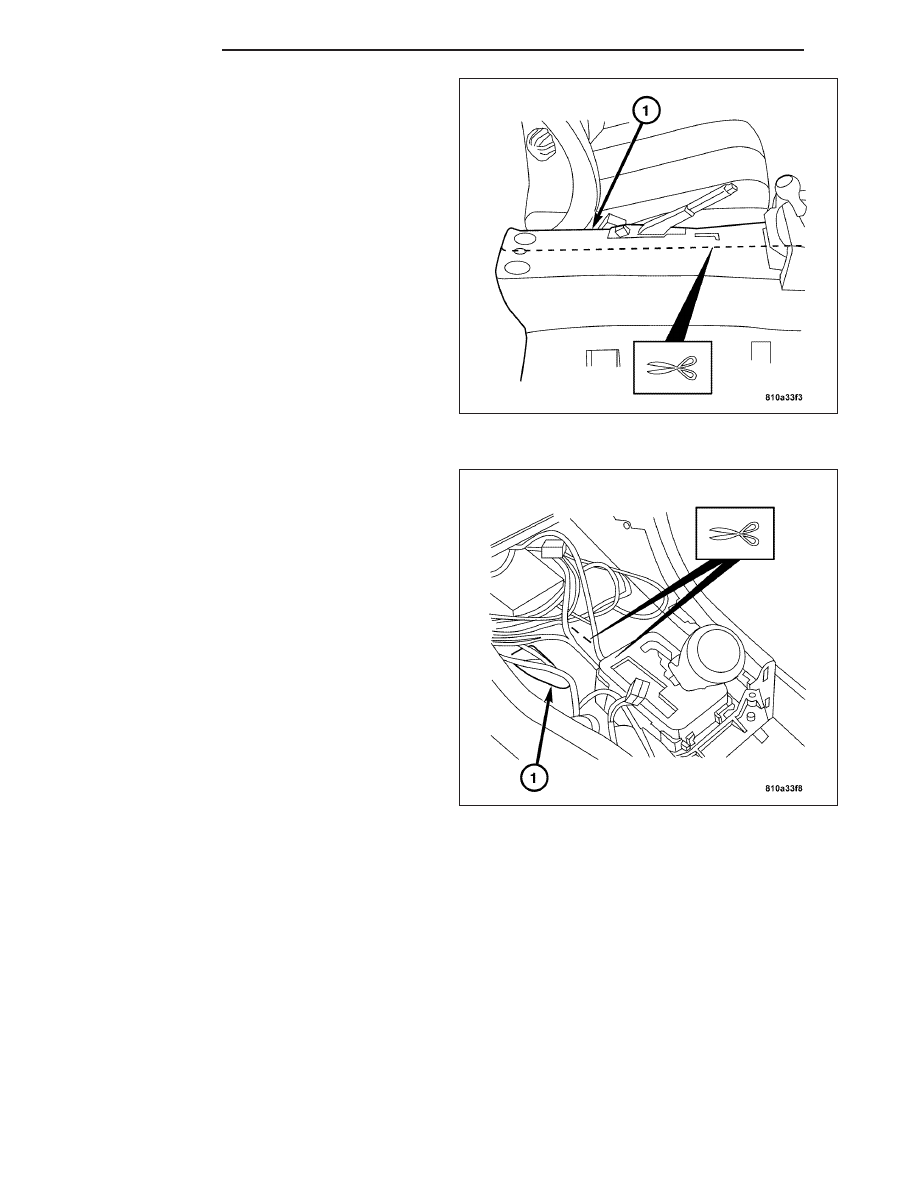

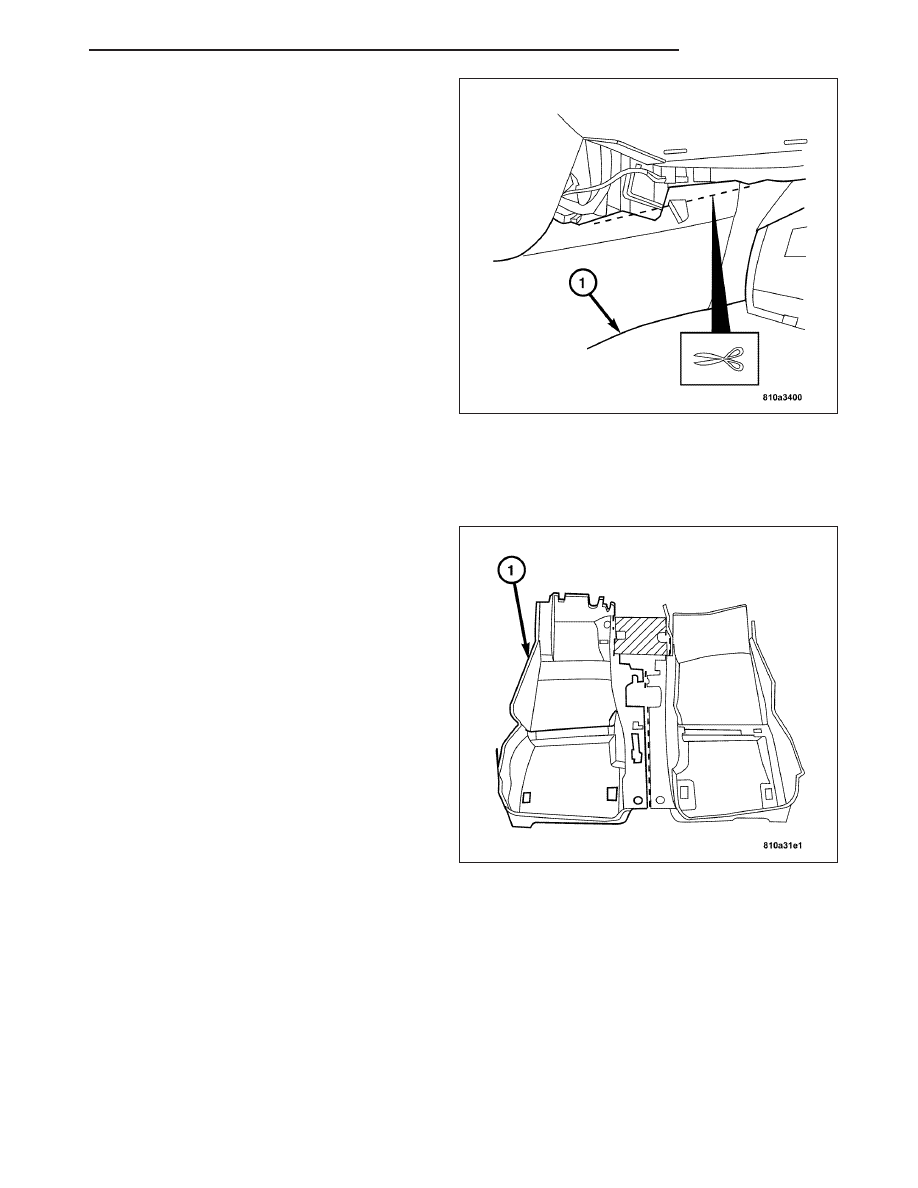

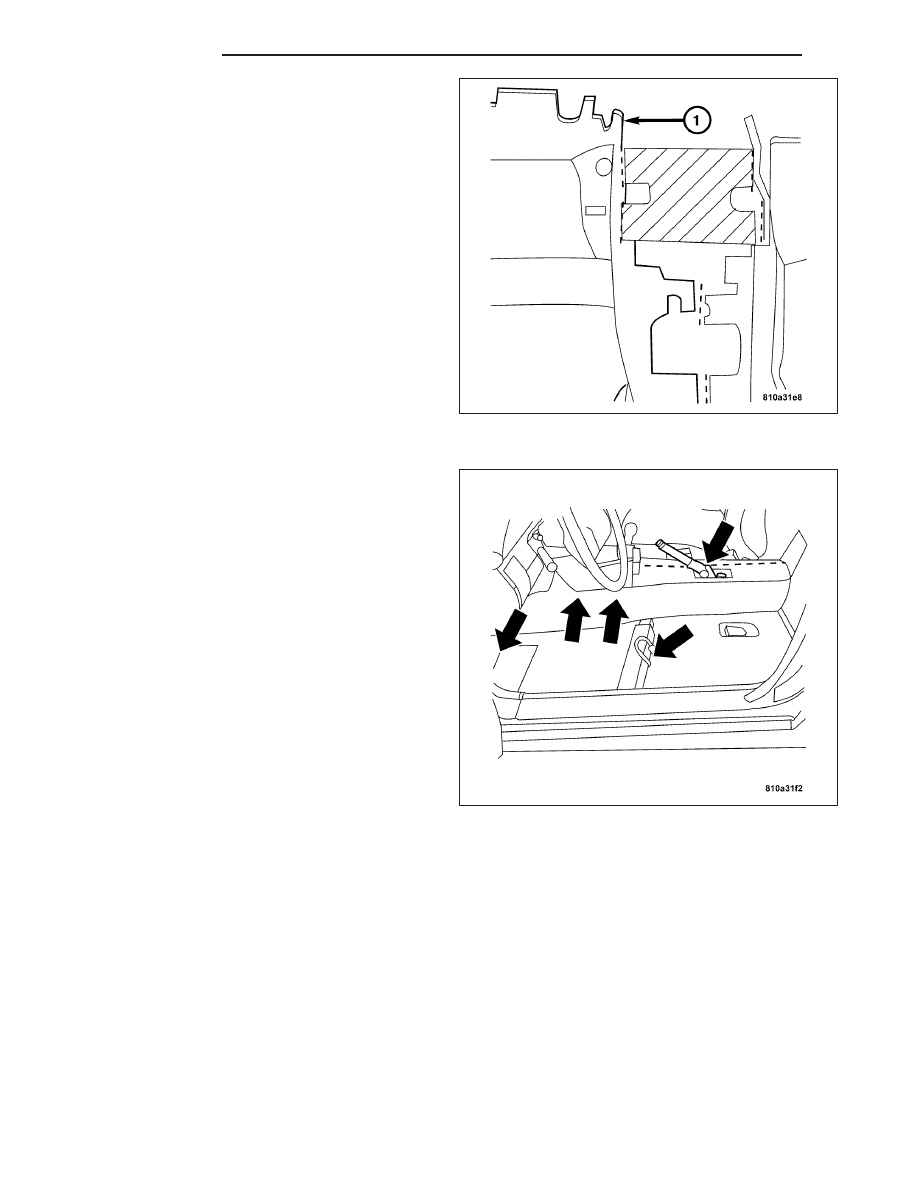

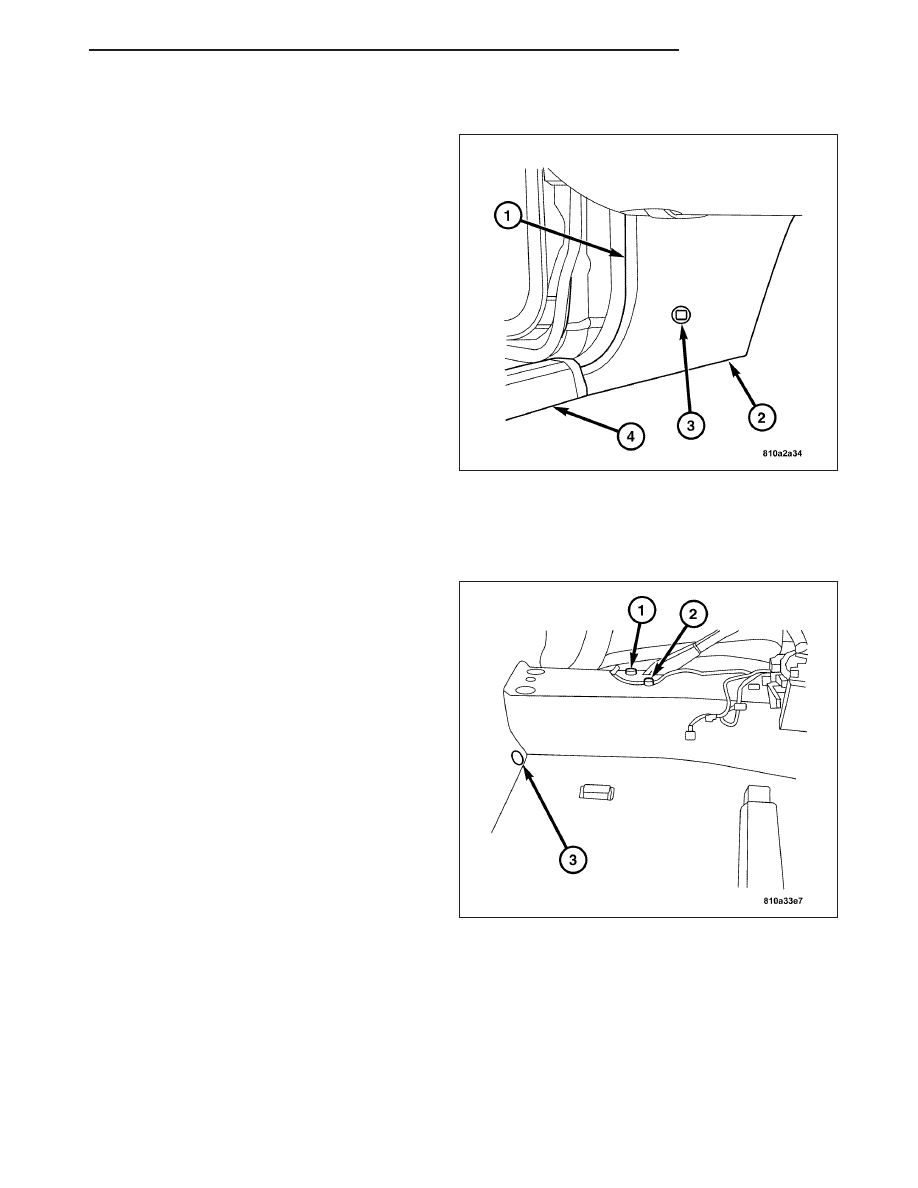

REMOVAL - CARPET (RIGHT SIDE) 1. Remove the front seat. (Refer to 23 - BODY/ SEATS/SEAT - REMOVAL). 2. Remove the rear center console. (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL). 3. Remove the cover on the center console. (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL). 4. Remove the ashtray housing with the stowage compartment in the front center console. (Refer to - BODY/INTERIOR/CENTER CONSOLE - REMOVAL). 5. Remove the air outlet cover in the footwell. 6. Remove lower instrument panel (right). (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL ASSEMBLY - REMOVAL). 7. Removing the door sill trim plate (4). (Refer to 23 - BODY/INTERIOR/DOOR SILL TRIM PLATE - REMOVAL.) 8. Remove the kick panel (2) in the right footwell. Pull the edge guard (1) off in the area of the kick panel (2). Remove the cap (3) with a suitable tool, then remove the screw. 9. Unhook the storage pocket and remove it from the vehicle. 10. Disconnect the connector from the parking brake switch (1). 11. Remove the plugs and pull off the edge protector at the rear in the lower area. ZH INTERIOR 23 - 383 |
