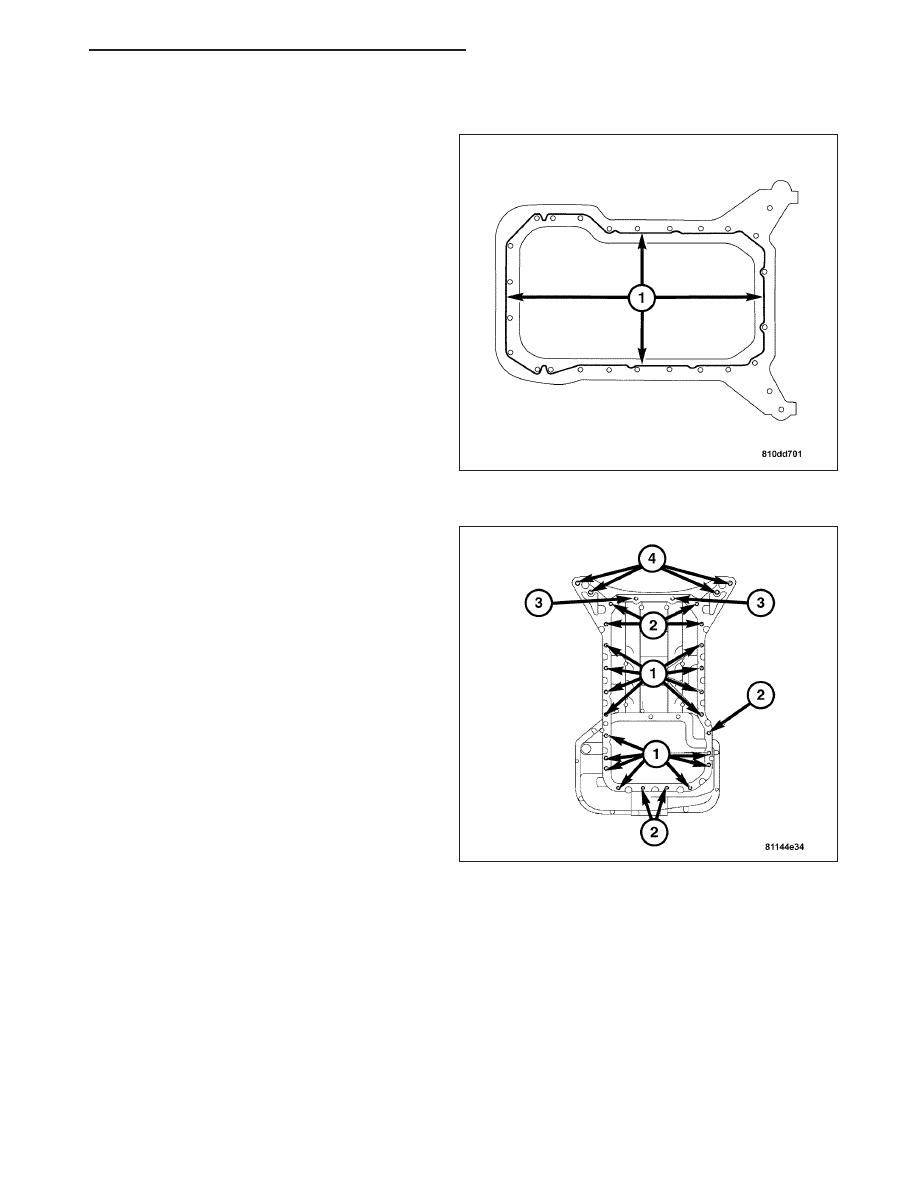

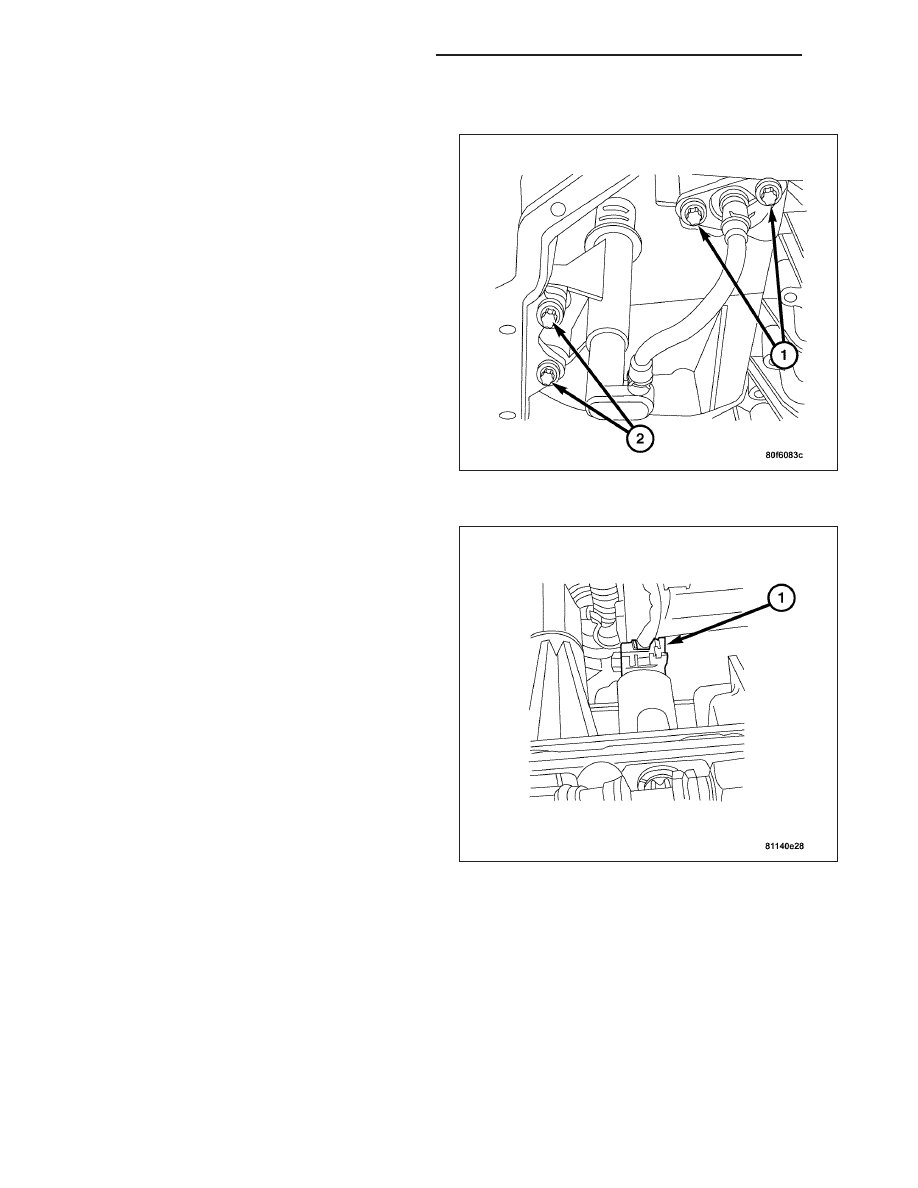

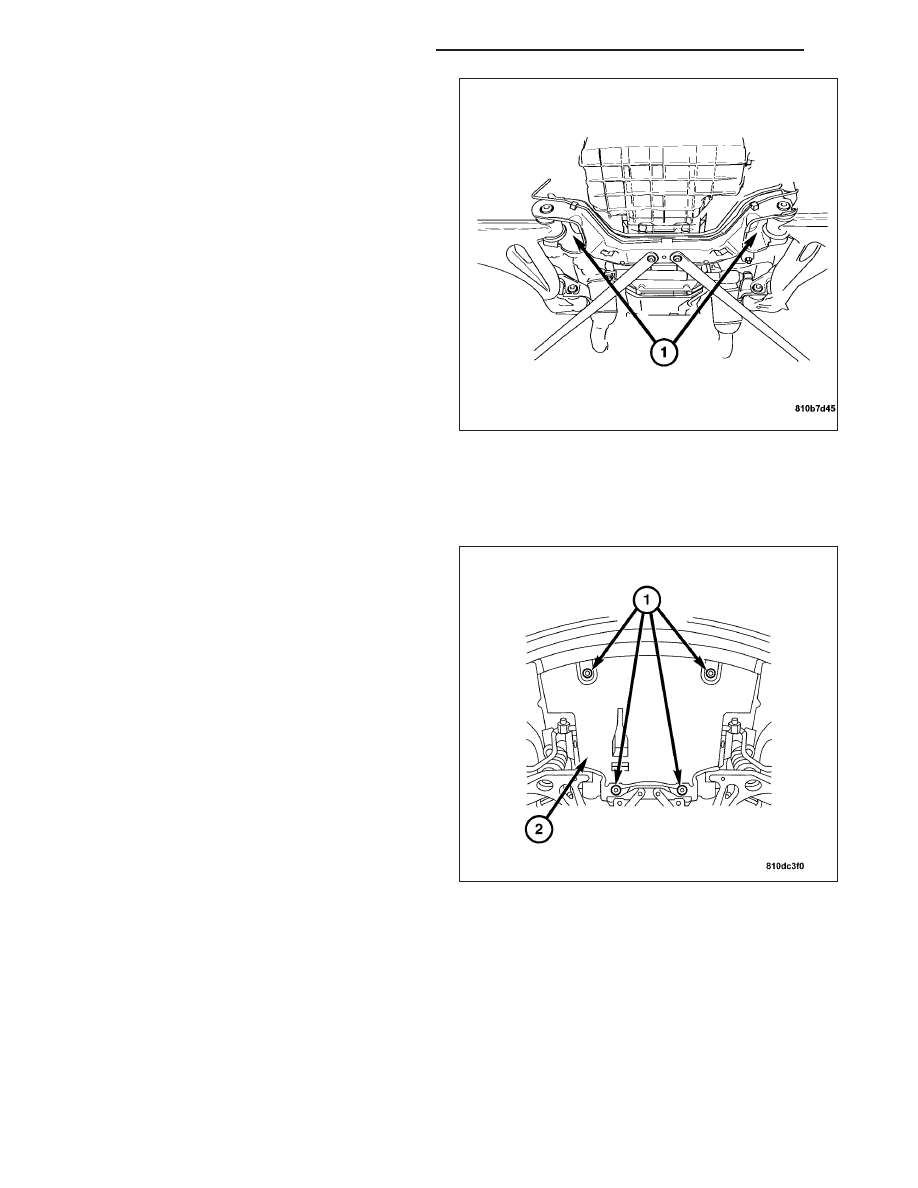

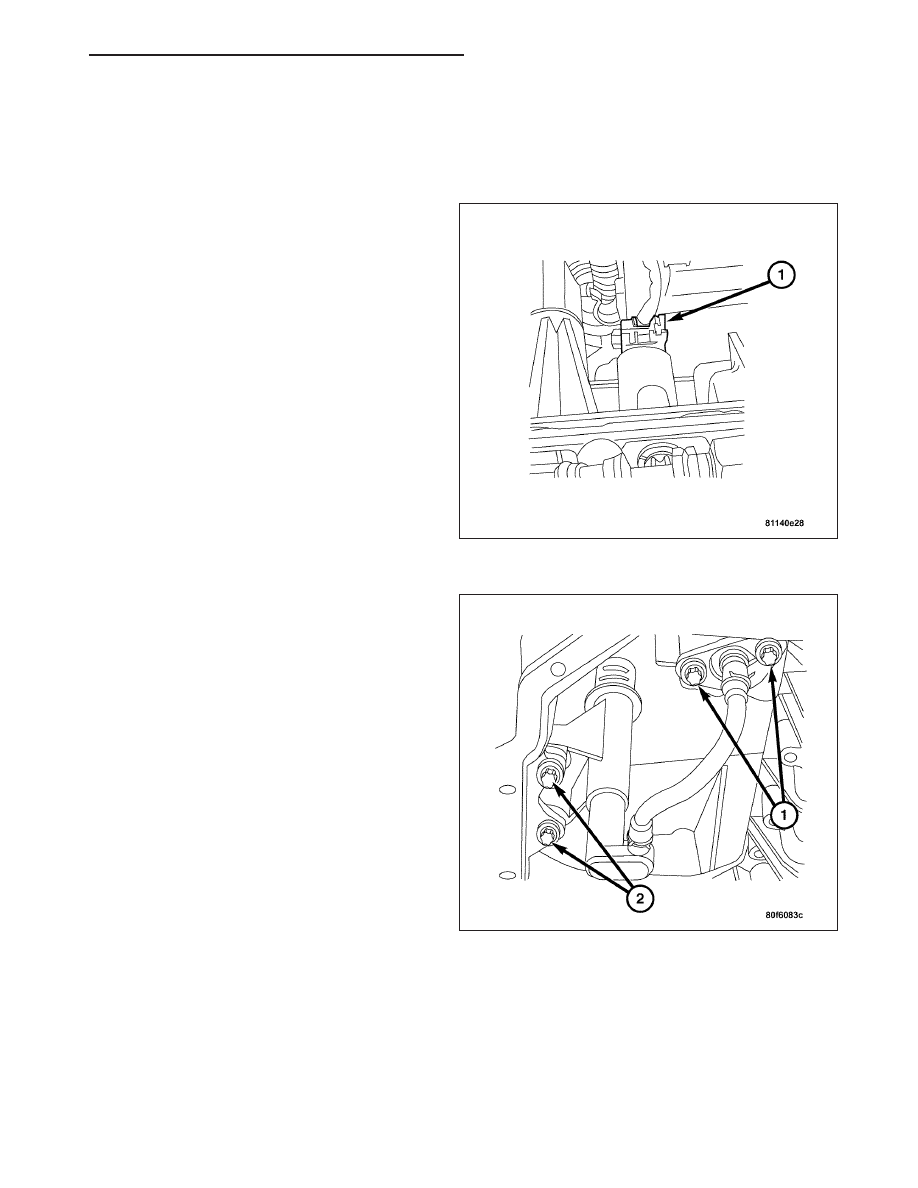

INSTALLATION - UPPER OIL PAN 1. Clean the gasket surfaces thoroughly. Note: The components using sealant must be 2. Apply a 1.5 to 2.5 mm. bead of Loctite 5900 seal- ant (1) or equivalent to the oil pan sealing surface 3. Position the upper oil pan on the engine block. 4. Install the oil pan bolts with the proper size and length bolt in the correct bolt hole. • (1) M6 X 20 • (2) M6 X 40 • (3) M6 X 90 • (4) M8 X 30 5. Tighten the M6 size bolts to 10 N·m (89 in. lbs). Follow the tightening sequence diagram. 6. Tighten the M8 size bolts to 20 N·m (15 ft. lbs.). Follow the tightening sequence diagram. 7. Install the lower oil pan (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION). 8. Lower the vehicle. 9. Lower the engine back into position using the support bracket. 10. Remove the engine support bracket. 11. Install the dipstick tube (Refer to 9 - ENGINE/LUBRICATION/OIL PAN - INSTALLATION). 12. Raise the vehicle. ZH ENGINE - 3.2L SERVICE INFORMATION 9 - 801 |
