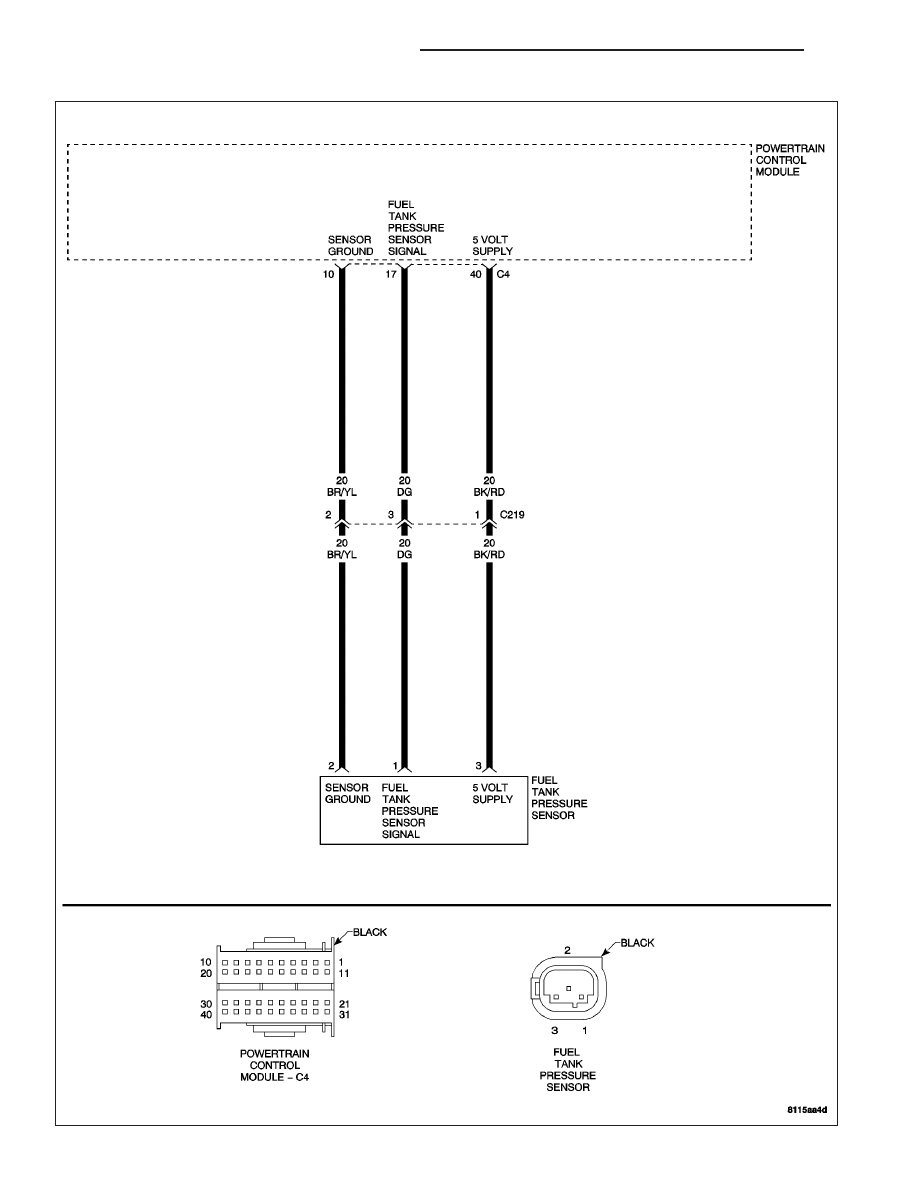

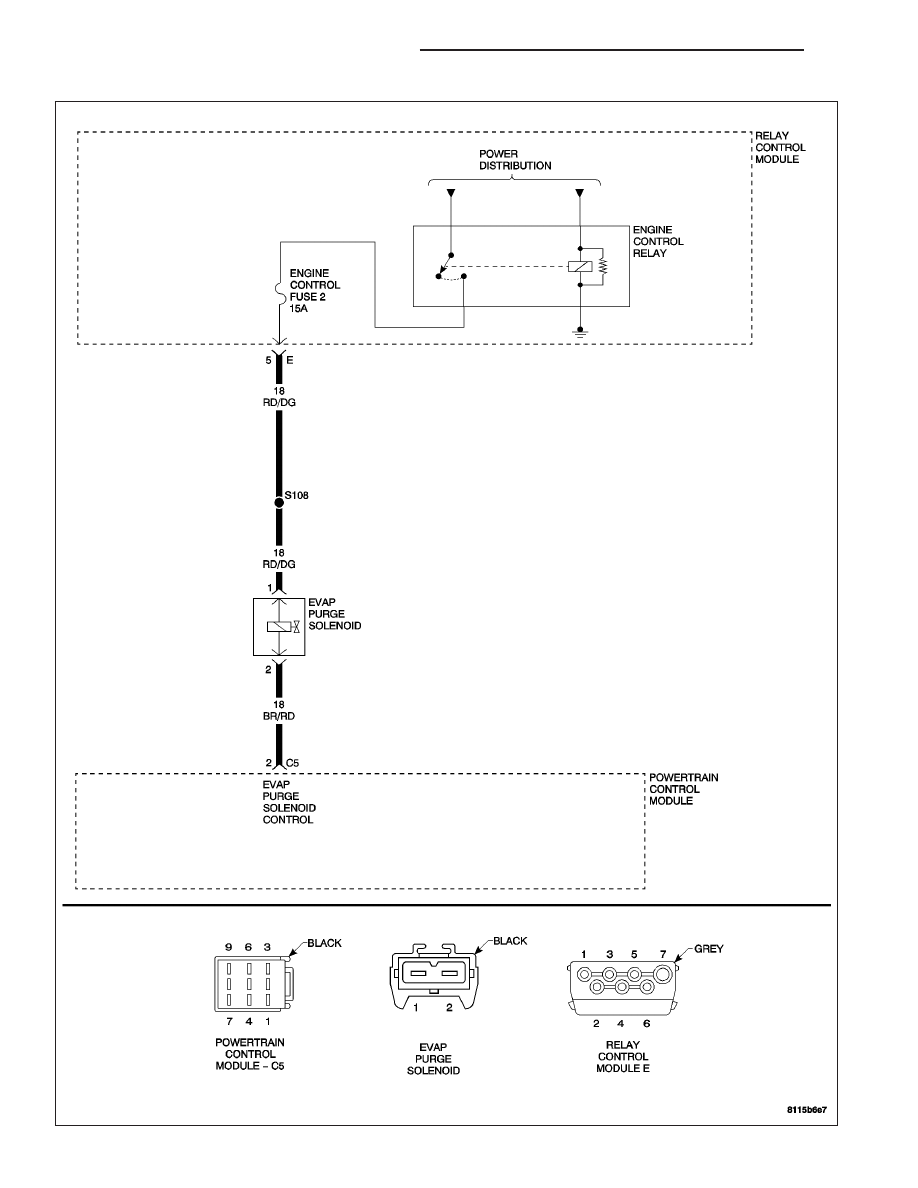

(P0441) EVAP PURGE VALVE (CONTINUED) When Monitored and Set Condition • When Monitored: Continuously with the ignition on. • Set Condition: An improper voltage level has been detected on the Evap Purge Solenoid Control circuit. POSSIBLE CAUSES FUSED ENGINE CONTROL RELAY OUTPUT CIRCUIT OPEN EVAP PURGE SOLENOID CONTROL CIRCUIT OPEN EVAP PURGE SOLENOID CONTROL CIRCUIT SHORT TO GROUND EVAP PURGE SOLENOID CONTROL CIRCUIT SHORT TO VOLTAGE EVAP PURGE SOLENOID POWERTRAIN CONTROL MODULE For a complete Powertrain Control Module Circuit Diagram, (Refer to 9 - ENGINE - SCHEMATICS AND DIA- Diagnostic Test 1. CHECK FOR CURRENT DTC Turn the ignition on. With the DRB III T , read PCM DTCs. Is this DTC present? Yes >> For complete diagnosis of this DTC, refer to (P0445) EVAP PURGE SOLENOID CIRCUIT. No >> Go To 2 2. INTERMITTENT WIRING AND CONNECTORS The conditions necessary to set this DTC are not present at this time. Note: Check connectors — Clean/repair as necessary. Poor pin to terminal connections can set DTCs. Using Note: Check for any Technical Service Bulletins that may apply. Were there any problems found? Yes >> Repair as necessary. Perform POWERTRAIN VERIFICATION TEST - VER 2. No >> The condition that caused this DTC to set is currently not present. Inspect the related wiring harness for a possible intermittent condition. ZH ENGINE - ELECTRICAL DIAGNOSTICS 9 - 449 |
