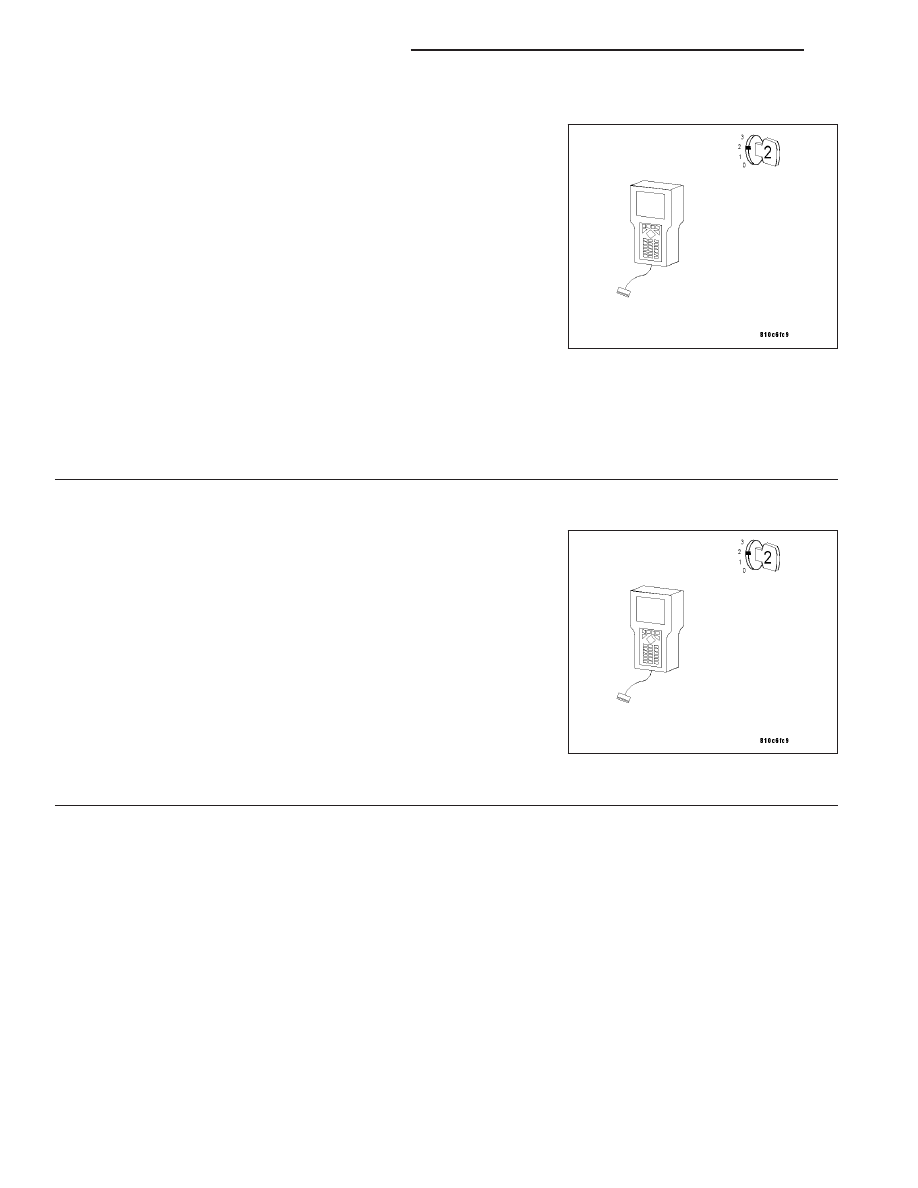

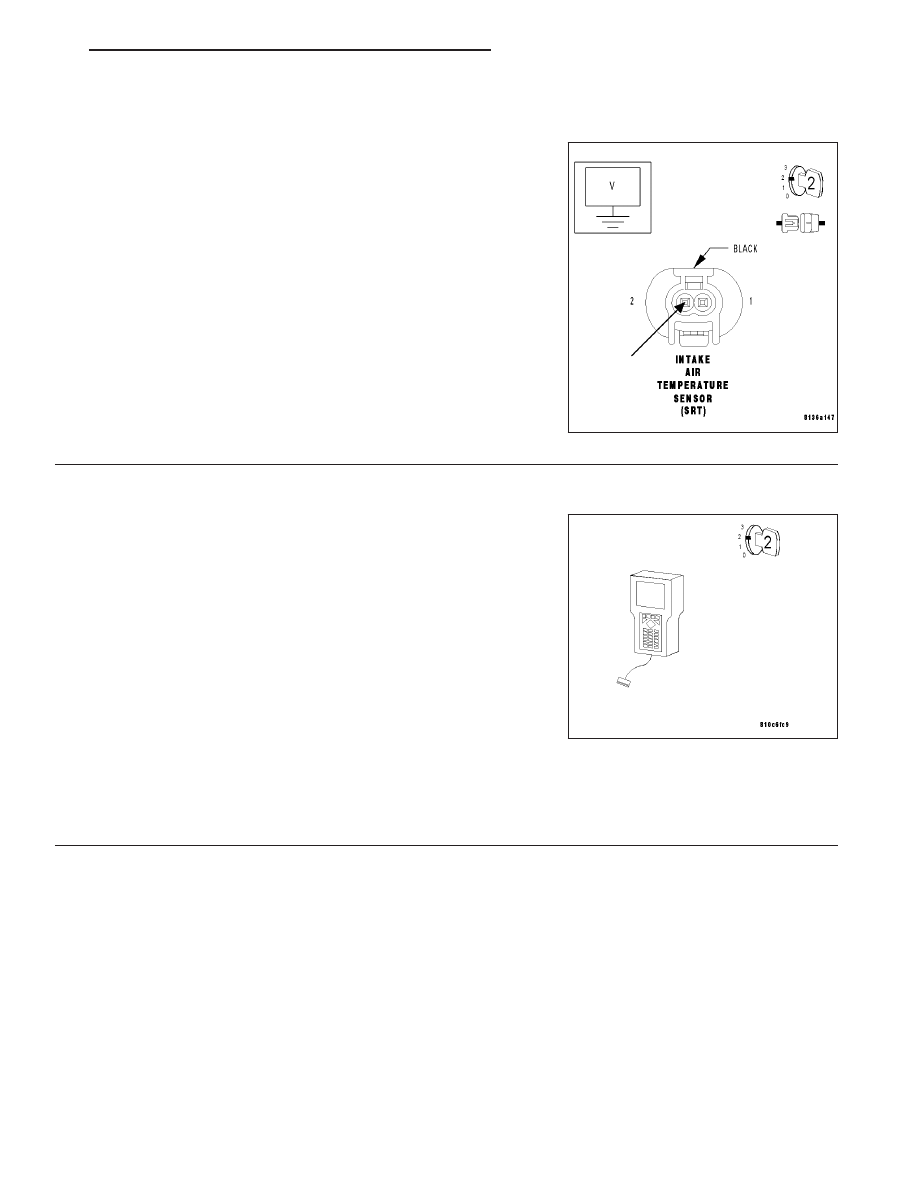

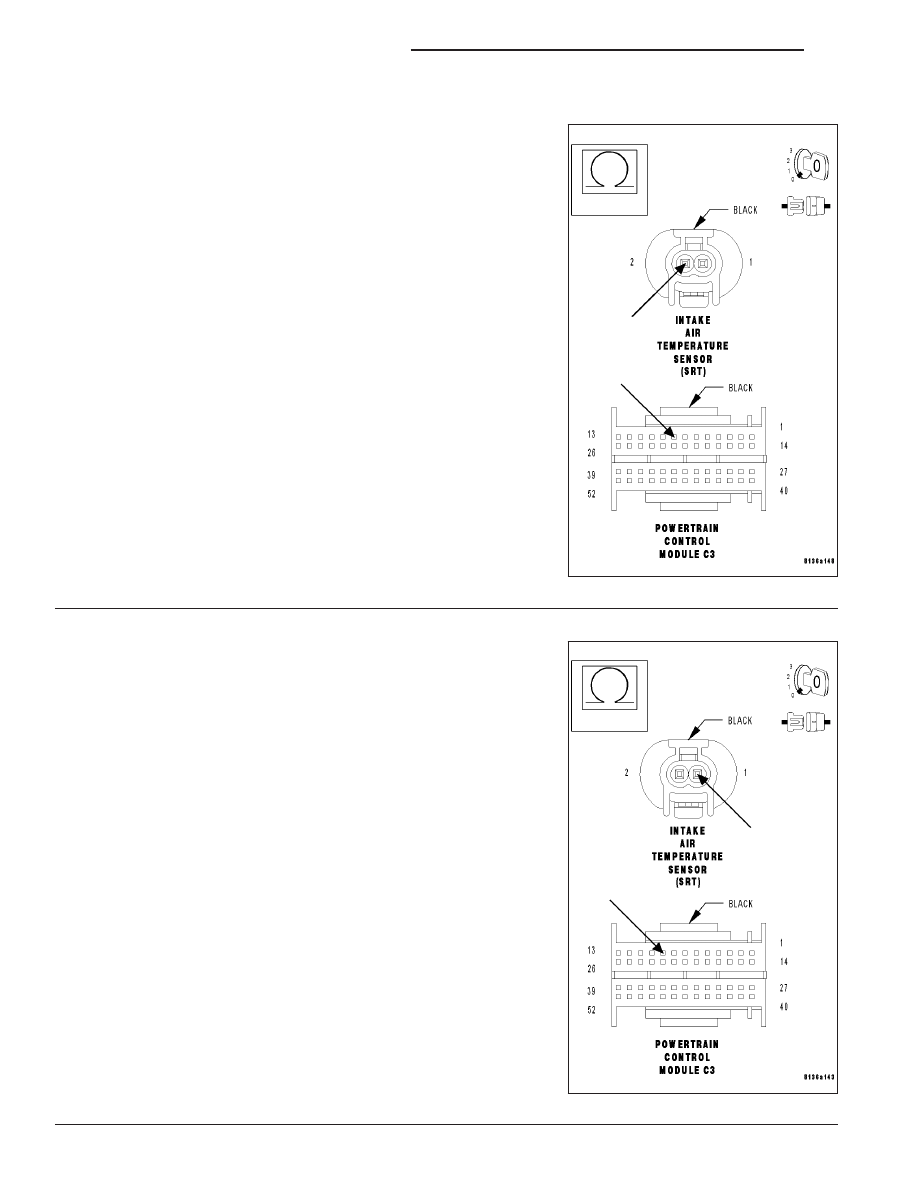

(P0113) INTAKE AIR TEMPERATURE SENSOR CIRCUIT HIGH (SRT) (CONTINUED) When Monitored and Set Condition • When Monitored: With the ignition on. • Set Condition: An improper voltage level has been detected by the Powertrain Control Module (PCM) on the POSSIBLE CAUSES IAT SENSOR SIGNAL CIRCUIT SHORT TO VOLTAGE IAT SENSOR SIGNAL CIRCUIT SHORT TO GROUND IAT SENSOR SIGNAL CIRCUIT SHORT TO SENSOR GROUND CIRCUIT IAT SENSOR SIGNAL CIRCUIT OPEN SENSOR GROUND CIRCUIT OPEN INTAKE AIR TEMPERATURE SENSOR POWERTRAIN CONTROL MODULE For a complete Powertrain Control Module Circuit Diagram, (Refer to 9 - ENGINE - SCHEMATICS AND DIA- Diagnostic Test 1. PRE-DIAGNOSTIC CHECK OUT Note: Always perform diagnostics with a fully charged battery. Note: Check connectors — Clean/repair as necessary. Poor pin to Note: Check for applicable TSBs related to the problem. With the DRB III T , read PCM DTCs. Using the wiring diagram/schematic as a guide, inspect the wiring and Perform this procedure prior to symptom diagnosis. Continue Go To 2 ZH ENGINE - ELECTRICAL DIAGNOSTICS 9 - 49 |
