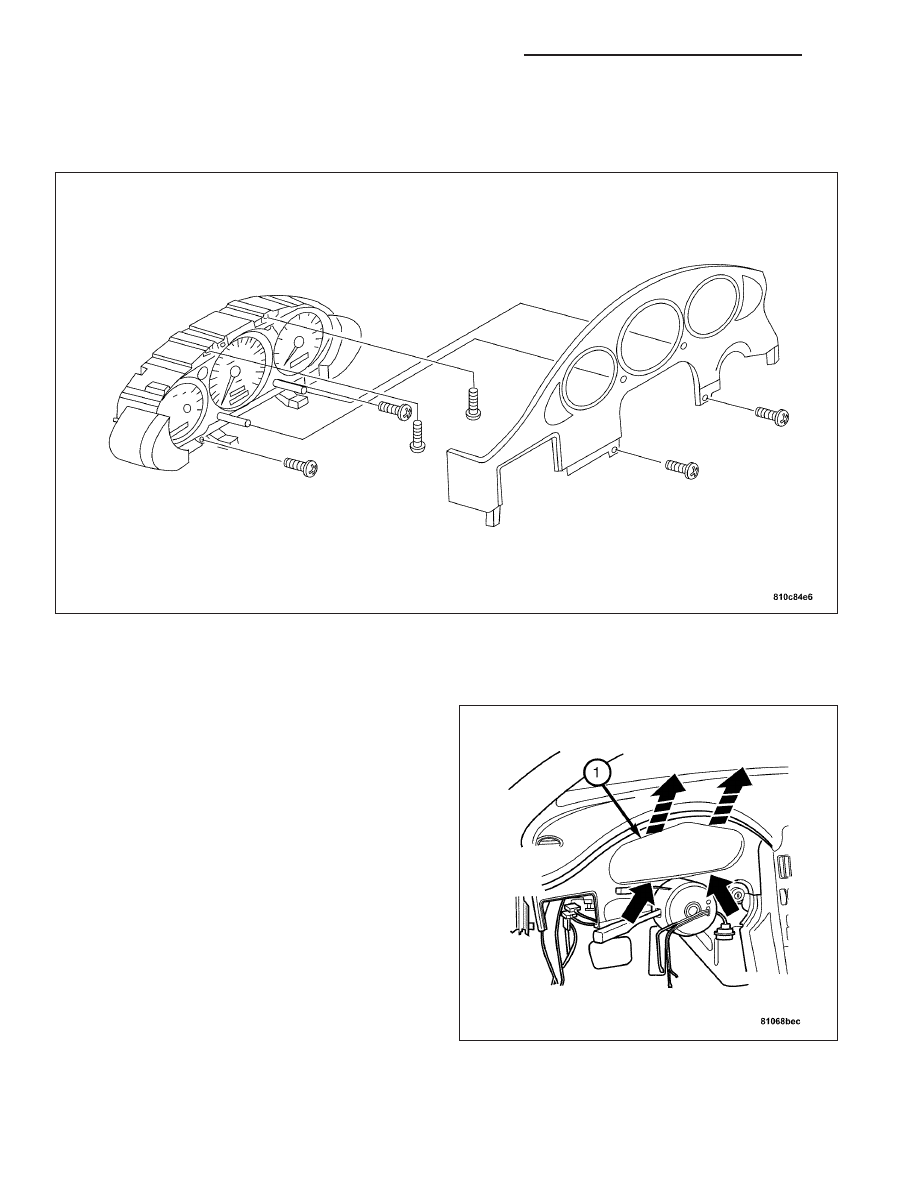

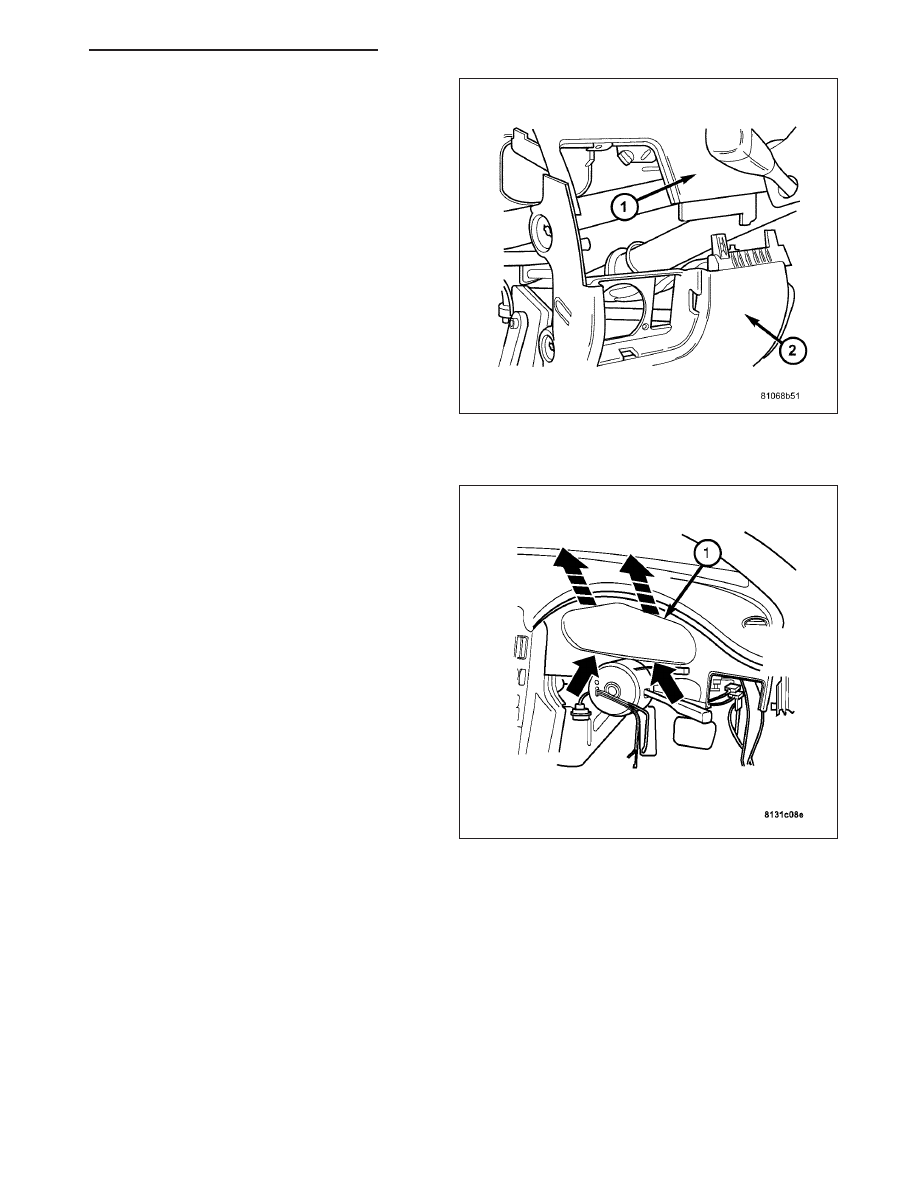

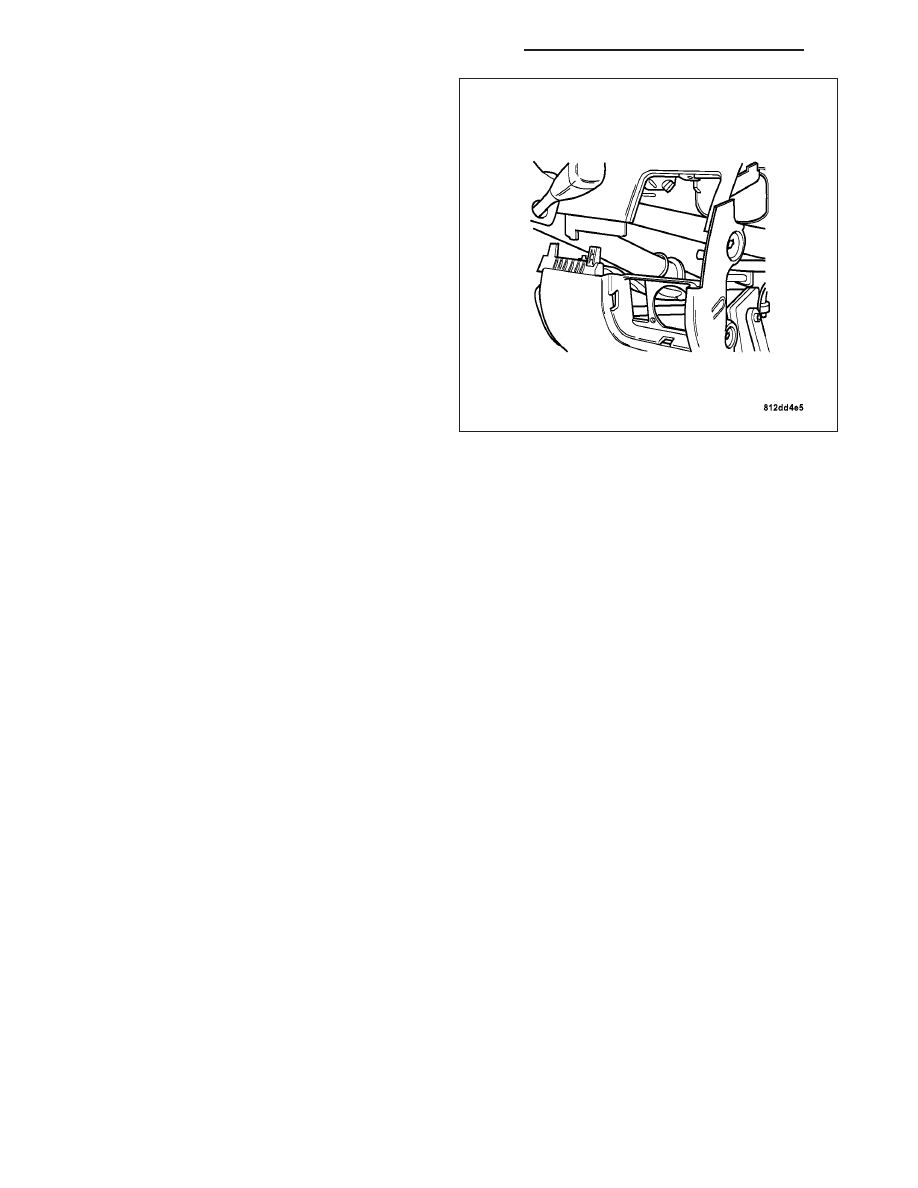

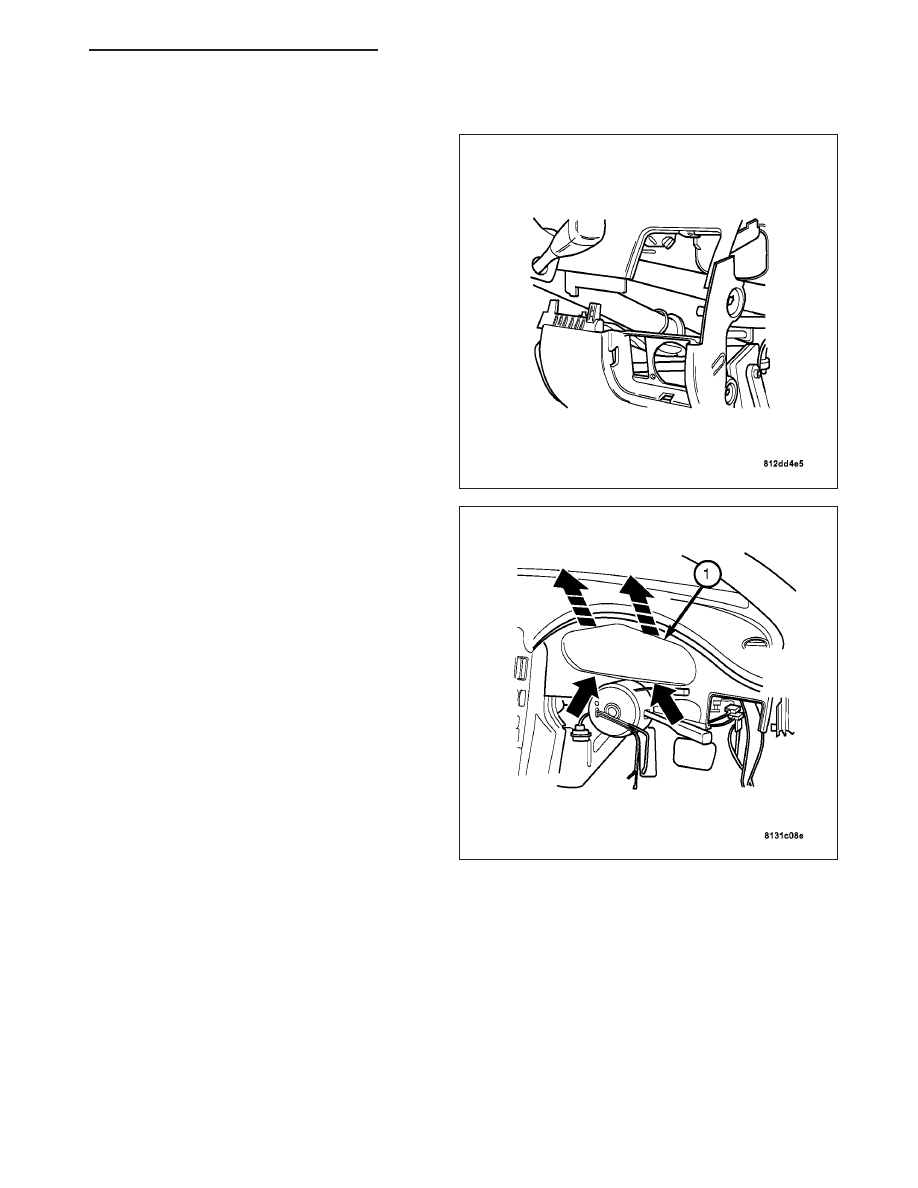

REMOVAL - RHD 1. Disconnect the negative battery cable. 2. Remove the steering wheel.(Refer to 19 - STEER- ING/COLUMN/STEERING WHEEL - REMOVAL). 3. Remove the lower Instrument Panel cover. (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRU- MENT PANEL ASSEMBLY - REMOVAL). 4. Remove the Instrument Cluster bezel (1). (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT 5. Remove the retaining screws from Instrument Clus- ter. 6. Move the Instrument Cluster toward the rear of the vehicle. 7. Unlock and disconnect the Instrument Cluster har- ness connectors from the back of the Instrument 8. Remove the Instrument Cluster from the vehicle. ZH INSTRUMENT CLUSTER - SERVICE INFORMATION 8J - 109 |
