Chrysler 300/300 Touring/300C, Dodge Magnum. Manual - part 592





B1D09,B1D12–MIRROR POSITION SENSOR POWER SUPPLY CIRCUIT LOW –
MEMORY MIRROR MODULE

8N - 66

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

LX

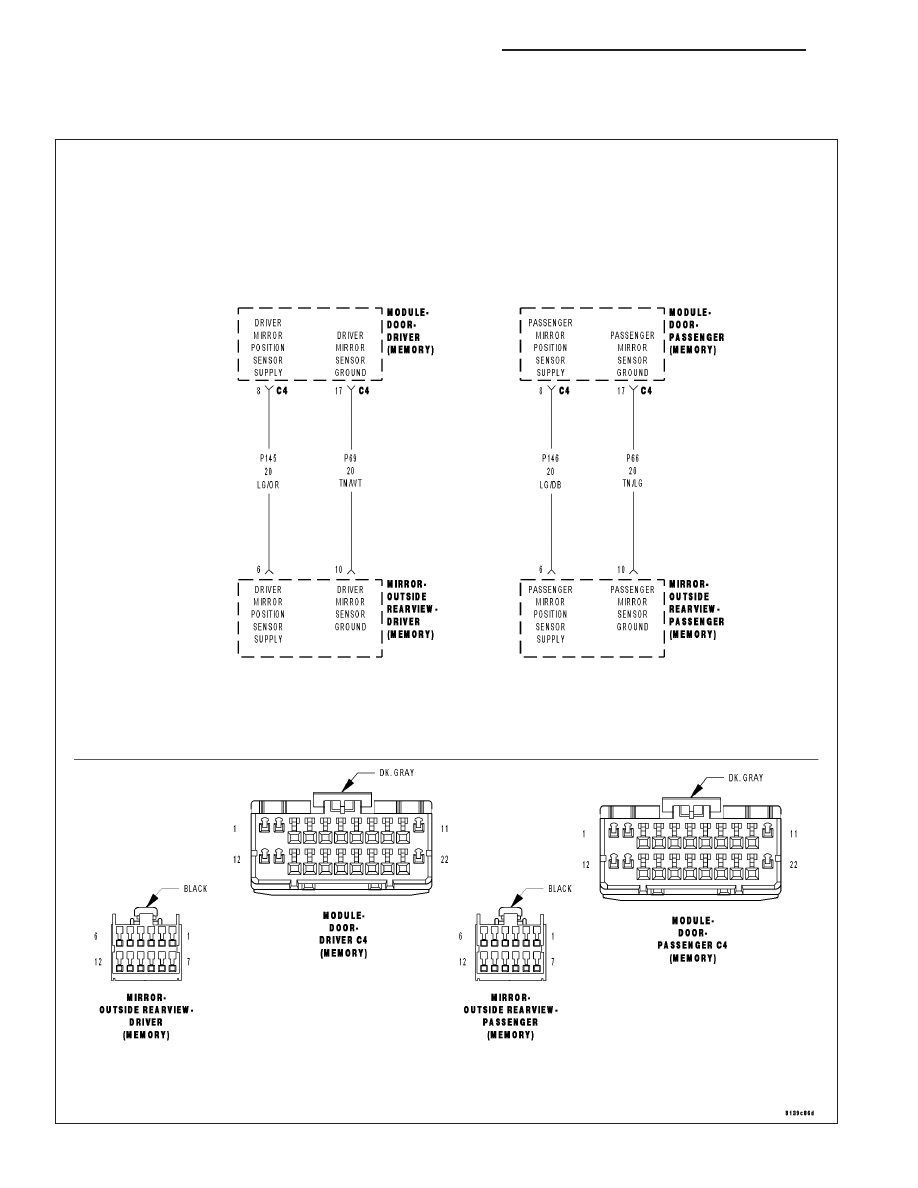

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously.

Set Condition:
When the Driver Door Module senses voltage below 4.3 volts on the Mirror Position Sensor Supply circuit for
over 30 ms., this code will set.NOTE: This test covers both the Driver and Passenger code depending on
the side the code appeared in.

Possible Causes

(P145) OR (P146) MIRROR POSITION SENSOR SUPPLY CIRCUIT SHORT TO GROUND

(P145) OR (P146) MIRROR POSITION SENSOR SUPPLY CIRCUIT SHORTED TO (P69) OR (P66) MIRROR
SENSOR GROUND CIRCUIT

MIRROR SHORTED

DRIVER OR PASSENGER DOOR MODULE

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase DTC’s

Operate the Mirror Switch in all directions several times.

Cycle the ignition from on to off three times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display B1D09 or B1D12–MIRROR POSITION SENSOR POWER SUPPLY CIRCUIT
LOW?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not present at this time. Using the wiring diagram/sche-

matic as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1. (Refer to BODY VERIFICATION TEST - VER 1).

LX

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 67

2.

TEST FOR A SHORTED MIRROR

Turn the ignition off.

Disconnect the appropriate mirror connector.

Turn the ignition on.

Measure the voltage between the (P145) or (P146) Mirror Position Sen-
sor Supply circuit and the ((P69) or (P66) Mirror Sensor Ground circuit.

Is the voltage above 4.6 volts?

Yes

>> Replace the Mirror.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Go to 3

3.

TEST THE (P145) OR (P146) MIRROR POSITION SENSOR SUPPLY WIRE

Turn the ignition off.

Disconnect the appropriate Driver Door Module connector.

Measure the resistance between ground and the (P145) or (P146) Mir-
ror Position Sensor Supply circuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P145) or (P146) Mirror Position Sensor Supply

circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Go to 4

8N - 68

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

LX

4.

TEST THE (P145) OR (P146) MIRROR POSITION SENSOR SUPPLY WIRE SHORTED TO THE (P69) OR
(P66) MIRROR SENSOR GROUND CIRCUIT.

Measure the resistance between the (P145) or (P146) Mirror Position
Sensor Supply circuit and the (P69) or (P66) Mirror Sensor Ground cir-
cuit.

Is the resistance below 5000.0 ohms?

Yes

>> Repair the (P145) or (P146) Mirror Position Sensor Supply

circuit for a short to the (P69) or (P66) Sensor Ground Cir-
cuit.

Perform BODY VERIFICATION TEST - VER 1. (Refer to
BODY VERIFICATION TEST - VER 1).

No

>> Replace the appropriate Driver Door Module.

Perform BODY VERIFICATION TEST - VER 1 (Refer to
BODY VERIFICATION TEST - VER 1)..

LX

POWER MIRRORS - ELECTRICAL DIAGNOSTICS

8N - 69
