When Monitored:
The Adjustable Pedals Switch is in active operation.
•
Set Condition:
The Memory Seat Module detects that the Adjustable Pedals Switch has been activated in the rearward posi-
tion for more than 50 seconds.
Possible Causes
WIRING HARNESS CONNECTOR/TERMINALS
(Q103) ADJUSTABLE PEDALS SWITCH REARWARD CIRCUIT SHORT TO GROUND
(Q103) ADJUSTABLE PEDALS SWITCH REARWARD CIRCUIT SHORT TO (Q101) ADJUSTABLE PEDALS
SWITCH GROUND CIRCUIT
ADJUSTABLE PEDALS SWITCH
MEMORY SEAT MODULE
Diagnostic Test
1.
DTC IS ACTIVE
Turn the ignition on.
With the scan tool, select view DTCs. Record all DTC and DTC Environmental data.
With the scan tool, clear stored DTCs.
Cycle the ignition switch off then on.
Move the Adjustable Pedals Switch forward and rearward several times.
With the scan tool, select view DTCs.
Is the status active for this DTC?
Yes
>> Go To 2
No
>> Refer to the Adjustable Pedal System intermittent condition test. (Refer to 5 - BRAKES - DIAGNOSIS
AND TESTING)
2.

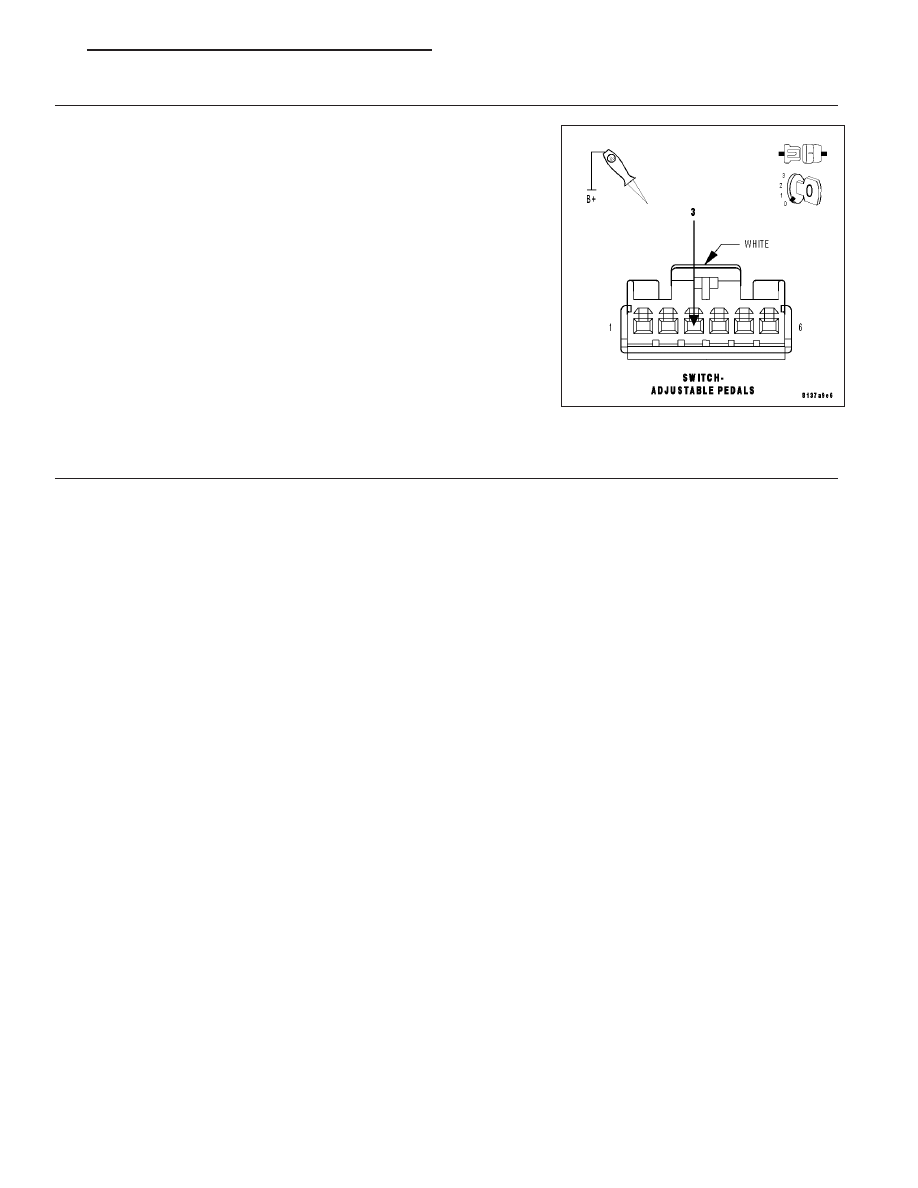

ADJUSTABLE PEDALS SWITCH
Disconnect the Adjustable Pedals Switch harness connector.
Wait approximately 10 seconds.
With the scan tool, select view DTCs.
Does the status remain active for this DTC?
Yes
>> Go To 3
No
>> Replace the Adjustable Pedals Switch in accordance with the Service Information.
Perform APS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
3.
WIRING HARNESS CONNECTOR/TERMINALS
Turn the ignition off.
Disconnect the Memory Seat Module harness connector.
Inspect the Adjustable Pedals Switch and Memory Seat Module wiring harness, connectors and terminals.
Were any problems found?
Yes
>> Repair as necessary.
Perform APS VERIFICATION TEST - VER 1. (Refer to 5 - BRAKES - STANDARD PROCEDURE).
No
>> Go To 4
5 - 202
BRAKES - ABS ELECTRICAL DIAGNOSTICS
LX
