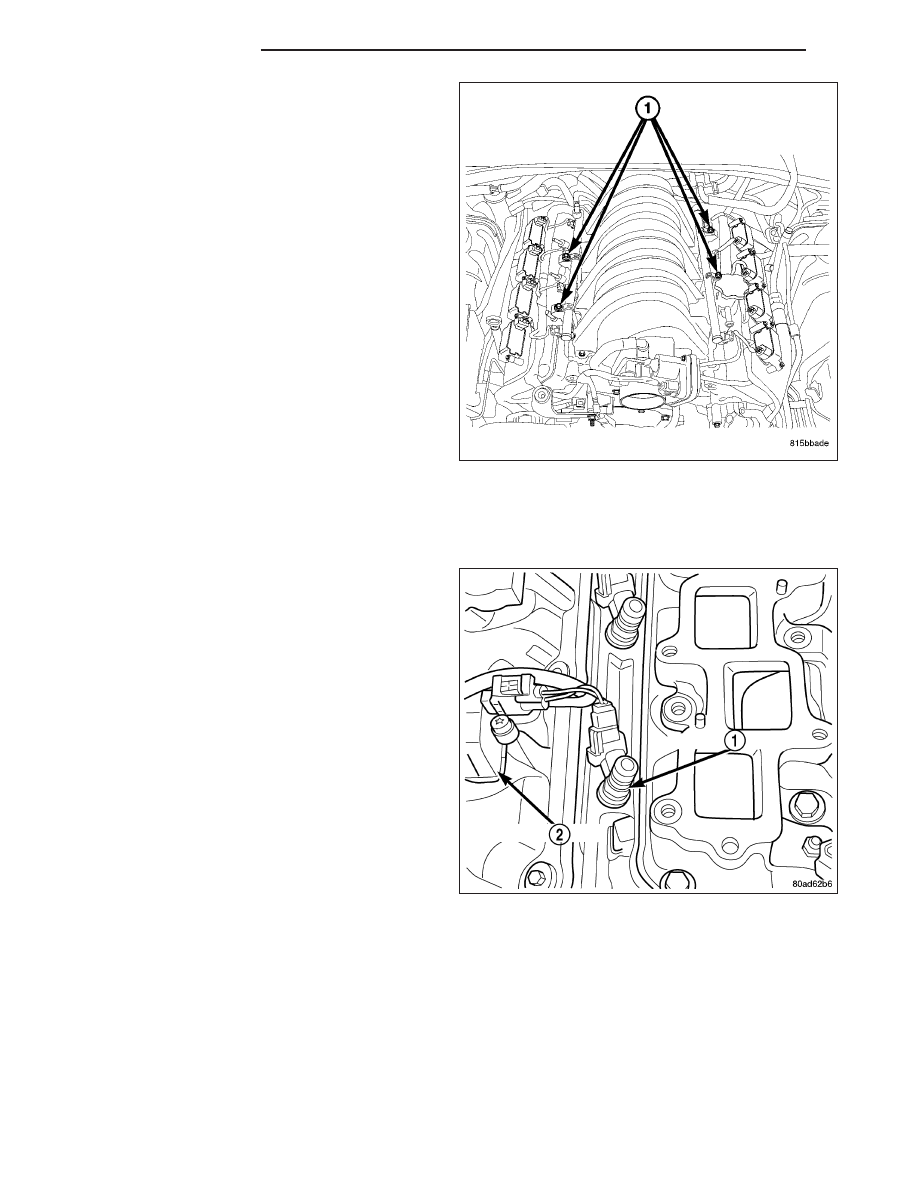

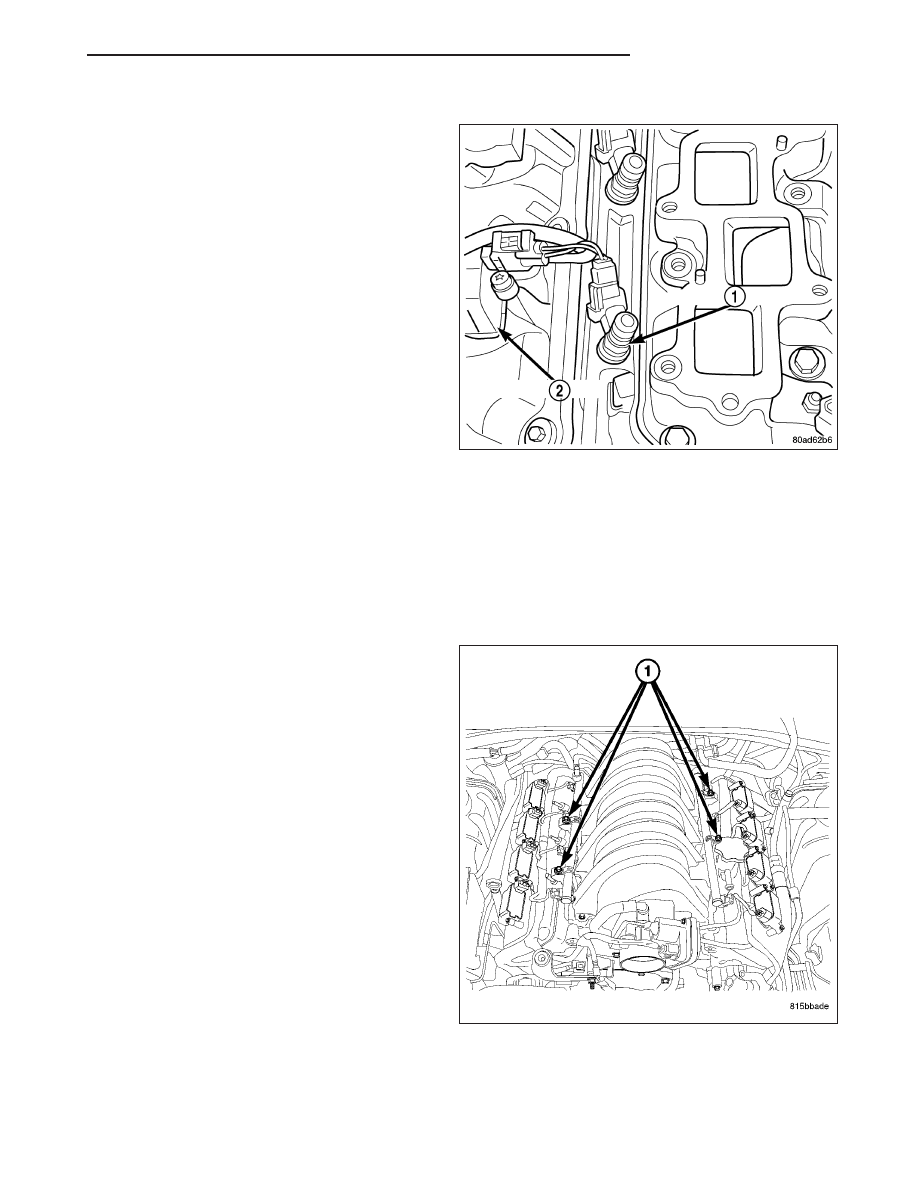

10. Remove four fuel rail mounting bolts (1). 11. Gently rock and pull left side of fuel rail until fuel injectors just start to clear machined holes in 12. Remove fuel rail (with injectors attached) from engine. 13. If fuel injectors are to be removed, refer to Fuel Injector Removal/Installation. INSTALLATION 2.7L 1. Lightly lubricate the fuel injector O-rings with a cou- ple drops of clean engine oil. 2. Install retaining clips on fuel injectors. 3. Push injectors into fuel injector rail until clips are in the correct position. 4. Position fuel rail over cylinder heads, and push rail into place. Tighten fuel rail mounting bolts to 11 5. Connect the fuel supply tube quick connect fitting to the fuel rail, (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/ QUICK CONNECT FITTING - STANDARD PROCEDURE). 6. Connect the electrical connectors to the fuel injectors. 7. Install intake manifold plenum, (Refer to 9 - ENGINE/MANIFOLDS/INTAKE MANIFOLD - INSTALLATION). 8. Connect negative cable to battery. 9. Use the scan tool to pressurize the fuel system. Check for leaks. 14 - 62 FUEL DELIVERY LX |
