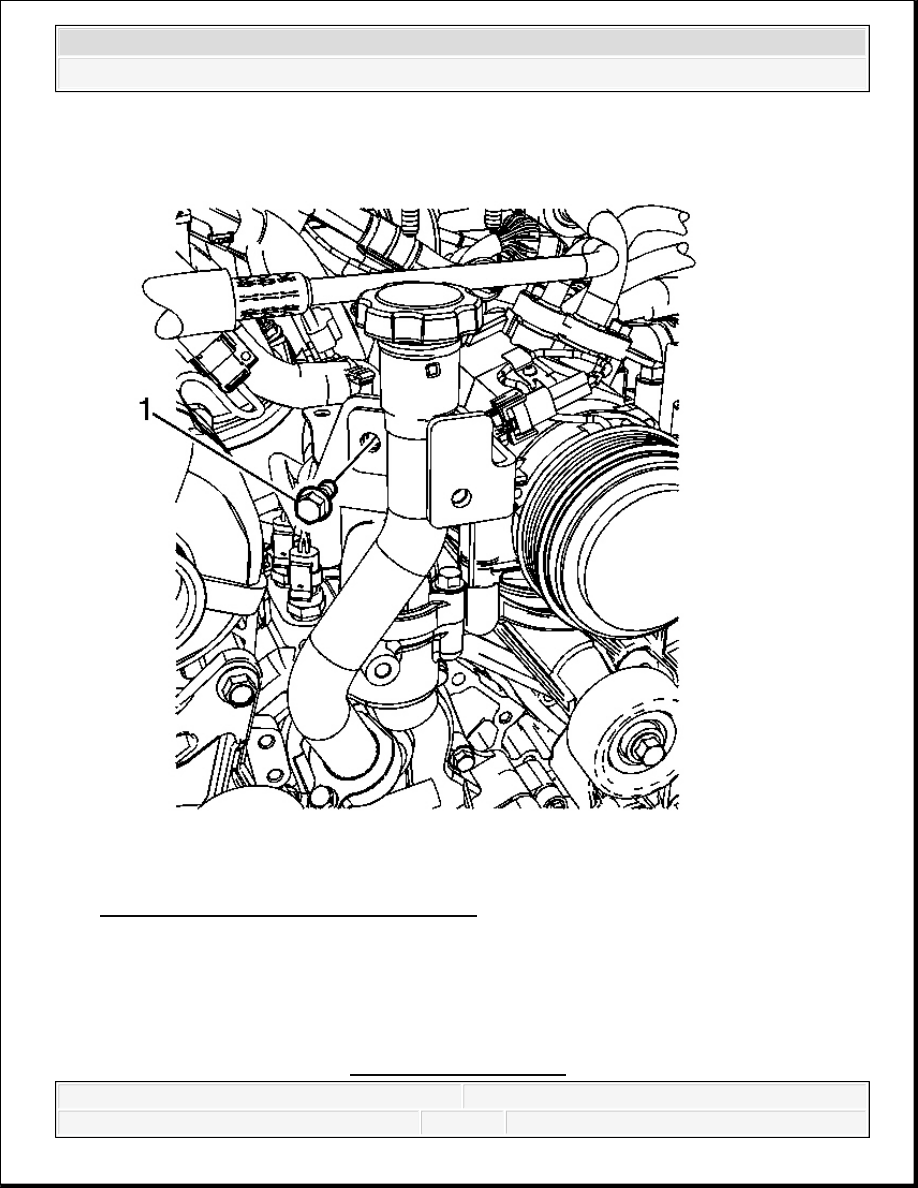

Fig. 92: View Of Upper Oil Fill Tube Bolt 6. Install the upper oil fill tube bolt (1). Tighten: Tighten the bolts to 21 N.m (15 lb ft). 7. Install the drive belt. Refer to Drive Belt Replacement.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
8. Install the fan and clutch assembly. Refer to Cooling Fan and Shroud Replacement (Non-HP2) . OIL LEVEL INDICATOR AND TUBE REPLACEMENT Removal Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

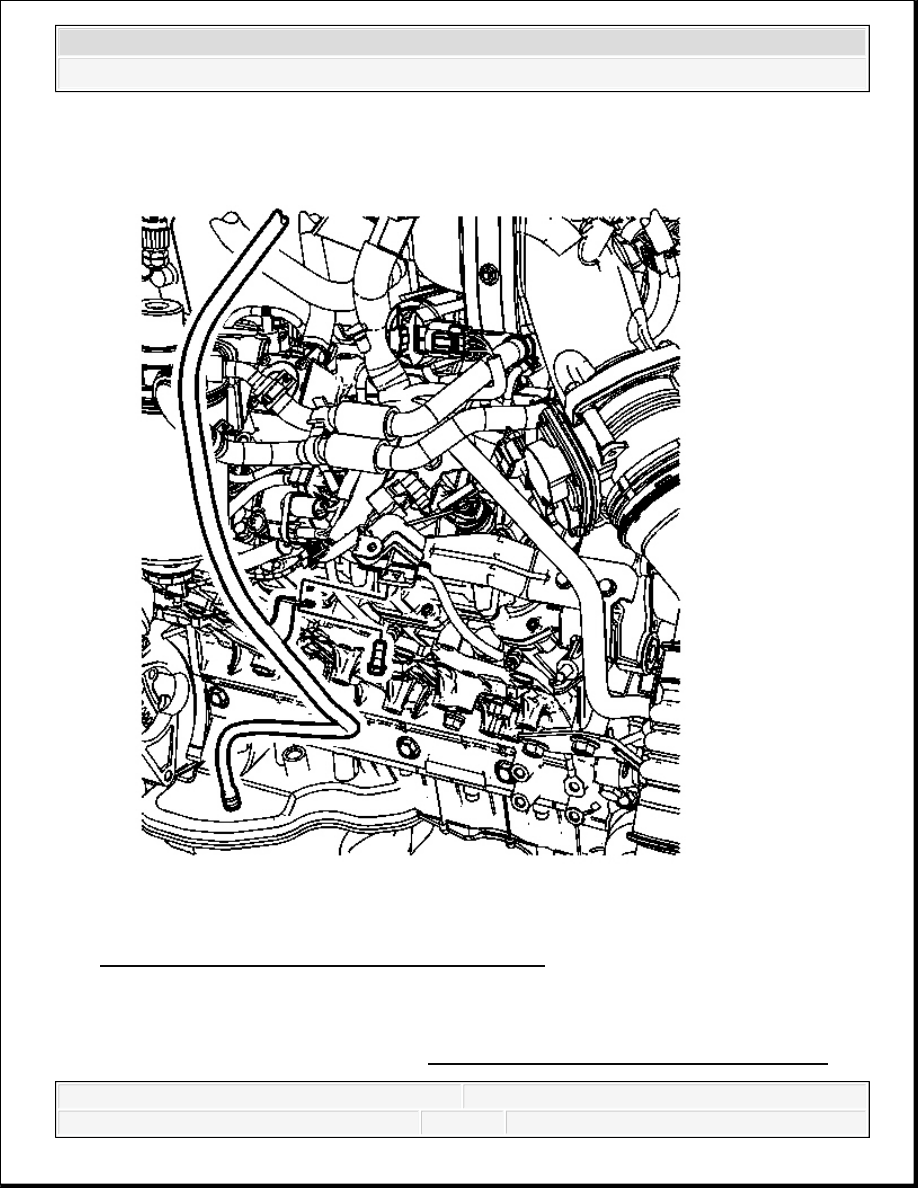

Fig. 93: View Of Oil Level Indicator Tube & Bolt 1. Remove the oil level indicator. 2. Remove the exhaust manifold. Refer to Exhaust Manifold Replacement - Right Side
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
(6.6L) . 3. Remove the starter motor. Refer to Starter Motor Replacement (6.6L) . 4. Remove the oil level indicator tube bolt at the indicator tube bracket. 5. Remove the oil level indicator tube and O-ring seals. 6. Remove and discard the O-ring seals. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 6.6L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
|
|
|
