equivalent, into the hole. 8. Using compressed air, clean any cutting oil and chips out of the hole. Fig. 516: Lubricating Installer Tool Using Driver Oil 9. Lubricate the threads of the installer tool (2) with the driver oil (1). IMPORTANT: Do not allow oil or other foreign material to contact the outside diameter (OD) of the insert.
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

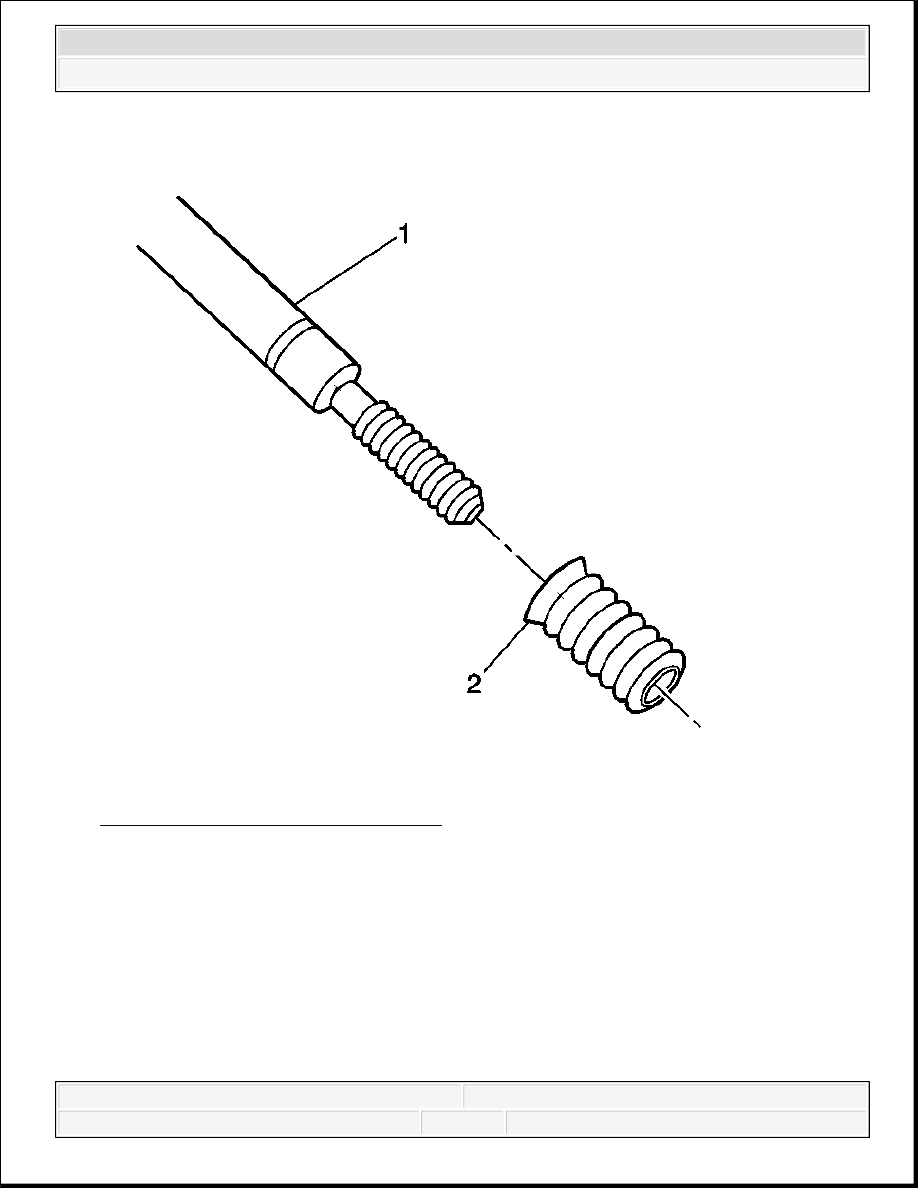

Fig. 517: View of Bushing Type Insert 10. Install the insert (2) onto the driver tool (1).
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

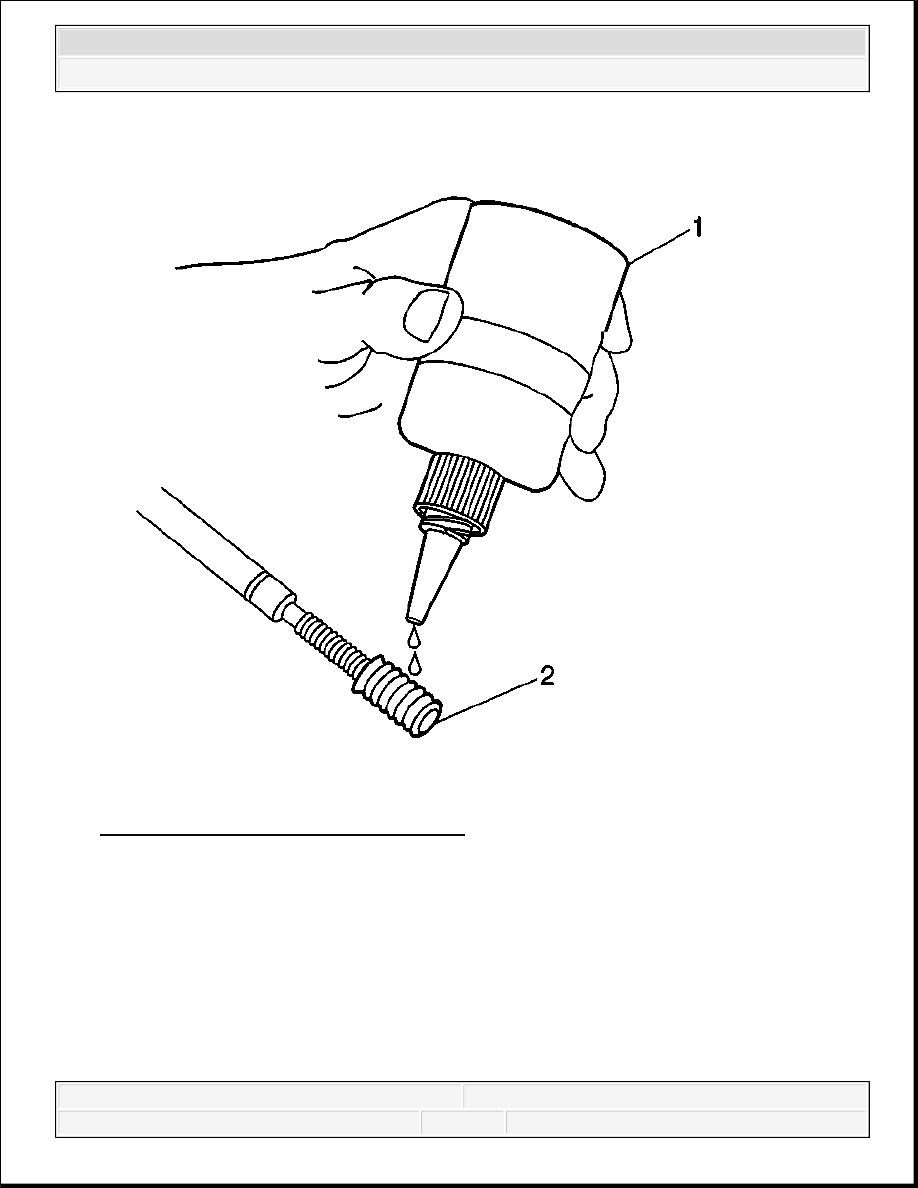

Fig. 518: Applying Threadlock To Insert 11. Apply threadlock LOCTITE™ 277, J 42385-109 (1), or equivalent, to the insert OD threads (2).
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

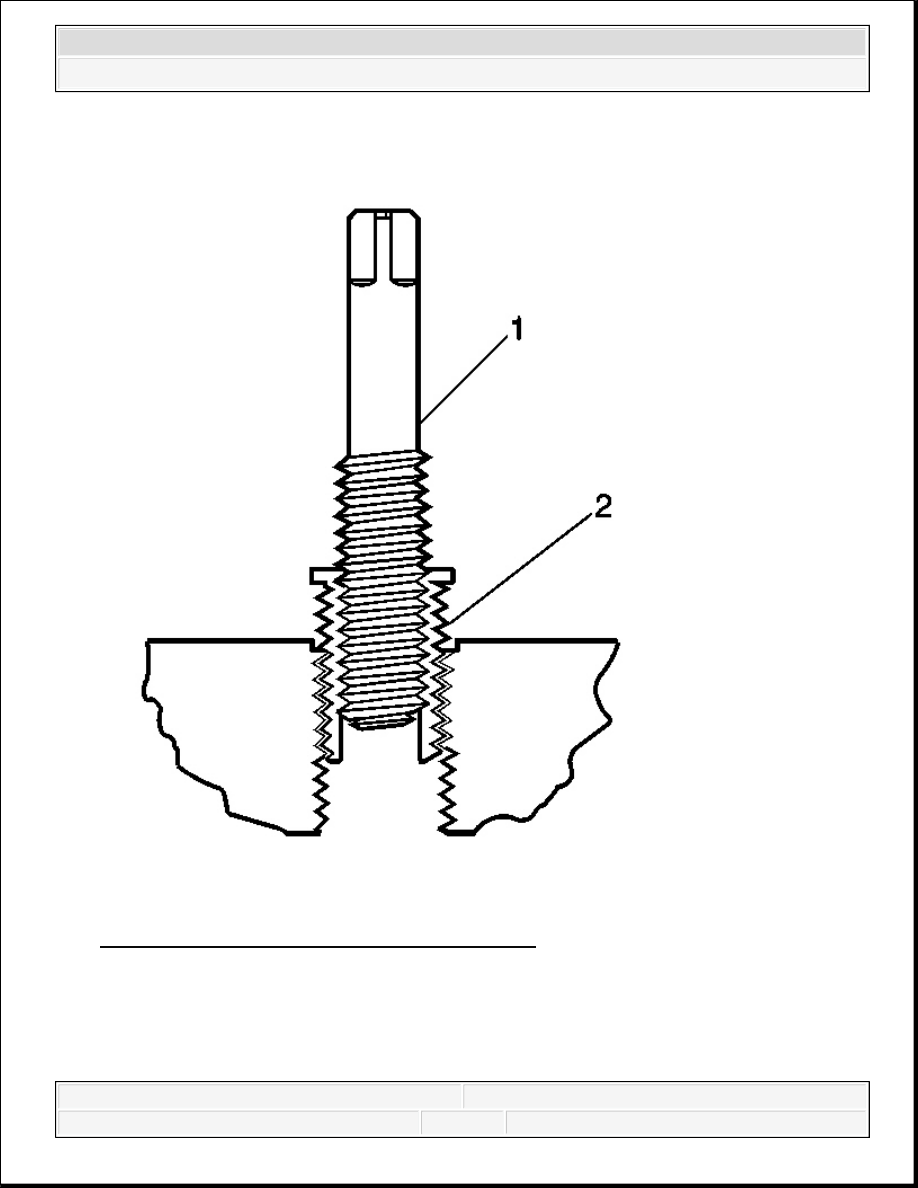

Fig. 519: Installing Insert Into Tapped Bolt Hole 12. Install the insert (2) into the hole. Install the insert until the flange of the insert contacts the counterbored surface. Continue to
