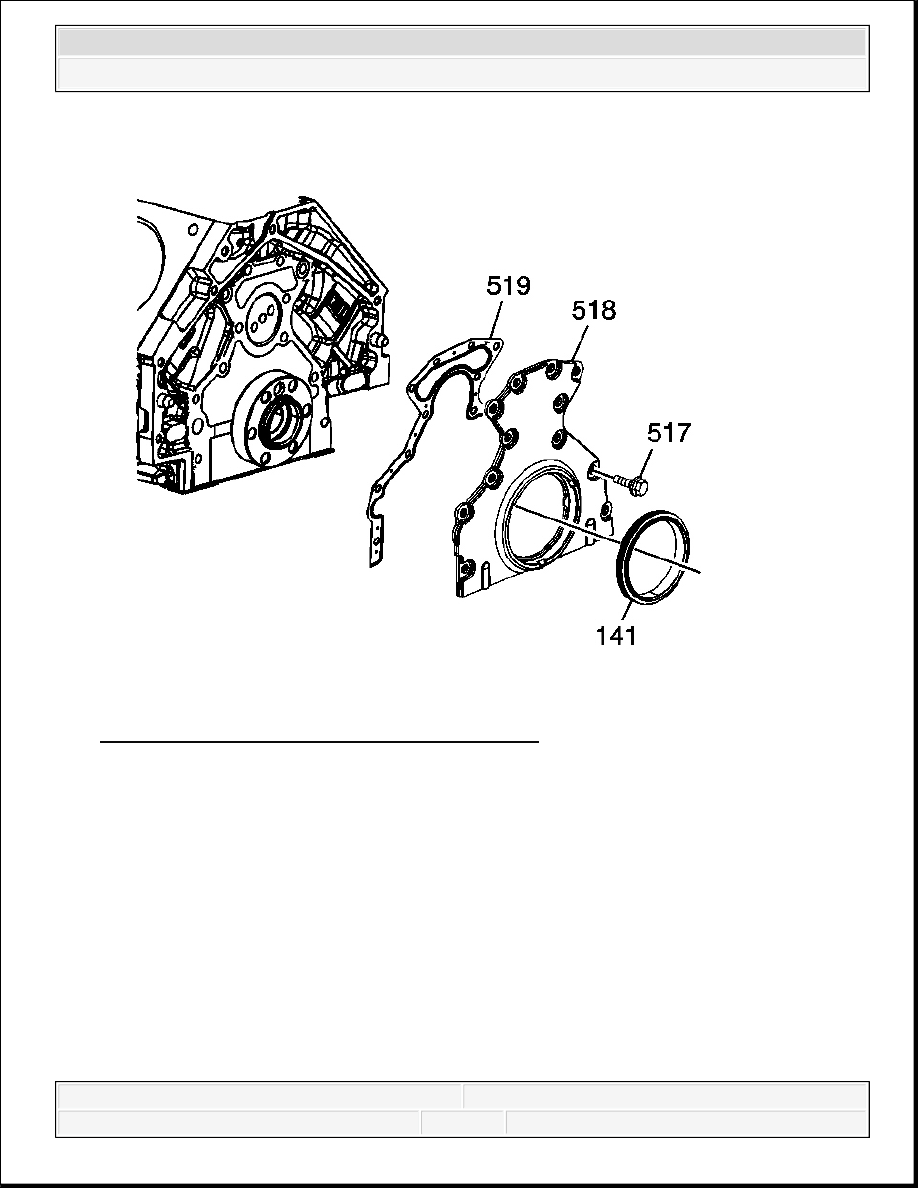

Fig. 353: View of Rear Housing, Gasket and Seal 1. Remove the rear oil seal housing bolts (517). 2. Remove the housing (518) and gasket (519). 3. Remove the rear oil seal (141). OIL PUMP, SCREEN AND CRANKSHAFT OIL DEFLECTOR REMOVAL
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

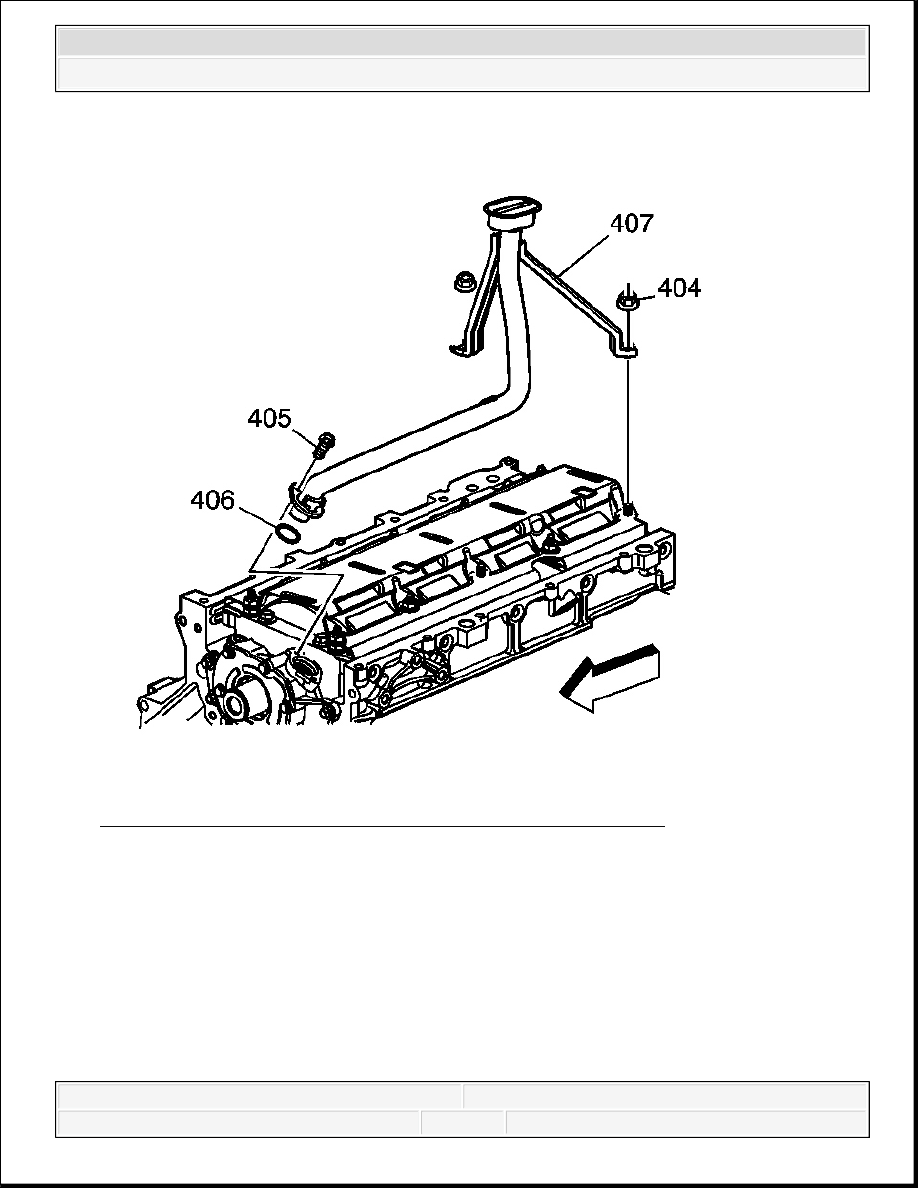

Fig. 354: View Of Oil Pump Screen, Bolt, Nuts, & O-Ring Seal 1. Remove the oil pump screen bolt (405) and nuts (404). 2. Remove the oil pump screen (407) with O-ring seal (406). 3. Remove the O-ring seal from the pump screen. 4. Discard the O-ring seal.
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

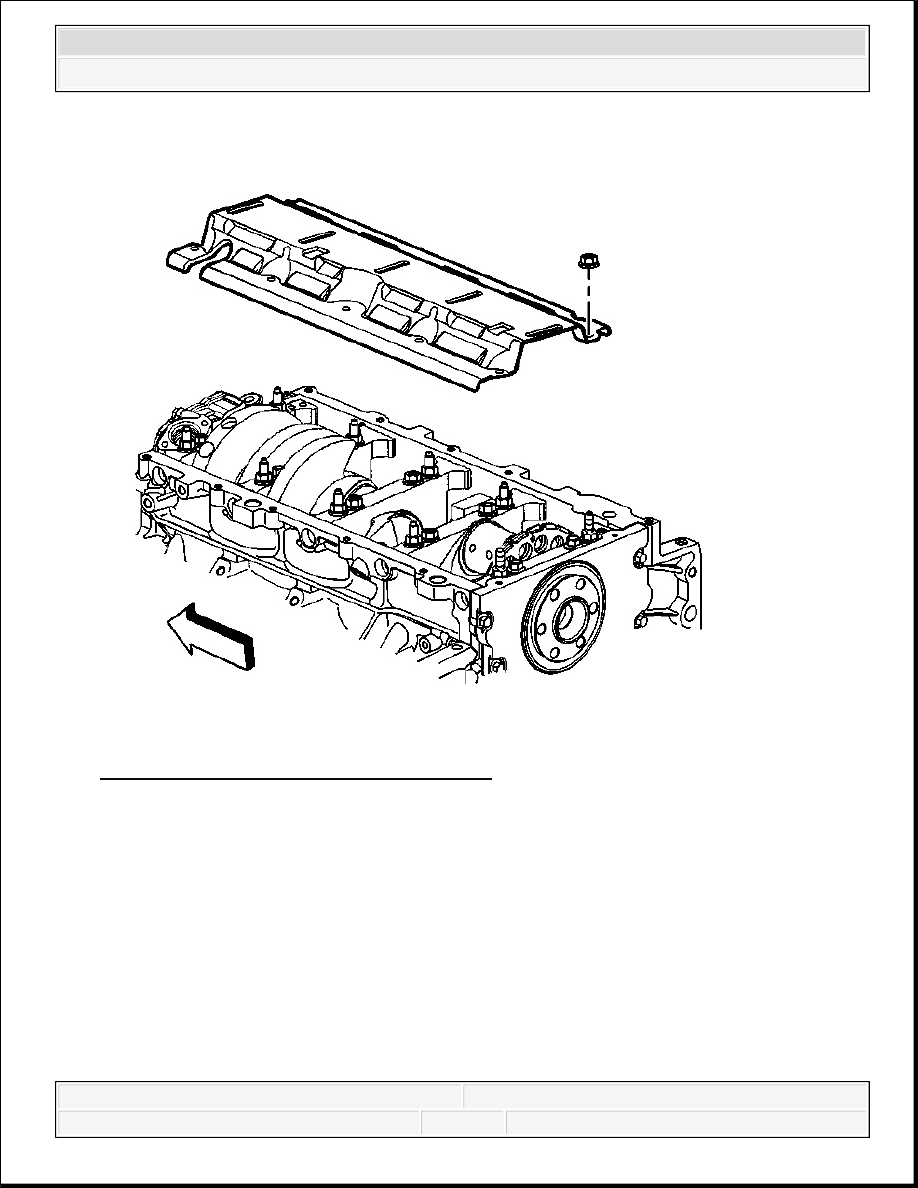

Fig. 355: View Of Crankshaft Oil Deflector 5. Remove the remaining crankshaft oil deflector nuts. 6. Remove the crankshaft oil deflector.
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2

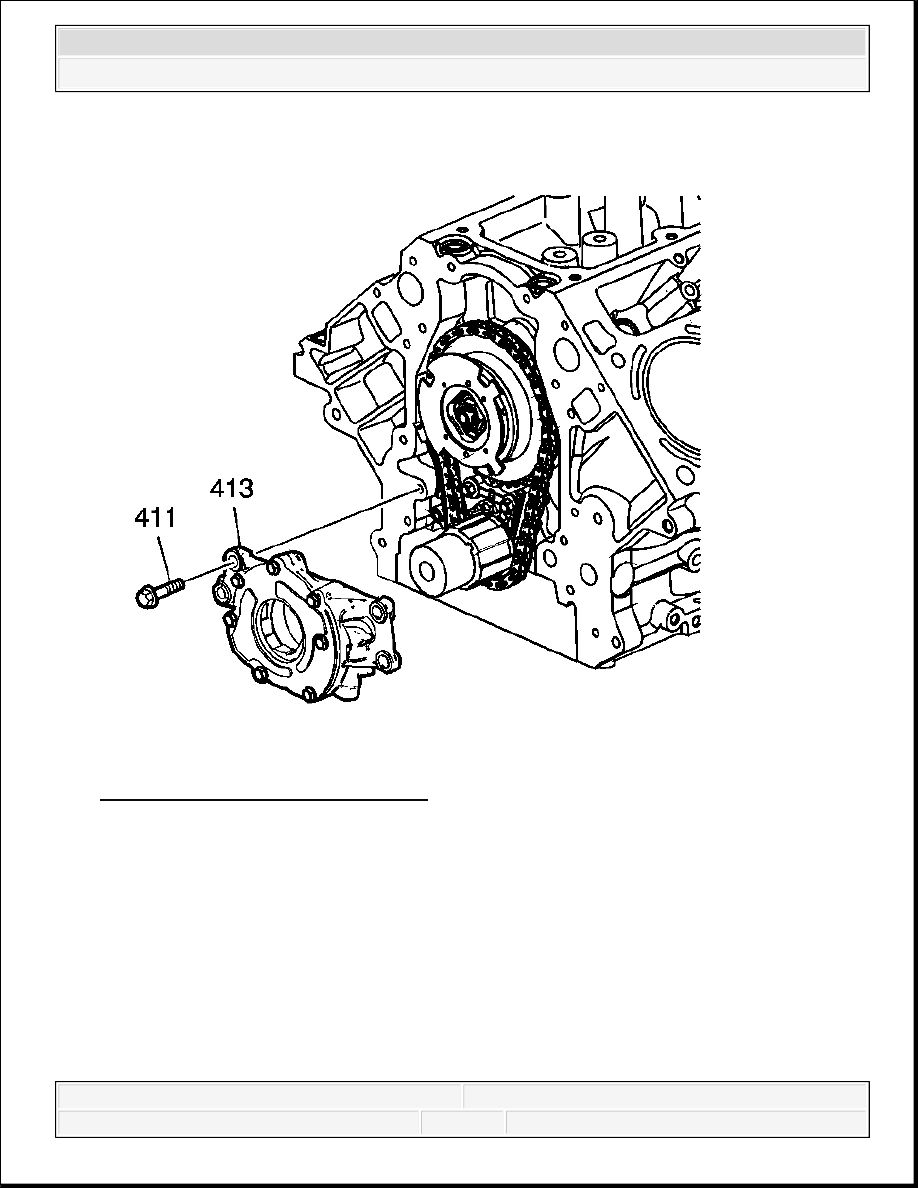

Fig. 356: View Of Oil Pump & Bolts 7. Remove the oil pump bolts (411). 8. Remove the oil pump (413). CAMSHAFT POSITION ACTUATOR AND SOLENOID VALVE REMOVAL Tools Required IMPORTANT: Do not allow dirt or debris to enter the oil pump assembly. Cap ends, as necessary.
2008 Hummer H2 2008 ENGINE Engine Mechanical - 6.2L - H2
|
|
|
