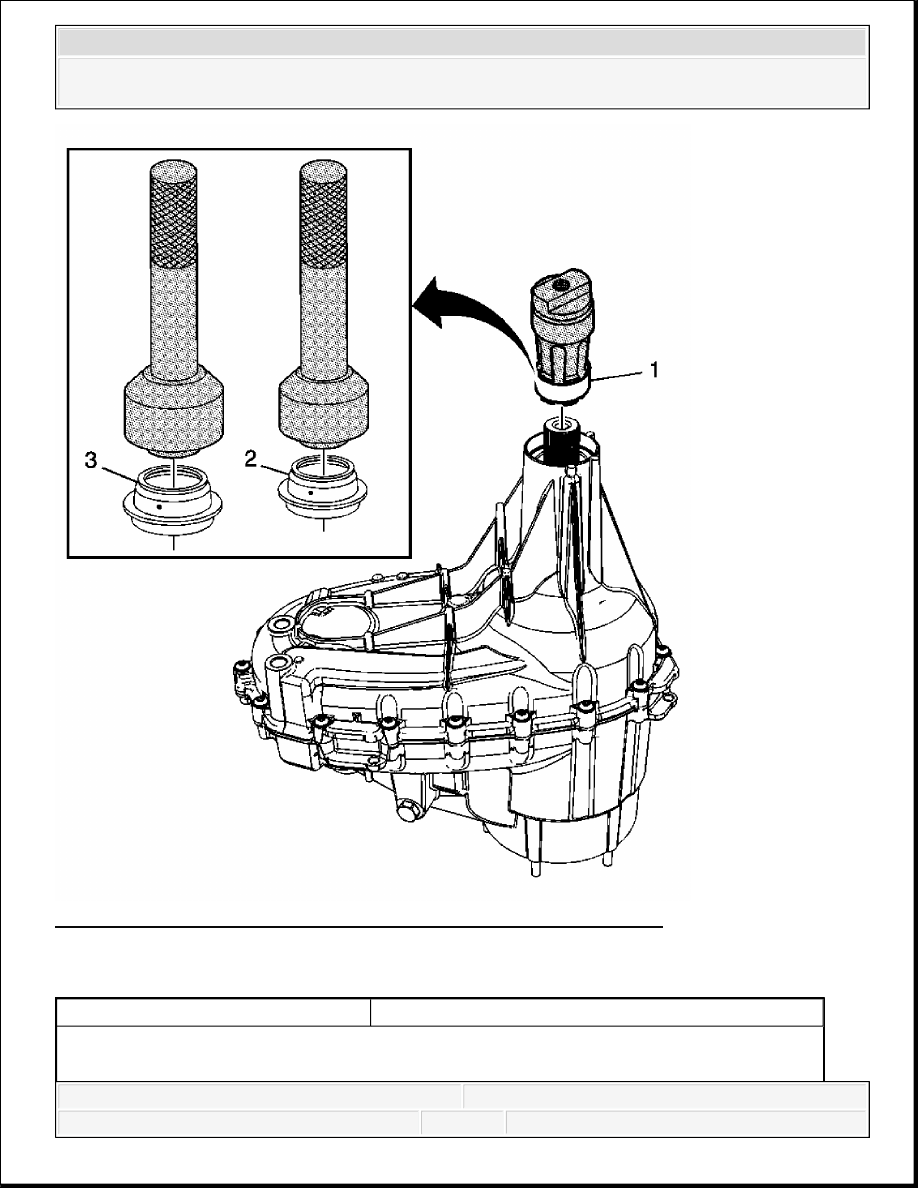

Fig. 48: View Of Rear Output Shaft Bushing, Seals & Special Tools Rear Output Shaft Seal and Bushing Installation Callout Component Name Preliminary Procedures
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
1. Install the bushing on the finger section of the J 45380 . 2. Install the finger section to the main body of the J 45380 . 3. Position the bushing and tool to the rear case half. 4. Press the bushing until the tool bottoms on the rear case half. 1 Transfer Case Rear Output Shaft Bushing (Light If the bushing was removed, a new bushing must Ensure the bushing is installed squarely into the Follow the steps above in the Preliminary 2 Transfer Case Rear Output Shaft Seal (Light Duty) Special Tools DT-48210 Seal Installer. See Special Tools. J 8092 Driver Handle 3 Transfer Case Rear Output Shaft Seal (Heavy Duty Special Tools DT-48021 Seal Installer J 8092 Driver Handle
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

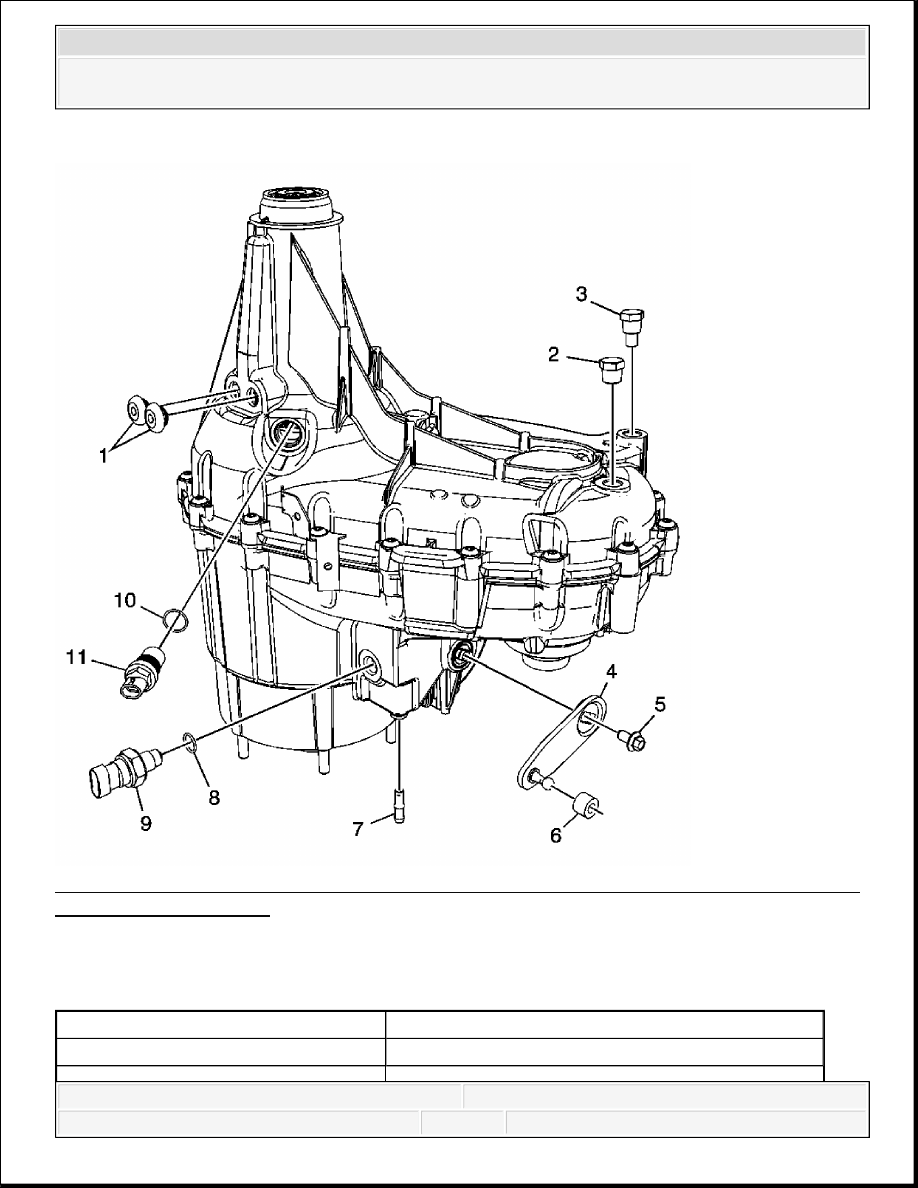

Access Hole Plugs, Fill and Drain Plug, Lever, Vent, Shift Control Switch, and Vehicle Speed Sensor Installation Fig. 49: View Of Access Hole Plugs, Fill & Drain Plug, Lever, Vent, Shift Control Switch, Access Hole Plugs, Fill and Drain Plug, Lever, Vent, Shift Control Switch, and Vehicle Callout Component Name 1 Transfer Case Access Hole Plugs (Qty: 2)
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
2 Transfer Case Oil Fill Plug Tighten: 18 N.m (13 lb ft) NOTE: Refer to Component Fastener Tightening Notice . 3 Transfer Case Oil Drain Plug Tighten: 18 N.m (13 lb ft) 4 Transfer Case Lever 5 Transfer Case Control Lever Bolt/Screw Tighten: 27 N.m (20 lb ft) NOTE: Refer to Fastener Notice . 6 Transfer Case Shift Lever Washer 7 Transfer Case Vent 8 Transfer Case Selector Switch - O-Ring - Seal 9 Transfer Case Shift Control Switch Assembly
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - MP 1222/1225/1226-NQG - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
