29. Inspect the nylon coating on the case bolts for cuts or tears. 30. Replace the case bolts if there is any damage to the nylon coating. 31. Install the case bolts, the washers, and the brackets. Tighten: Tighten the case bolts to 21 N.m (15 lb ft). components, or galvanic corrosion will occur. New nylon IMPORTANT: The case bolts are self-tapping; they must be hand started. Do not use power assisted tools to install the bolts.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

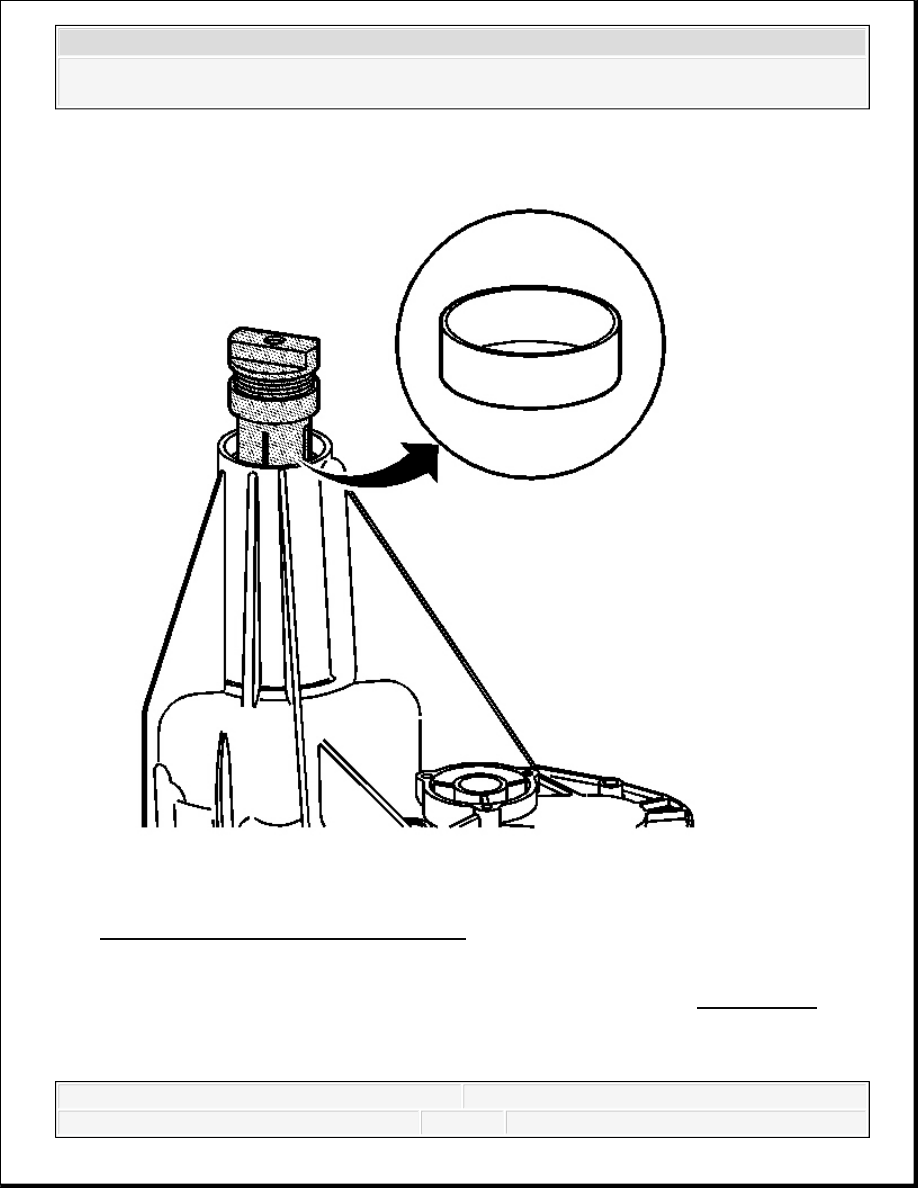

Fig. 86: Installing Output Shaft Bushing 32. Using J 45380 , install the output shaft bushing, if removed or new. See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

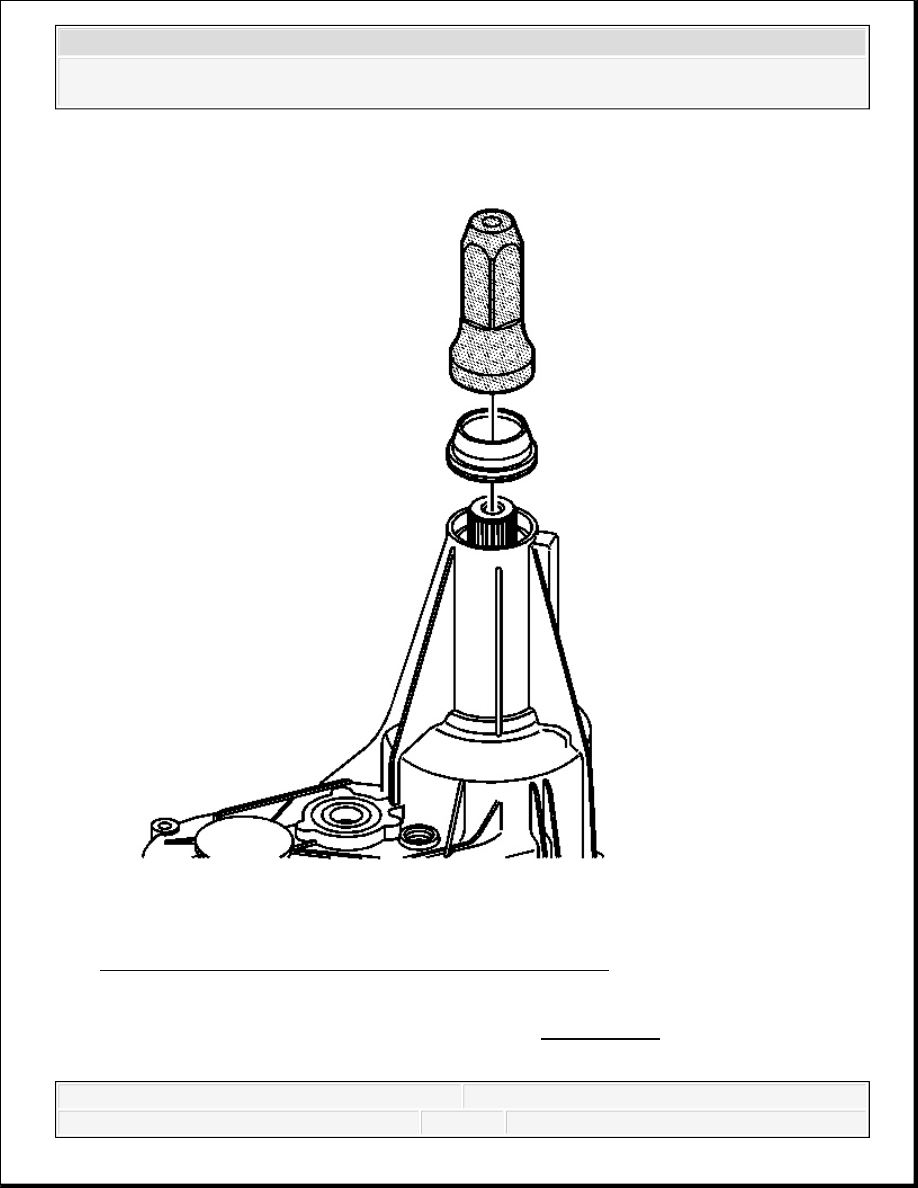

Fig. 87: Installing Rear Output Shaft Seal Using J 45756 33. Using J 45756 , install the rear output shaft seal. See Special Tools.
2008 Chevrolet Silverado 1500 2008 TRANSMISSION Transfer Case - BW 4485-NR3 - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

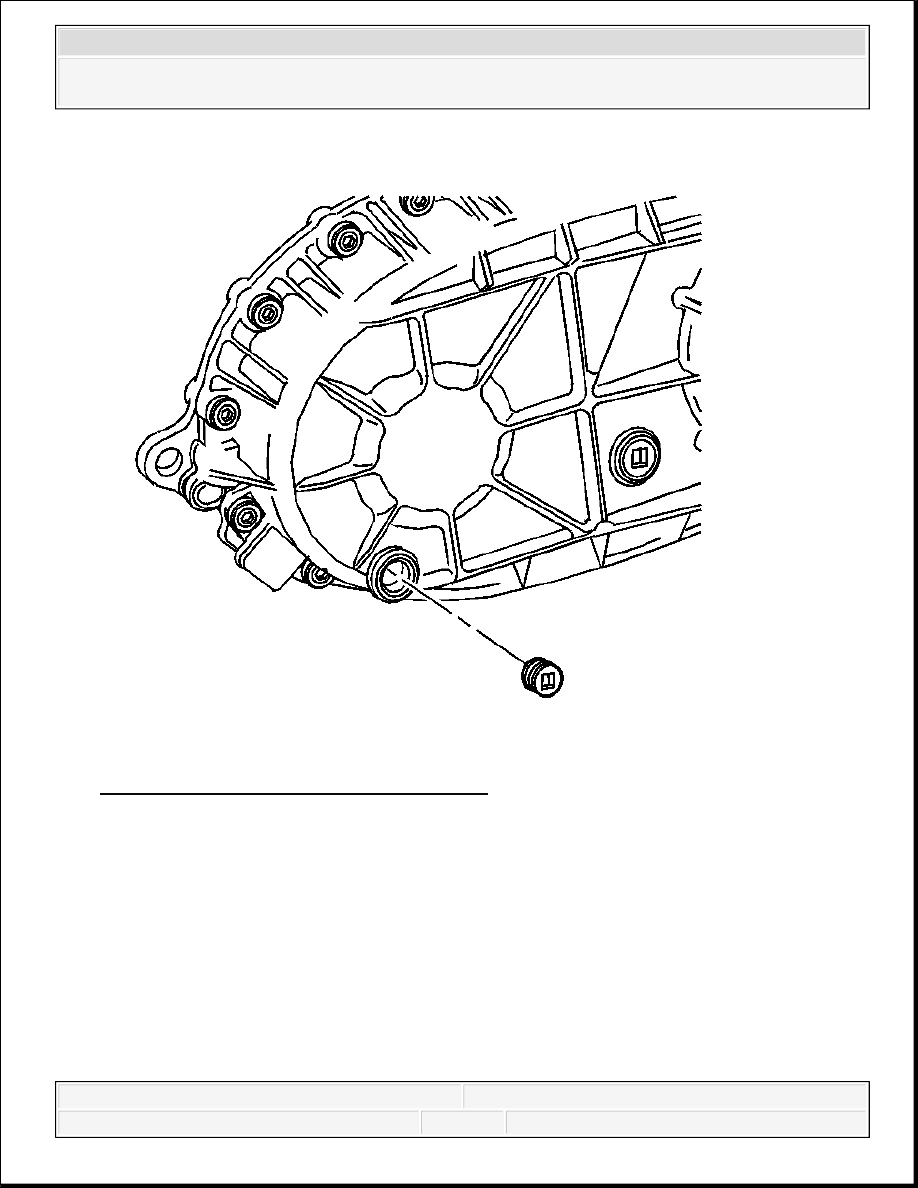

Fig. 88: View Of Transfer Case Drain Plug 34. Apply pipe sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads on the drain plug and fill plug. 35. Install the drain plug and the fill plug. Tighten: Tighten the drain plug and fill plug to 25 N.m (18 lb ft).
