1. Push mirror glass bottom outboard (1) corner, furthest away from the vehicle door, as far as possible into the mirror housing. 2. Place fingers tips behind the top inboard edge (2) corner, closest to the vehicle door. 3. Pull the mirror glass with light pressure until the glass comes loose. 4. Holding the mirror face, disconnect the electrical connectors from the back of the mirror. Installation Procedure
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Mirrors - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

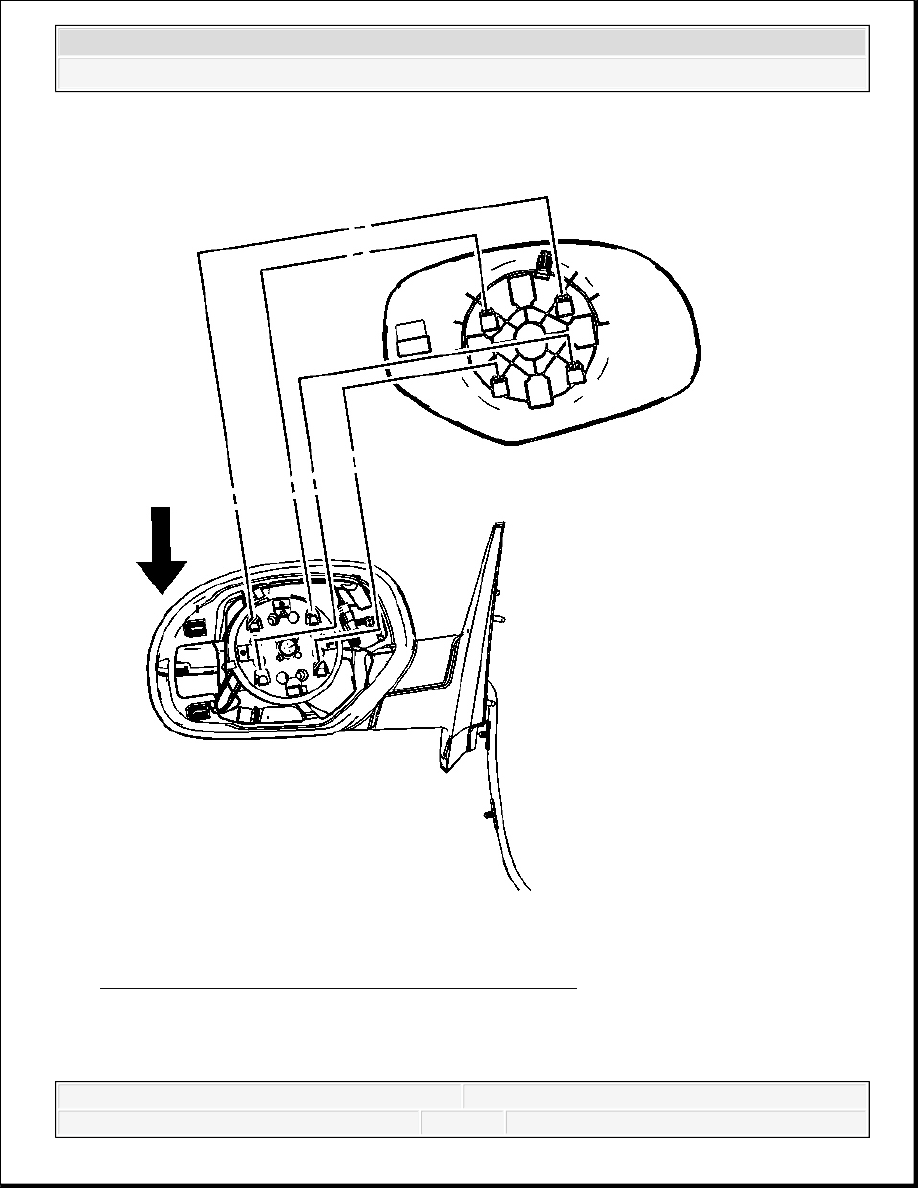

Fig. 11: Positioning Mirror Face On Mirror Housing 1. Position the mirror face on a angle to the mirror housing.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Mirrors - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

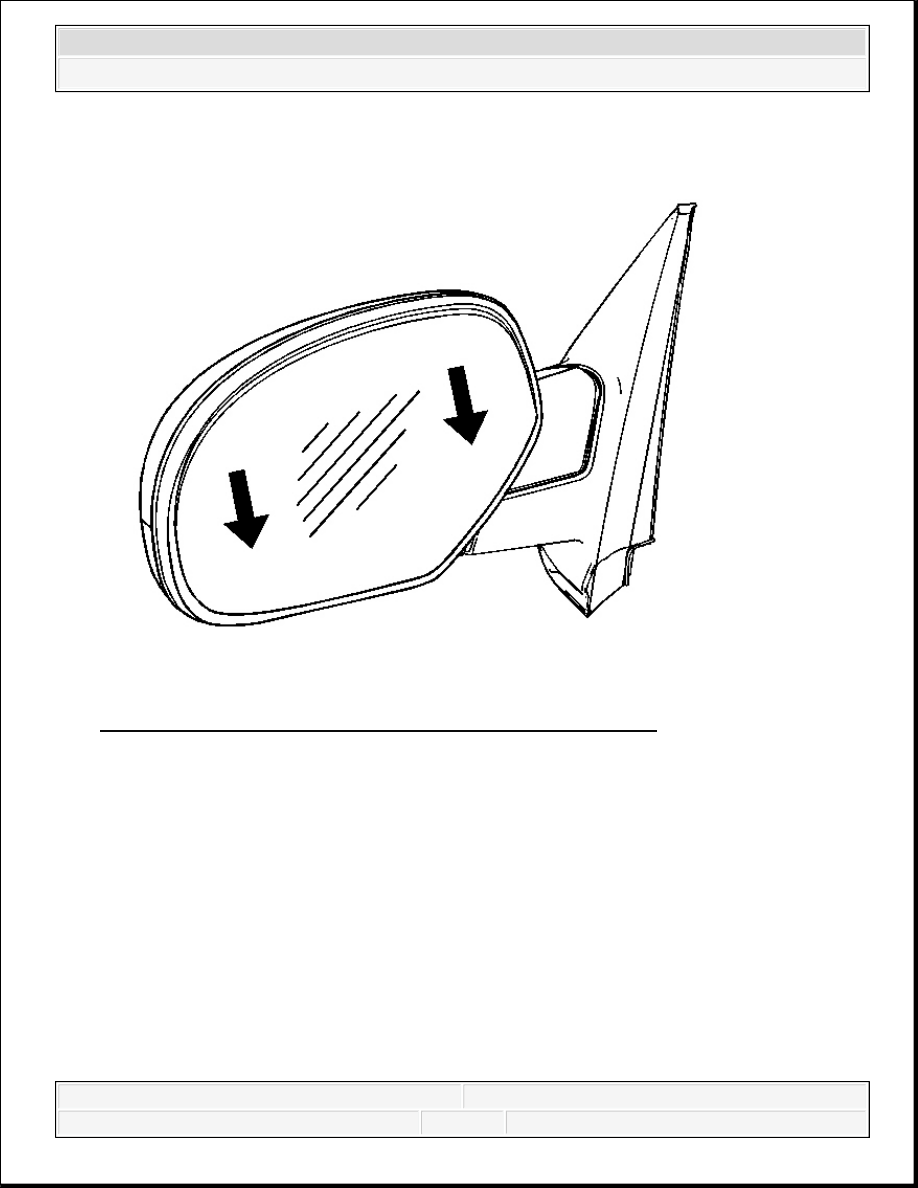

Fig. 12: Pushing Downward & Inward To Lock Glass In Place 2. Install the mirror face as follows: 1. Holding the mirror face, connect the electrical connectors to the back of the mirror. 2. Position the mirror face to the motor retainer tabs. 3. Position the hand in the center of the mirror face. 4. Apply light pressure to the face. 5. Push downward and inward to lock in place. 6. Inspect the mirror face for proper operation. INSIDE REARVIEW MIRROR REPLACEMENT
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Mirrors - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

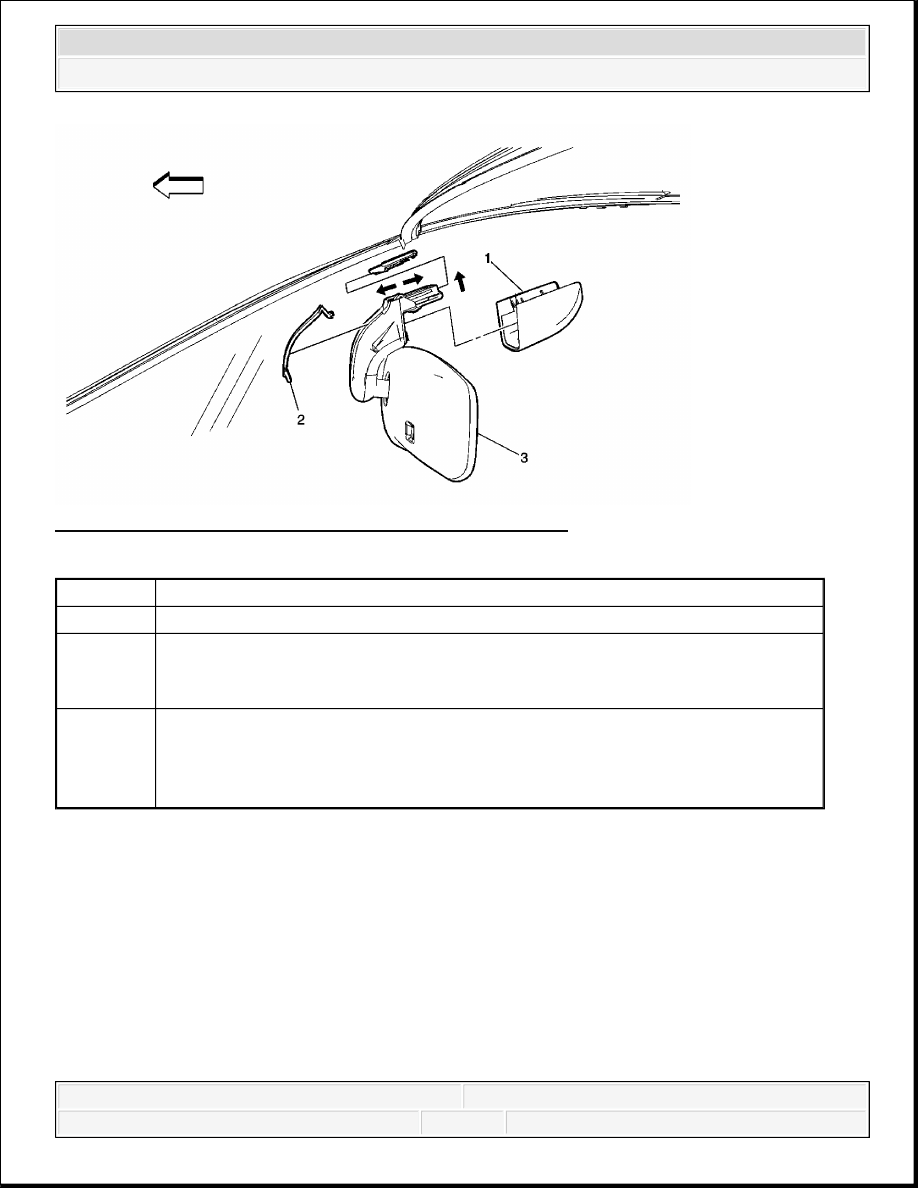

Fig. 13: Identifying Inside Rearview Mirror Components REARVIEW MIRROR SUPPORT INSTALLATION Tools Required Safety Razor or Utility Knife Installation 1. Determine the location of the mirror mounting base by marking the outside of the windshield with a marking pencil where the base was previously located. If it is not clear Callout Component Name 1 Rearview Mirror Support Cover 2 Rearview Mirror Support Wire Cover 3 Rearview Mirror
