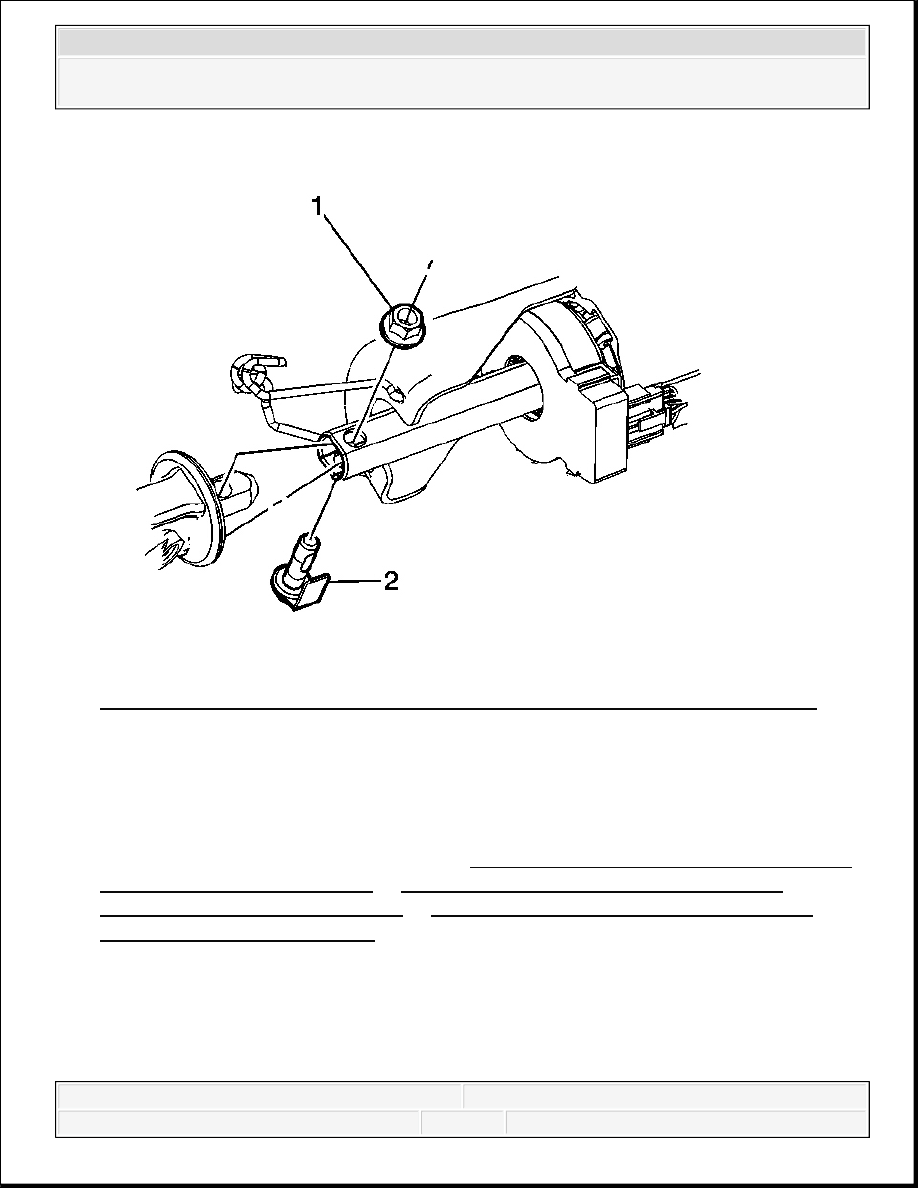

Fig. 53: View Of Upper Intermediate Shaft Pinch Bolt, Nut & Steering Column 15. Install the steering shaft coupling nut (1) and bolt (2) at the steering column. Tighten: Tighten the nut and bolt to 50 N.m (37 lb ft). 16. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

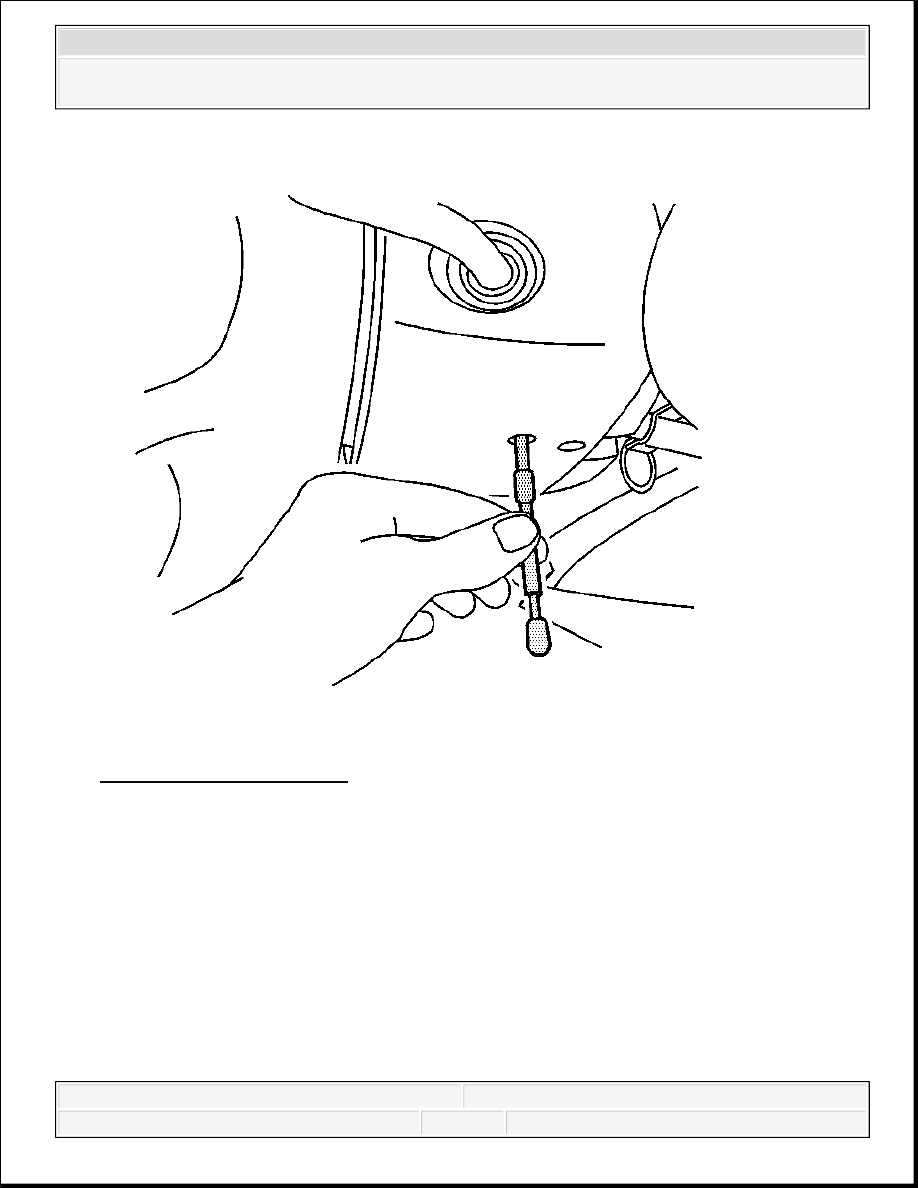

Fig. 54: Identifying J 42640 17. Remove the anti-rotation pin J 42640 from the steering column. INSTRUMENT PANEL SERVICE POSITIONING (WITH SLT) Special Tools J 42640 Steering Column Anti-Rotation Pin. See Special Tools. Removal Procedure
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

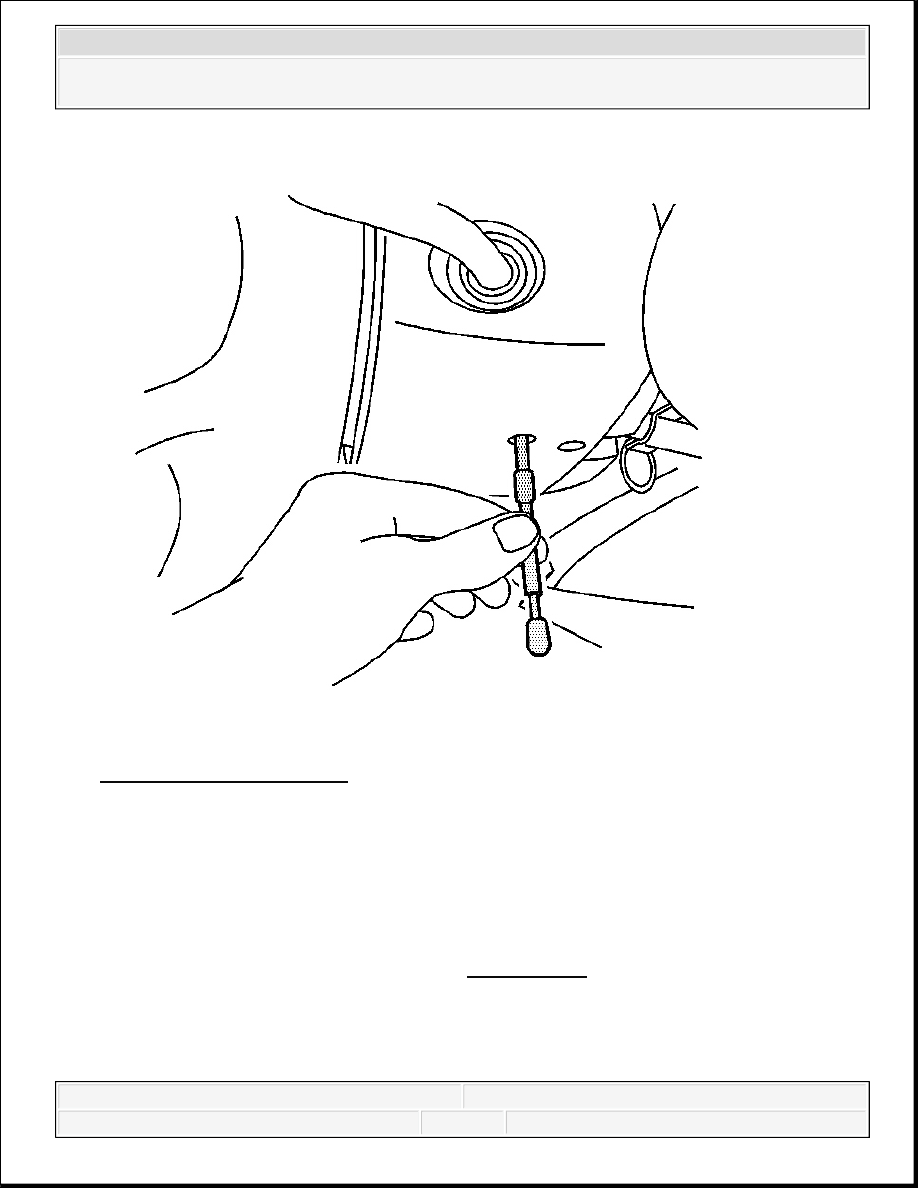

Fig. 55: Identifying J 42640 NOTE: Secure the steering wheel utilizing a strap to prevent rotation. The steering column The intermediate shaft The steering gear
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

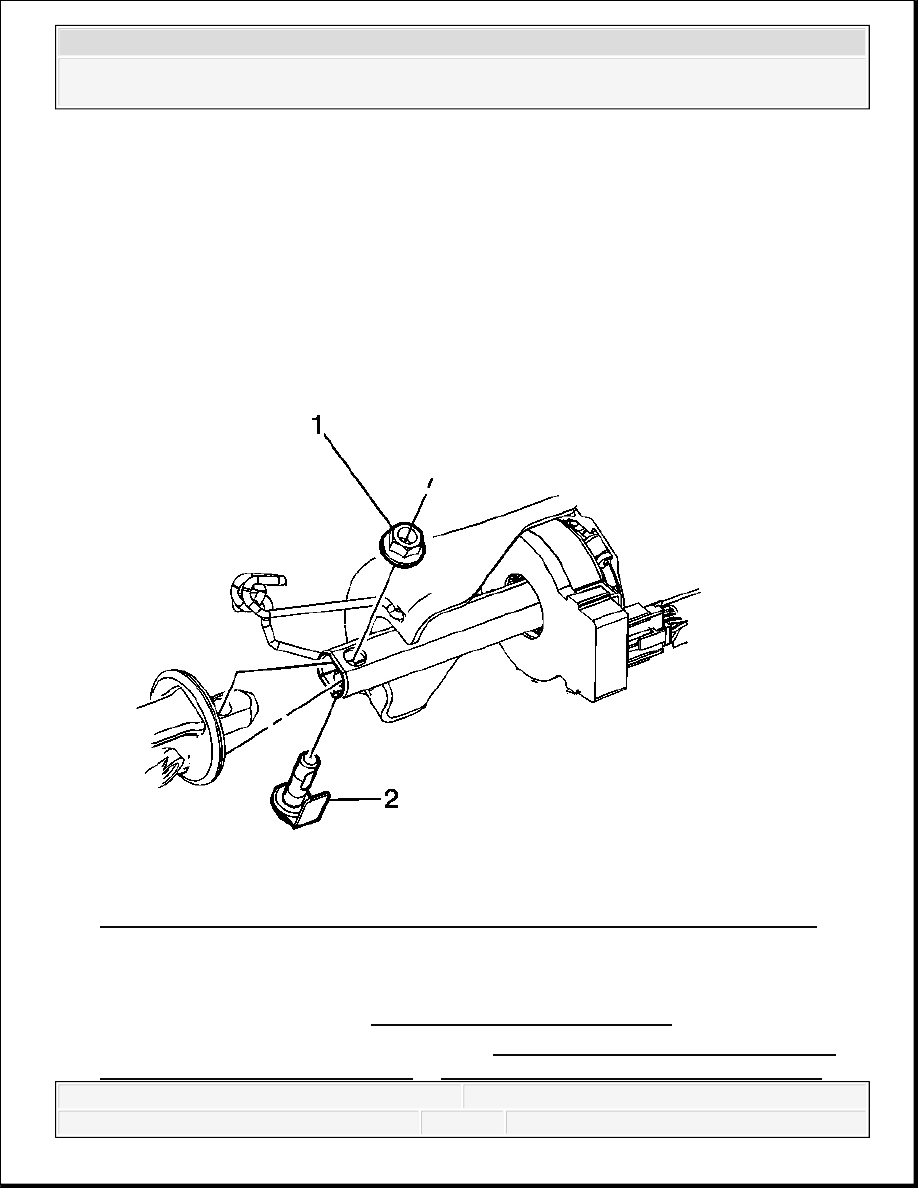

1. Lock the steering column through the access hole in the steering column shroud using anti- rotation pin J 42640. Fig. 56: View Of Upper Intermediate Shaft Pinch Bolt, Nut & Steering Column 2. Remove the steering shaft coupling nut (1) and bolt (2) at the steering column. 3. Remove the front seats. Refer to Front Seat Replacement - Bucket . 4. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (w/Single Battery) or Battery Negative Cable Disconnection and
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Instrument Panel and Console Trim - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
