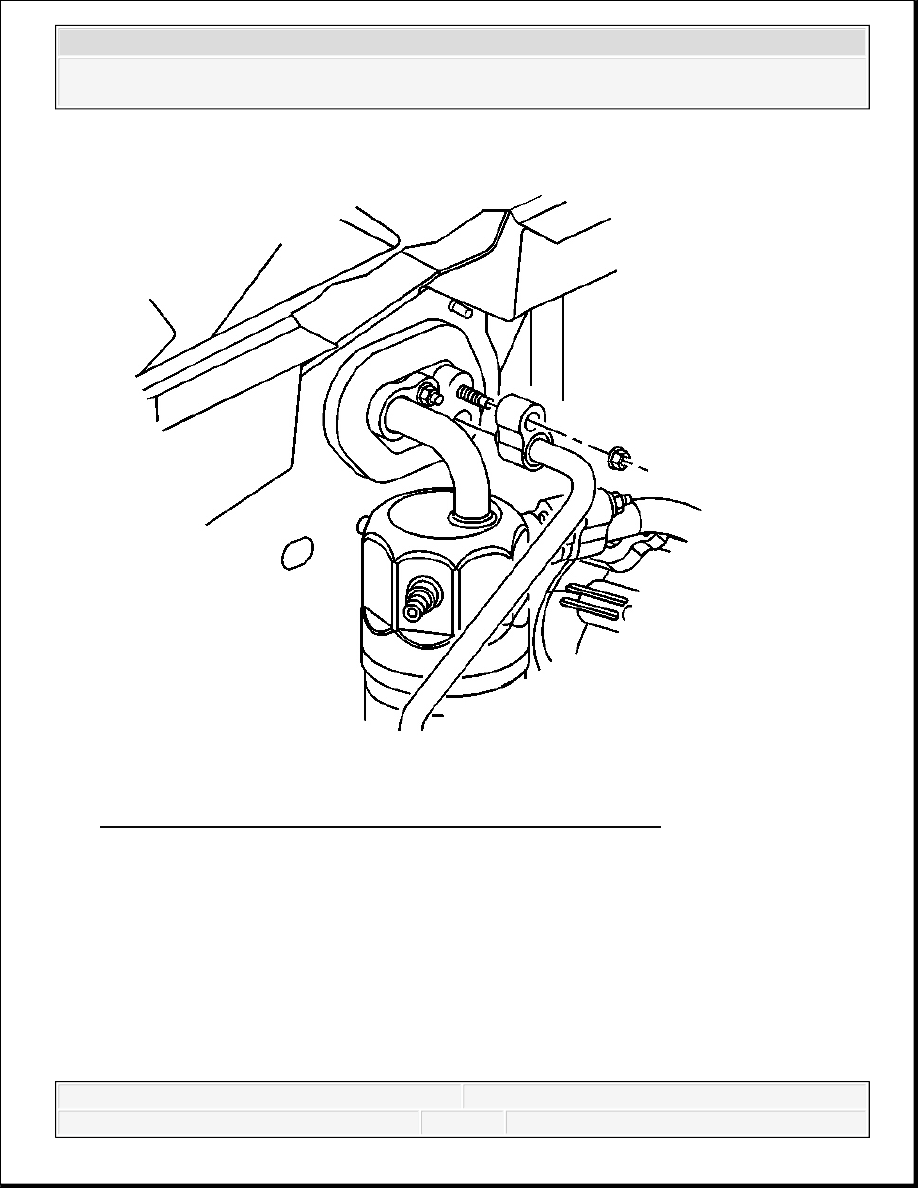

Fig. 55: Removing/Installling Evaporator Tube At Evaporator 5. Remove the evaporator tube nut from the evaporator. 6. Disconnect the evaporator tube from the evaporator. 7. Remove the evaporator tube nut from the auxiliary A/C tube, if equipped. 8. Disconnect the evaporator tube from the auxiliary A/C tube, if equipped.
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

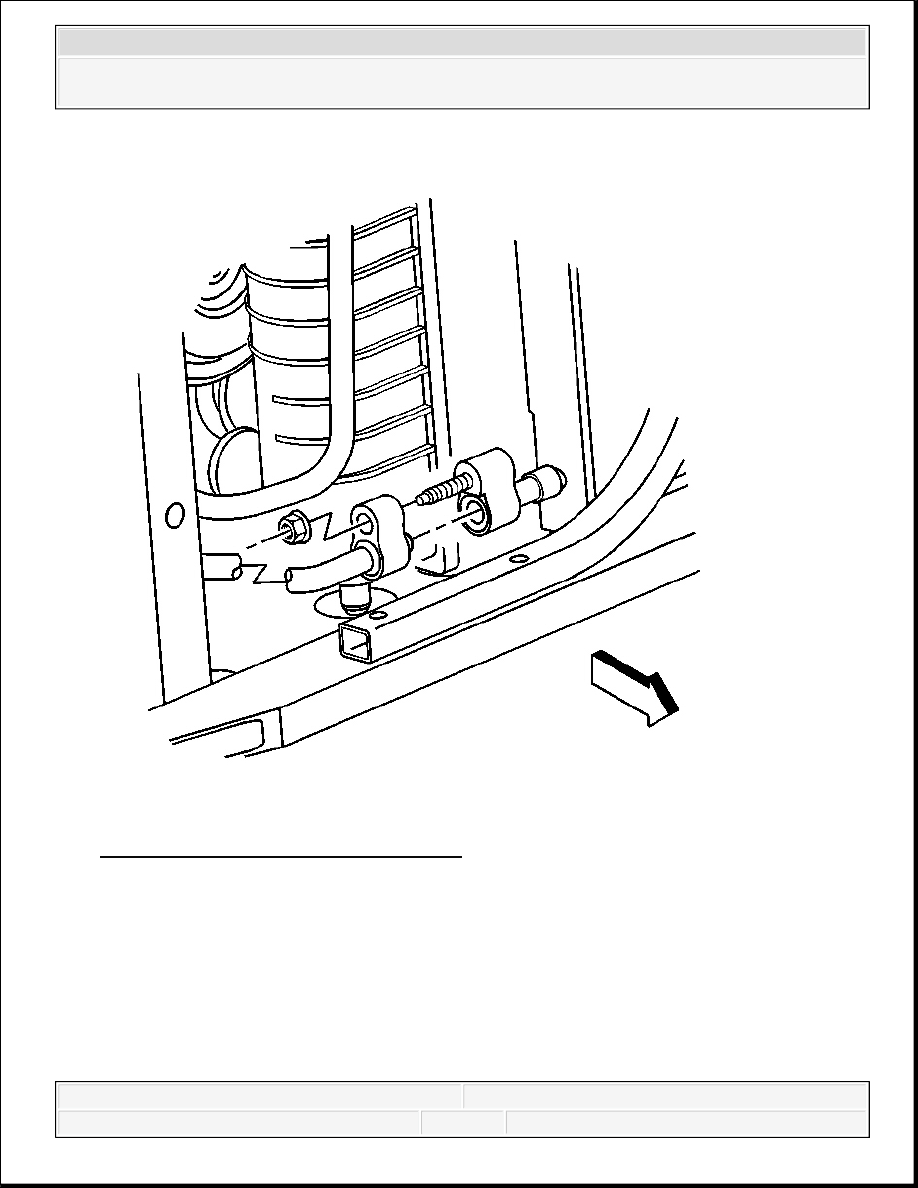

Fig. 56: Evaporator Tube To Condenser 9. Remove the evaporator tube nut from the condenser. 10. Disconnect the evaporator tube from the condenser. 11. Remove the evaporator tube from the vehicle. 12. Discard all of the used sealing washers. Cap all of the open connections. Installation Procedure
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

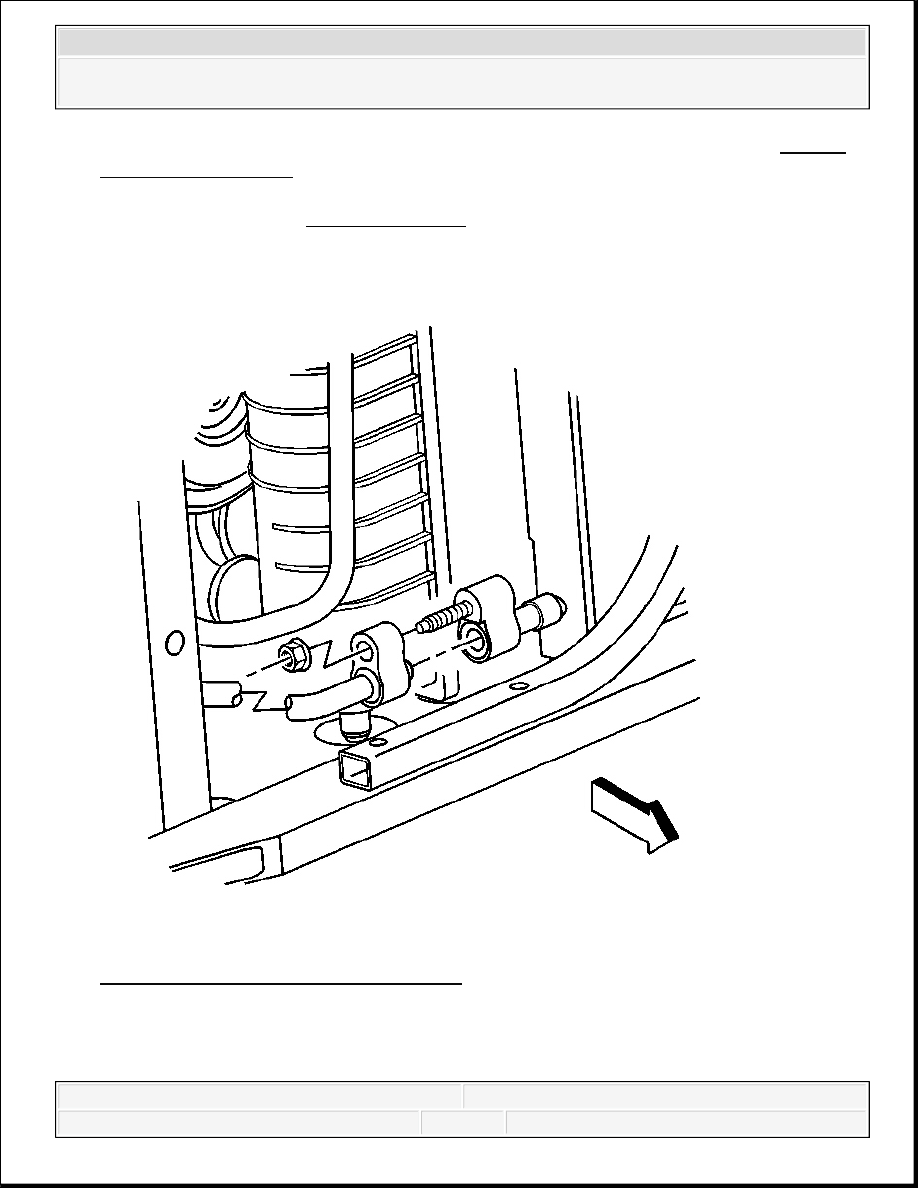

1. Connect the evaporator tube to the condenser using new sealing washers. Refer to Sealing Washer Replacement. Fig. 57: Evaporator Tube To Condenser 2. Install the evaporator tube nut to the condenser. NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 HVAC Heating, Ventilation, and Air Conditioning - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

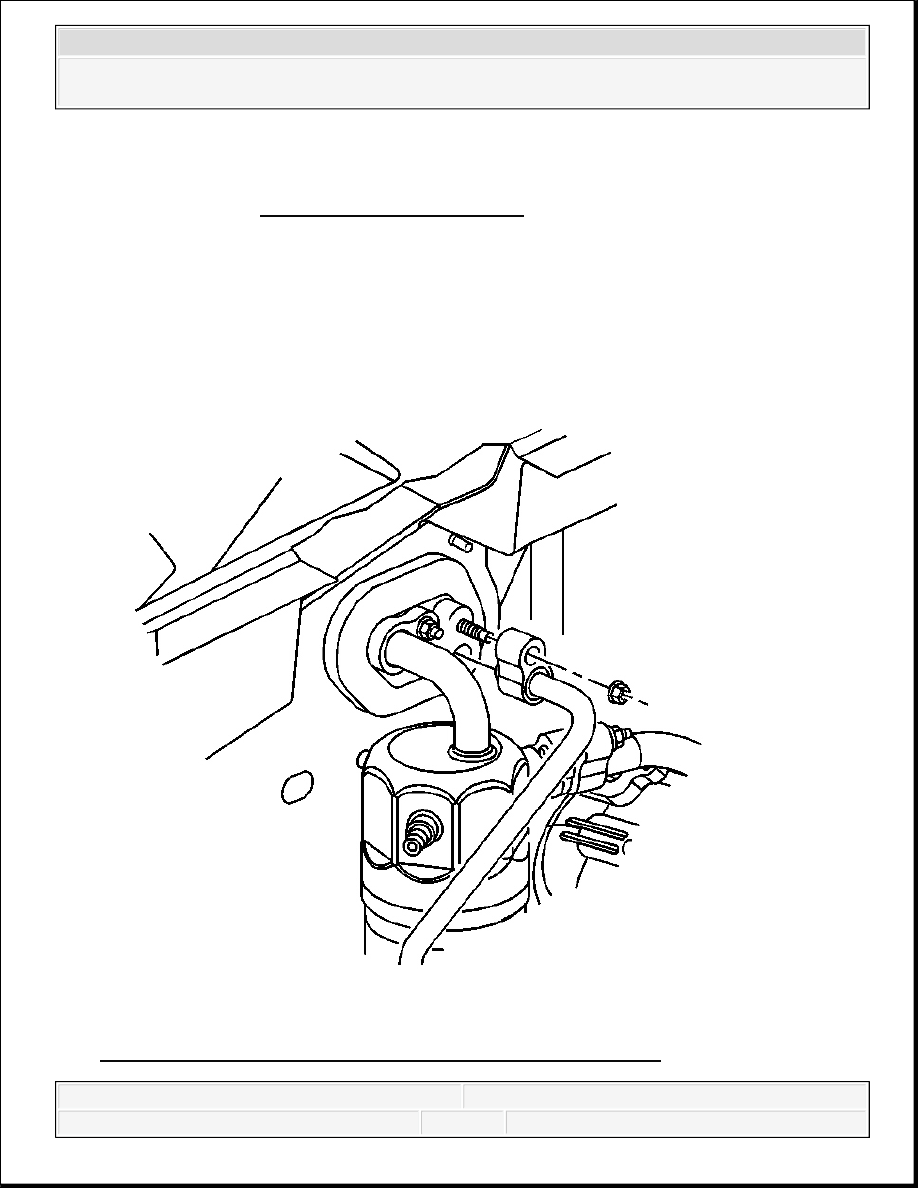

Tighten: Tighten the nut to 16 N.m (12 lb ft). 3. Connect the evaporator tube to the auxiliary A/C tube using new sealing washers, if equipped. Refer to Sealing Washer Replacement. 4. Install the evaporator tube nut to the auxiliary A/C tube, if equipped. Tighten: Tighten the nut to 16 N.m (12 lb ft). 5. Install the evaporator tube to the evaporator. Fig. 58: Removing/Installling Evaporator Tube At Evaporator
