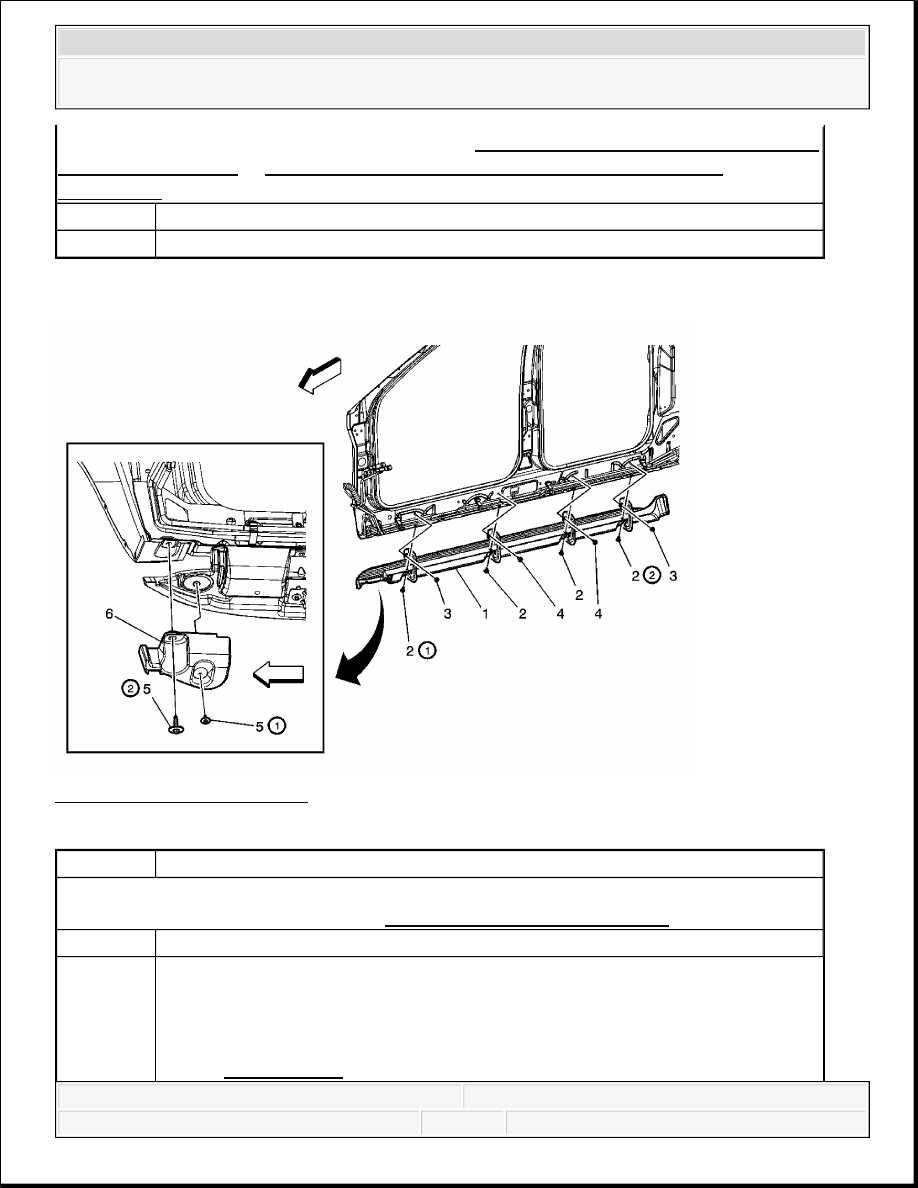

ASSIST STEP REPLACEMENT Fig. 24: View Of Assist Step Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement 1 Lower Right Engine Splash Shield Plastic Retainers (Qty: 2) 2 Lower Right Engine Splash Shield Callout Component Name Preliminary Procedure: 1 Assist Step Assembly Assist Step Bolt (Qty: 4) NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
TRAILER HITCH REPLACEMENT (LIGHT DUTY) Removal Procedure 2 Tighten: 18 N.m (13 lb ft) 3 Assist Step Bracket Nut (Qty: 2) Tighten: 18 N.m (13 lb ft) 4 Rocker Panel Bolt (Qty: 2) Tighten: 18 N.m (13 lb ft) 5 Front Fender Extension Screw (Qty: 2) Tighten: 6 N.m (53 lb in) 6 Front Fender Extension
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

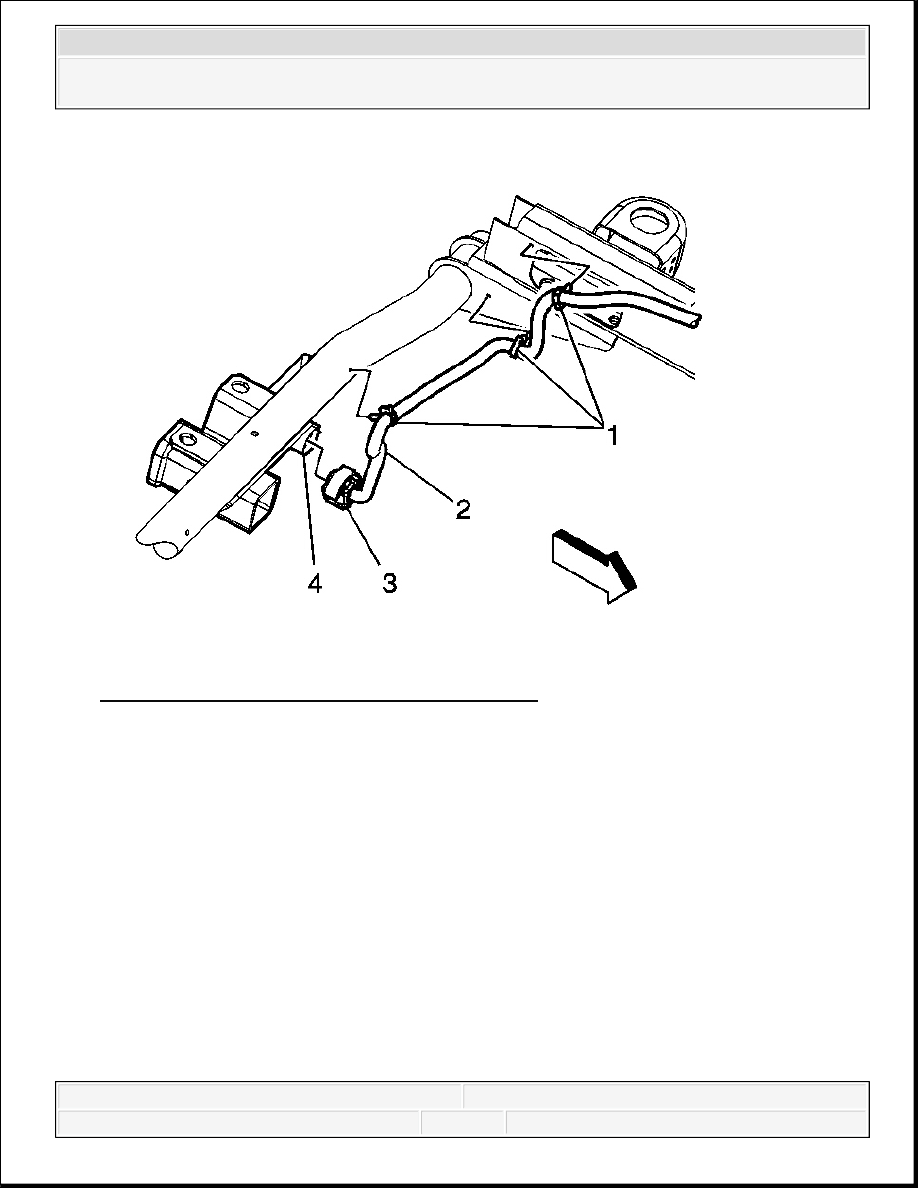

Fig. 25: Identifying Trailer Wiring & Receptacle 1. Disconnect the trailer wiring harness connector (3) from the trailer wiring recepticle (4). 2. Remove the retainers (1) securing the trailer wiring harness (2) to the hitch platform.
2008 Chevrolet Silverado 1500 2008 ACCESSORIES & EQUIPMENT Frame and Underbody - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

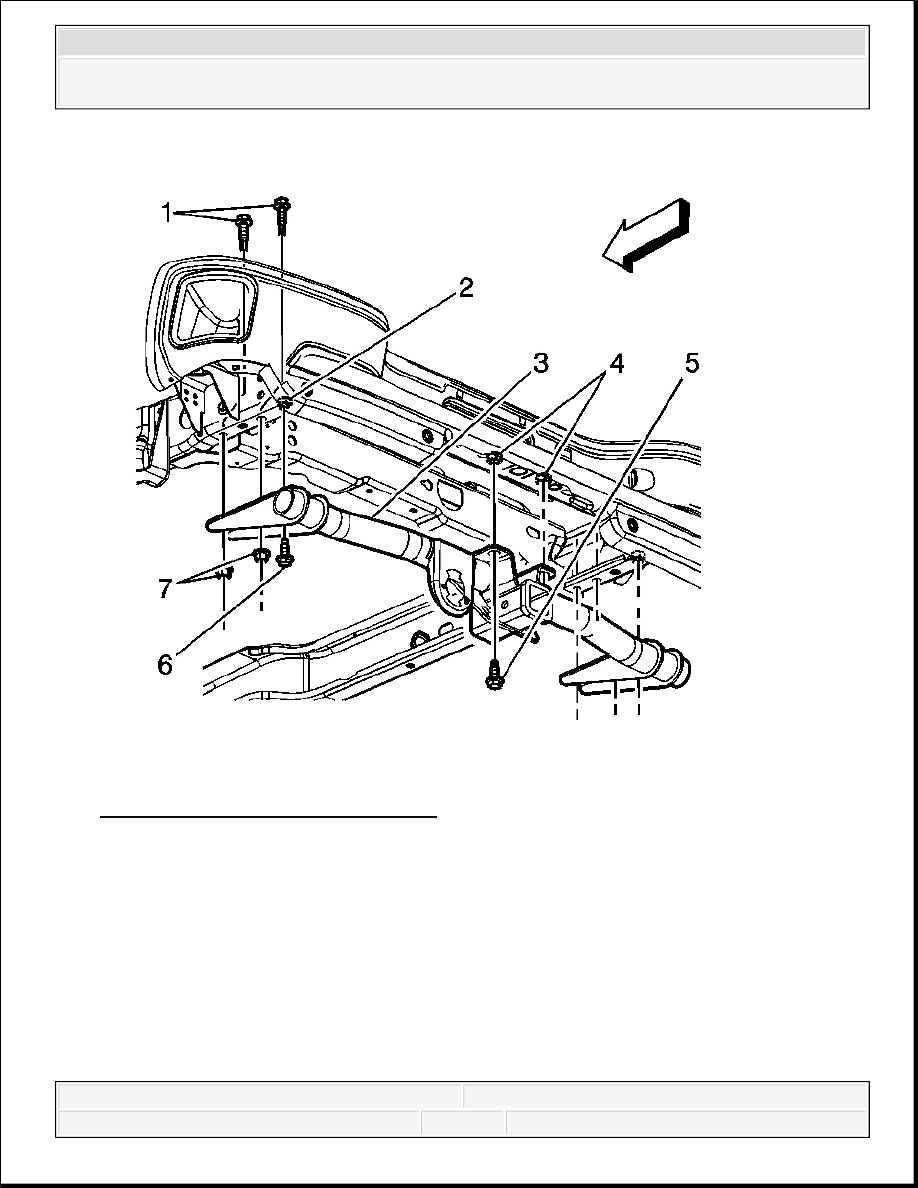

Fig. 26: Trailer Hitch & Components 3. Remove the hitch platform bolts (5) from the bumper weld nuts (4). 4. Remove the nuts (7) and bolts (1) securing the hitch platform to the frame rails. 5. Remove the hitch platform bolts (6) from the frame weld nuts (2). 6. Remove the hitch platform from the vehicle. Installation Procedure
