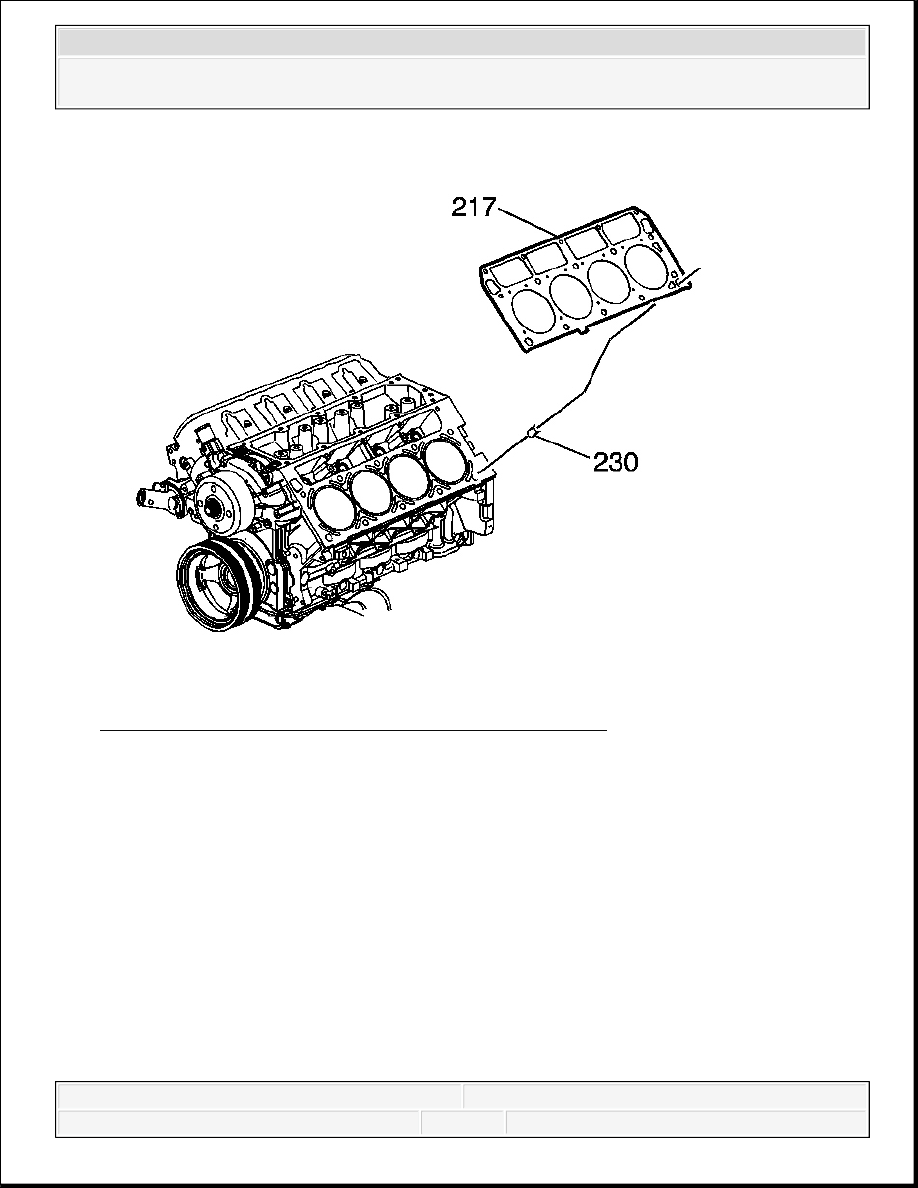

Fig. 32: View Of Cylinder Head Gasket & Locating Pins 7. Install the NEW cylinder head gasket (217) onto the locating pins.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

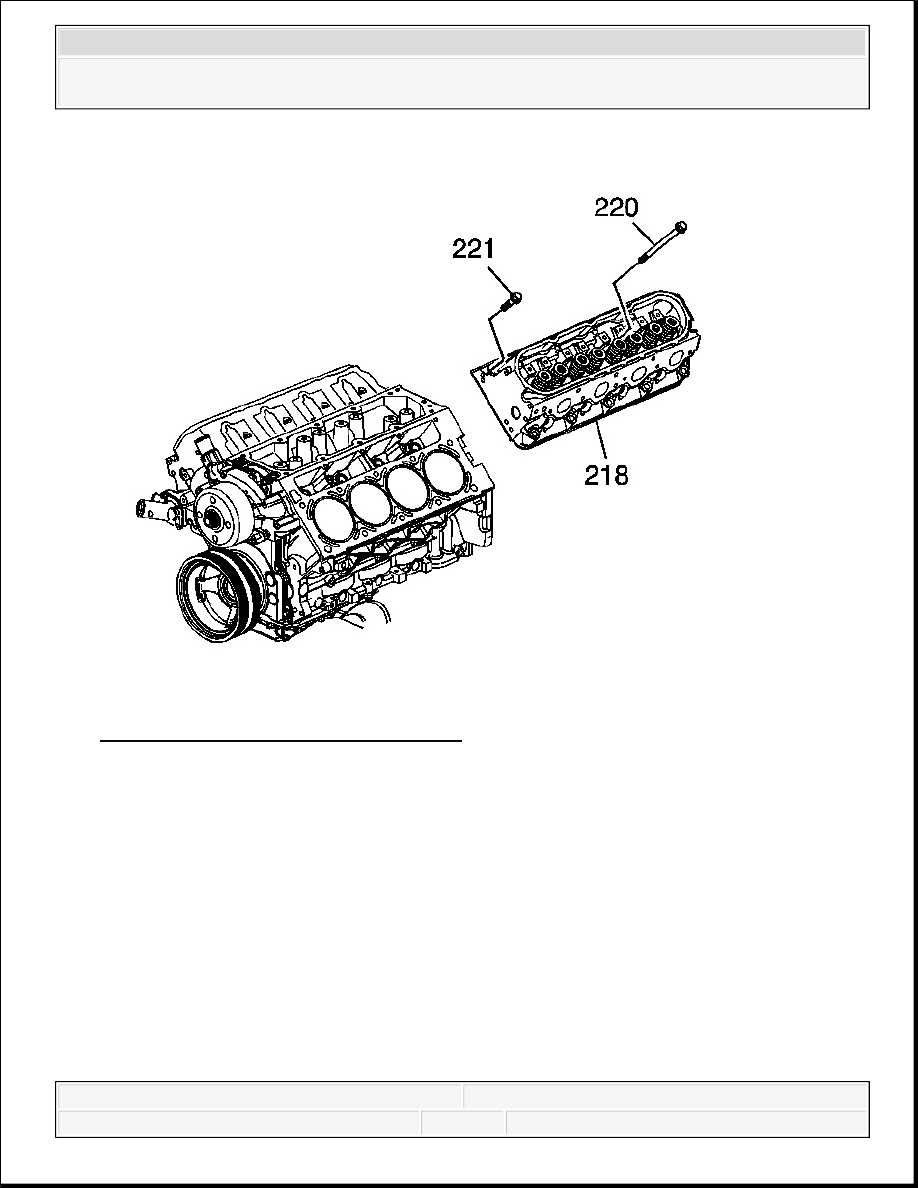

Fig. 33: View Of Cylinder Head & Bolts 8. Install the cylinder head (218) onto the locating pins and the gasket. 9. Install the NEW cylinder head bolts (220, 221).
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

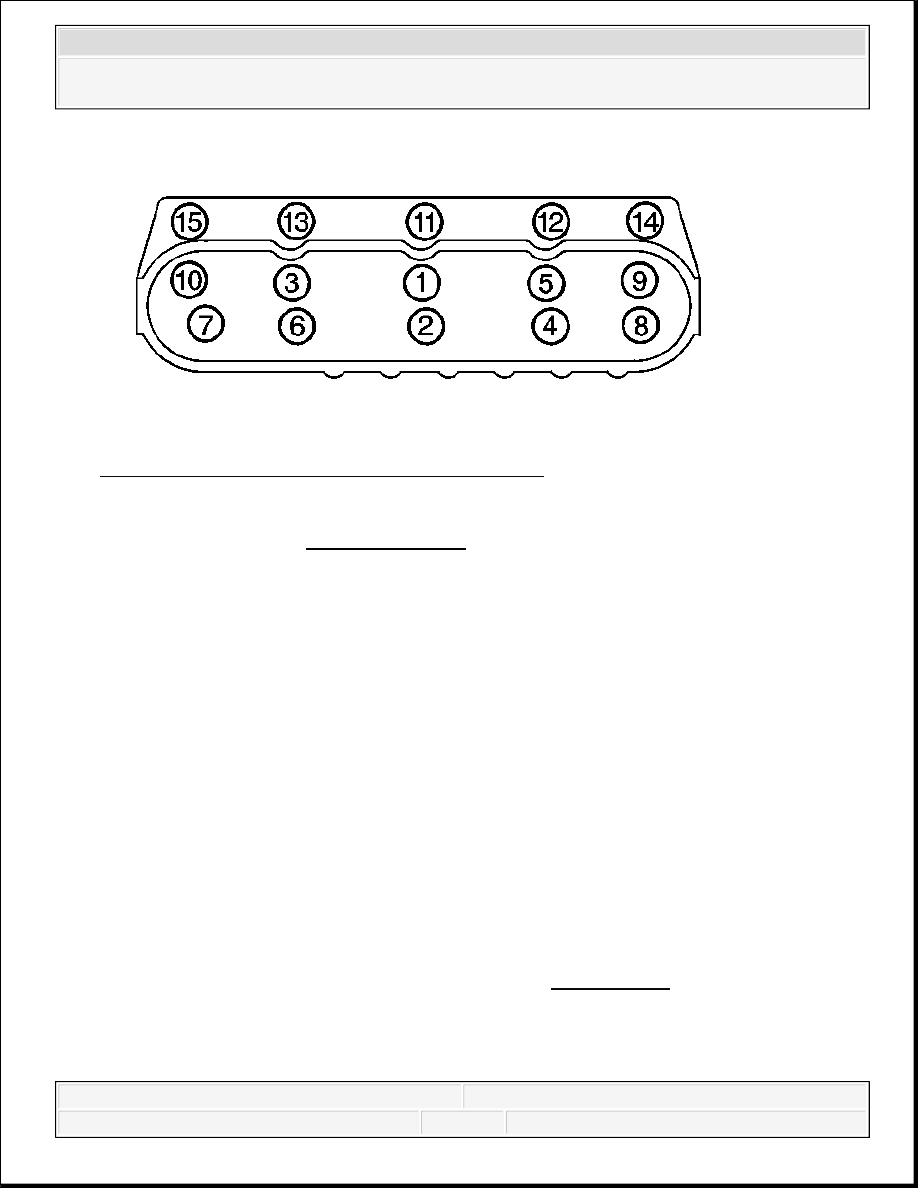

Fig. 34: Cylinder Head Bolt Tightening Sequence 10. Tighten the cylinder head bolts. Tighten: 1. Tighten the M11 cylinder head bolts (1-10) a first pass in sequence to 30 N.m (22 lb ft). 2. Tighten the M11 cylinder head bolts (1-10) a second pass in sequence to 90 degrees using the J 45059 . 3. Tighten the M11 cylinder head bolts (1-10) a final pass in sequence to 70 degrees using the J 45059 . 4. Tighten the M8 cylinder head bolts (11-15) to 30 N.m (22 lb ft). Begin with the center bolt (11) and alternating side-to-side, work outward tightening all of the bolts. CYLINDER HEAD INSTALLATION - RIGHT SIDE Tools Required J 42385-100 Head/Main Bolt Thread Repair Kit. See Special Tools . J 45059 Angle Meter Installation NOTE: Refer to Fastener Notice .
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

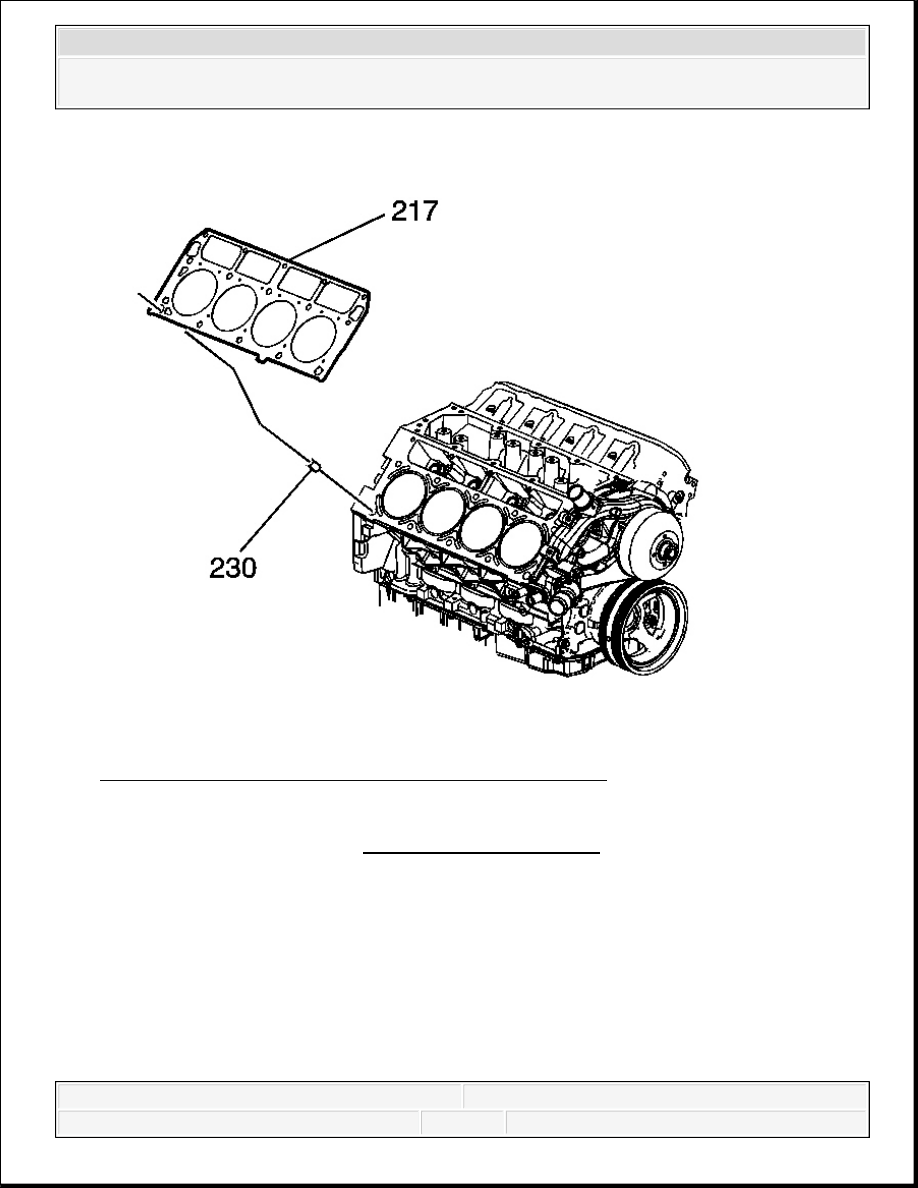

Fig. 35: View Of Cylinder Head Gasket & Locating Pins CAUTION: Refer to Safety Glasses Caution . NOTE: Clean all dirt, debris, and coolant from the engine block IMPORTANT: Do not use the cylinder head bolts again. Install NEW
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
