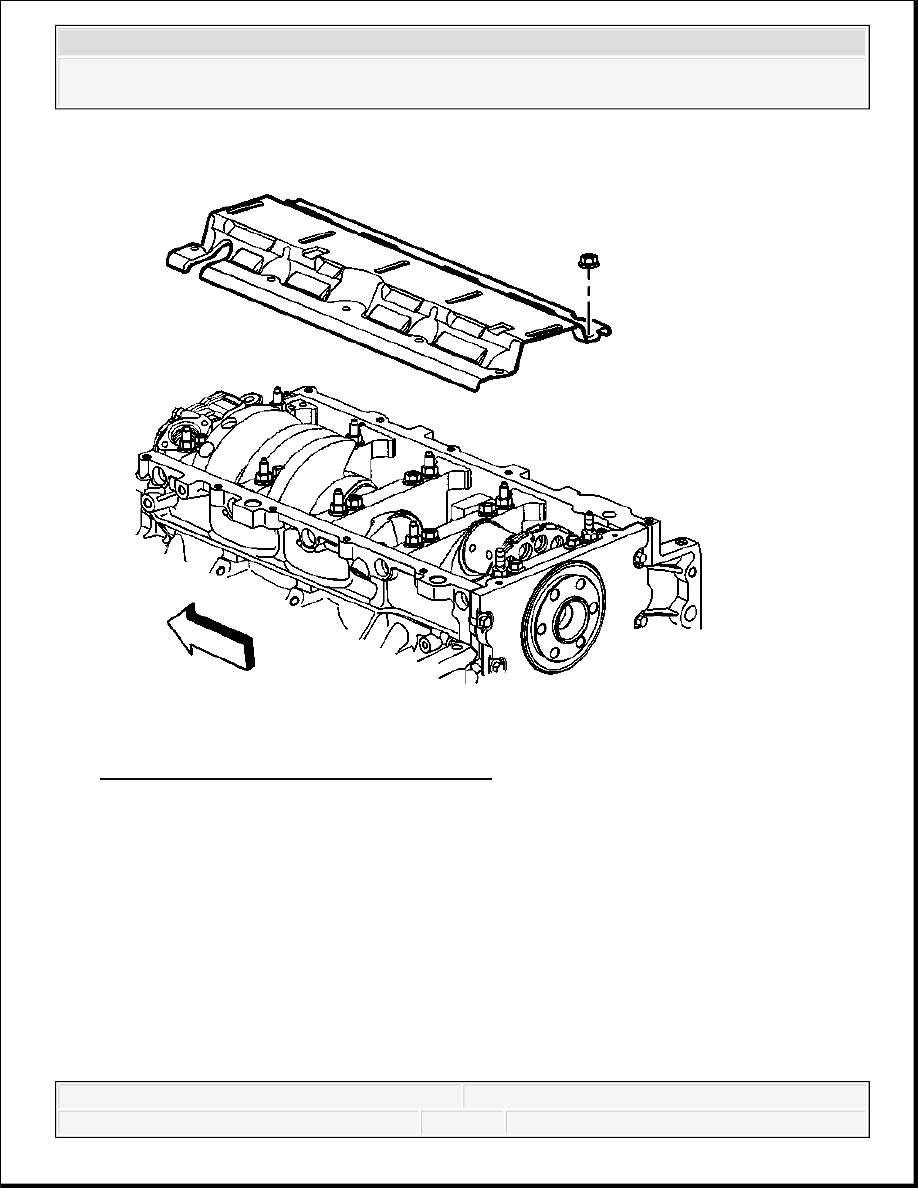

Fig. 259: View Of Crankshaft Oil Deflector 5. Remove the remaining crankshaft oil deflector nuts. 6. Remove the crankshaft oil deflector.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

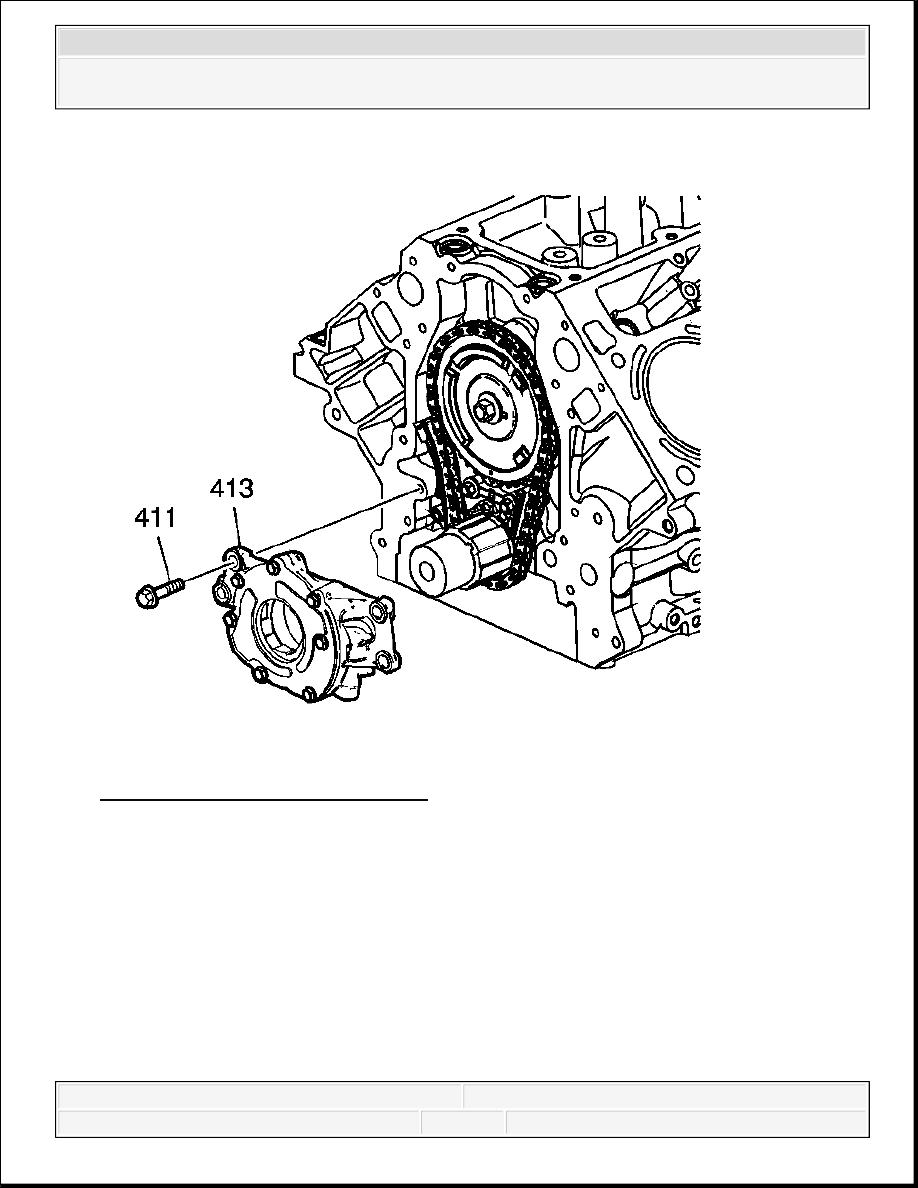

Fig. 260: View Of Oil Pump & Bolts 7. Remove the oil pump bolts (411). 8. Remove the oil pump (413). OIL PUMP, SCREEN AND CRANKSHAFT OIL DEFLECTOR REMOVAL (RPO LY6/L76/L92) IMPORTANT: Do not allow dirt or debris to enter the oil pump assembly. Cap ends, as necessary.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

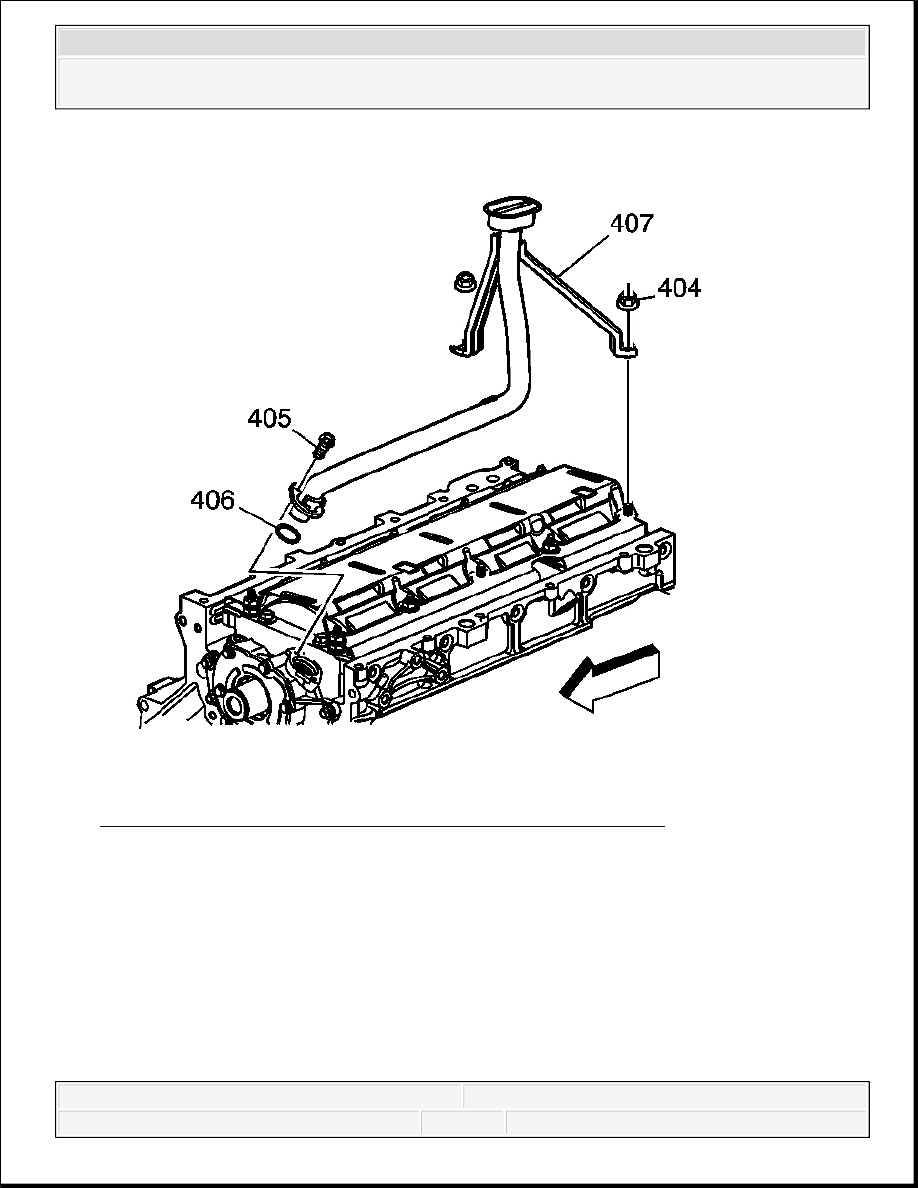

Fig. 261: View Of Oil Pump Screen, Bolt, Nuts, & O-Ring Seal 1. Remove the oil pump screen bolt (405) and nuts (404). 2. Remove the oil pump screen (407) with O-ring seal (406). 3. Remove the O-ring seal from the pump screen. 4. Discard the O-ring seal.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
Fig. 262: View Of Crankshaft Oil Deflector 5. Remove the remaining crankshaft oil deflector nuts. 6. Remove the crankshaft oil deflector.
2008 Chevrolet Silverado 1500 2008 ENGINE Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
