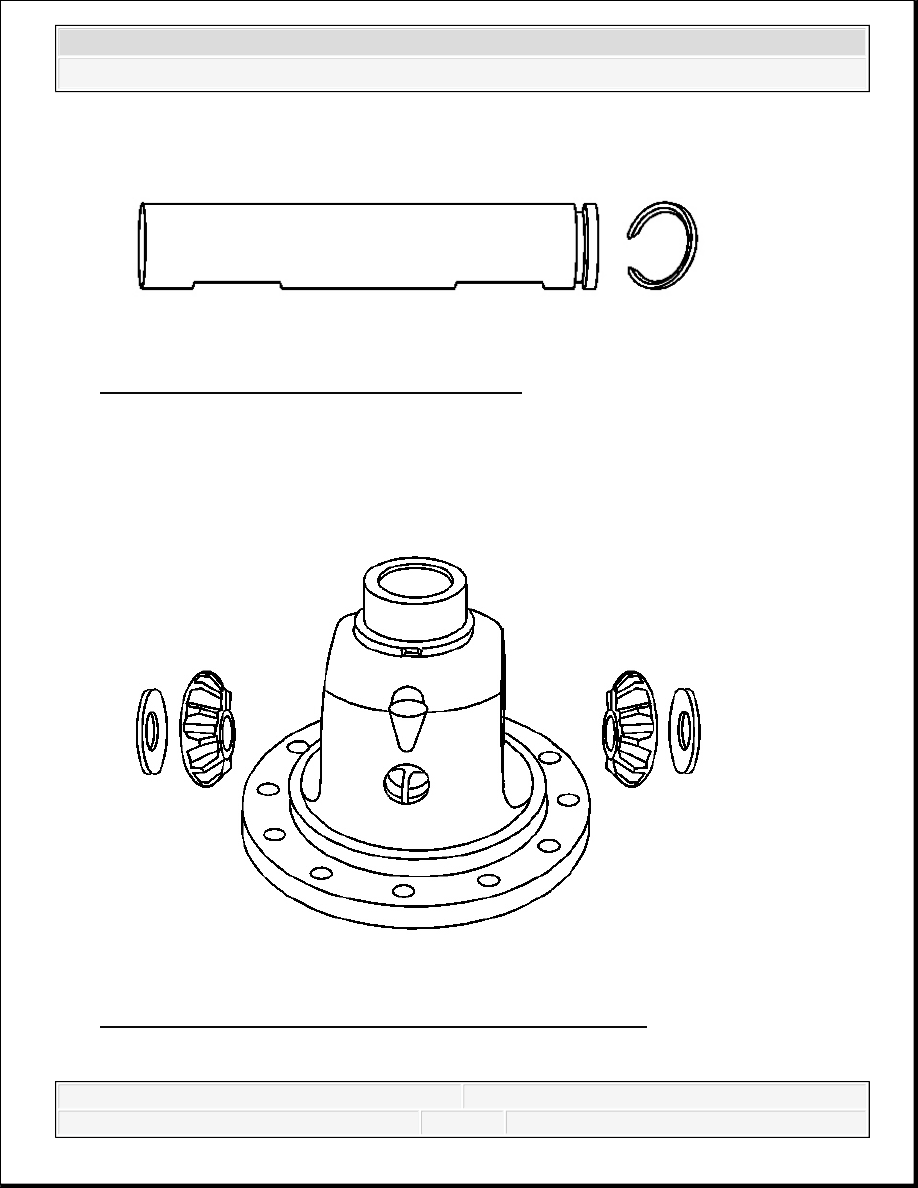

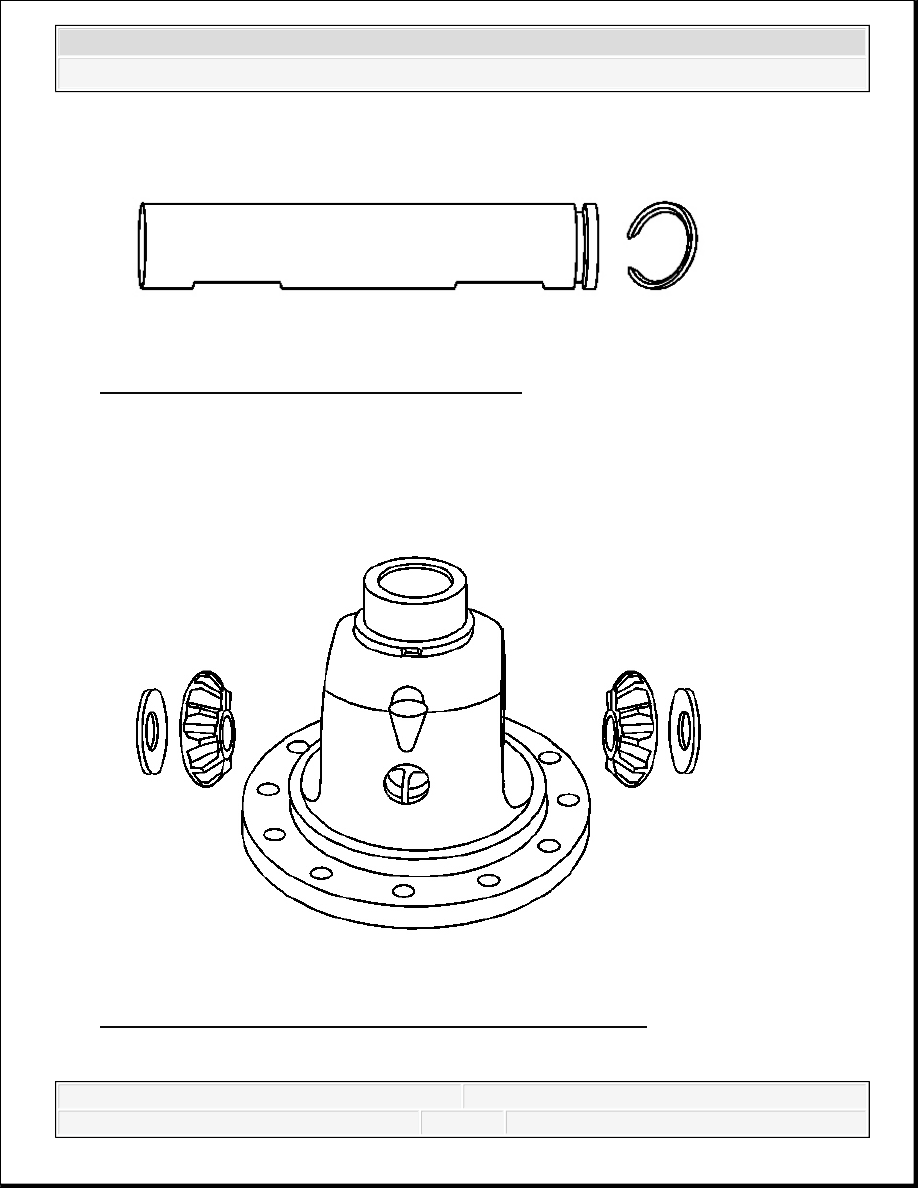

Fig. 224: View Of Pinion Shaft Retaining Ring 6. Remove the retaining ring from the pinion shaft. Discard the retaining ring. Fig. 225: View Of Differential Side Gears & Thrust Washers
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

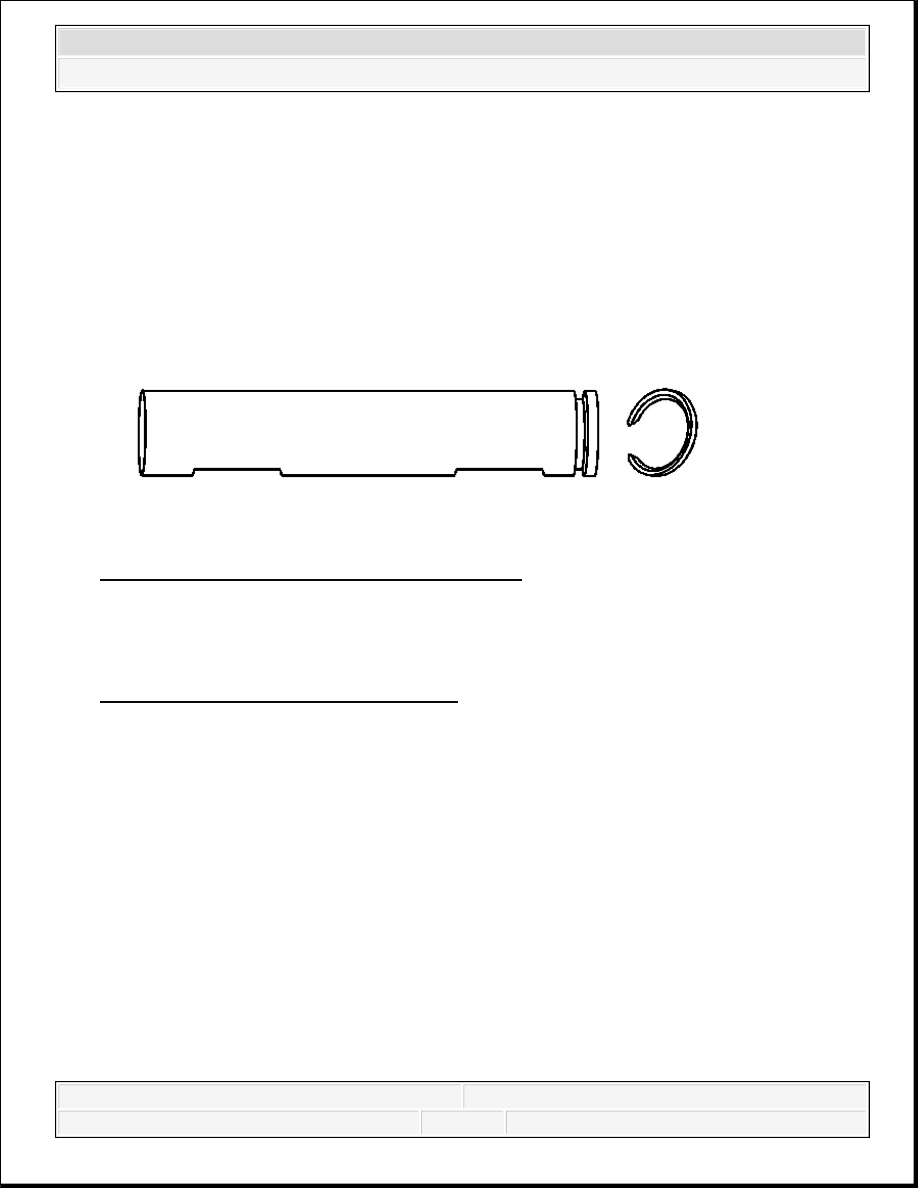

7. Remove the differential pinion gears and the pinion gear thrust washers by rolling the gears out through the differential case opening. 8. Remove the differential side gears and the thrust washers. Mark the pinion gears top and bottom and the differential side gears left and right. Assembly Procedure Fig. 226: View Of Pinion Shaft Retaining Ring 1. Install the new retaining onto the pinion shaft. 2. Lubricate the pinion and side gears using axle lubricant. Use the proper fluid. Refer to Fluid and Lubricant Recommendations . 3. Install the differential side gear thrust washers to the differential side gears. 4. Install the differential side gears and thrust washers into the differential case. If the same differential side gears and the thrust washers are being used, install the gears and
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

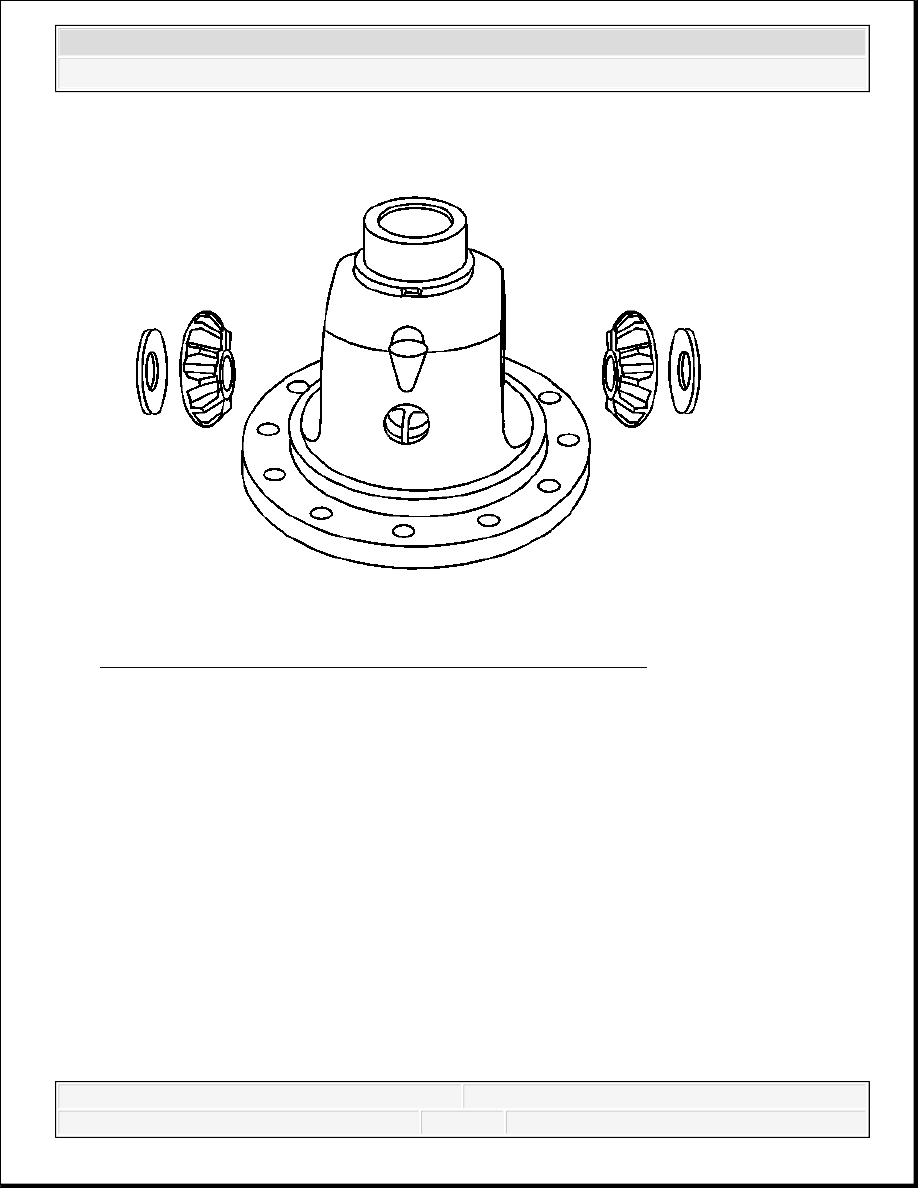

Fig. 227: View Of Differential Side Gears & Thrust Washers 5. Install the differential pinion gears and the thrust washers by performing the following steps: 1. Install the thrust washers to the pinion gears. 2. Position one of the pinion gears with the thrust washer between the differential side gears. If the same differential side gears and the thrust washers are being used, install the 3. Install the second pinion gear with the thrust washer between the differential side gears directly opposite of the first gear. 4. Rotate the differential side gears until the pinion gears and the thrust washers are directly opposite the opening in the differential case.
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado

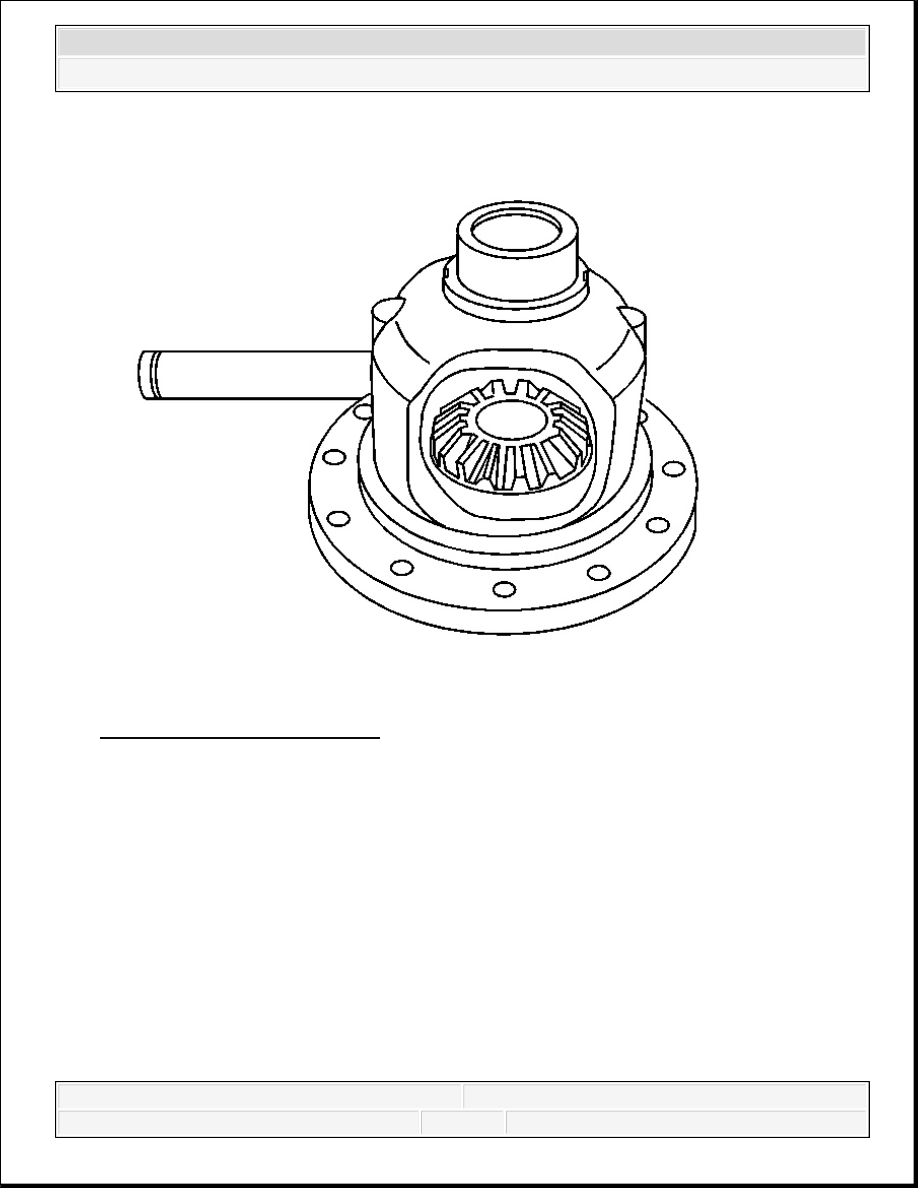

Fig. 228: View Of Pinion Shaft 6. Install the pinion shaft into the differential case by performing the following steps: 1. Insert the side of the pinion shaft with the pilot hole into the differential case. 2. Slide the pinion shaft through the differential case until the retaining ring is against the differential case. 3. Carefully drive the pinion shaft into the differential case using a hammer and a brass drift. Ensure that the pinion shaft retaining ring is seated in the channel within the
2008 Chevrolet Silverado 1500 2008 Driveline/Axle Rear Drive Axle - Cab & Chassis Sierra, Cab & Chassis Silverado, Sierra & Silverado
