Apron Plate Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

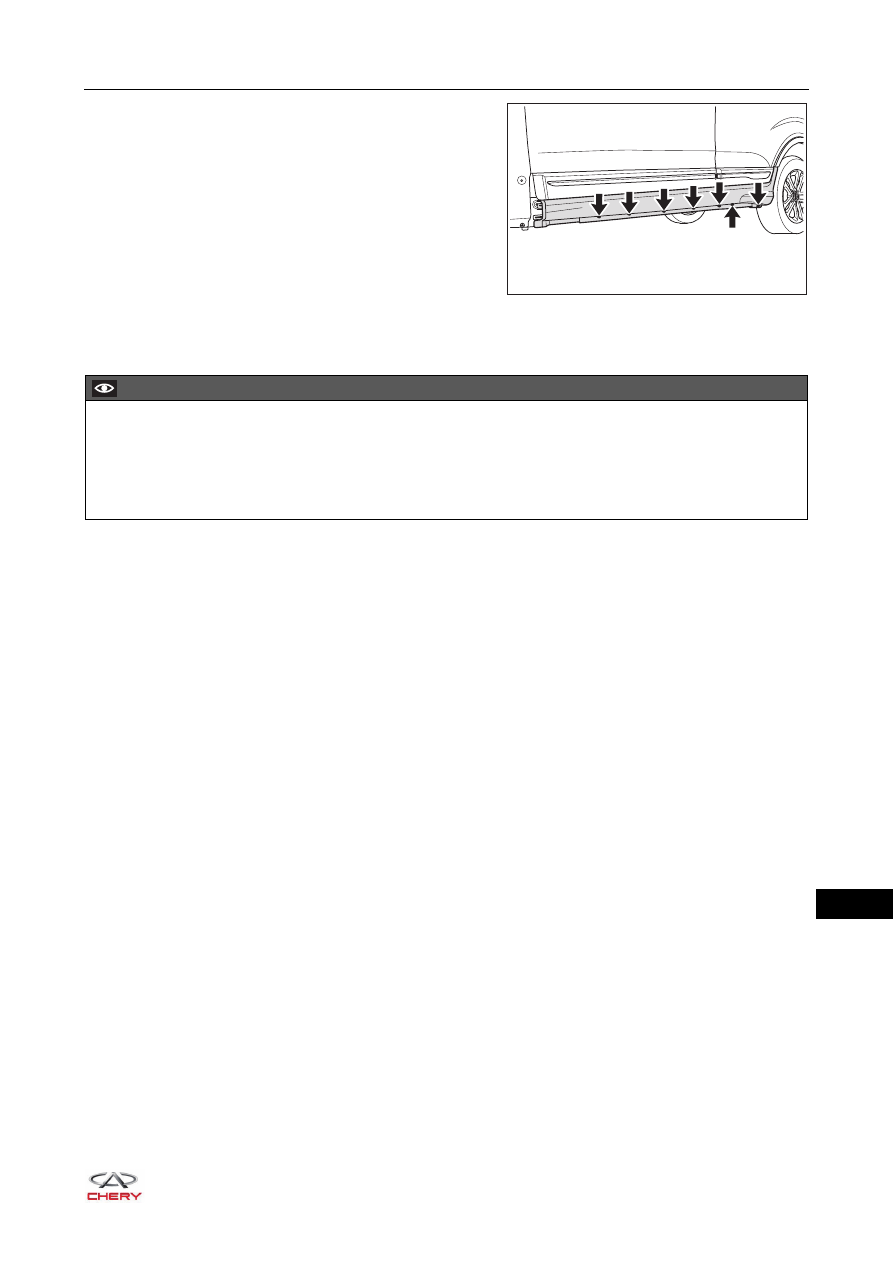

1. Remove the front left wheel flare assembly (

See page 48-20

).

2. Remove the left apron plate cover assembly.

a. Remove the fixing crew (1) from the left apron plate

cover assembly.

(Tightening torque: 3 ± 1 N·m)

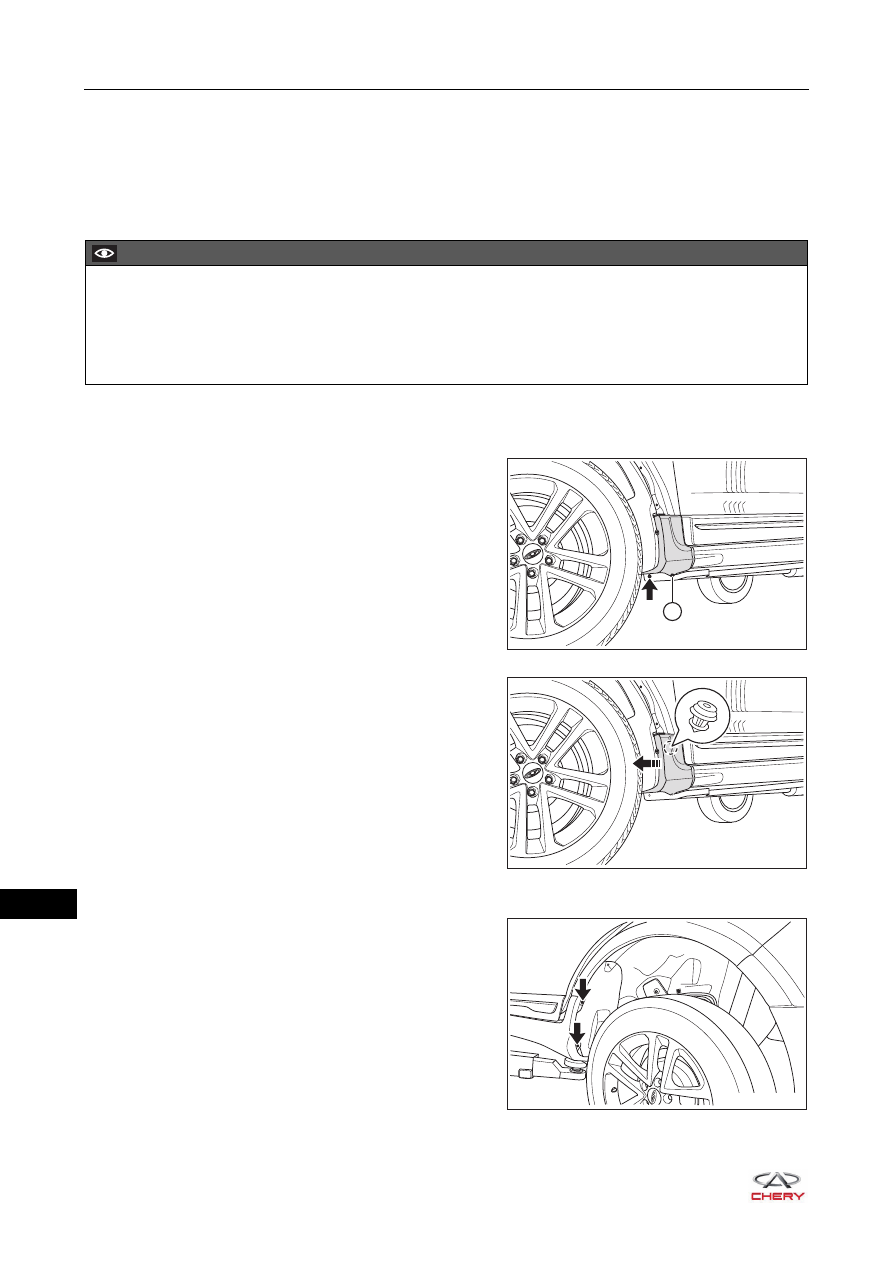

b. Remove the plastic clip (arrow) from the left apron

plate cover assembly.

c. Using an interior crow plate, pry off the clip from the

left apron plate cover assembly.

d. Remove the left apron plate cover assembly in the

direction of arrow as shown in the illustration.

3. Remove the left apron plate assembly.

a. Remove 2 fixing crews (arrow) from the left apron

plate assembly.

(Tightening torque: 3 ± 1 N·m)

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing apron plate assembly.
 Appropriate force should be applied when removing apron plate assembly. Be careful not to operate

roughly.

 Try to prevent body paint surface from being scratched when removing apron plate assembly.

RT21480310

1

RT21480320

RT21480330

48–

23

48

b. Remove 7 plastic clips (arrow) from the left apron

plate assembly, and remove the left apron plate
assembly.

Installation

Installation is in the reverse order of removal.

RT21480331

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing apron plate assembly.
 Try to prevent body paint surface from being scratched when installing apron plate assembly.
 Make sure damaged clips are replaced and apron plate assembly is installed in place when installing

apron plate assembly.

48–

24

48

Front Wheel House Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the front left wheel house protector assembly.

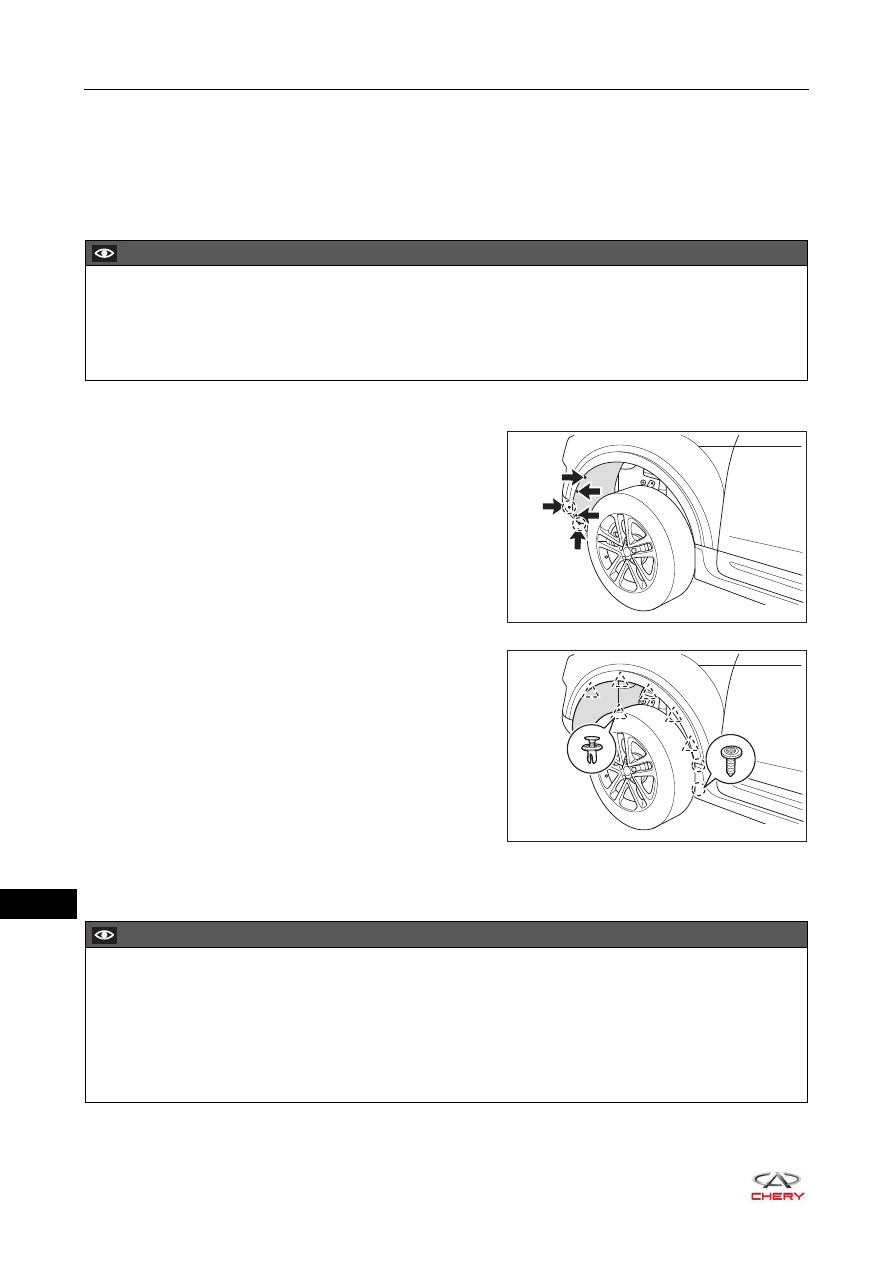

a. Remove 5 fixing crews (arrow) from the front left

wheel house protector assembly.

(Tightening torque: 3 ± 1 N·m)

b. Remove 2 fixing screws from the front left wheel

house protector assembly.

(Tightening torque: 3 ± 1 N·m)

c. Remove 6 plastic clips from the front left wheel house

protector assembly.

d. Remove the front left wheel house protector

assembly.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front wheel house protector

assembly.

 Try to prevent body paint surface from being scratched when removing front wheel house protector

assembly.

RT21480210

RT21480220

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing front wheel house protector

assembly.

 Try to prevent body paint surface from being scratched when installing front wheel house protector

assembly.

 Make sure damaged clips are replaced and front wheel house protector assembly is installed in place

when installing front wheel house protector assembly.

48–

25

48

Fender Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front left wheel flare assembly (

See page 48-20

).

4. Remove the left apron plate cover assembly (

See page 48-22

).

5. Remove the front bumper assembly (

See page 48-11

).

6. Remove the front bumper left mounting bracket assembly (

See page 48-17

).

7. Remove the front windshield lower garnish left cover plate.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on front windshield lower garnish left
cover plate.

b. Remove the front windshield lower garnish left cover

plate.

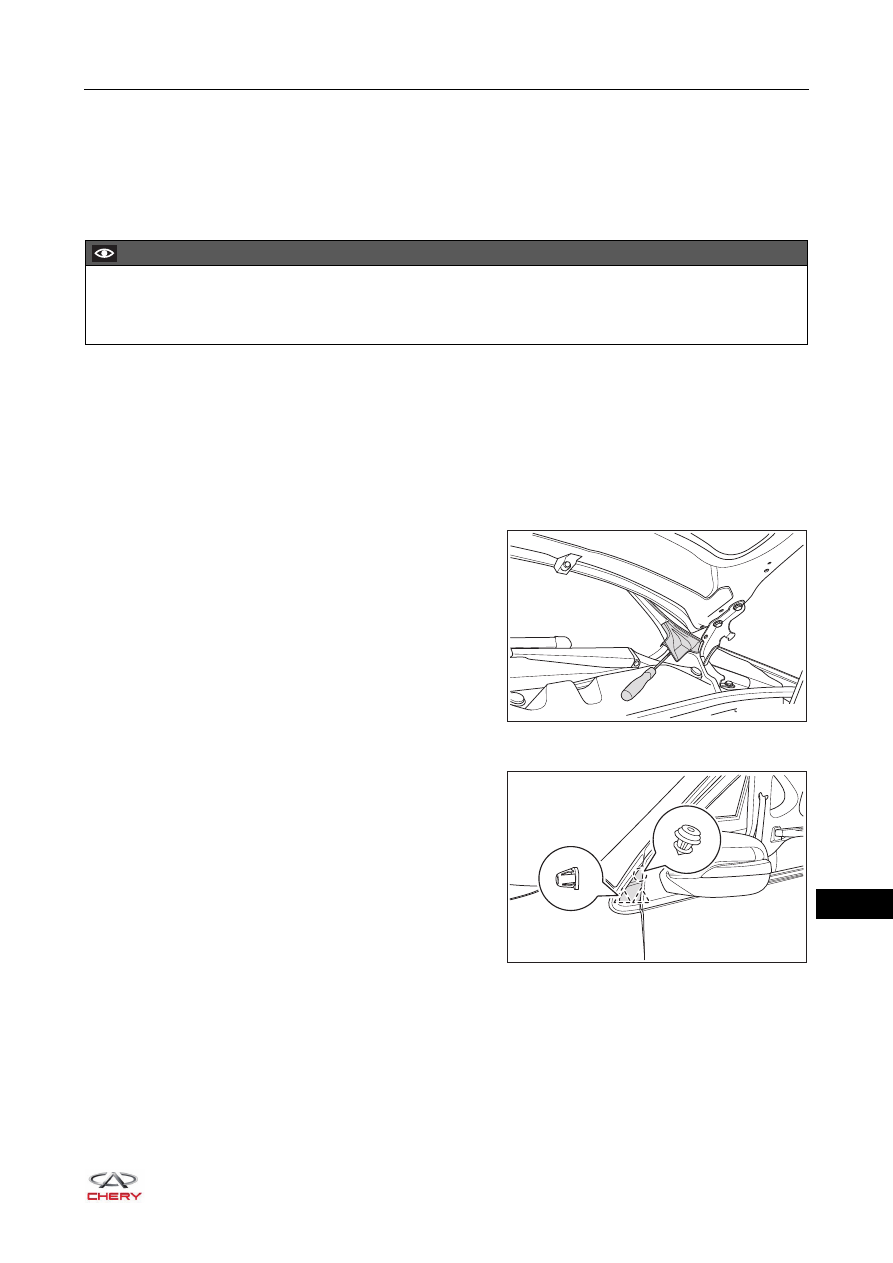

8. Remove the left outer triangular block assembly.

a. Using an interior crow plate, pry off the clips from the

left outer triangular block assembly, and remove the
left outer triangular block assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing fender assembly.
 Try to prevent body paint surface from being scratched when removing fender assembly.

RT21480490

RT21480230
