Chery Tiggo 5 (T21). Manual - part 489

46–

6

46

1 - Front Passenger Seat Headrest Assembly

2 - Front Passenger Seat Headrest Guide w/o Button

3 - Front Passenger Seat Headrest Guide w/ Button

4 - Front Passenger Seatback Assembly

5 - Front Passenger Seat Belt Buckle Assembly

6 - Front Passenger Seat Inner Shield Assembly

7 - Front Passenger Seat Rear Mounting Foot Cover

Assembly

8 - Front Passenger Seat Track Assembly

9 - Front Passenger Seat Front Mounting Foot Cover

Assembly

10 - Front Passenger Seat Track Unlock Handle

11 - Passenger Side Seat Belt Reminder

12 - Front Passenger Seat Cushion Assembly

13 - Front Passenger Seat Outer Shield Assembly

14 - Front Passenger Seat Reclining Adjuster

Handle

15 - Front Passenger Seat Reclining Adjuster

Handle Cover

46–

7

46

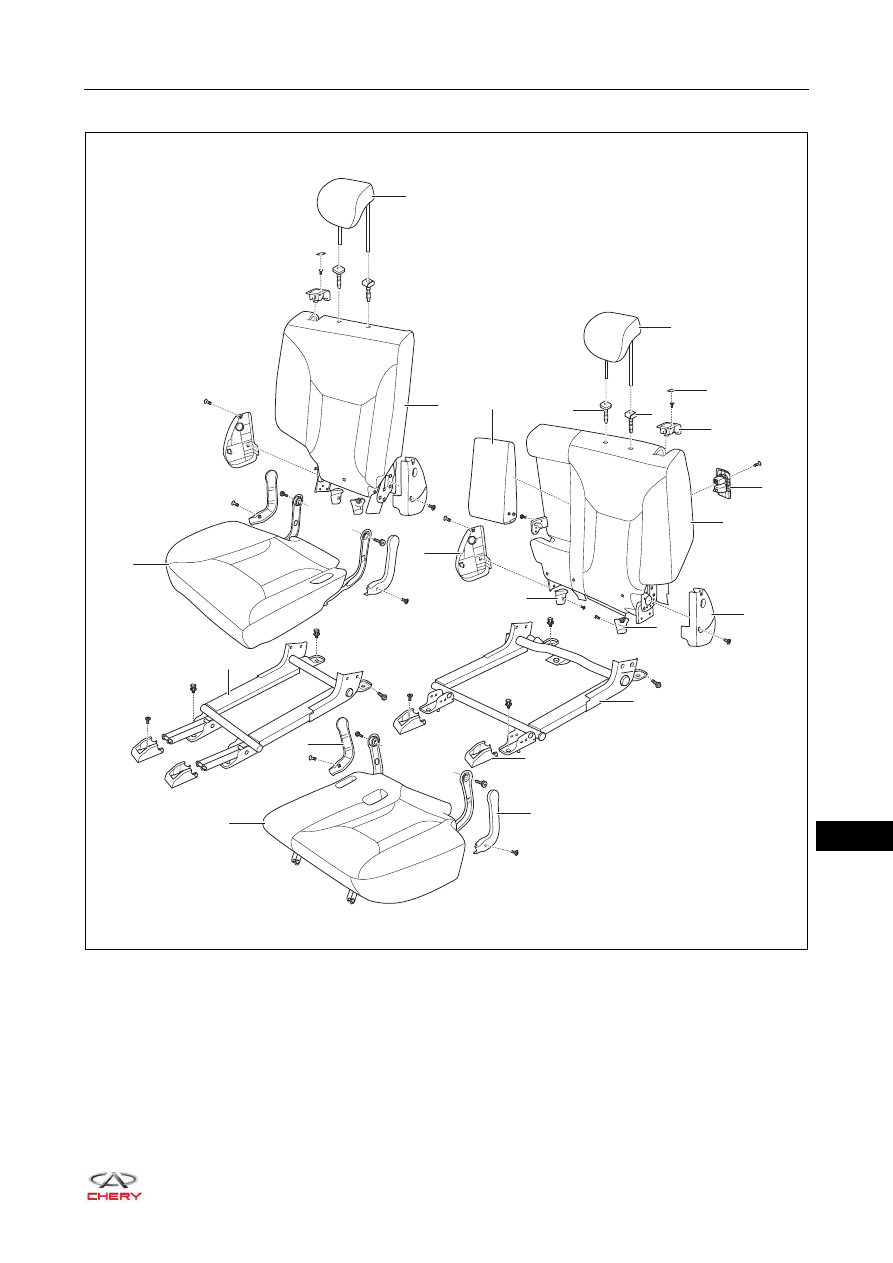

Rear Seat Assembly

RT21460030

×2

×2

×2

×2

×2

×2

×2

×2

×2

×2

×2

×2

×4

×4

3

1

4

5

6

7

8

9

2

10

20

16

19

21

13

12

11

17

18

15

14

46–

8

46

The front seat assemblies can be moved forward and backward by seat track unlock handle, and can be
moved upward and downward by seat height adjuster handle, and the seatback reclining can be adjusted by
seat reclining adjuster handle.
The rear seat position is not adjustable; however, the rear seatback can be put down forward by pulling the
seatback unlock mechanism assembly to help increase the storage space of back door.

1 - Rear Left Seat Headrest Assembly

2 - Rear Seat Headrest Guide w/o Button

3 - Rear Seat Headrest Guide w/ Button

4 - Rear Seatback Unlock Mechanism Cover

5 - Rear Seatback Unlock Mechanism Assembly

6 - Child Seat Upper Fixing Point Trim Cover

7 - Rear Left Seatback Assembly

8 - Rear Left Seat Folder Mechanism Assembly

Outer Cover

9 - Rear Left Seat Reclining Adjuster Inner Cover

10 - Rear Right Seat Reclining Adjuster Inner Cover

11 - Rear Left Seat Bracket Assembly

12 - Rear Seat Mounting Foot Cover Assembly

13 - Attachment Trim Cover Between Rear Left Seat

Cushion and Seatback

14 - Rear Left Seat Cushion Assembly

15 - Attachment Trim Cover Between Rear Right

Seat Cushion and Seatback

16 - Rear Right Seat Bracket Assembly

17 - Rear Right Seat Cushion Assembly

18 - Rear Right Seat Folder Mechanism Assembly

Outer Cover

19 - Rear Right Seatback Assembly

20 - Rear Seat Armrest Assembly

21 - Rear Right Seat Headrest Assembly

46–

9

46

Specifications

Torque Specifications

Description

Torque (N·m)

Front Seat Assembly Fixing Bolt

50 ± 5

Seat Track Unlock Handle Fixing Screw

4.8 ± 0.5

Seat Front Mounting Foot Cover Assembly Fixing
Screw

4.8 ± 0.5

Seat Rear Mounting Foot Cover Assembly Fixing
Screw

4.8 ± 0.5

Seat Height Adjuster Handle Fixing Screw

4.8 ± 0.5

Seat Reclining Adjuster Handle Fixing Screw

4.8 ± 0.5

Seat Outer Shield Assembly Fixing Screw

4.8 ± 0.5

Seat Belt Buckle Assembly Fixing Nut

50 ± 5

Seat Inner Shield Assembly Fixing Screw

4.8 ± 0.5

Seat Track Assembly Fixing Bolt

24 ± 2.4

Rear Seat Assembly Fixing Bolt

50 ± 5

Attachment Trim Cover Fixing Screw Between Rear
Seat Cushion and Seatback

4.8 ± 0.5

Rear Seat Armrest Assembly Fixing Screw

4.8 ± 0.5

Child Seat Upper Fixing Point Trim Cover Fixing
Screw

4.8 ± 0.5

Rear Seatback Unlock Mechanism Assembly Fixing
Screw

4.8 ± 0.5

Rear Seat Mounting Foot Cover Assembly Fixing
Screw

4.8 ± 0.5

Fixing Bolt Between Rear Seat Cushion Assembly
and Seatback Assembly

48 ± 4.8

Rear Seat Folder Mechanism Assembly Outer Cover
Fixing Screw

4.8 ± 0.5

Rear Seat Reclining Adjuster Inner Cover Fixing
Screw

4.8 ± 0.5

Rear Seat Bracket Assembly Fixing Bolt

48 ± 4.8
