45–

18

45

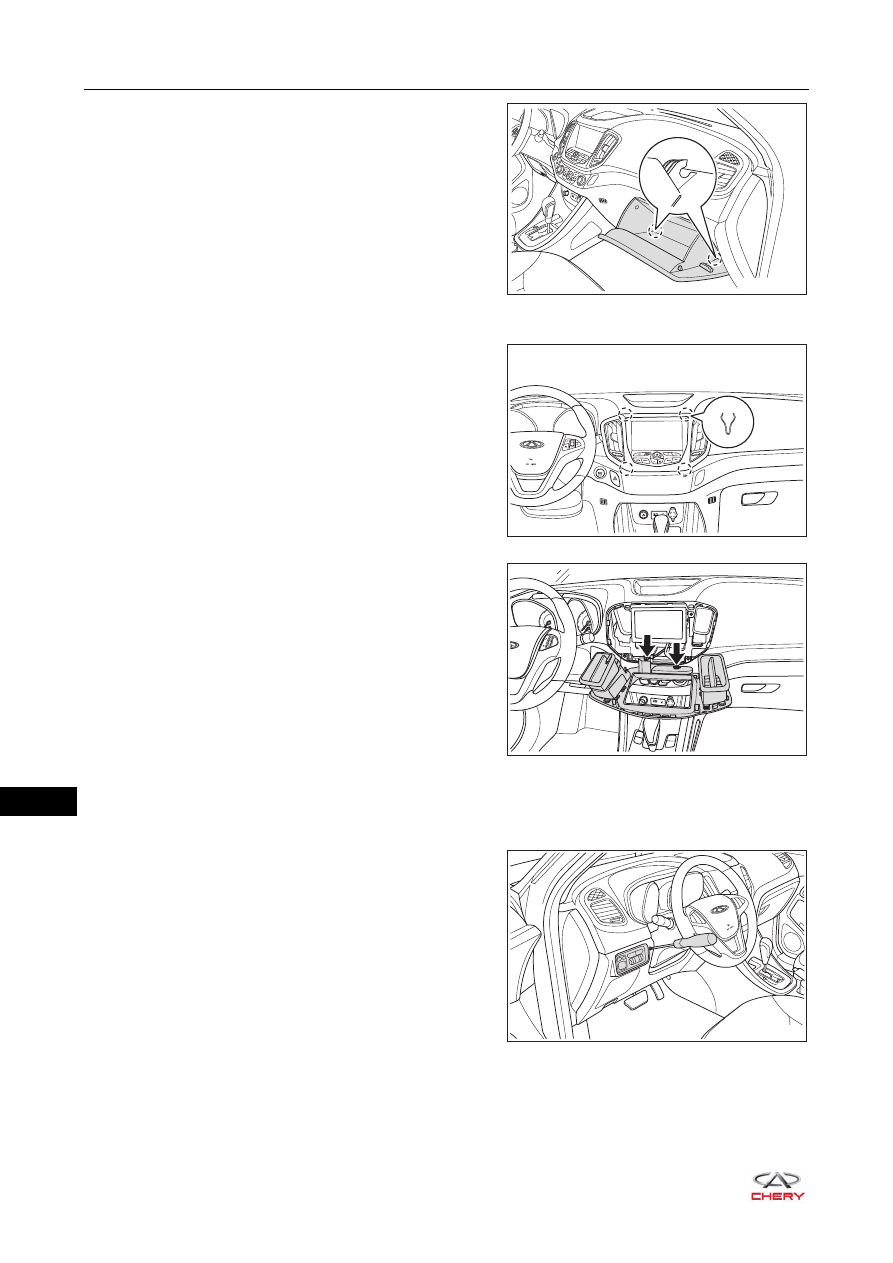

c. Disengage the claws on the lower side of glove box

assembly, and remove the glove box assembly.

4. Remove the DVD panel assembly.

a. Using a screwdriver wrapped with protective tape, pry

up the clips on DVD panel assembly.

b. Disconnect the connectors (arrow) from DVD panel

assembly, and remove the DVD panel assembly.

5. Remove the no disc DVD assembly (

See page 39-12

).

6. Remove the A/C control panel assembly (

See page 31-70

).

7. Remove the combination light adjust switch panel.

a. Using a screwdriver wrapped with protective tape, pry

out the combination light adjust switch panel.

RT21450283

RT21430500

1

2

3

0

20

40

60

80

ON
OFF

RT21430510

RT21450296

45–

19

45

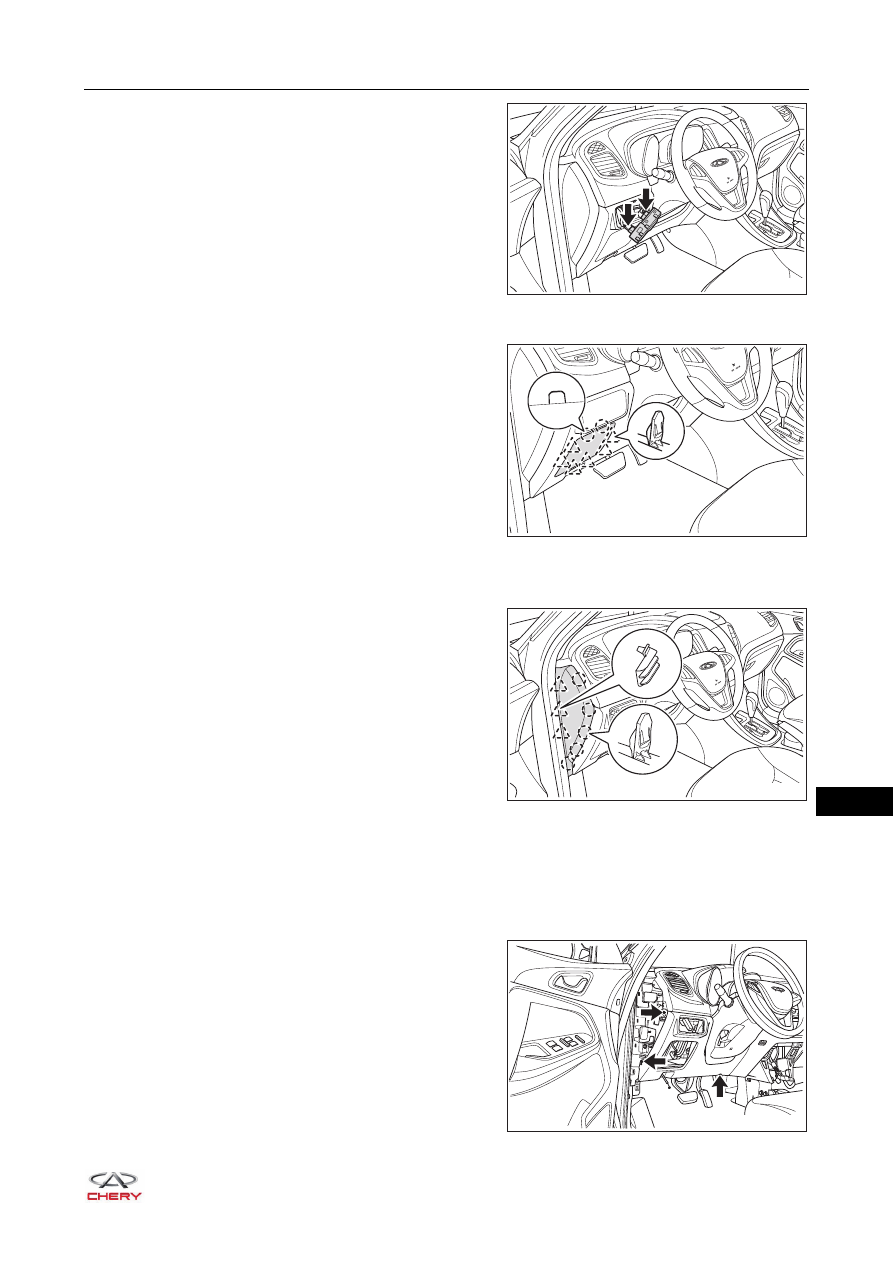

b. Disconnect the connectors (arrow) from combination

light adjust switch panel, and remove the combination
light adjust switch panel.

8. Remove the fuse box cover.

a. Using a screwdriver wrapped with protective tape, pry

up the claws on fuse box cover, and remove the fuse
box cover.

9. Remove the front door opening weatherstrip (

See page 49-14

).

10.Remove the instrument panel left end panel assembly (take left side as an example).

a. Using a screwdriver wrapped with protective tape, pry

up the claws on instrument panel left end panel
assembly, and remove the instrument panel left end
panel assembly.

11.Remove the auxiliary fascia console assembly (

See page 45-9

).

12.Remove the front doorsill pressure plate assembly (

See page 49-11

).

13.Remove the A-pillar lower protector assembly (

See page 49-19

).

14.Remove the hood grip assembly (

See page 47-19

).

15.Remove the instrument panel lower left protector assembly.

a. Remove 3 fixing screws (arrow) from instrument panel

lower left protector assembly.



(Tightening torque: 2 ± 0.5 N·m)

RT21450290

RT21450300

RT21450310

RT21450320

45–

20

45

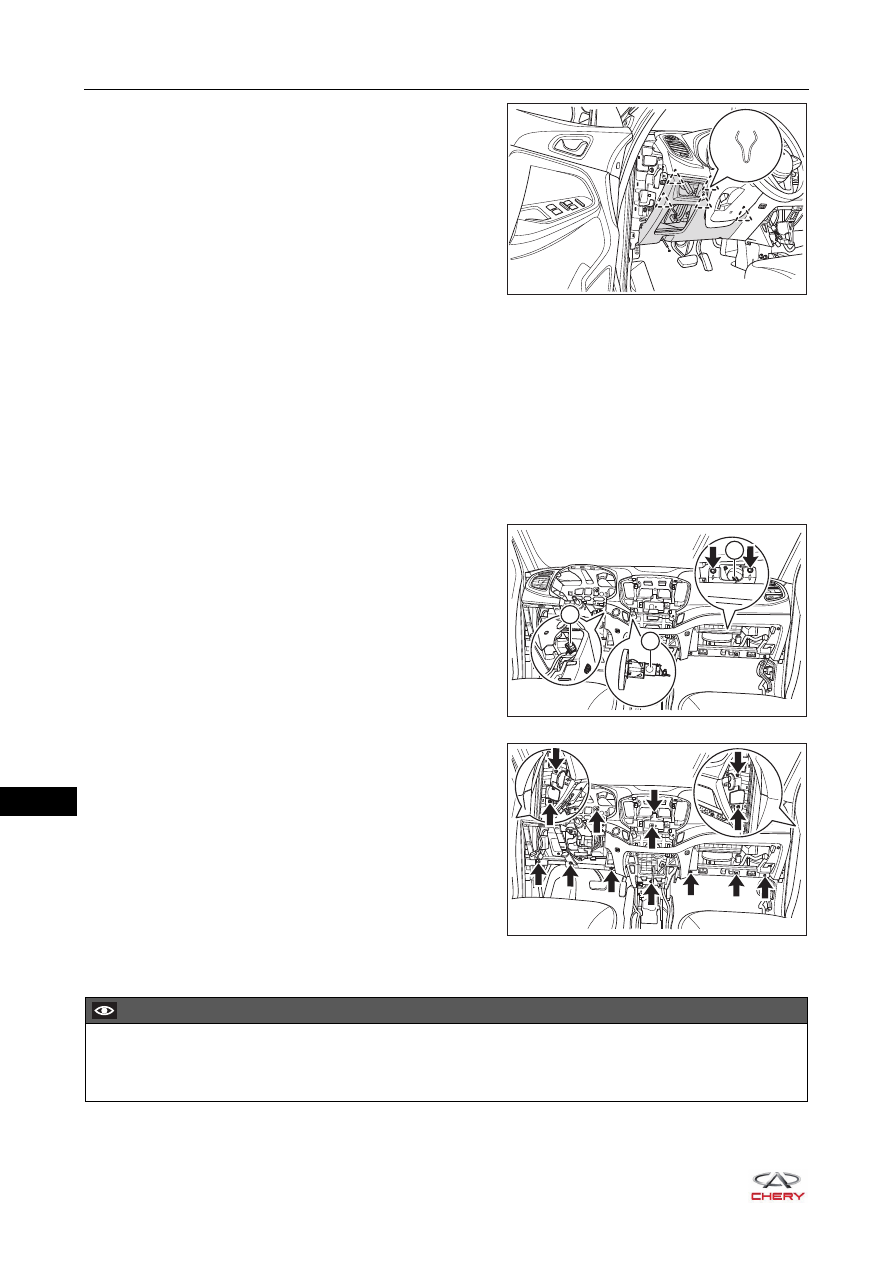

b. Using an interior crow plate, pry up the clips on

instrument panel lower left protector assembly, and
remove the instrument panel lower left protector
assembly.

16.Remove the driver airbag (

See page 32-64

).

17.Remove the combination switch cover (

See page 28-13

).

18.Remove the steering wheel assembly (

See page 28-10

).

19.Remove the spiral cable (

See page 32-67

).

20.Remove the wiper switch assembly (

See page 36-22

).

21.Remove the headlight, turn light and fog switch assembly (

See page 35-64

).

22.Remove the instrument cluster (

See page 38-42

).

23.Remove the A-pillar upper protector assembly (

See page 49-17

).

24.Remove the instrument panel assembly.

a. Disconnect the front passenger airbag connector (1).
b. Remove 2 fixing bolts (arrow) from front passenger

airbag assembly.



(Tightening torque: 10 ± 1 N·m)

c. Disconnect the engine switch connector (2).
d. Disconnect the hazard warning light connector (3).

e. Remove 14 fixing bolts (arrow) from instrument panel

assembly, and remove the instrument panel
assembly.



(Tightening torque: 7 ± 1 N·m)

Disassembly

RT21450330

RT21450340

2

3

1

RT21450350

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing instrument panel assembly.
 DO NOT scratch instrument panel surface when removing instrument panel assembly.

45–

21

45

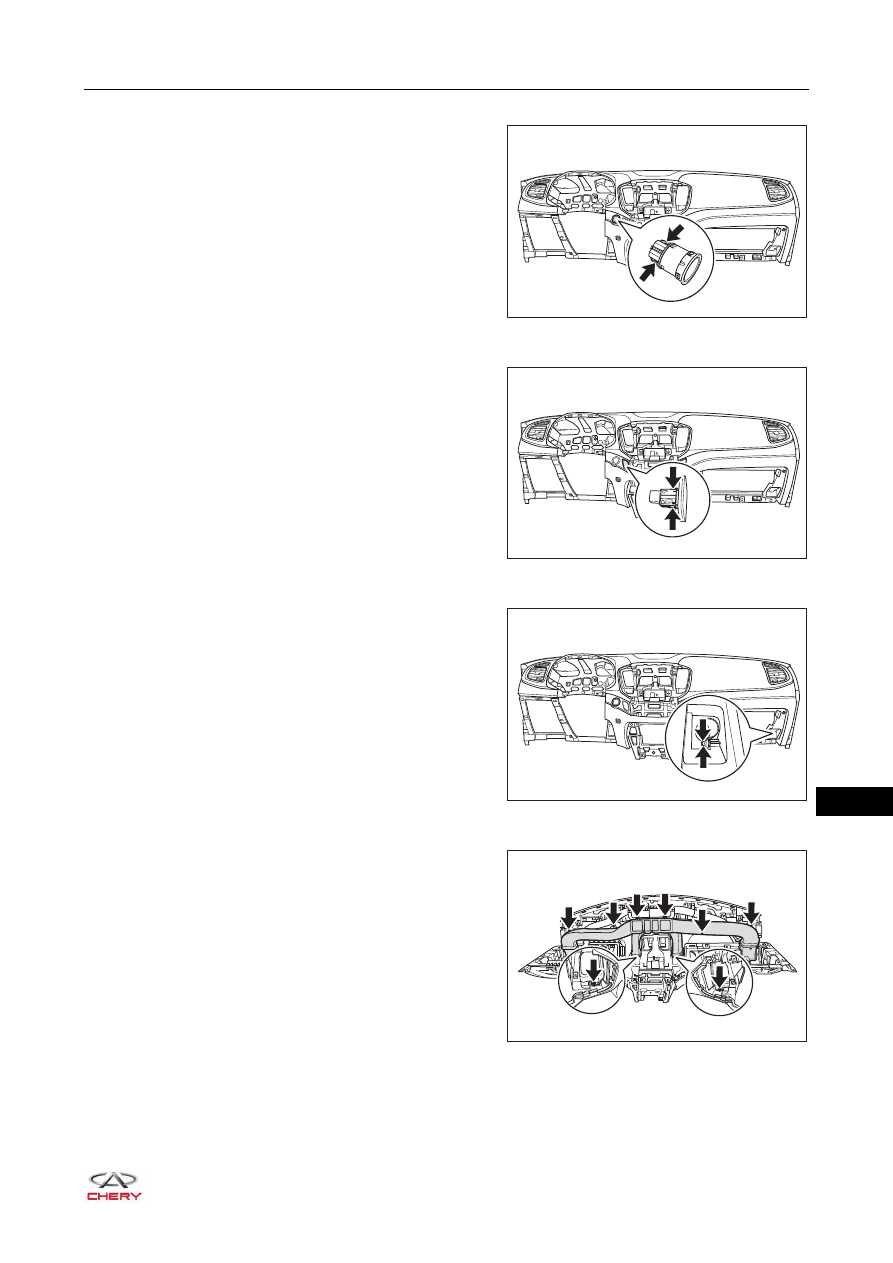

1. Remove the engine switch.

a. Press the claws (arrow) on engine switch as shown in

the illustration.

b. Remove the engine switch from instrument panel

assembly.

2. Remove the hazard warning light.

a. Press the claws (arrow) on hazard warning light as

shown in the illustration.

b. Remove the hazard warning light from instrument

panel assembly.

3. Remove the damper assembly.

a. Press the claws (arrow) as shown in the illustration.
b. Remove the damper assembly from instrument panel

assembly.

4. Remove the face air duct assembly.

a. Remove 8 fixing screws (arrow) from face air duct

assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

b. Remove the face air duct assembly from instrument

panel assembly.

RT21450360

RT21450370

RT21450380

RT21450390
