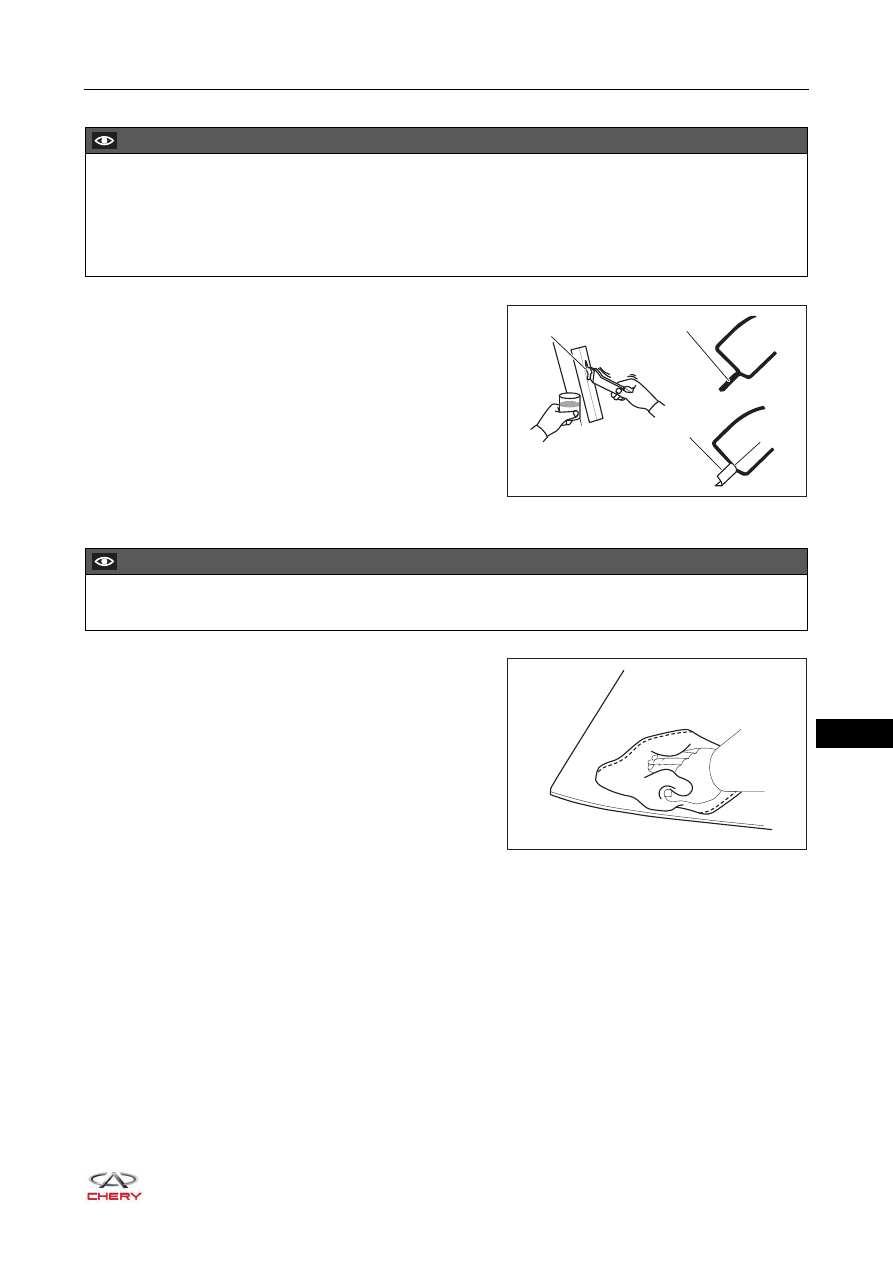

b. Clean the contact surface of vehicle body with cleaner.

10.Clean the removed glass.

a. Remove the adhesive sticking to glass with a scraper.
b. Clean the outer edges of glass with glass cleaner.

Installation

1. Position the front windshield assembly.

a. Align the clip with installation hole on roof panel.
b. Check if whole contact surface of glass rim is perfectly even.
c. Place matchmarks on the front windshield and body at

the positions shown in the illustration.

d. Remove the front windshield assembly.

CAUTION

 Even if all adhesive has been removed, cleaning of vehicle would be necessary.

CAUTION

 DO NOT touch the glass after cleaning it.
 Even if new glass is used, it is necessary to clean it with glass cleaner.

RT21430330

RT21430430

43–

73

43

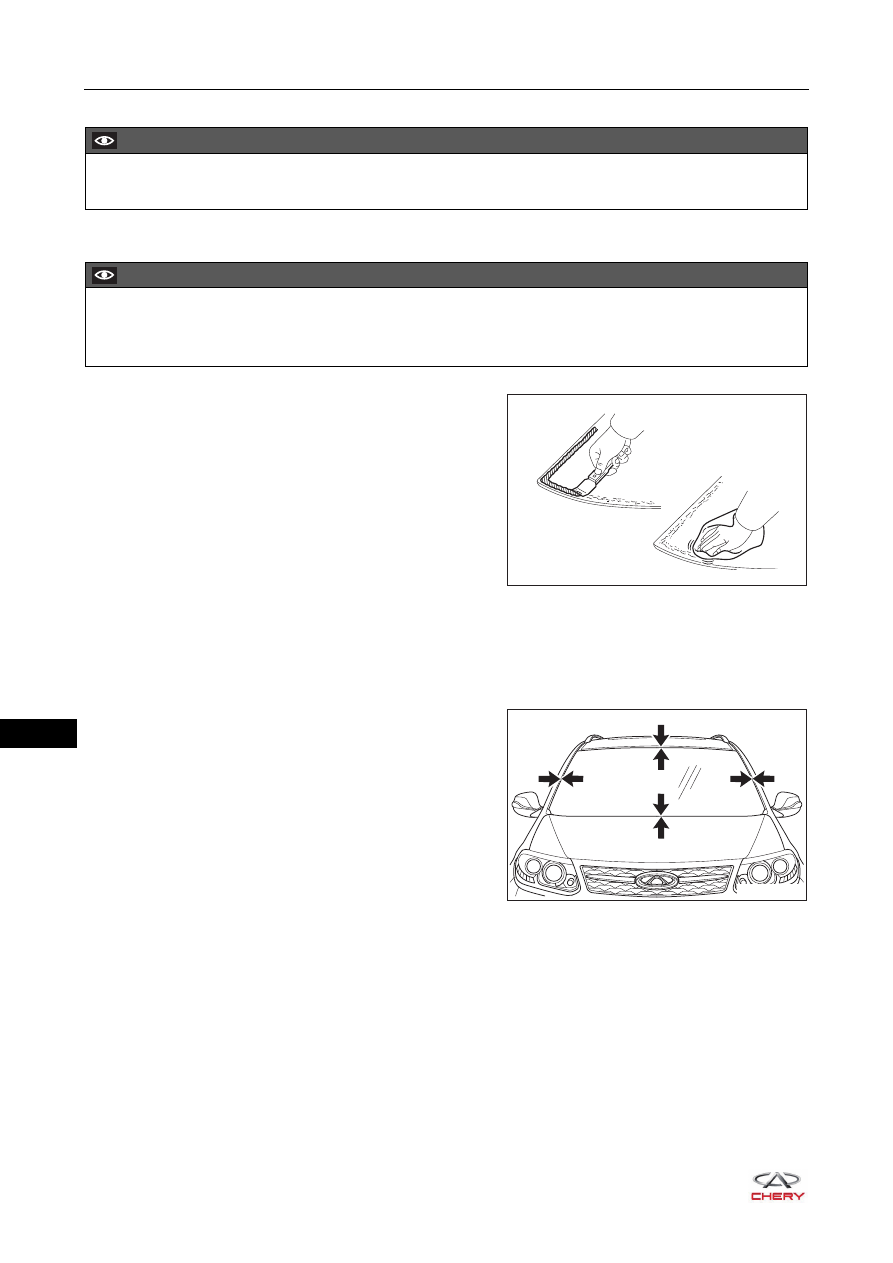

2. Apply a coat of primer M to the contact surface of body.

a. Using a brush, apply a coat of primer M to the contact

surface of body.

b. Width of primer is 13 - 15 mm.

3. Clean the contact surface of the front windshield assembly.

a. Remove any residue on the contact surface of front

windshield assembly with a piece of clean cloth
soaked with glass cleaner.

CAUTION

 Allow primer to dry for at least 3 minutes.
 DO NOT apply primer to the adhesive.
 DO NOT apply too much primer.
 DO NOT keep any opened primer M for later use.

Primer M

Primer M

Primer M

Adhesive

RT21430350

CAUTION

 DO NOT touch the surface of front windshield after cleaning it.

RT21430360

43–

74

43

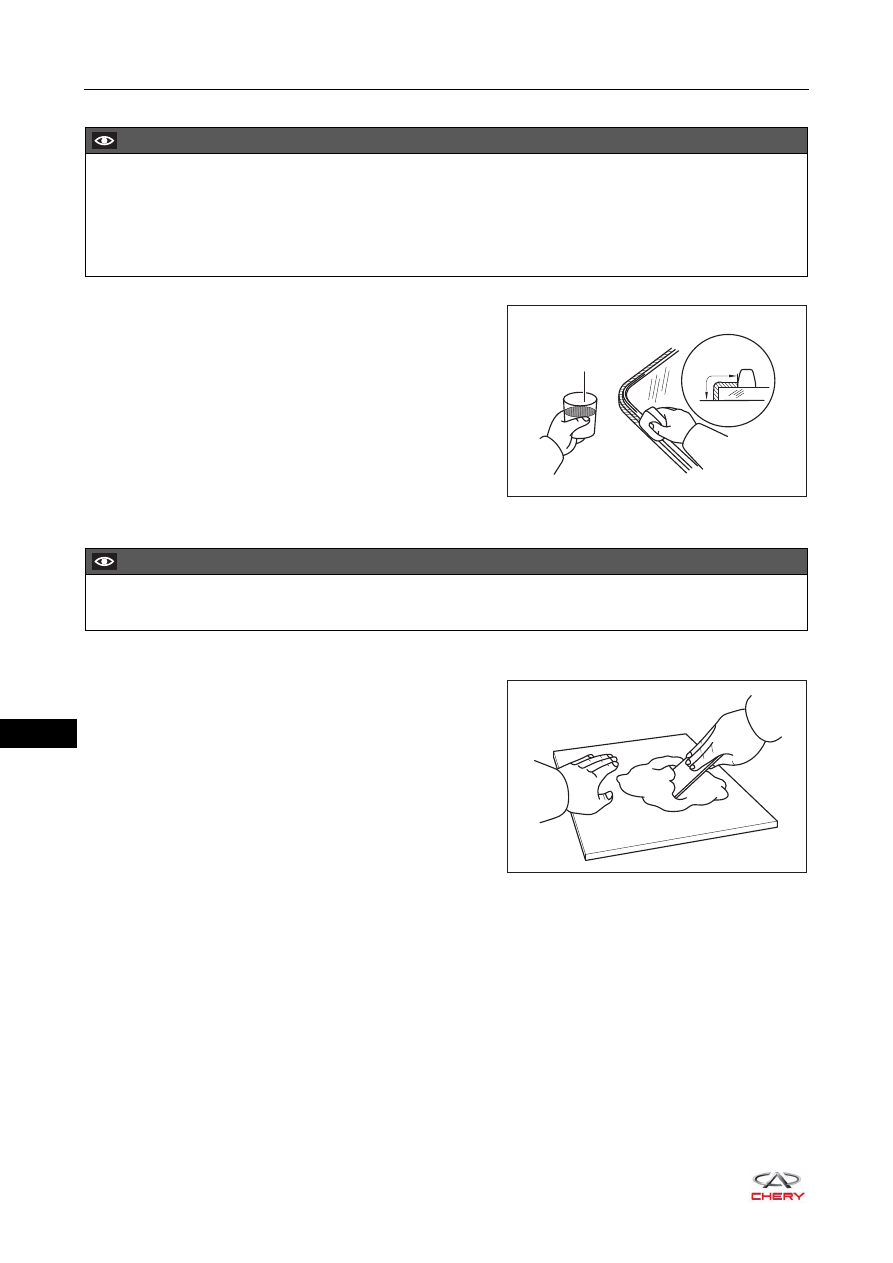

4. Apply a coat of primer G to the contact surface of front windshield assembly.

a. Using a brush or sponge, apply a coat of primer G to

the glass rim and contact surface.

b. Use a piece of clean cloth to wipe off the excess

primer before drying.

c. Width of primer is 13 - 15 mm.

5. Mix the adhesive.

a. Using solvent, thoroughly clean the mixing board and scraper.
b. Using a scraper, thoroughly mix the 500 g main

adhesive and 75 g hardener on the mixing board.

CAUTION

 Allow primer to dry for at least 3 minutes.
 DO NOT apply primer to the adhesive.
 DO NOT apply too much primer.
 DO NOT keep any of the opened primer G for later use.

Primer G

13-15 mm

RT21430370

CAUTION

 Adhesive should be mixed thoroughly within 5 minutes.

RT21430380

43–

75

43

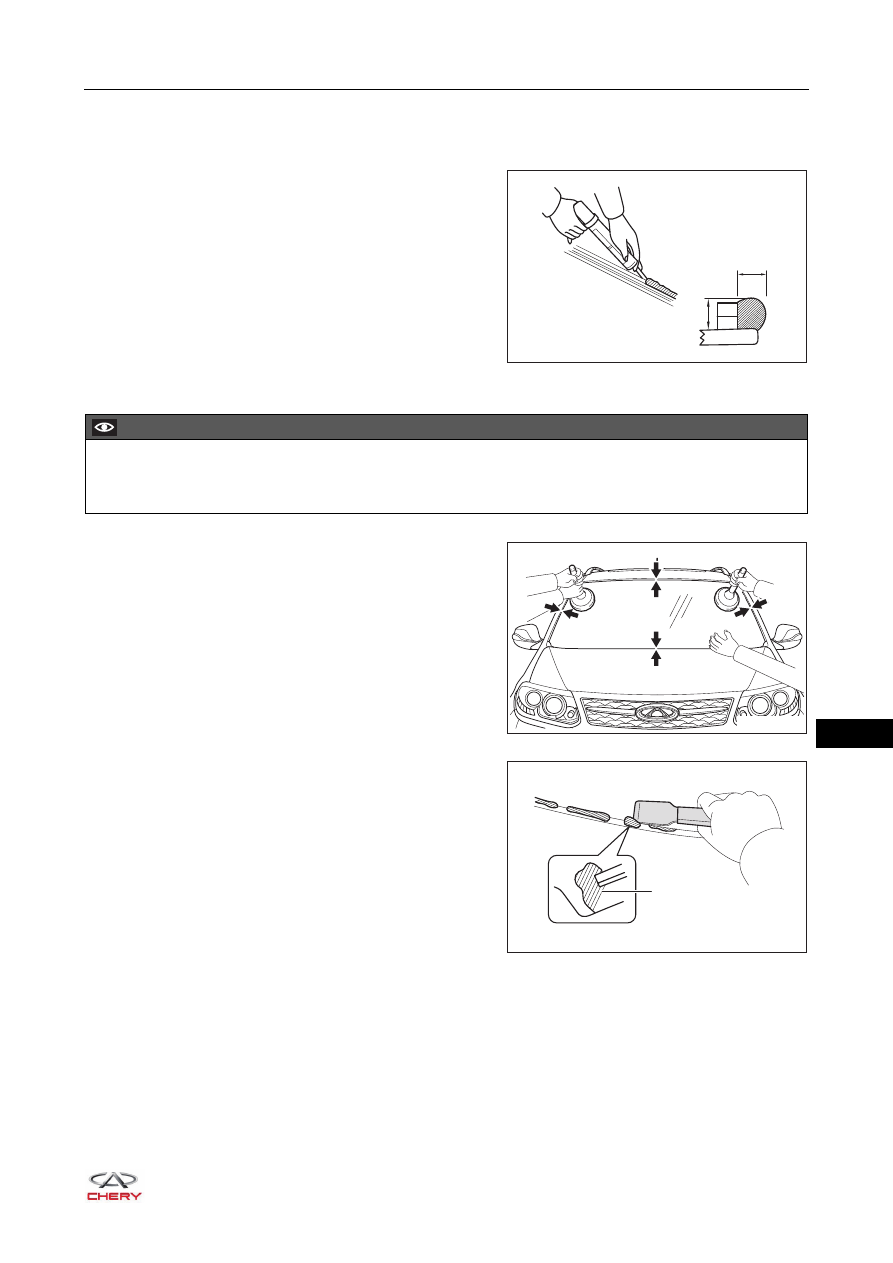

6. Apply the adhesive.

a. Cut off the tip of the cartridge nozzle and add the adhesive.
b. Install the cartridge to sealer gun.
c. Apply adhesive evenly to the front windshield

assembly as shown in the illustration.
Adhesive width: 8 - 10 mm
Adhesive height: 11 - 13 mm

7. Install the front windshield assembly.

a. Align the matchmarks on windshield and vehicle body,

and gently press in the windshield along the rim.

b. Uniformly apply adhesive to the windshield rim with a

scraper.

c. Remove any excessive or spilled adhesive with a

scraper.

d. Apply tape around the windshield, and remove them when the adhesive becomes hard.

11-13 mm

8-10 mm

RT21430390

CAUTION

 Check that lower/upper clearance and right/left clearance of front windshield are uniform to ensure it is fit

well with the surrounding moulding.

RT21430440

Adhesive

RT21430410
