38–

33

38

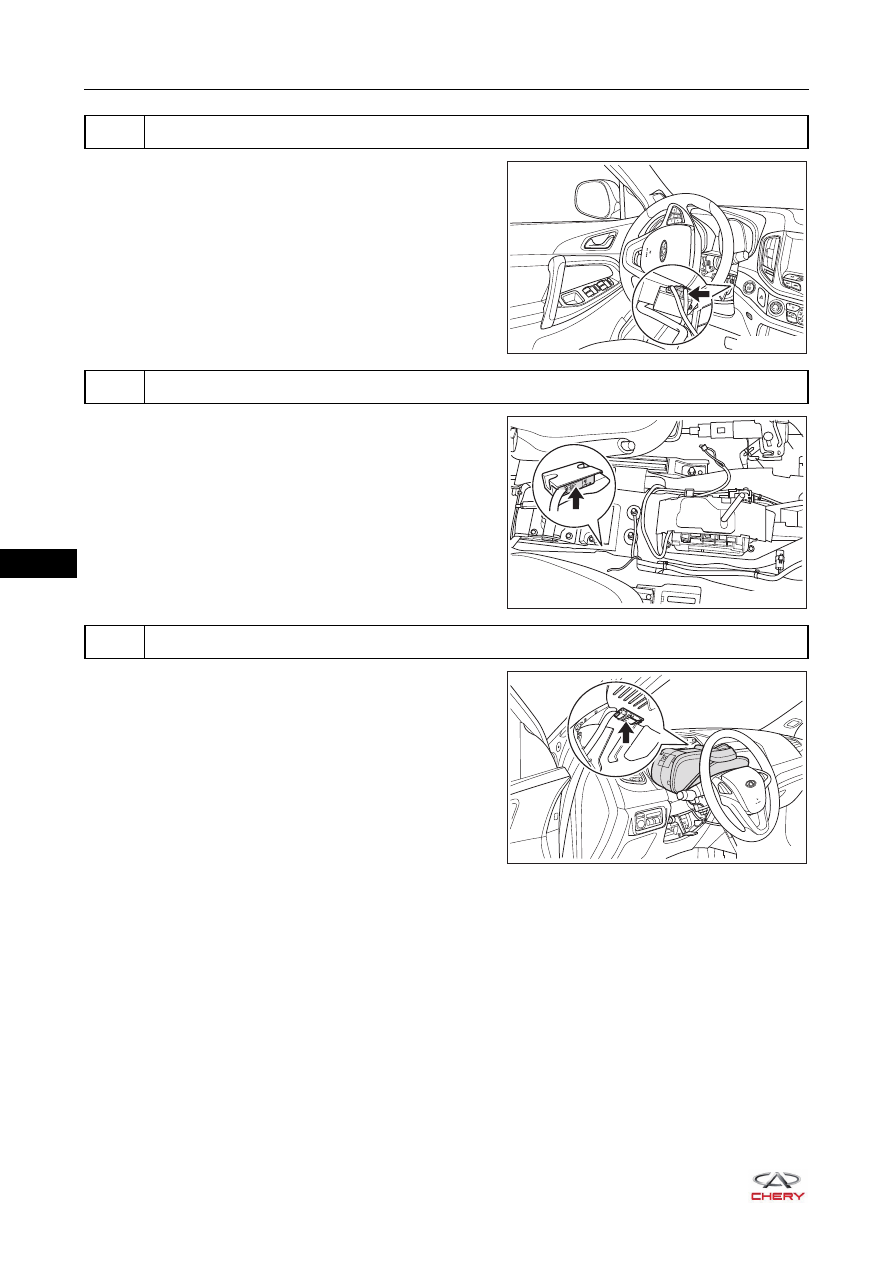

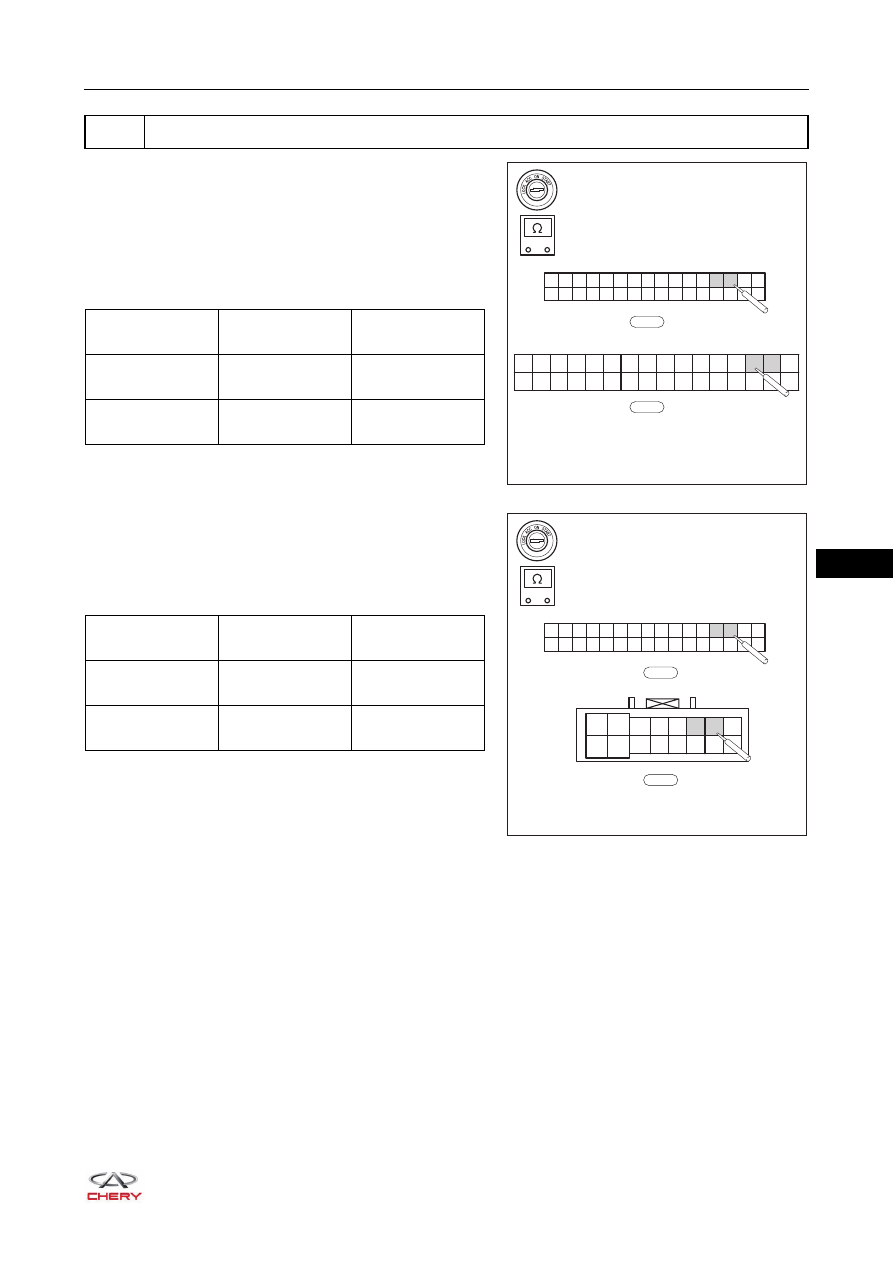

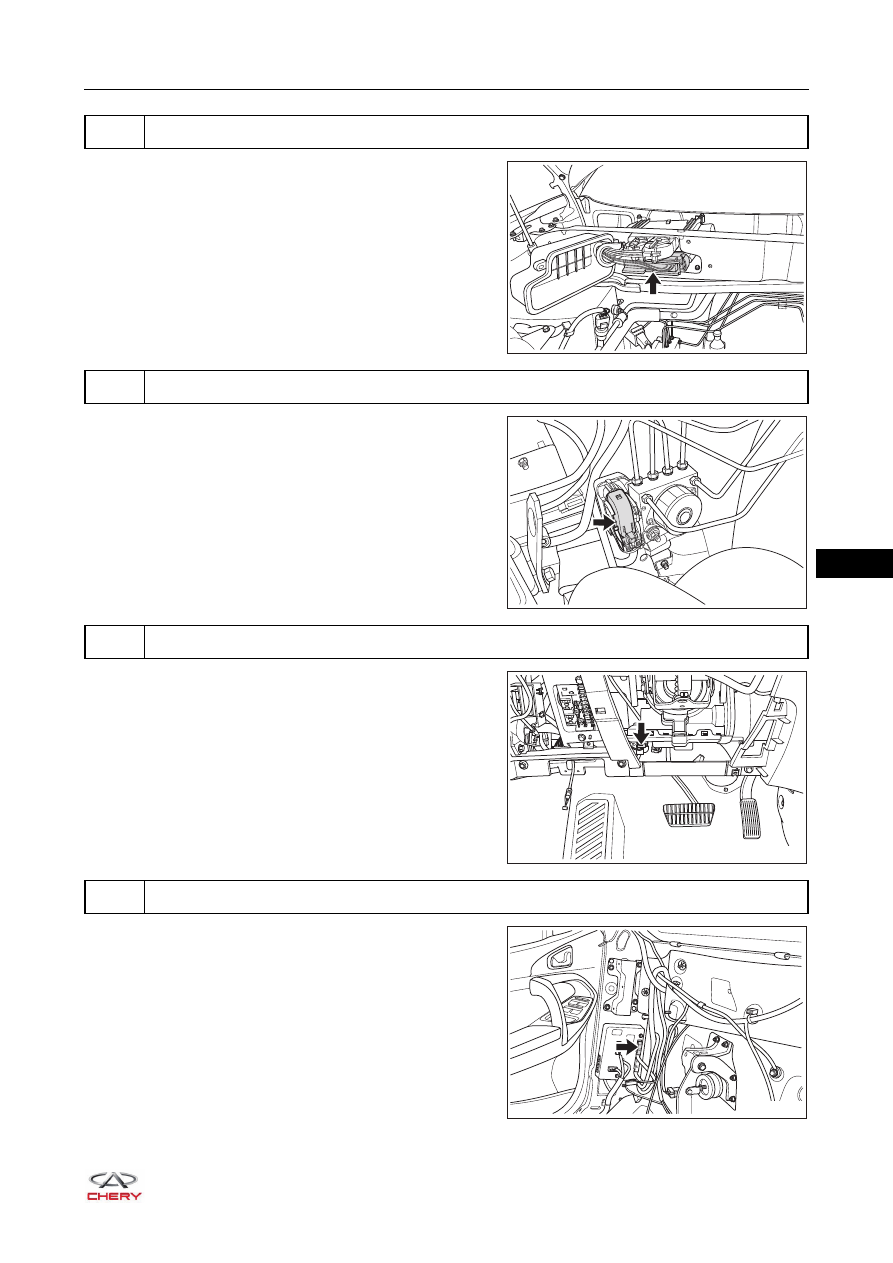

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the Transmission Control Module (TCM)

connector E-030.

d. Check the wire harness, connector and terminals for

deformation, bend or damage.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the ABS control module connector E-085.
d. Check the wire harness, connector and terminals for

deformation, bend or damage.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the EPS control module connector I-057.
d. Check the wire harness, connector and terminals for

deformation, bend or damage.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the Body Control Module (BCM) connector



B-047.

d. Check the wire harness, connector and terminals for

deformation, bend or damage.

2

Check connector and terminal

RT21380240

3

Check connector and terminal

RT21250070

4

Check connector and terminal

RT21380080

5

Check connector and terminal

RT21380242

38–

34

38

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the immobilizer control module connector



I-018.

d. Check the wire harness, connector and terminals for

deformation, bend or damage.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the SRS control module connector I-046.
d. Check the wire harness, connector and terminals for

deformation, bend or damage.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect instrument panel wire harness connector



I-015.

d. Check wire harness, connector and terminals for

deformation, bend or damage.

6

Check connector and terminal

RT21380290

7

Check connector and terminal

RT21380070

8

Check connector and terminal

RT21380030

38–

35

38

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect instrument panel wire harness connectors



I-015 and I-005.

d. Using a digital multimeter, check for continuity between

instrument panel wire harness connectors I-015 and



I-005 according to the table below.

e. Disconnect instrument panel wire harness connectors



I-015 and I-019.

f. Using a digital multimeter, check for continuity between

instrument panel wire harness connectors I-015 and



I-019 according to the table below.

9

Check instrument panel wire harness and connector

RT21380160

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

I-015

-

+

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

I-005

Multimeter

Connection

Condition

Specified

Condition

I-015 (29) -
I-005 (A30)

Always

Continuity

I-043 (30) -
I-005 (A31)

Always

Continuity

RT21380161

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

I-015

-

+

D1

D2

D3

D4

D5

D6

D7

D8

D10

D11

D12

D13

D14

D15

D16

D9

I-019

Multimeter

Connection

Condition

Specified

Condition

I-015 (29) -

I-019 (D3)

Always

Continuity

I-015 (30) -

I-019 (D2)

Always

Continuity

38–

36

38

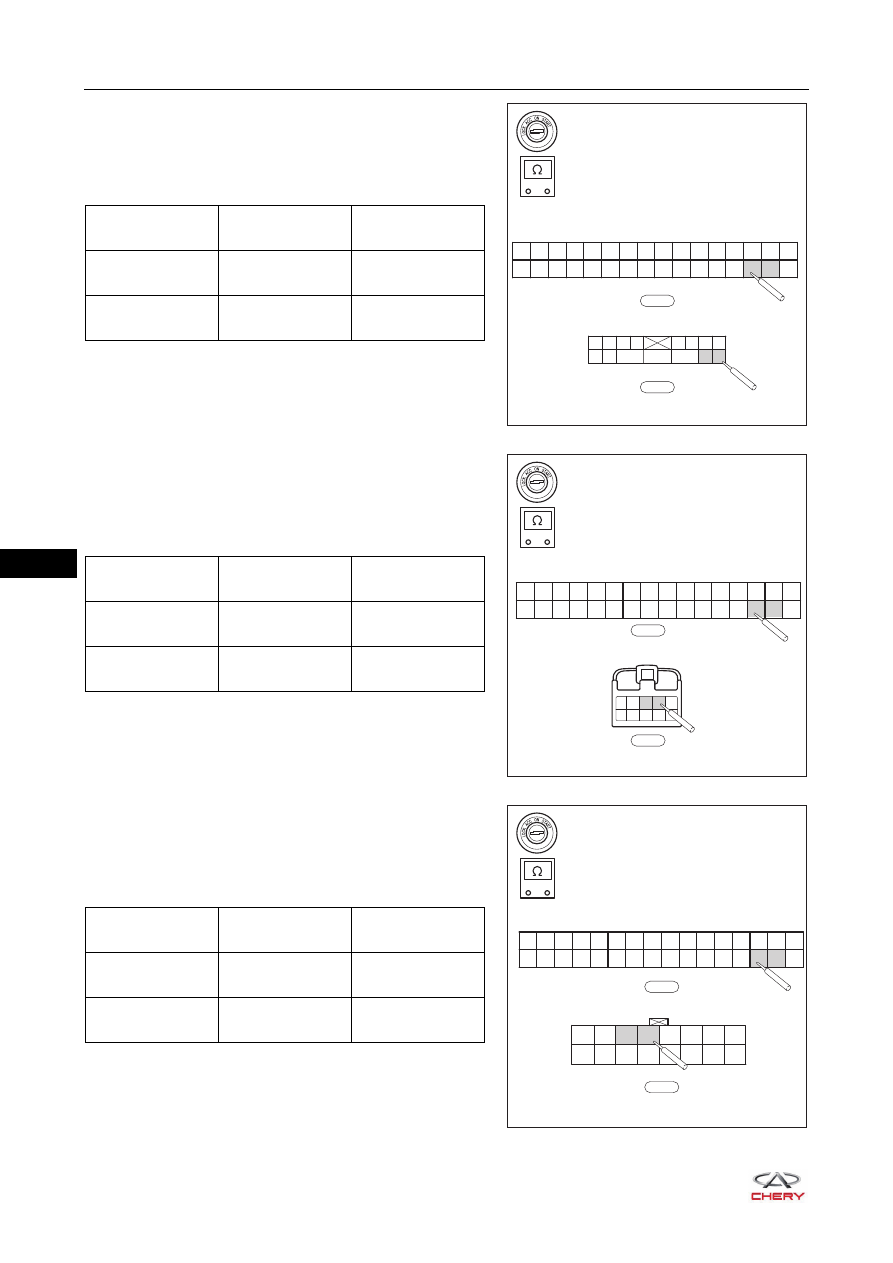

g. Disconnect instrument panel wire harness connectors



I-005 and I-034.

h. Using a digital multimeter, check for continuity between

instrument panel wire harness connectors I-005 and



I-034 according to the table below.

i. Disconnect instrument panel wire harness connectors



I-005 and I-057.

j. Using a digital multimeter, check for continuity between

instrument panel wire harness connectors I-005 and



I-057 according to the table below.

k. Disconnect instrument panel wire harness connectors



I-005 and I-029.

l. Using a digital multimeter, check for continuity between

instrument panel wire harness connectors I-005 and



I-029 according to the table below.

RT21380250

-

+

1

2

9

10

11

12

13

14

15

3

4

5

6

7

8

I-034

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

I-005

Multimeter

Connection

Condition

Specified

Condition

I-005 (A14) -

I-034 (10)

Always

Continuity

I-005 (A15) -

I-034 (9)

Always

Continuity

RT21380230

-

+

I-057

1

2

3

4

5

6

7

8

9

10

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

I-005

Multimeter

Connection

Condition

Specified

Condition

I-005 (A14) -

I-057 (3)

Always

Continuity

I-005 (A15) -

I-057 (2)

Always

Continuity

RT21380220

-

+

J101

J102

J103

J104

J105

J106

J107

J108

J109

J110

J111

J112

J113

J114

J115

J116

I-029

A32

A31

A30

A29

A28

A16

A15

A14

A13

A12

A11

A10

A9

A8

A7

A6

A5

A4

A3

A2

A1

A27

A26

A25

A24

A23

A22

A21

A20

A19

A18

A17

I-005

Multimeter

Connection

Condition

Specified

Condition

I-005 (A14) -

I-029 (J105)

Always

Continuity

I-005 (A15) -

I-029 (J106)

Always

Continuity
