Chery Tiggo 5 (T21). Manual - part 415





36–

43

36

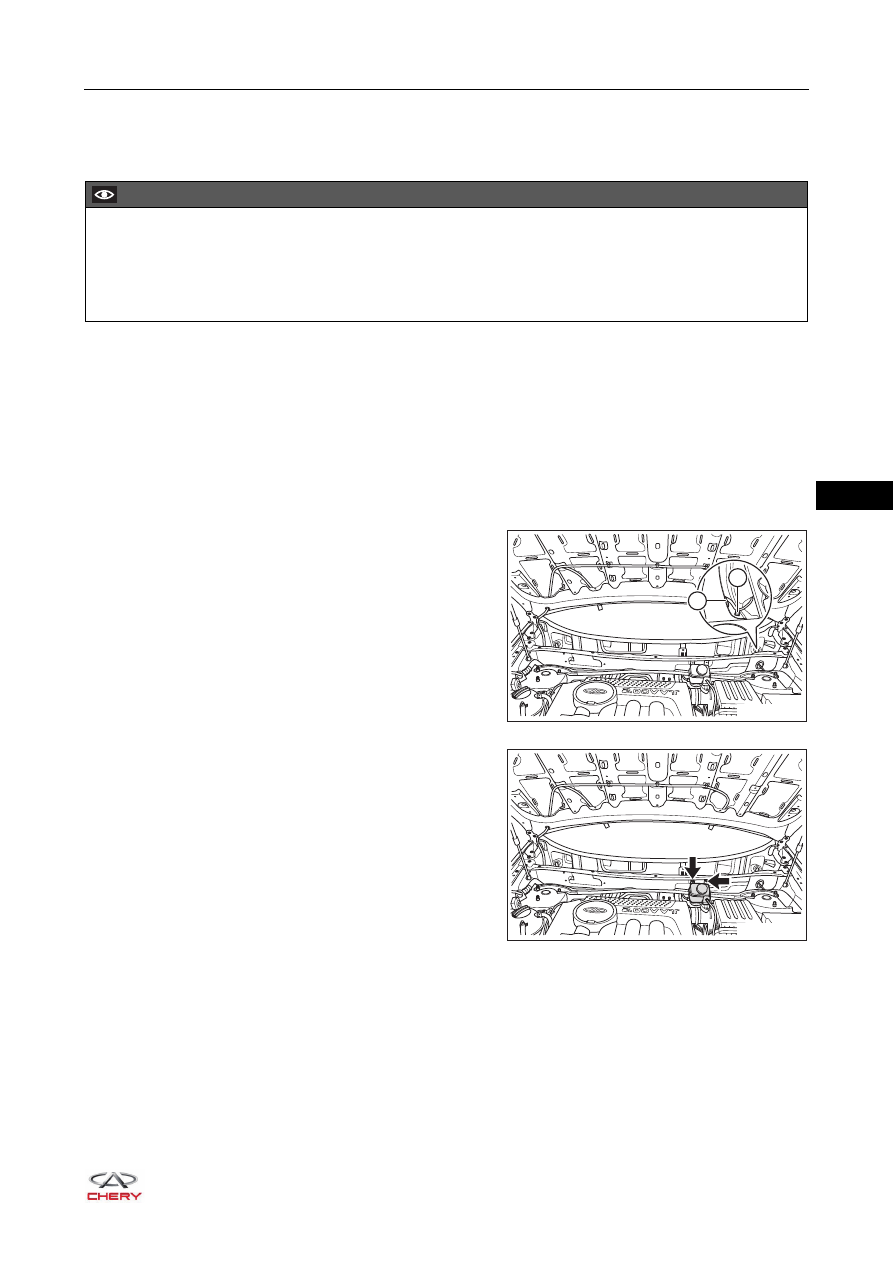

Rain Gutter Rail Reinforcement Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front wiper arm assembly (

See page 36-24

).

4. Remove the front windshield lower garnish assembly (

See page 48-39

).

5. Remove the wiper motor assembly (

See page 36-26

).

6. Remove the Engine Control Module (ECM) (

See page 06-256

).

7. Remove the TCU (

See page 18-129

).

8. Remove the rain gutter rail reinforcement assembly.

a. Using a screwdriver wrapped with protective tape,

loosen the rubber bush (1) and clip (2).

b. Remove 2 fixing nuts (arrow) from brake fluid

reservoir assembly, and remove the brake fluid
reservoir assembly.

(Tightening torque: 9 ± 1 N·m)

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rain gutter rail reinforcement

assembly.

 Try to prevent body paint surface from being scratched when removing rain gutter rail reinforcement

assembly.

RT21360370

1

2

RT21360360

36–

44

36

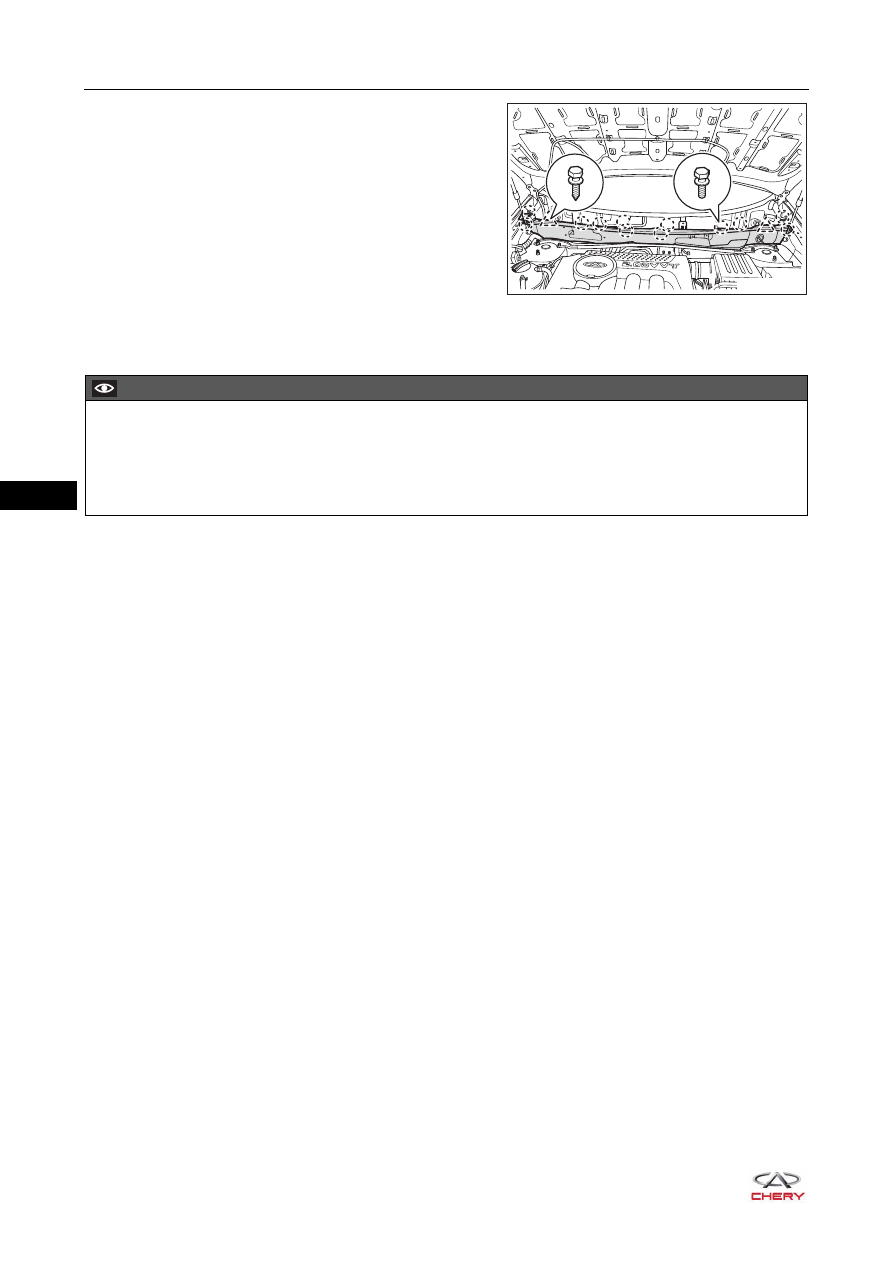

c. Remove 14 fixing bolts from rain gutter rail

reinforcement assembly, and remove the rain gutter
rail reinforcement assembly.

(Tightening torque: 10 ± 1 N·m)

Installation

Installation is in the reverse order of removal.

RT21360380

CAUTION

 Always operate carefully to prevent components from being damaged when installing rain gutter rail

reinforcement assembly.

 Try to prevent body paint surface from being scratched when installing rain gutter rail reinforcement

assembly.

2

37
