35–

79

35

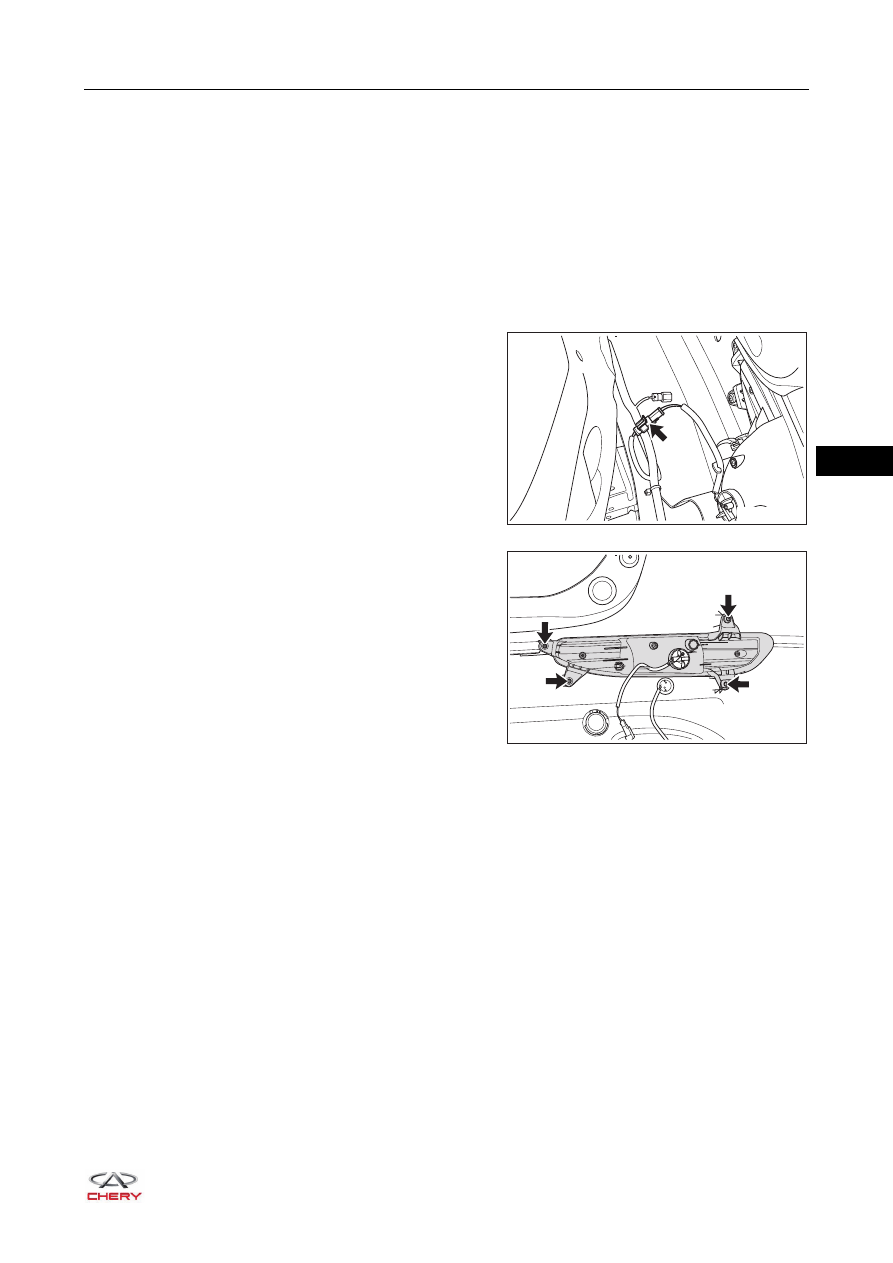

Rear Fog Light & Reflector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear bumper assembly (

See page 48-30

).

4. Remove the rear fog light & reflector assembly.

a. Disconnect the rear fog light & reflector assembly wire

harness connector (arrow).

b. Remove 4 fixing crews (arrow) from rear fog light &

reflector assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

c. Remove the rear fog light & reflector assembly.

Installation

Installation is in the reverse order of removal.

RT21350320

RT21350330

35–

80

35

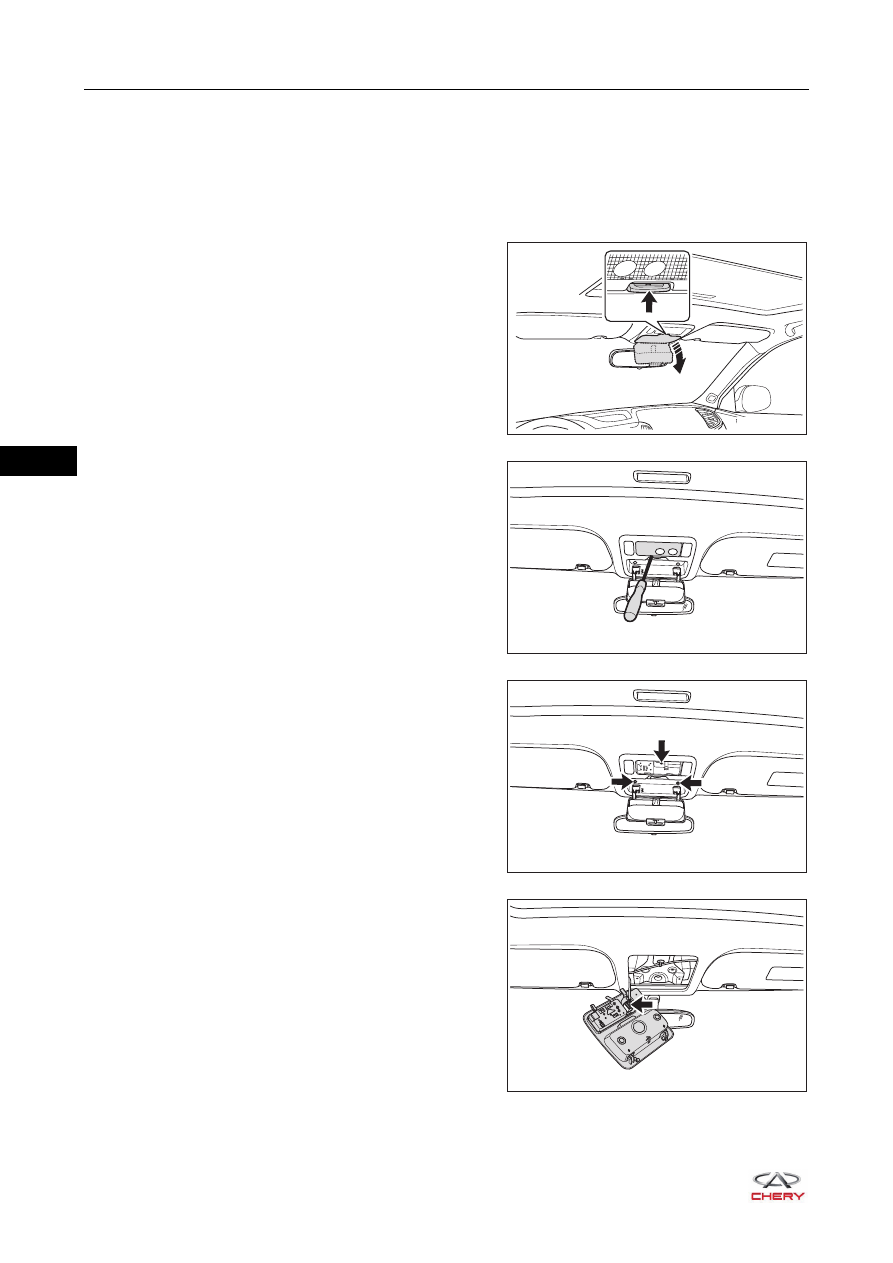

Front Dome Light Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front dome light assembly.

a. Open the glasses box in the direction of arrow as

shown in the illustration.

b. Using a flat tip screwdriver wrapped with protective

tape, remove the front dome light assembly cover.

c. Remove 3 fixing crews (arrow) from front dome light

assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

d. Disconnect the front dome light assembly wire

harness connector (arrow).

e. Remove the front dome light assembly.

RT21490250

RT21490260

RT21490270

RT21490280

35–

81

35

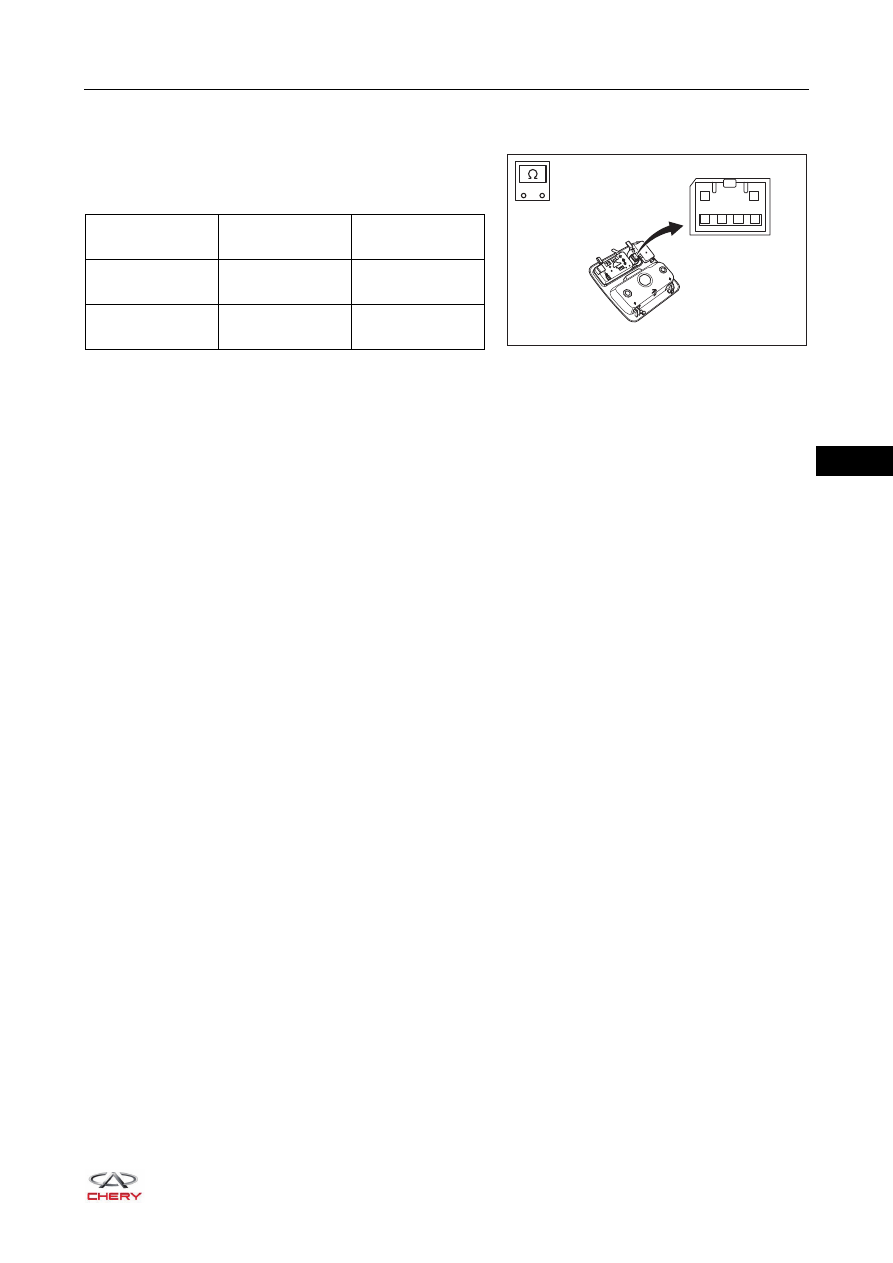

Inspection

1. Check front dome light assembly.

a. Using ohm band of digital multimeter, check for

continuity between terminals of front dome light
assembly as shown in the table.

If result is not as specified, replace front dome light
assembly.

Installation

Installation is in the reverse order of removal.

-

+

RT21350340

1

3

4

5

6

2

Multimeter

Connection

Switch Position

Specified

Condition

Terminal 1 -

Terminal 2

Switch pushed

Continuity

Terminal 1 -

Terminal 2

Switch released

No continuity

35–

82

35

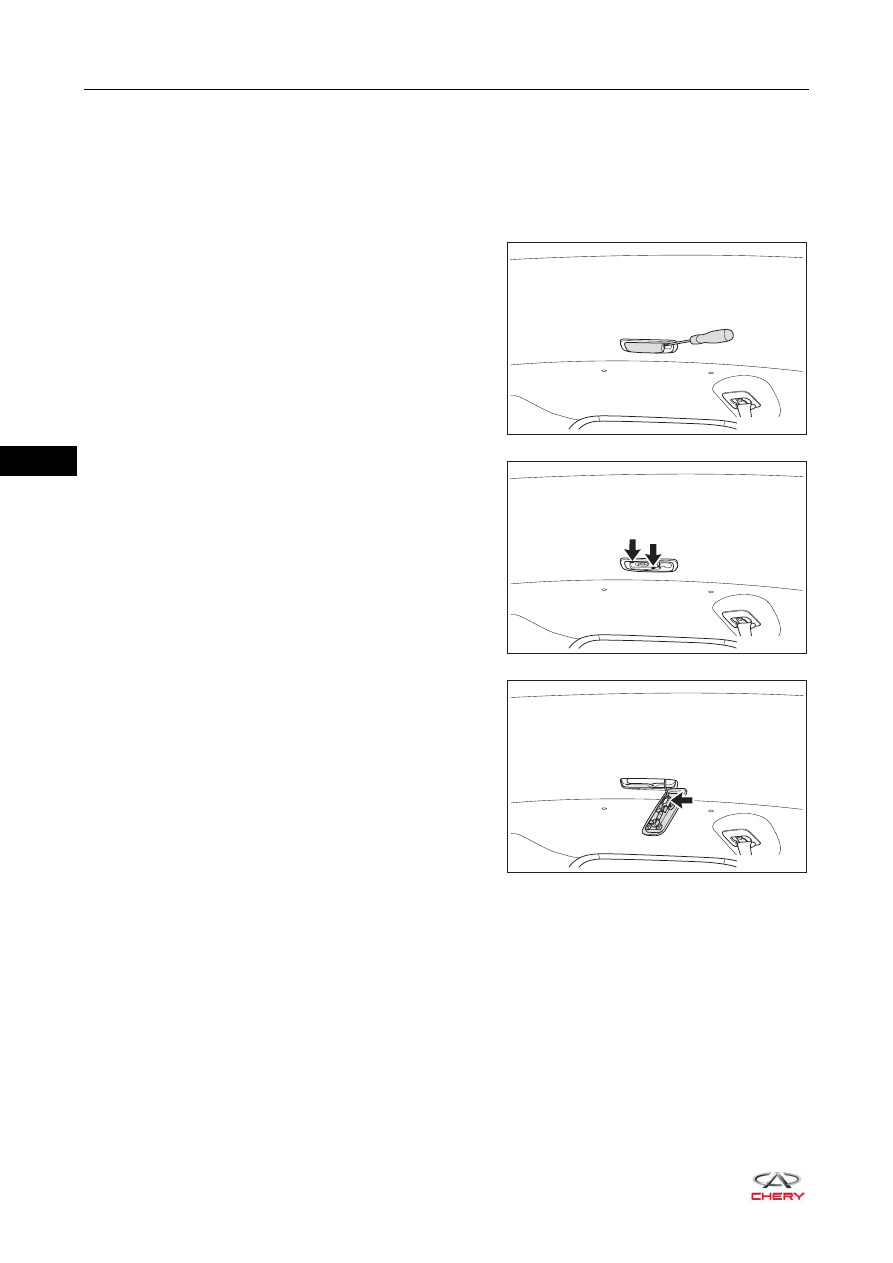

Rear Dome Light Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear dome light assembly.

a. Using a flat tip screwdriver wrapped with protective

tape, remove the rear dome light assembly cover.

b. Remove 2 fixing screws (arrow) from rear dome light

assembly.



(Tightening torque: 1.5 ± 0.5 N·m)

c. Disconnect the rear dome light assembly wire harness

connector (arrow).

d. Remove the rear dome light assembly.

RT21490290

RT21490300

RT21490310
