Chery Tiggo 5 (T21). Manual - part 366

32–

55

32

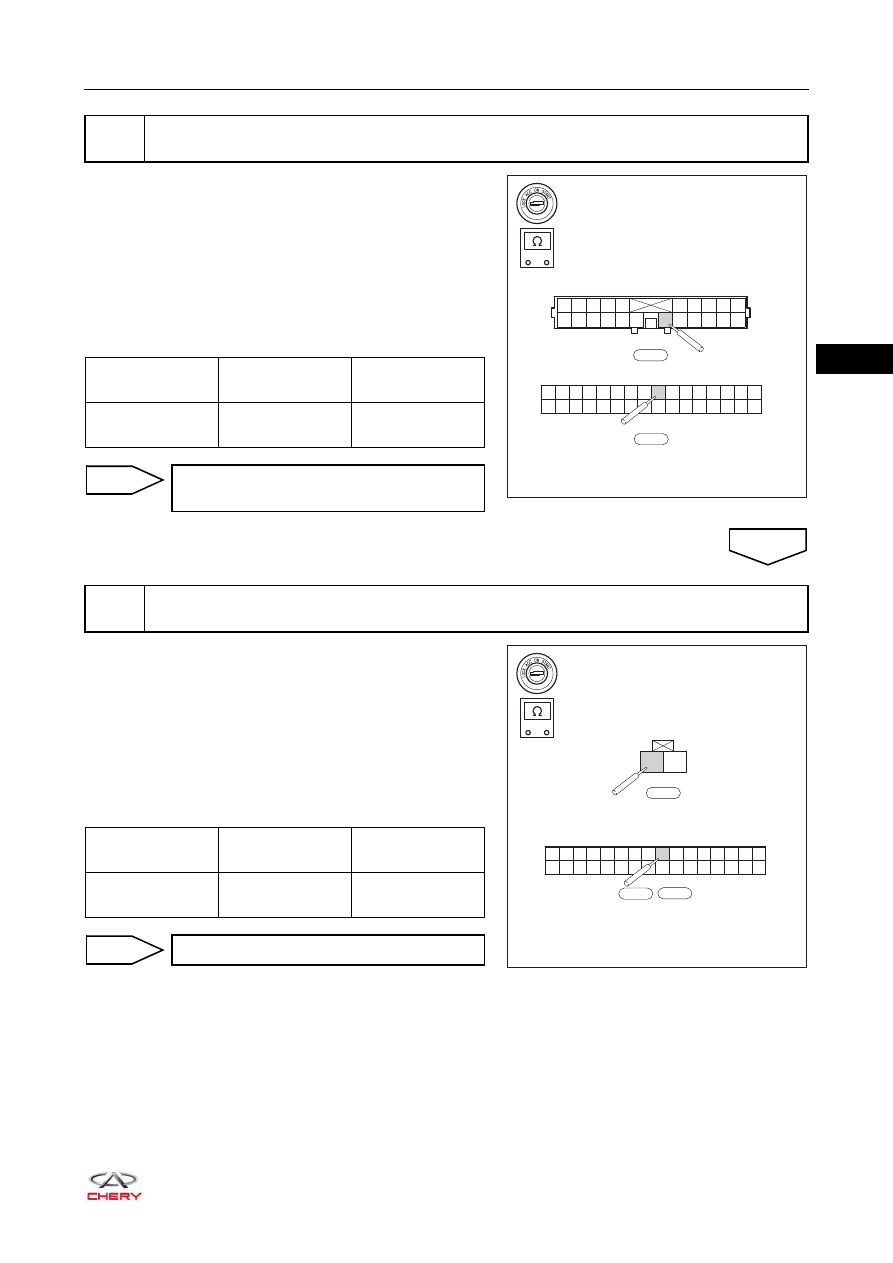

a. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

b. Disconnect the instrument panel wire harness connector

I-006 and SRS control module assembly connector I-046
(*1).

c. Using a digital multimeter, check for continuity between

the terminals of connector I-006 and connector I-046
according to the table below.
Standard Condition

a. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

b. Disconnect front passenger seat belt reminder switch

connector B-049 and SRS control module assembly
connector I-046/B-072.

c. Using a digital multimeter, check for continuity between

the terminals of connector B-049 and connector I-046/B-
072 according to the table below.
Standard Condition

4

Check front passenger seat belt reminder switch wire harness and connector (SRS control
module assembly - instrument panel wire harness connector)

-

+

RT21320370

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

I-046

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

I-006

Multimeter

Connection

Condition

Specified

Condition

I-006 (16) - I-046

(25)

Always

Continuity

Replace instrument panel wire harness
and connector

NG

5

Check wire harness and connector (SRS control module assembly - front passenger seat
belt reminder switch)

OK

-

+

RT21320371

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

B-072

I-046

1

2

B-049

Multimeter

Connection

Condition

Specified

Condition

B-049 (1) - I-046/

B-072 (25)

Always

Continuity

Replace body wire harness and connector

NG

32–

56

32

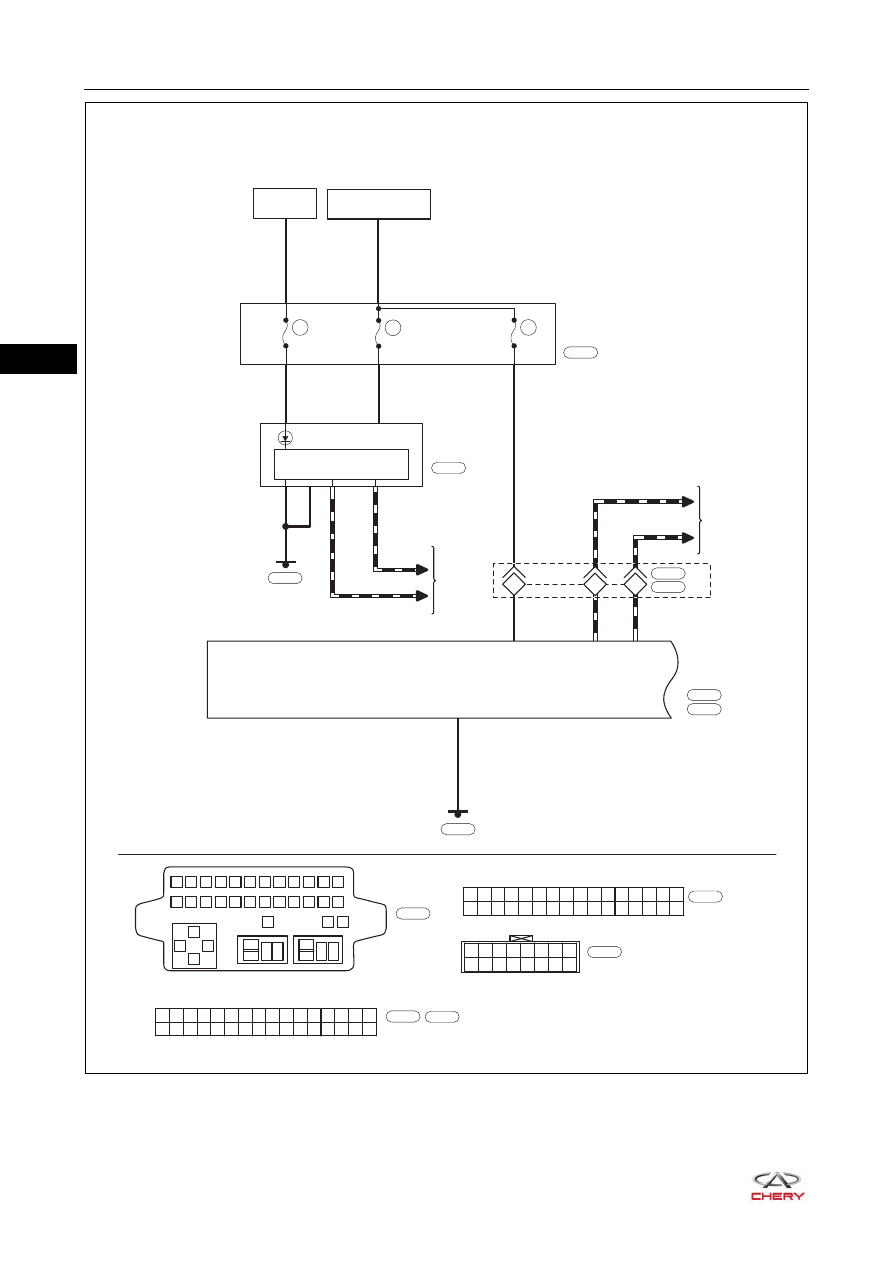

Self-diagnosis Detection Logic
