32–

35

32

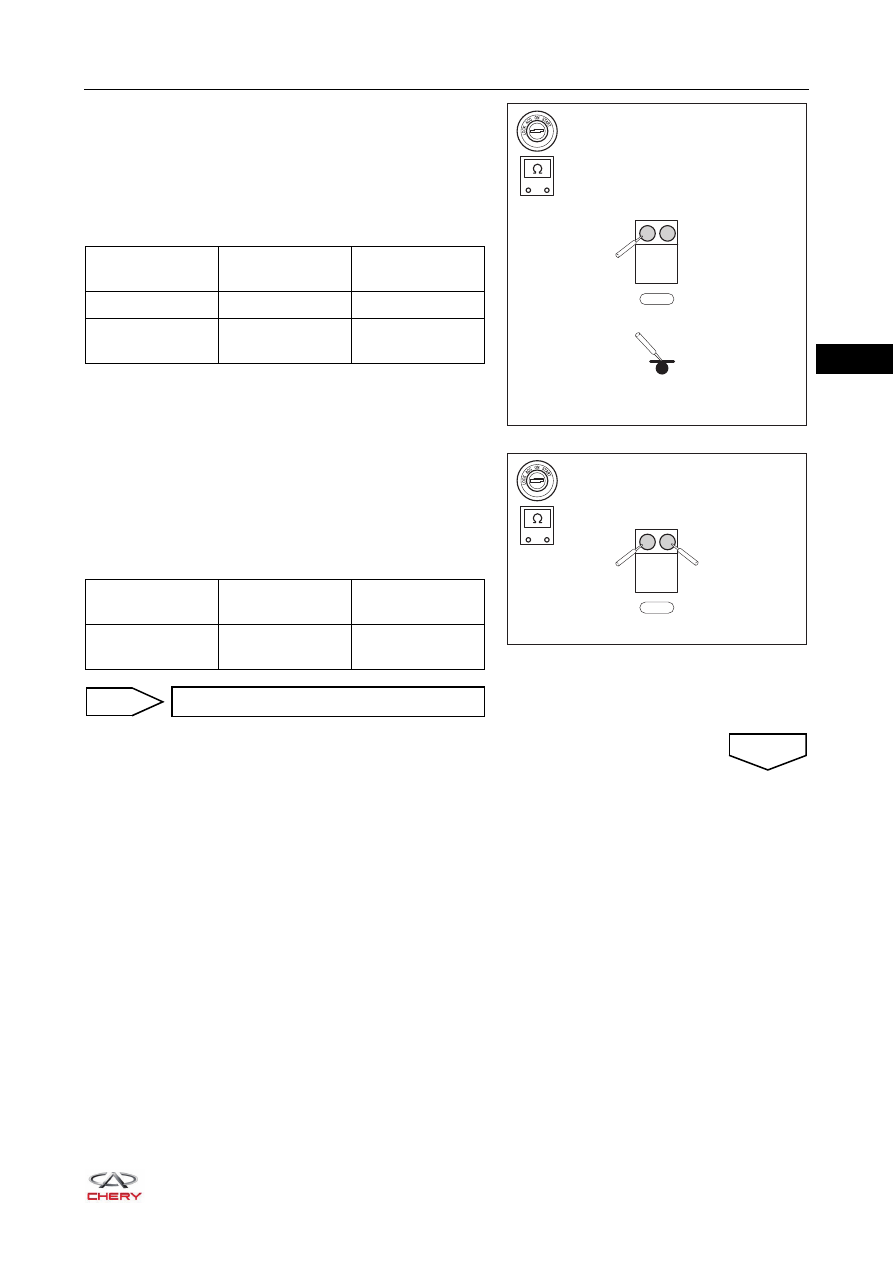

g. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

h. Using a digital multimeter, check for continuity between

driver seat belt pretensioner connector B-034 and body
ground to check for a short circuit to ground according to
the table below.
Standard Condition

i. Release the activation prevention mechanism built into the

SRS control module assembly connector  I-046/B-072.

j. Using a digital multimeter, check for continuity between

the terminals of driver seat belt pretensioner connector



B-034 according to the table below.
Standard Condition

RT21320250

1

2

-

+

B-034

-

+

Multimeter

Connection

Condition

Specified

Condition

B-034 (1) - Body

Always

No continuity

B-034 (2) - Body

ground

Always

No continuity

1

2

-

+

B-034

-

+

RT21320260

Multimeter

Connection

Condition

Specified

Condition

B-034 (1) -

B-034 (2)

Always

No continuity

Replace SRS control module assembly

OK

NG

32–

36

32

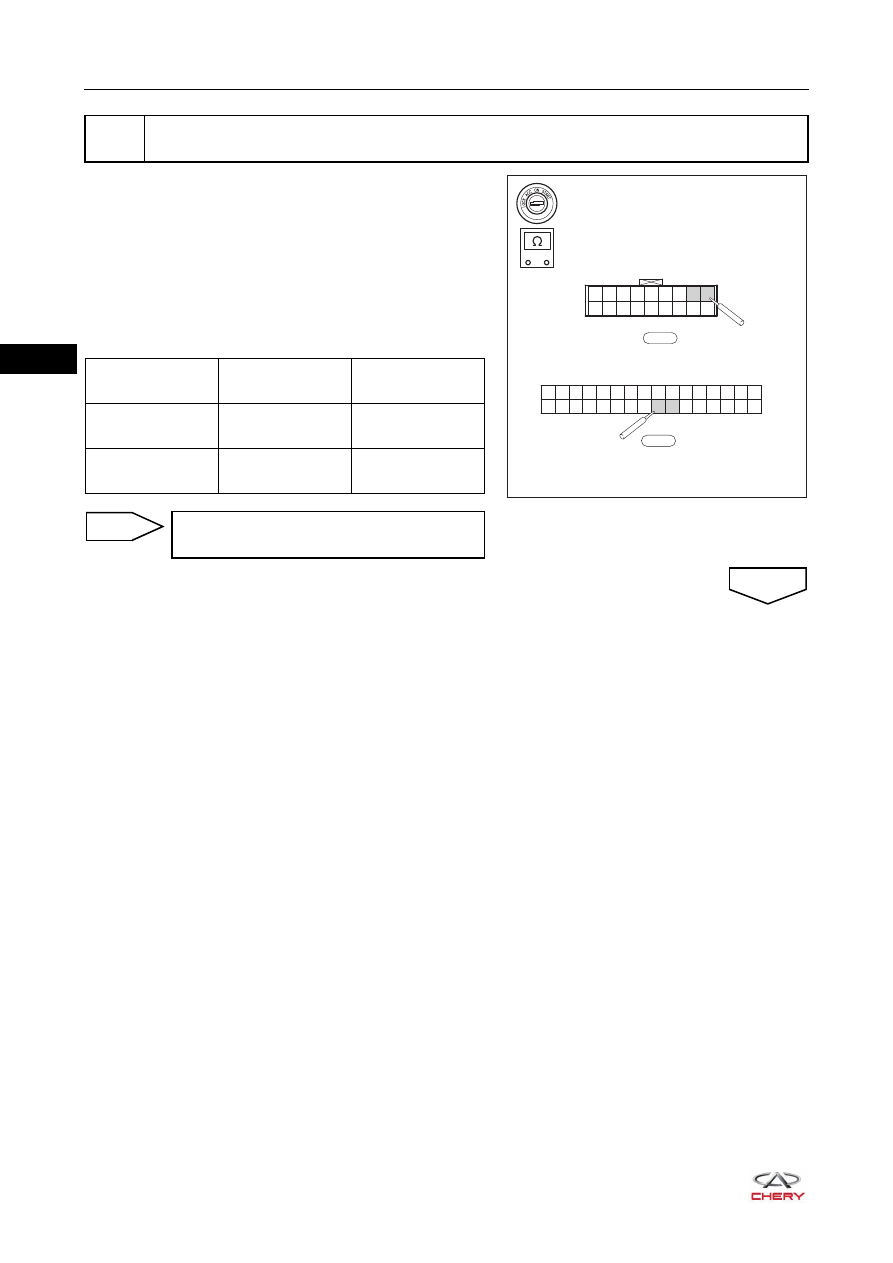

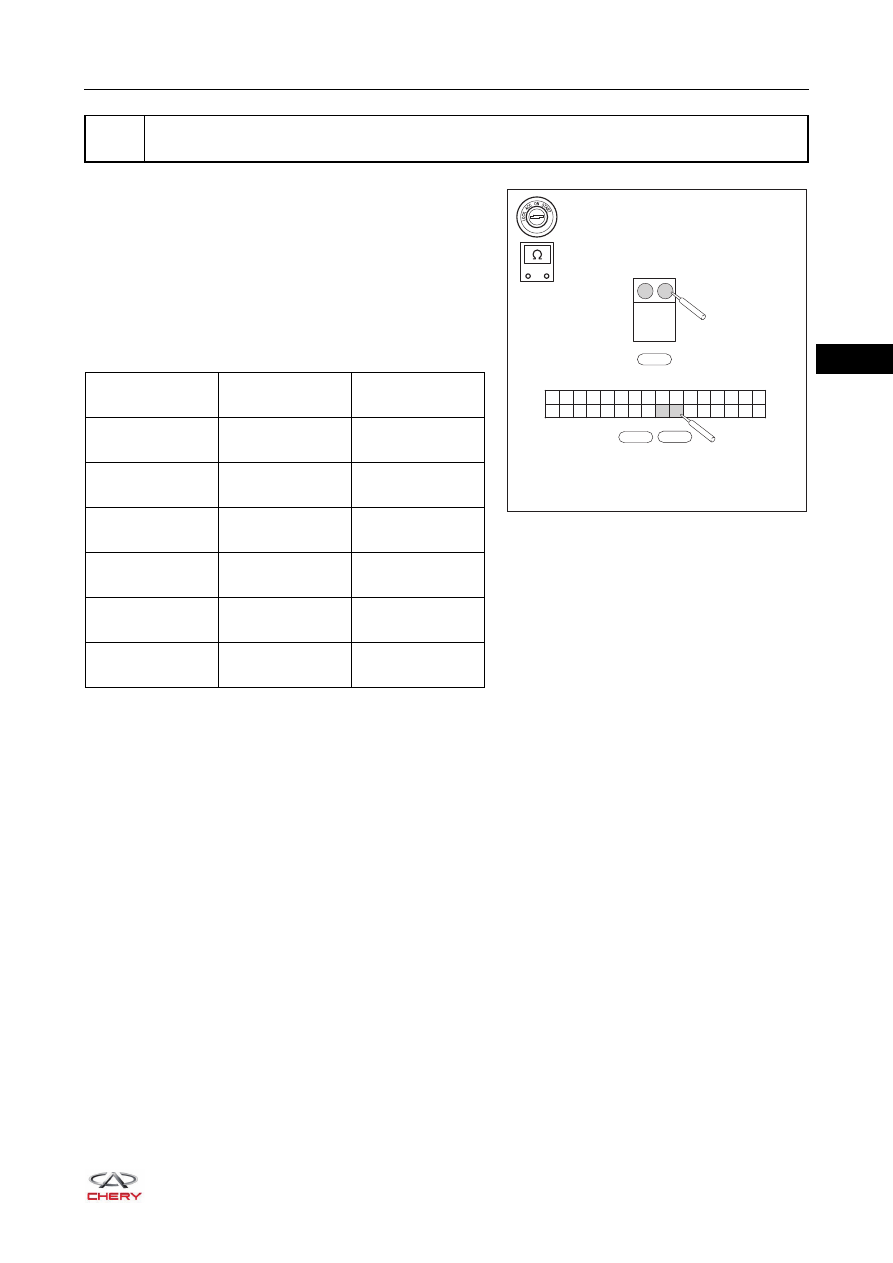

a. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

b. Disconnect the instrument panel wire harness connector

I-035 and SRS control module assembly connector  I-046
(*1).

c. Using a digital multimeter, check for continuity between

the terminals of connector I-035 and connector I-046
according to the table below.
Standard Condition

4

Check driver seat belt pretensioner wire harness and connector (SRS control module
assembly - instrument panel wire harness connector)

-

+

RT21320270

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

I-046

18 17 16 15 14 13 12 11 10

9

8

7

6

5

4

3

2

1

I-035

Multimeter

Connection

Condition

Specified

Condition

I-035 (1) -

 I-046 (9)

Always

Continuity

I-035 (2) -

 I-046 (10)

Always

Continuity

Replace instrument panel wire harness
and connector

NG

OK

32–

37

32

a. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

b. Disconnect driver seat belt pretensioner connector B-034

and SRS control module assembly connector



I-046/B-072.

c. Using a digital multimeter, check for continuity between

the terminals of connector B-034 and connector



I-046/B-072 according to the table below.
Standard Condition

5

Check wire harness and connector (SRS control module assembly - driver seat belt
pretensioner)

-

+

RT21320271

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

B-072

I-046

1

2

-

+

B-034

Multimeter

Connection

Condition

Specified

Condition

B-034 (1) - I-046/

B-072 (9)

Always

Continuity

B-034 (2) - I-046/

B-072 (10)

Always

Continuity

B-034 (2) - I-046/

B-072 (9)

Always

Continuity

B-034 (1) - I-046/

B-072 (10)

Always

Continuity

B-034 (1) -

B-034 (2)

Always

Continuity

I-046/B-072 (9) -

I-046/B-072 (10)

Always

Continuity

32–

38

32

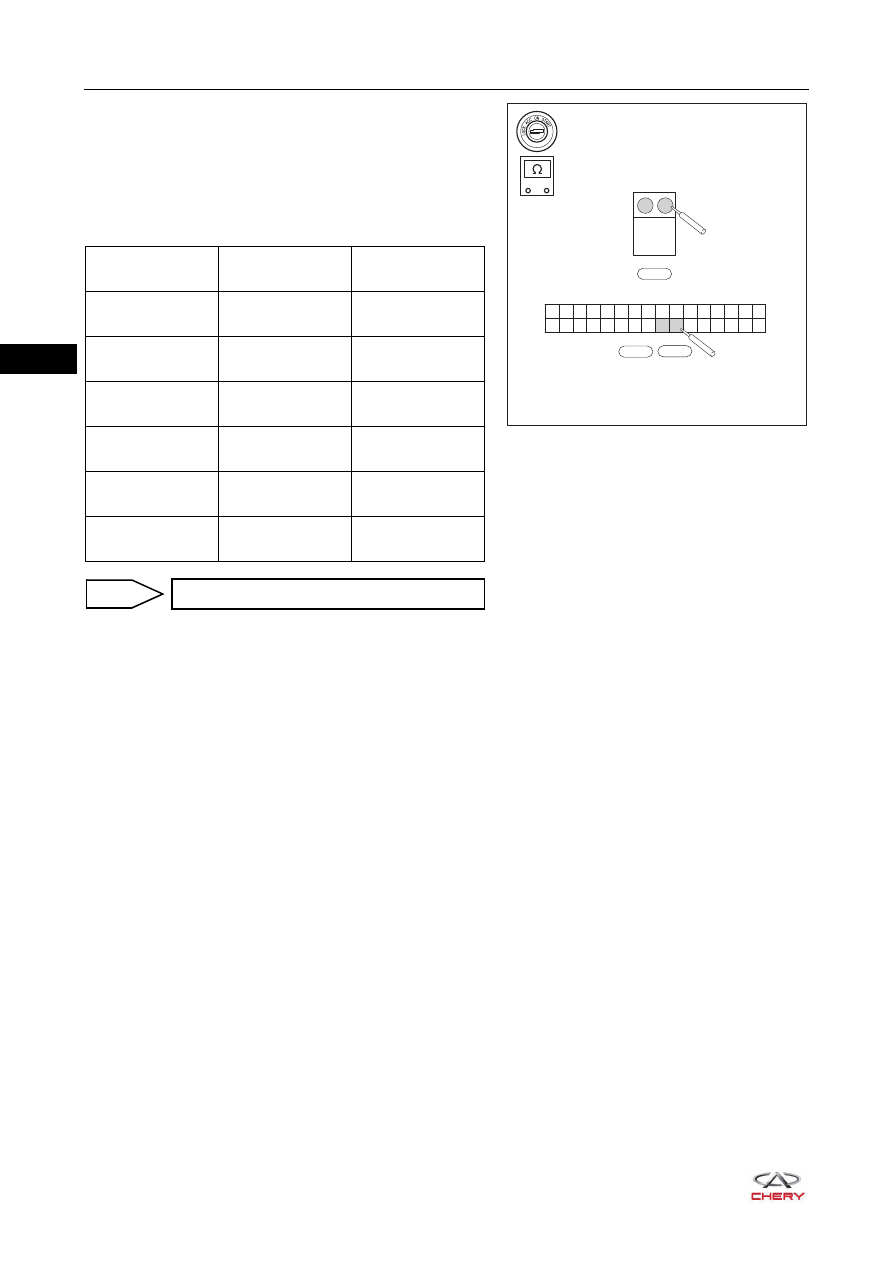

d. Release the activation prevention mechanism built into

the SRS control module assembly connector



I-046/B-072.

e. Using a digital multimeter, check for continuity between

the terminals of connector B-034 and connector



I-046/B-072 according to the table below.
Standard Condition

-

+

RT21320271

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

B-072

I-046

1

2

-

+

B-034

Multimeter

Connection

Condition

Specified

Condition

B-034 (1) - I-046/

B-072 (9)

Always

Continuity

B-034 (2) - I-046/

B-072 (10)

Always

Continuity

B-034 (2) - I-046/

B-072 (9)

Always

No continuity

B-034 (1) - I-046/

B-072 (10)

Always

No continuity

B-034 (1) -

B-034 (2)

Always

No continuity

I-046/B-072 (9) -

I-046/B-072 (10)

Always

No continuity

Replace body wire harness and connector

NG
