Chery Tiggo 5 (T21). Manual - part 356

32–

15

32

DTC

B0001-11  Front Airbag Driver Loop Circuit Short to Ground

DTC

B0001-12 Front Airbag Driver Loop Circuit Short to Battery

DTC

B0001-1A

Front Airbag Driver Loop Circuit Resistance Below
Threshold

DTC

B0001-1B

Front Airbag Driver Loop Circuit Resistance Above
Threshold

DTC

B0001-1C Front Airbag Driver Loop Circuit Voltage Out of Range

32–

16

32

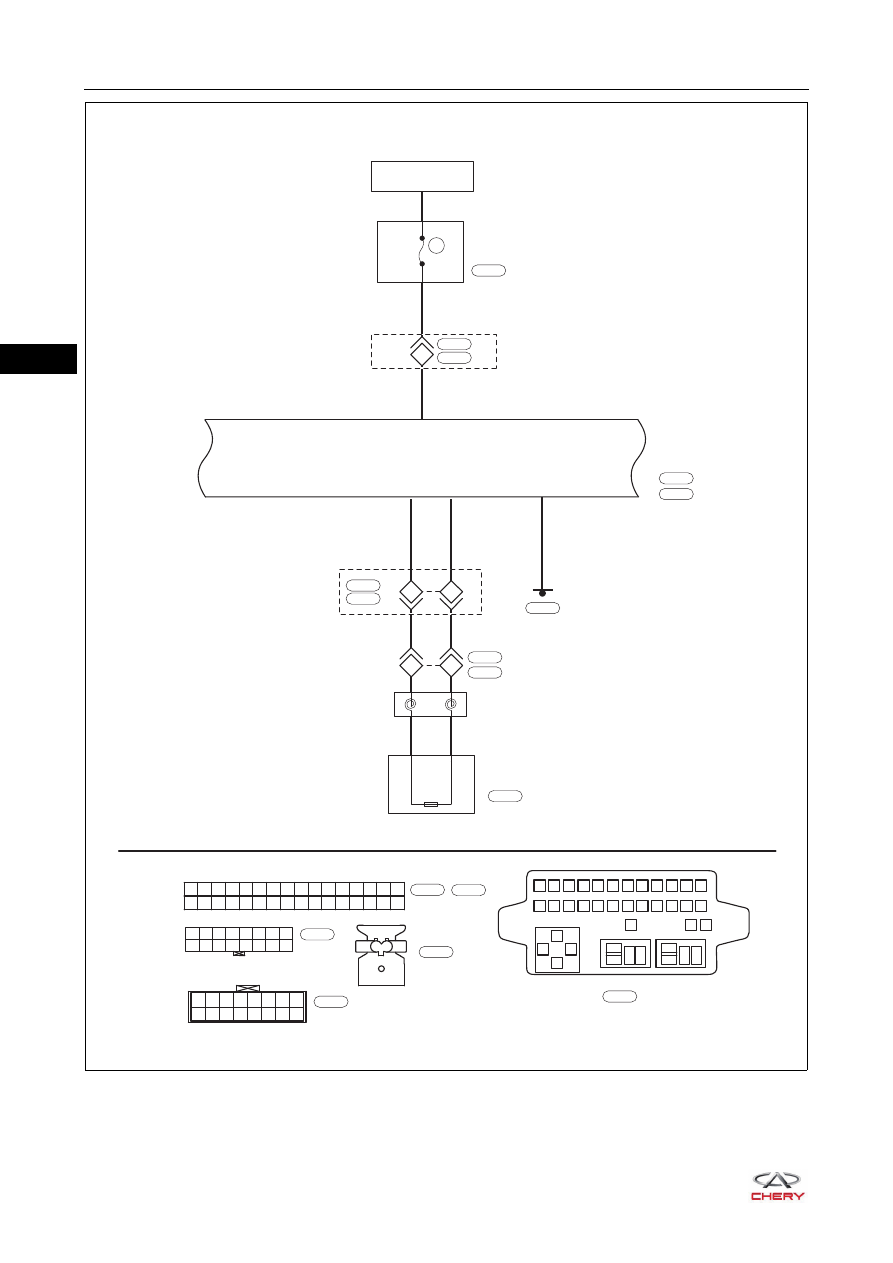

ET21320040

32

31

30

29

28

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

27

26

25

24

23

22

21

20

19

18

17

8

7

6

5

4

3

2

1

16

15

14

13

12

11

10

9

Gr

I-046

SRS
CONTROL
MODULE

I-046

B-072

W

I-012

1

2

B

I-055

IGNITION SWITCH

ON OR START

10A

RF08

INSTRUMENT
PANEL FUSE
AND RELAY BOX

I-007

B

I-045

16

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

B

I-007

R

B

GY

GY

GW

GW

-

+

1

2

4

3

SPIRAL
CABLE

I-012

I-054

I-055

DRIVER
AIRBAG

1

9

6

5

*2

*2: SRS control module connector is B-072

*1: SRS control module connector is I-046

I-036

B-055

16 15 14 13 12 11 10

8

7

6

5

4

3

2

1

9

W

I-036

B

B-072

8

R

R

1

4

I-036

B-055

*2

32–

17

32

Self-diagnosis Detection Logic

HINT:
When performing electrical diagnosis and test, always refer to the relevant circuit diagram for the special
circuit and component information.

Diagnosis Procedure

a. Turn ignition switch to LOCK, disconnect the negative battery cable and wait for at least 90 seconds.
b. Disconnect driver airbag connector, and connect the new driver airbag to connector I-055.

c. Reconnect the negative battery cable and wait for a few seconds.
d. Turn ignition switch ON and wait for at least 90 seconds.
e. Use X-431 3G diagnostic tester to clear the DTCs.
f. Turn ignition switch to LOCK.
g. Turn ignition switch ON and wait for at least 90 seconds.
h. Use X-431 3G diagnostic tester to check if the DTCs are still output.

DTC Code

DTC Definition

DTC Detection

Condition

Warning Light

Condition

Possible Cause

B0001-11

Front Airbag Driver
Loop Circuit Short to
Ground

Ignition switch ON

ON

 Driver airbag
 Spiral cable
 Wire harness and

connector

 SRS control

module assembly

B0001-12

Front Airbag Driver
Loop Circuit Short to
Battery

B0001-1A

Front Airbag Driver
Loop Circuit
Resistance Below
Threshold

B0001-1B

Front Airbag Driver
Loop Circuit
Resistance Above
Threshold

B0001-1C

Front Airbag Driver
Loop Circuit Voltage
Out of Range

1

Check driver airbag

WARNING

 Never measure the driver airbag directly, otherwise, it may cause serious personal injury due to

accidental deployment of the airbag.

Replace driver airbag

NO

YES

32–

18

32

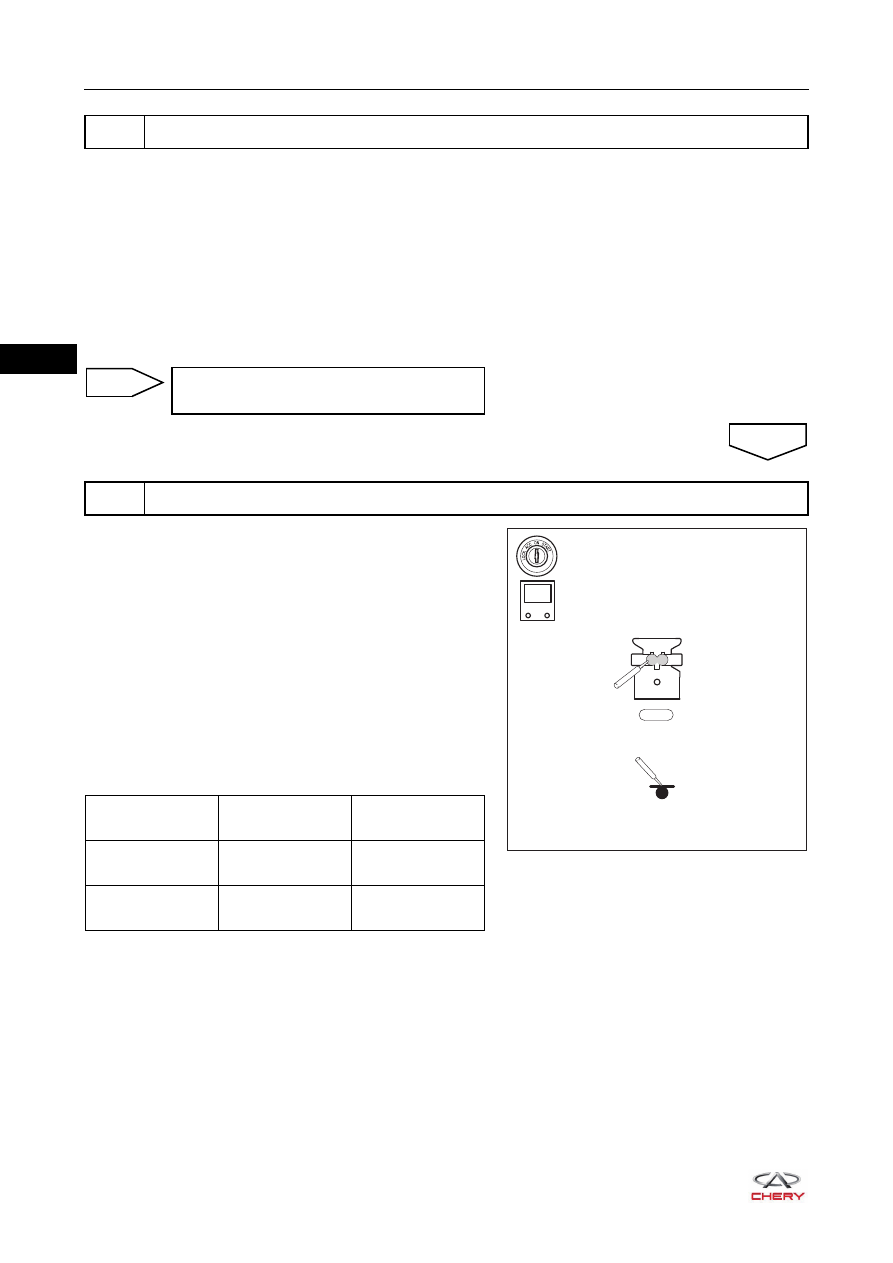

Use circuit diagram as a guide to perform the following procedures:
a. Turn ignition switch to LOCK, disconnect the negative battery cable and wait for at least 90 seconds.
b. Disconnect the driver airbag connector I-055 and SRS control module assembly connector I-046/B-072.
c. Disconnect the spiral cable connector I-054 and instrument panel wire harness connector I-012.
d. Disconnect the instrument panel wire harness connector I-036 and body wire harness connector B-055

(*2) .

e. Check if wire harnesses are worn, pierced, pinched or partially broken.
f. Check for broken, bent, protruded or corroded terminals.
g. Check if related connector terminal contact pins are in good condition.

a. Turn ignition switch to LOCK, disconnect the negative

battery cable and wait for at least 90 seconds.

b. Disconnect the SRS control module assembly connector

I-046/B-072.

c. Disconnect the driver airbag connector I-055.
d. Connect the negative battery cable and wait for a few

seconds.

e. Turn ignition switch ON.
f. Using a digital multimeter, measure the voltage between

driver airbag connector I-055 and body ground to check
for a short circuit to power supply according to the table
below.
Standard Voltage

2

Check wire harness and connector

Repair or replace instrument panel/body/
spiral cable wire harness and connector

3

Check driver airbag control circuit

NG

OK

RT21320160

1

2

I-055

-

+

V

Multimeter

Connection

Condition

Specified

Condition

I-055 (1) - Body

ground

Ignition switch ON

Below 1 V

I-055 (2) - Body

ground

Ignition switch ON

Below 1 V
