Chery Tiggo 5 (T21). Manual - part 252





23–

3

23

SUSPENSION

GENERAL INFORMATION

Description

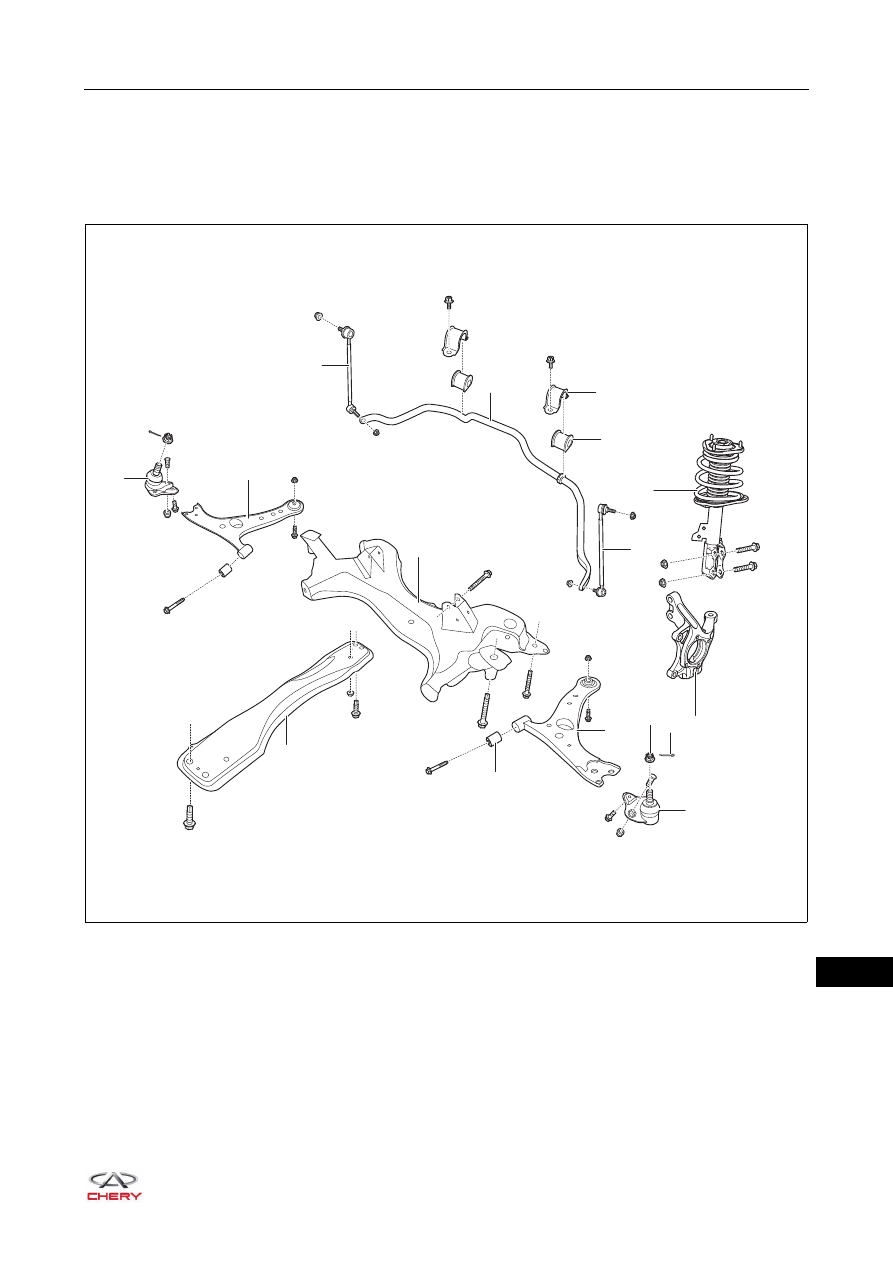

Front Suspension

×2

×2

×2

×2

×2

×2

×2

×2

×2

×2

×2

10

3

4

6

11

1

9

8

2

14

15

12

13

16

RT21230010

5

7

23–

4

23

This model uses Macpherson independent suspension for front suspension, whose height is non-adjustable.
It is equipped with cylindrical coil spring, double action telescopic shock absorber and lateral stabilizer. Front
suspension has driving and steering functions. The upper end of suspension is connected to body, and the
lower end is connected to front steering knuckle. Sub frame is connected to body with bolts, thus improving
driving stability and safety.

1 - Front Right Link Assembly

2 - Front Stabilizer Bar

3 - Front Stabilizer Clamp

4 - Front Stabilizer Bar Rubber Support

5 - Front Shock Absorber Assembly

6 - Front Left Link Assembly

7 - Front Steering Knuckle

8 - Front Control Arm Ball Pin Assembly Lock Pin

9 - Front Control Arm Ball Pin Assembly Lock Nut

10 - Front Left Control Arm Ball Pin Assembly

11 - Front Left Control Arm Assembly

12 - Bush Rubber

13 - Side Rail Welding Assembly

14 - Front Sub Frame Welding Assembly

15 - Front Right Control Arm Assembly

16 - Front Right Control Arm Ball Pin Assembly

23–

5

23

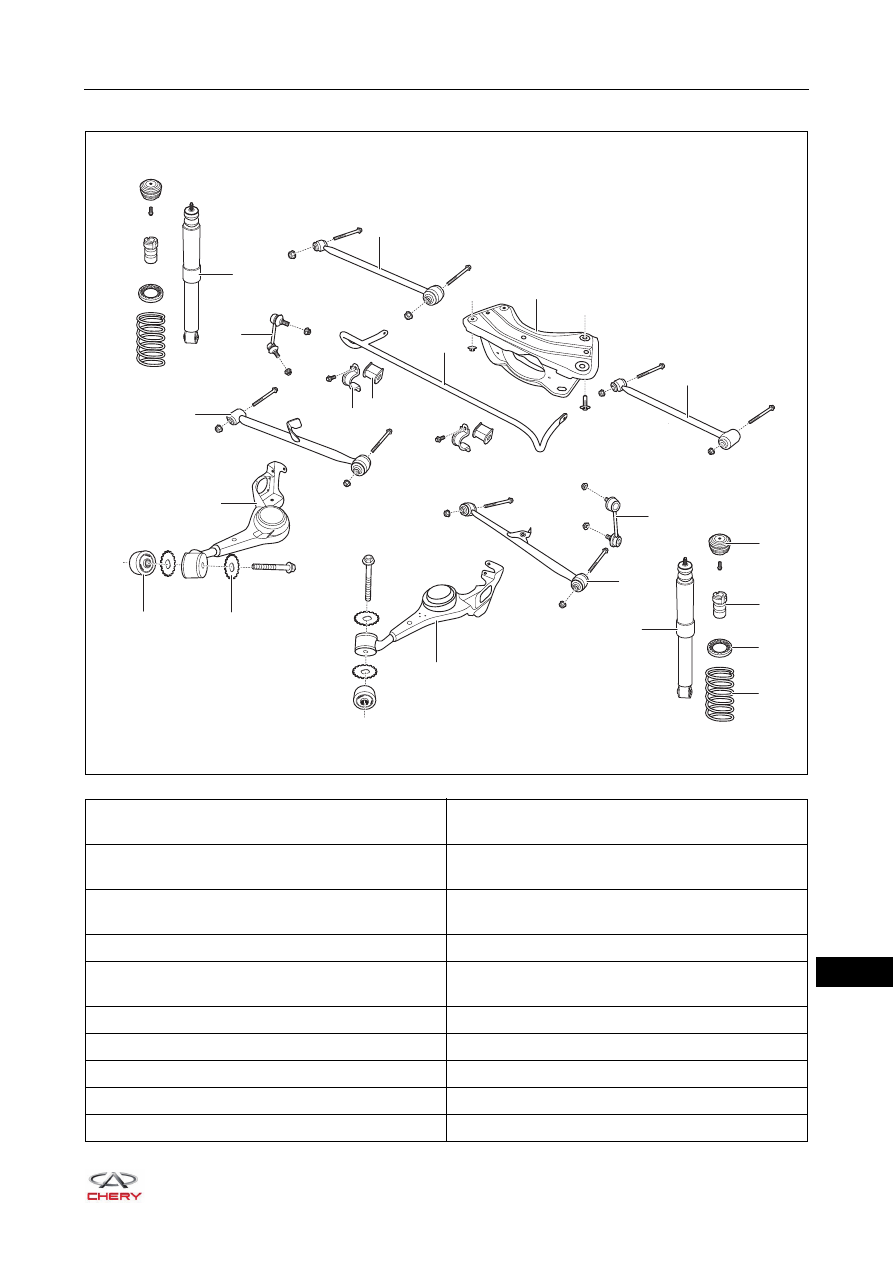

Rear Suspension

1 - Rear Suspension Upper Right Swing Arm

Assembly

2 - Rear Sub Frame Assembly

3 - Rear Suspension Upper Left Swing Arm

Assembly

4 - Rear Left Stabilizer Link Assembly

5 - Rear Suspension Lower Left Swing Arm

Assembly

6 - Rear Stabilizer Bar

7 - Rear Stabilizer Bar Rubber Support

8 - Rear Stabilizer Clamp

9 - Rear Right Stabilizer Link Assembly

10 - Rear Suspension Lower Right Swing Arm

Assembly

11 - Rear Right Trailing Arm Assembly

12 - Bush Rubber

13 - Rubber Washer

14 - Rear Left Trailing Arm Assembly

15 - Rear Rubber Cushion Assembly

16 - Rear Buffer Block Assembly

17 - Rear Coil Spring Upper Cushion

18 - Rear Coil Spring

19 - Rear Left Shock Absorber Assembly

20 - Rear Right Shock Absorber Assembly

RT21230020

×2

×2

×2

×2

4

5

9

7

8

6

3

2

1

12

13

14

11

10

20

15

16

17

18

19

23–

6

23

This model uses trailing arm type independent suspension for rear suspension, whose height is non-adjustable.
It is equipped with cylindrical coil spring, double action telescopic shock absorber and lateral stabilizer. This
suspension features easy-removal and quick-installation, and driving stability and ride comfort have greatly
improved.

Specifications

Torque Specifications

Description

Torque (N·m)

Coupling Nut Between Front Stabilizer Link
Assembly and Front Shock Absorber Assembly

45 ± 5

Coupling Bolt Between Front Shock Absorber
Assembly and Front Steering Knuckle Assembly

180 ± 10

Coupling Nut Between Front Shock Absorber
Assembly and Front Steering Knuckle Assembly

180 ± 10

Coupling Nut Between Front Shock Absorber
Assembly and Body

60 ± 6

Front Shock Absorber Assembly Locking Nut

82 ± 5

Coupling Nut Between Front Control Arm Assembly
Ball Pin and Front Steering Knuckle Assembly

120 ± 12

Coupling Bolt Between Front Part of Front Control
Arm Assembly and Front Sub Frame Welding
Assembly

180 ± 10

Coupling Bolt Between Rear Part of Front Control
Arm Assembly and Front Sub Frame Welding
Assembly

180 ± 10

Coupling Nut Between Front Control Arm Ball Pin
Assembly and Front Control Arm Assembly

150 ± 10

Coupling Bolt Between Front Control Arm Ball Pin
Assembly and Front Control Arm Assembly

150 ± 10

Coupling Nut Between Front Stabilizer Bar Assembly
and Front Stabilizer Link Assembly

45 ± 5

Coupling Bolt Between Side Rail Welding Assembly
and Rear Mounting Cushion Assembly

70 ± 5

Coupling Nut Between Side Rail Welding Assembly
and Rear Mounting Cushion Assembly

70 ± 5

Coupling Bolt Between Front Sub Frame Welding
Assembly and Steering Gear Assembly

120 ± 10

Coupling Bolt Between Upper Part of Front Sub
Frame Welding Assembly and Body

180 ± 10
