Chery Tiggo 5 (T21). Manual - part 245

21–

5

21

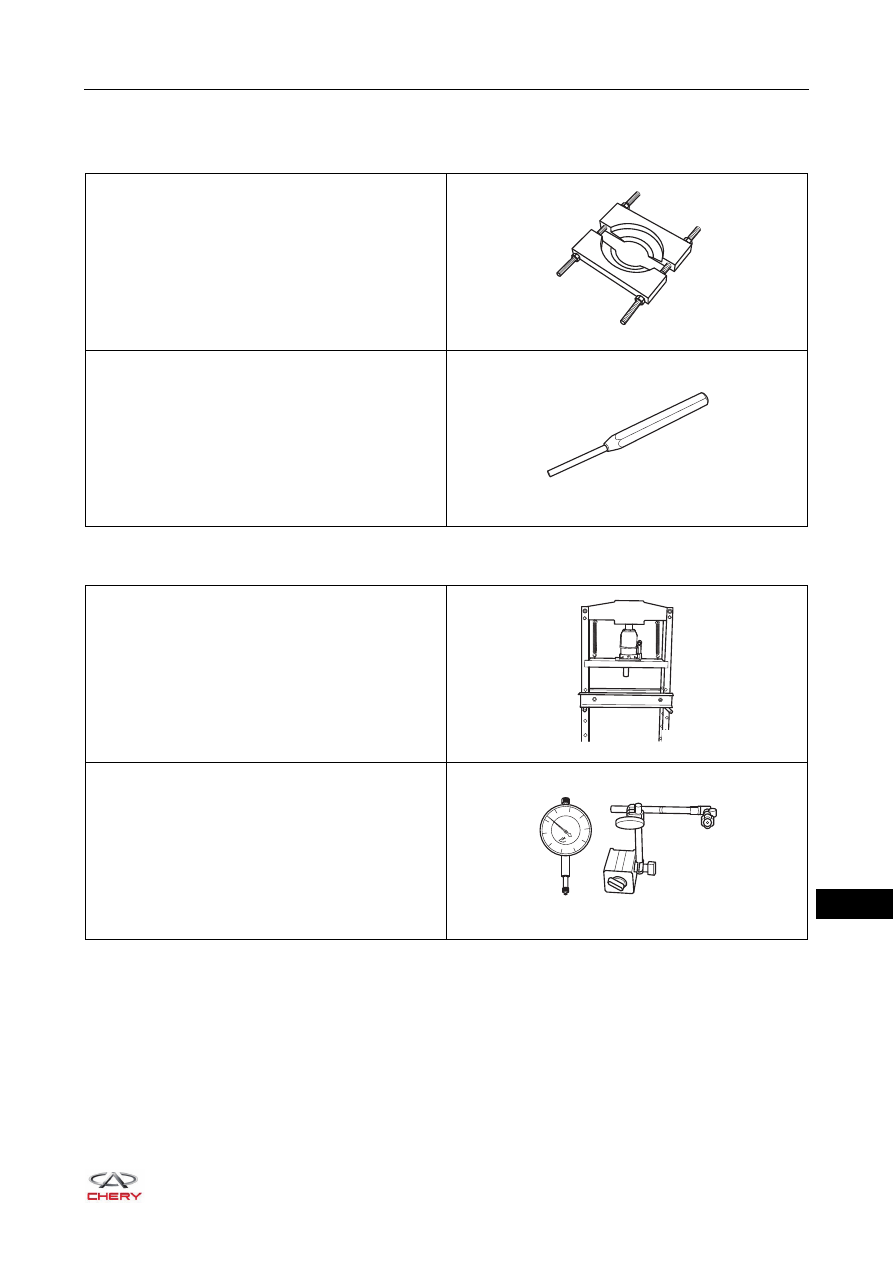

Tools

Special Tools

General Tools

Bearing Remover

Punch

RCH0000011

RCH0000015

Hydraulic Press

Dial Indicator and Magnetic Holder

RCH0000012

RCH0000023

0

10

20

30

40

50

60

70

80

90

21–

6

21

DIAGNOSIS & TESTING

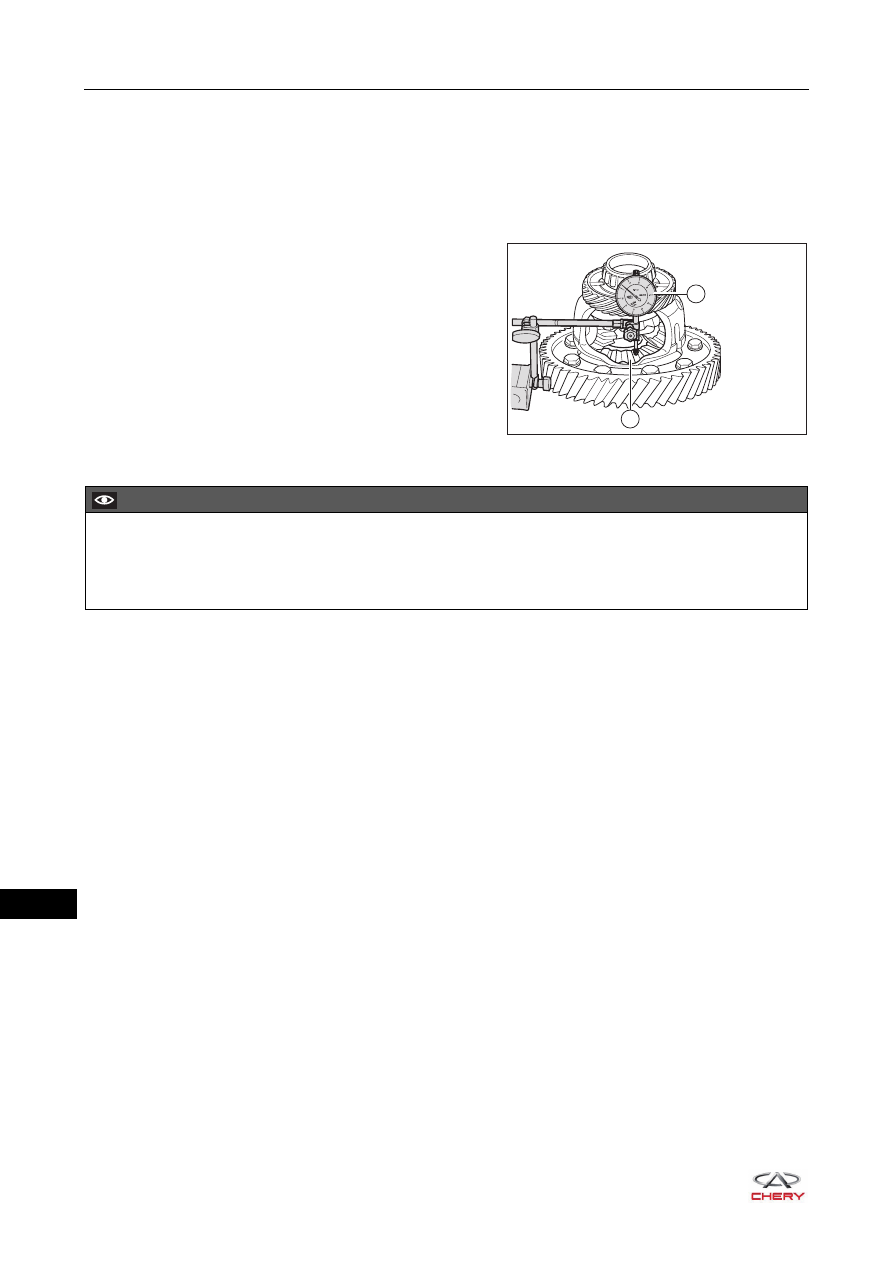

Differential Gear Clearance Inspection

Inspection Method

1. Remove the differential.
2. Check the clearance of differential drive shaft gear (2)

with the dial indicator (1).

Gear clearance: 0.025 - 0.150 mm

2

1

RT21210020

CAUTION

 If the clearance is not as specified, replace and adjust the drive shaft gear washer.
 After replacing the drive shaft gear washer, measure and adjust the clearance again to ensure that it is

as specified.

21–

7

21

ON-VEHICLE SERVICE

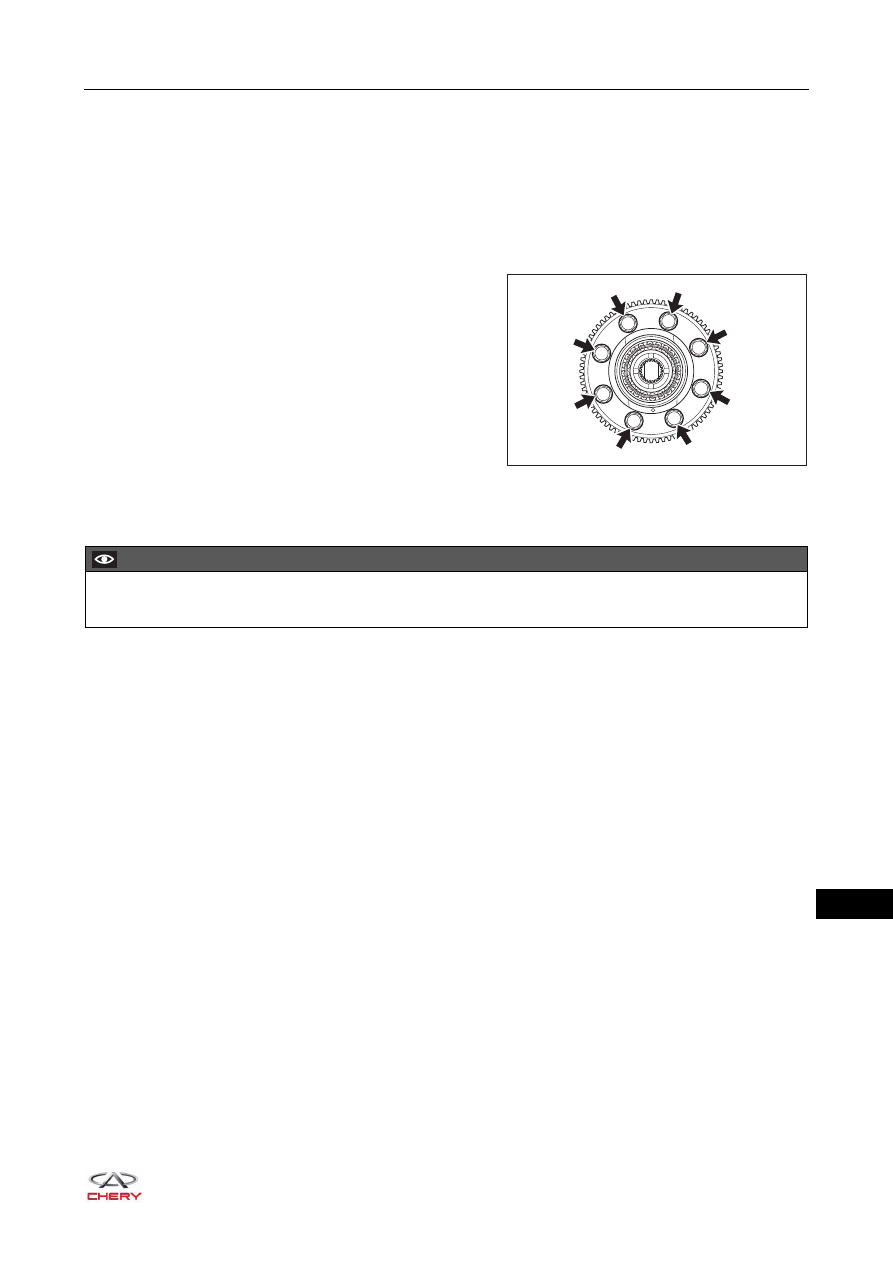

Driven Gear of Final Drive

Removal

1. Remove the differential (

See page 17-22

).

2. Hold the differential in a vise.
3. Remove the final drive driven gear bolts.



(Tightening torque: 111 - 118 N·m)

Installation

Installation is in the reverse order of removal.

RT21210030

CAUTION

 Apply seal gum to the bolts during installation.

21–

8

21

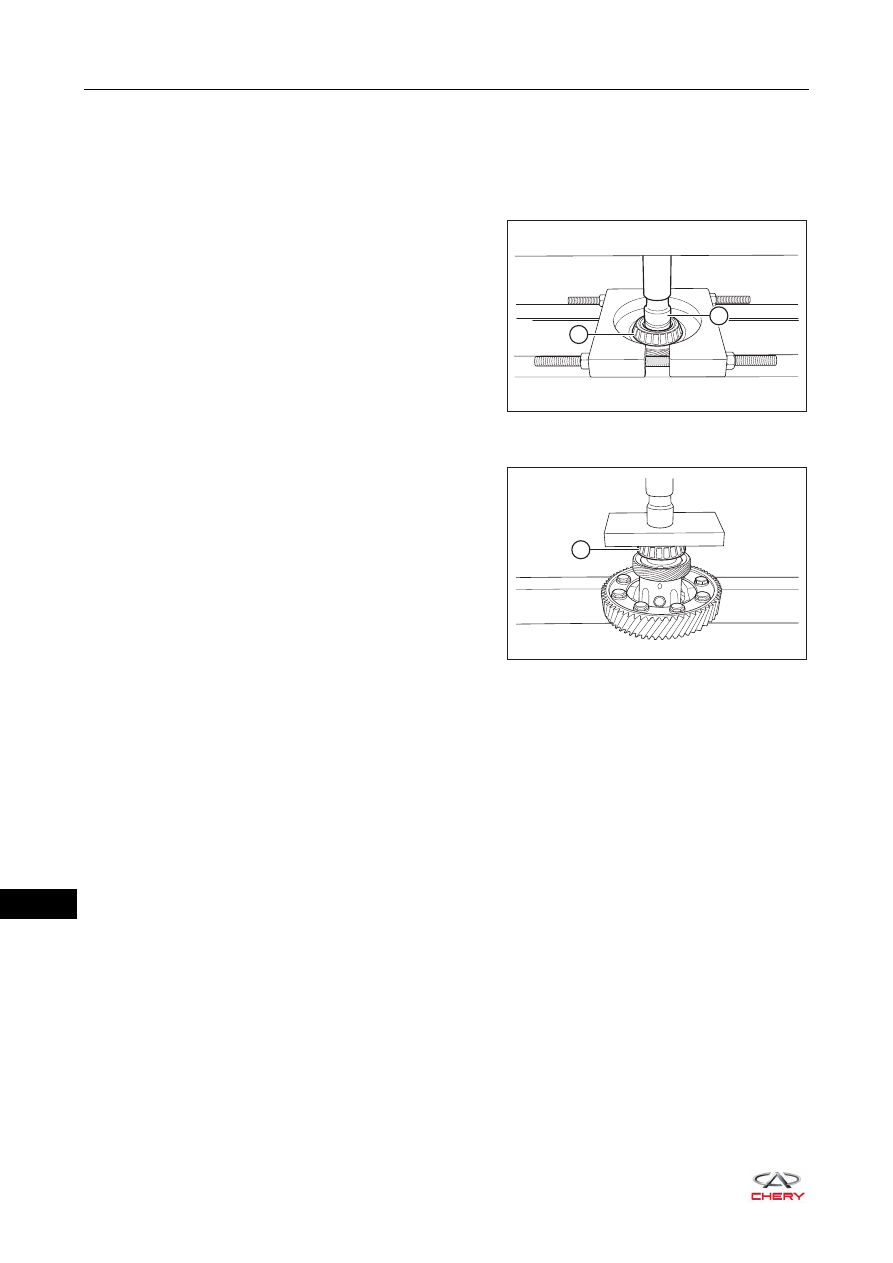

Differential Bearing

Removal

1. Remove the differential (

See page 17-22

).

2. Remove the differential bearing.

a. Using a hydraulic press (1), separate the bearing (2)

from the differential.

Installation

1. Install the differential bearing (1).

1

2

RT21210040

1

RT21210050
