Valve Body Case

Removal

1. Turn off all the electrical devices and ignition switch.
2. Disconnect the negative battery cable.
3. Raise the vehicle with a lifter.
4. Drain the transmission fluid (

See page 18-110

).

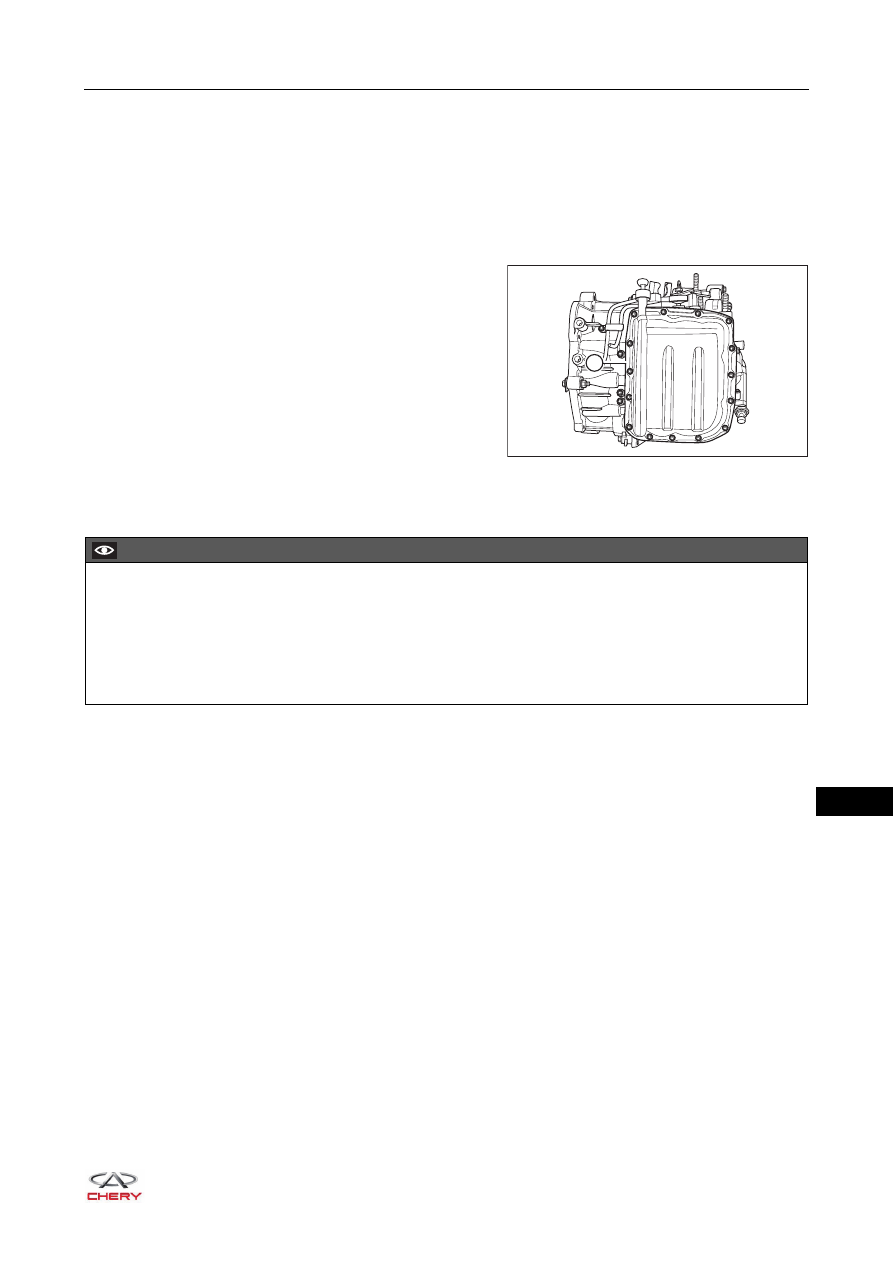

5. Remove the valve body case fixing bolts and remove the

valve body case (1).



(Tightening torque: 10 - 12 N·m)

HINT:
When removing the valve body, do not damage the joint
surface of the transmission case.

Installation

Installation is in the reverse order of removal.

1

RT21180480

CAUTION

 Before installation, clear the sealant residues on the joint surface of the transmission case and clean it

up.

 Keep the installation parts clean and avoid foreign matter entering the transmission.
 During installation, apply sealant on the joint surface of the valve body case and transmission evenly.
 After adding fluid, inspect for fluid leakage.

18–

122

18

Valve Body

Removal

1. Turn off all the electrical devices and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the battery, battery tray and tray bracket (

See page 16-7

).

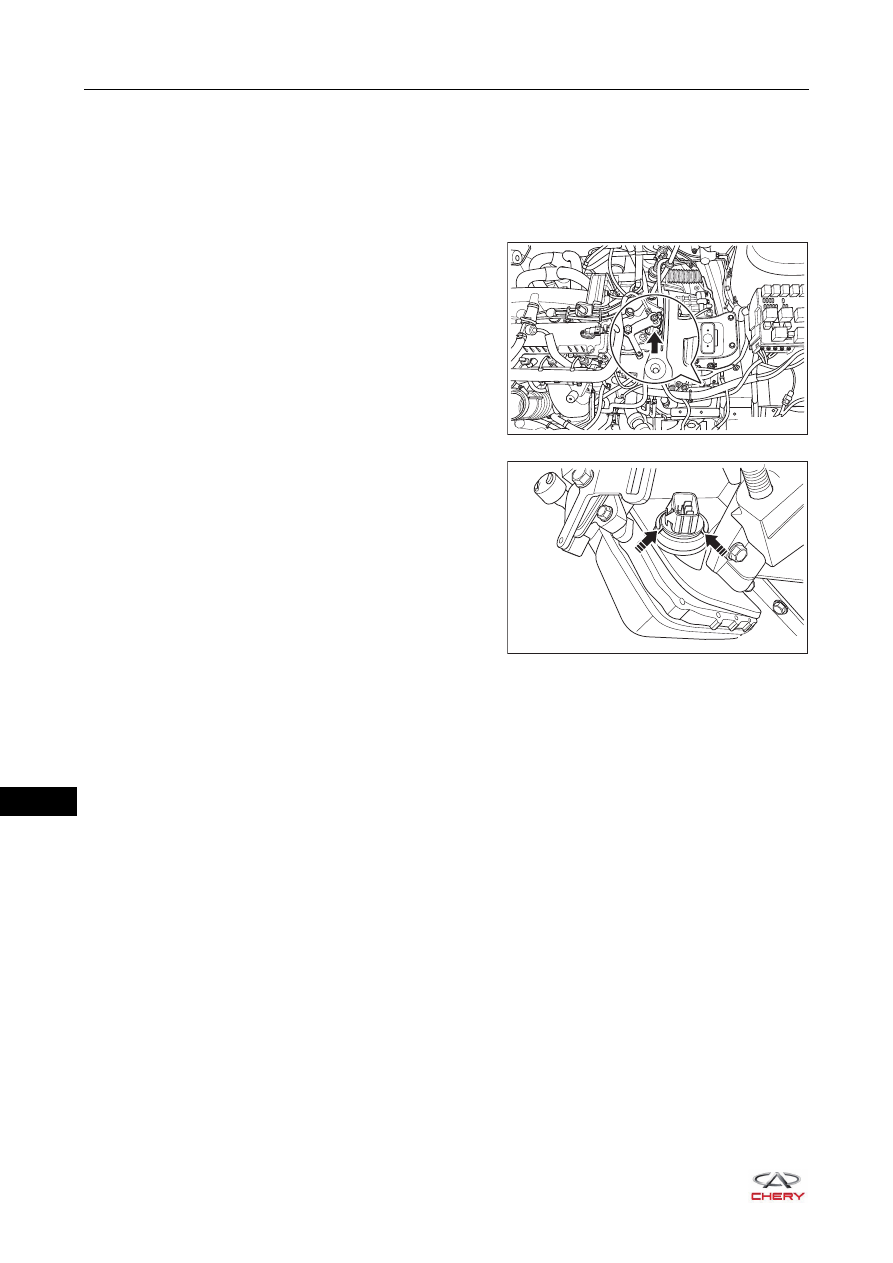

4. Disconnect the wire harness connector of the

transmission solenoid as shown in the illustration.

5. Use a proper tool to remove the transmission solenoid

wire harness assembly clamp.

6. Remove the transmission range sensor (

See page 18-119

).

7. Raise the vehicle with a lifter.
8. Drain the transmission fluid (

See page 18-110

).

9. Remove the valve body case (

See page 18-121

).

RT21180490

RT21180500

18–

123

18

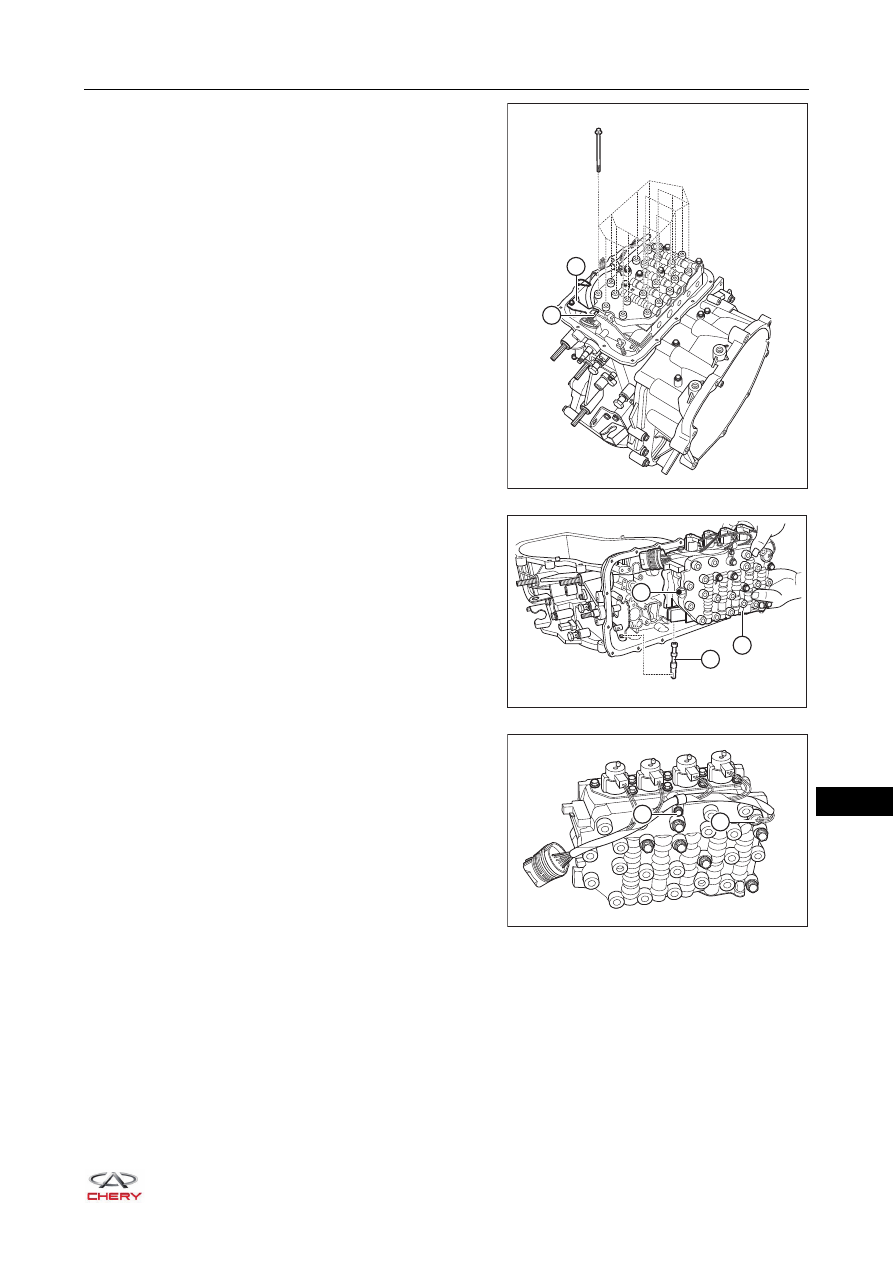

10.Remove the positioning plate fixing bolt (1).
11.Remove the positioning plate (2).
12.Remove the valve body fixing bolts.



(Tightening torque: 8 - 10 N·m)

13.Remove the valve body (1), steel ball (3) and drive lever

(2).

14.Remove the transmission fluid temperature sensor (1)

from the valve body.

15.Remove the wire harness bracket fixing bolt (2).
16.Remove the solenoid press plate fixing bolts.

17.Take out the solenoid and wire harness assembly.

Installation

Installation is in the reverse order of removal.

2

1

×19

RT21180510

2

3

1

RT21180520

2

1

RT21180530

18–

124

18

CAUTION

 Before installation, clear the sealant residues on the joint surface of the transmission case and clean it

up.

 Keep the installation parts clean and avoid foreign matter entering the transmission.
 During installation, apply automatic transmission fluid on the O ring of solenoid wire harness assembly.
 During installation, apply sealant on the joint surface of valve body case and transmission evenly.
 After adding fluid, inspect for fluid leakage.
