17–

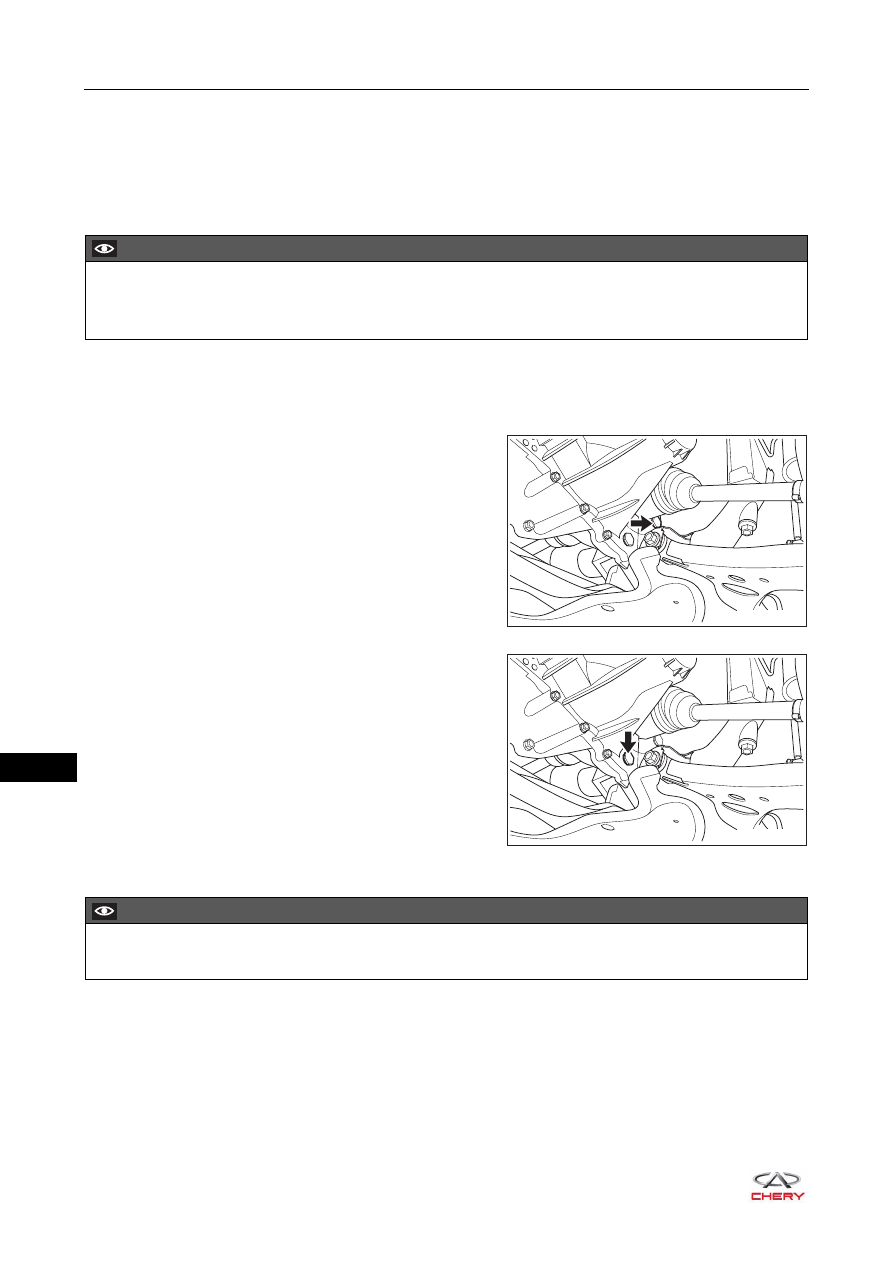

ON-VEHICLE SERVICE

Transmission Oil

Replacement

1. Turn off all the electrical equipment and ignition switch.
2. Raise the vehicle to a proper height.
3. Place a recovering container under the transmission drain hole.
4. Using a wrench, loosen the transmission retaining plug

(arrow).

5. Using a wrench, loosen the transmission filler plug

(arrow). Replace the drain plug washer and tighten the
drain plug after draining transmission oil.



(Tightening torque: 40 ± 6 N·m)

6. Fill transmission oil.

a. Make sure that transmission drain plug has been tightened in place.

CAUTION

 Replace transmission oil only when engine stops and transmission cools down.
 Before installation, replace drain/retaining plug washer with a new one.

RT21170040

RT21170050

CAUTION

 Only use transmission oil approved by Chery Automobile Co., Ltd.

17–

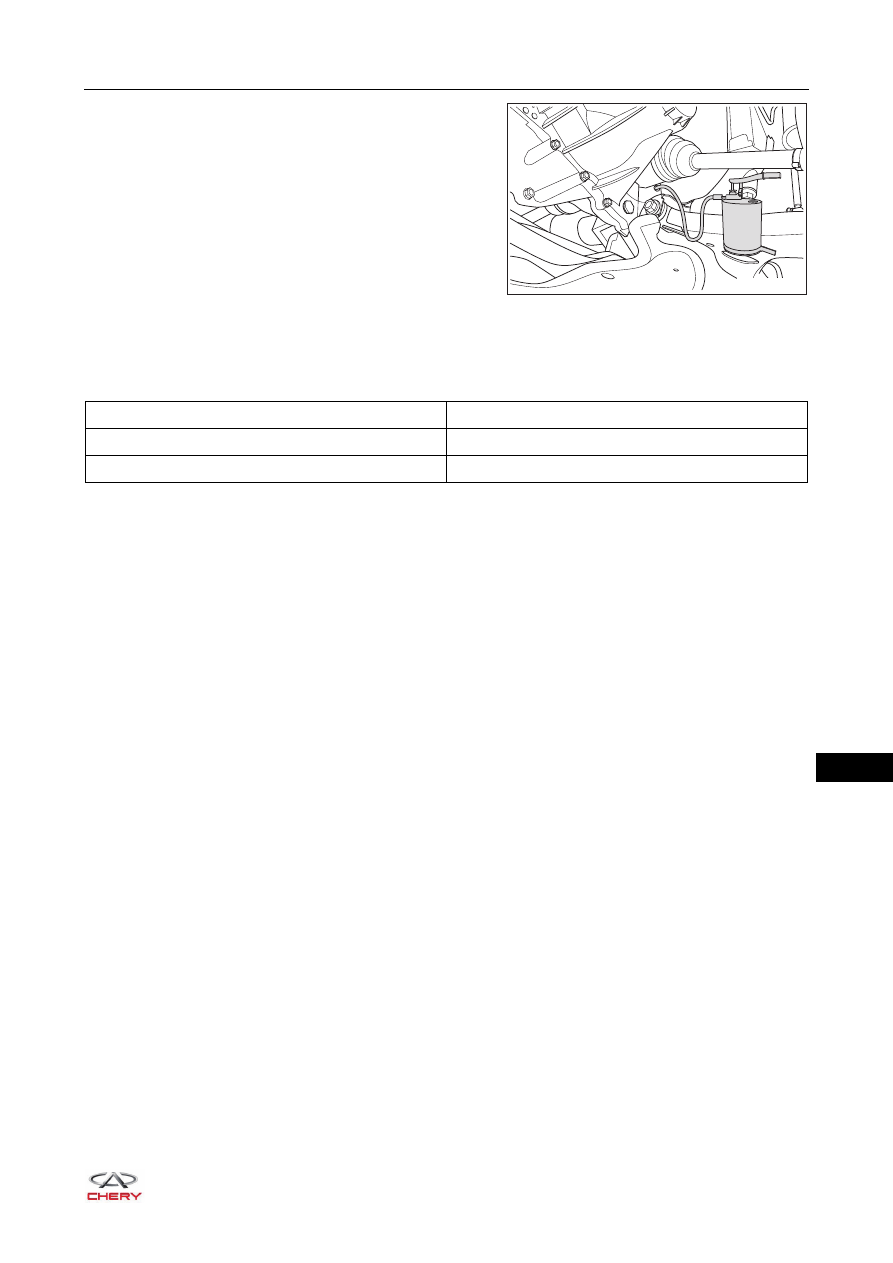

b. Using a filling tool, fill transmission oil to the

transmission filler until it overflows.

c. Replace the retaining plug washer and tighten the retaining plug after filling.



(Tightening torque: 40 ± 6 N·m)

Transmission Oil Type

RT21170060

Model

1.5 L MT

Transmission Oil Type

API GL-4, 75W-90

Filling Capacity

2.2 L ± 0.1 L

17–

Differential Oil Seal

Removal

Use the same procedures for the right side and left side.
Procedures listed below are for the left side.
1. Raise the vehicle with a lifter.

2. Drain transmission oil.

a. Remove the retaining plug and washer.
b. Remove the drain plug and washer, and drain the transmission oil.

c. Install the new washer and drain plug.



(Tightening torque: 40 ± 6 N·m)

3. Remove the front left wheel (

See page 24-9

4. Remove the left drive shaft (

See page 20-5

5. Pull out the oil seal with a puller.

Installation

1. Apply an appropriate amount of transmission oil to the lip of new oil seal.
2. Using a special tool and a hammer, tap in the oil seal.

WARNING

 Make sure to wear safety equipment to prevent accidents.
 Check if safety lock of lifter is locked when performing vehicle lift repair and inspection.

ENVIRONMENTAL PROTECTION

 Drained transmission oil should be collected with a recovering tool.

RT21170070

RT21170080

17–

3. Fill transmission oil.



Other procedures are in the reverse order of removal.

CAUTION

 DO NOT damage the oil seal during installation.
