Chery Tiggo 5 (T21). Manual - part 187

1

17

QR525MHE TRANSMISSION

GENERAL INFORMATION

17-3

Description 17-3
Operation 17-8
Specifications 17-8
Daily Maintenance

17-9

Tools 17-9

DIAGNOSIS & TESTING

17-12

Problem Symptoms Table

17-12

On-vehicle Inspection

17-13

ON-VEHICLE SERVICE

17-14

Transmission Oil

17-14

Replacement 17-14

Differential Oil Seal

17-16

Removal 17-16
Installation 17-16

Select and Shift Cable

17-18

Removal 17-18
Installation 17-19

Gear Shift Control Mechanism

17-20

Removal 17-20
Installation 17-20

Transmission Assembly

17-21

Removal 17-21

Disassembly 17-22
Assembly 17-27
Installation 17-32

Gear Shift Mechanism

17-33

Disassembly 17-33
Assembly 17-34

Shift Fork

17-35

Disassembly 17-35
Inspection 17-37
Assembly 17-37

Input Shaft

17-38

Disassembly 17-38
Assembly 17-42
Inspection 17-47

Output Shaft

17-48

Disassembly 17-48
Assembly 17-52
Inspection 17-56

Transmission External Accessory

17-57

Removal 17-57
Installation 17-58

Transmission Case

17-60

Disassembly 17-60
Assembly 17-63

17–

3

17

QR525MHE TRANSMISSION

GENERAL INFORMATION

Description

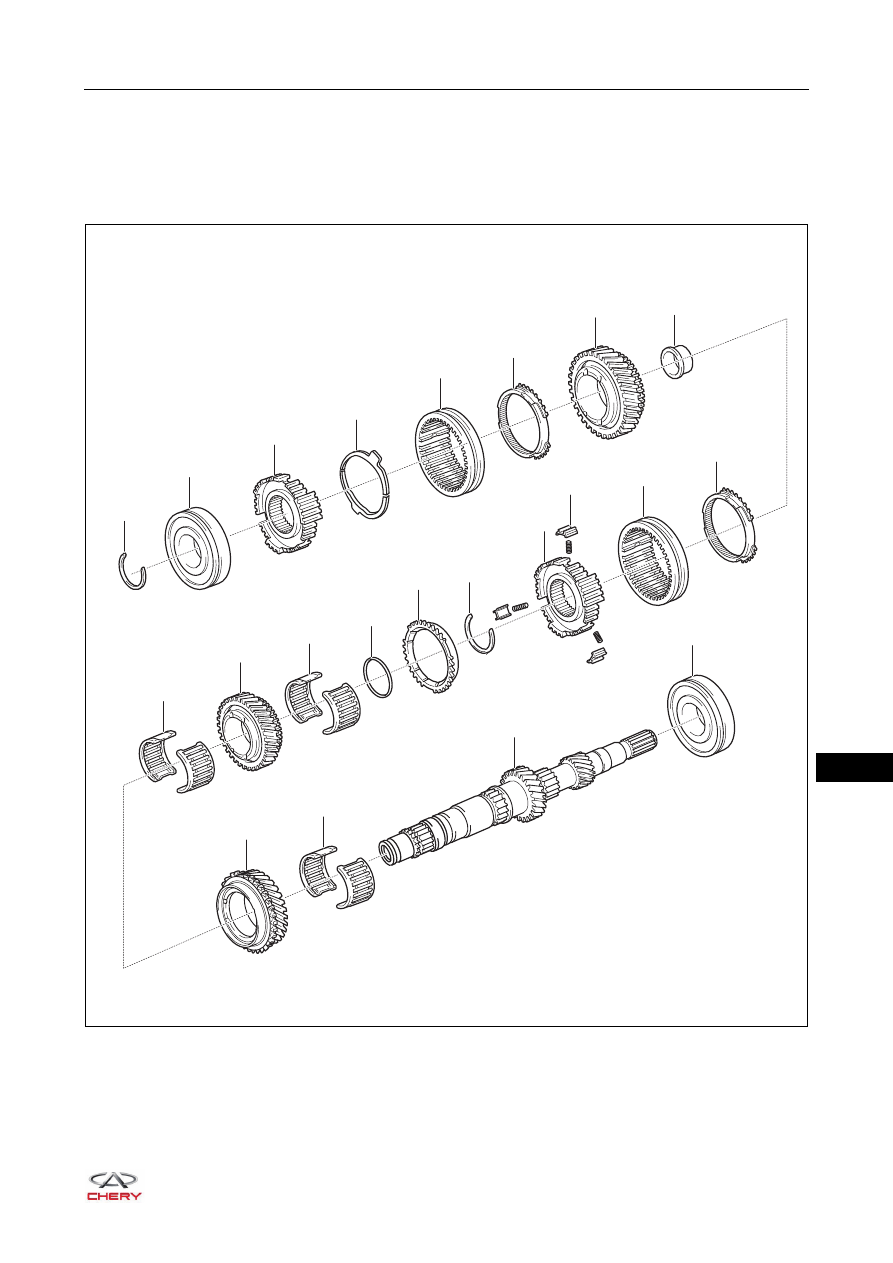

Input Shaft

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

RT21170010

17–

4

17

1 - Input Shaft Rear Bearing Snap Ring

2 - Input Shaft Rear Bearing

3 - 5th Synchronizer Gear Hub

4 - 5th Synchronizer Meshing Plate

5 - 5th Synchronizer Outer Race

6 - 5th Synchronizer Ring

7 - 5th Drive Gear

8 - 5th Gear Shaft Bushing

9 - 5th Needle Roller Bearing

10 - 4th Drive Gear

11 - 4th Needle Roller Bearing

12 - 4th Gear Gasket

13 - 4th Synchronizer Ring

14 - Snap Ring

15 - 3rd-4th Synchronizer Gear Hub

16 - 3rd-4th Synchronizer Meshing Key and Spring

17 - 3rd-4th Synchronizer Outer Race

18 - 3rd Synchronizer Ring

19 - 3rd Drive Gear

20 - 3rd Needle Roller Bearing

21 - Input Shaft

22 - Input Shaft Front Bearing

17–

5

17

Output Shaft

1

9

8

2

3

4

5

6

7

12

13

14

16

15

17

11

10

10

10

13

13

RT21170020
