Chery Tiggo 5 (T21). Manual - part 171





15–

19

15

Problem Repair (No DTC)

If PEPS system has problems, but no DTC is stored in PEPS system, this problem is called a problem without
DTC.

Troubleshooting recommendation: check corresponding components according to problem symptom, and
troubleshoot following the vehicle repair manual.

Diagnostic Help

1. Connect X-431 3G diagnostic tester (the latest software) to Data Link Connector (DLC), and make it

communicate with vehicle electronic module by the data network.

2. Confirm that malfunction is current, and carry out diagnostic test and repair procedures.
3. If DTC cannot be deleted, the malfunction is current.
4. Visually check the related wire harness and connector.
5. Check and clean all wire harness connectors and grounds related to current DTC.
6. If multiple trouble codes were set, refer to the circuit diagrams to look for any common ground circuit or

power supply circuit applied to the DTC.

7. Refer to any Technical Bulletin that may apply to the malfunction.

Intermittent DTC Troubleshooting

If malfunction is intermittent, perform the followings:
 Check if connectors are loose.
 Check if wire harnesses are worn, pierced, pinched or partially broken.
 Wiggle related wire harnesses and connectors and observe if signal is interrupted in the related circuit.
 If possible, try to duplicate the conditions under which the DTC was set.
 Look for the data that has changed or the DTC to be reset during the wiggle test.
 Look for broken, bent, protruded or corroded terminals.
 Check and clean all wire harness connectors and grounding parts related to the current DTC.
 Remove the PEPS controller from the malfunctioning vehicle and install it to a new vehicle and perform a

test. If DTC cannot be cleared, the PEPS controller is malfunctioning. If DTC can be cleared, reinstall the
PEPS controller to original vehicle.

 If multiple trouble codes were set, refer to the circuit diagrams to look for any common ground circuit or

power supply circuit applied to the DTC.

 Refer to Technical Bulletin that is applied to the malfunction.

Symptom

Suspected Area

Instrument cluster indicator does not come on or
remains on

Instrument cluster indicator (broken)

Wire harness (incorrectly connected)

15–

20

15

Ground Inspection

Groundings are very important to entire circuit system, which are normal or not can seriously affect the entire
circuit system. Ground points are often exposed to moisture, dirt and other corrosive environments. Corrosion
(rust) and oxidation may increase load resistance. This situation will seriously affect the normal operation of
the circuit. The operations to check the ground points are as follows:
1. Remove the ground bolt or nut.
2. Check all contact surfaces for tarnish, dirt and rust, etc.
3. Clean as necessary to ensure that contacting is in a good condition.
4. Reinstall the ground bolt or nut securely.
5. Check if add-on accessories interfere with the ground circuit.
6. If several wire harnesses are crimped into one ground terminal, check if they are installed correctly. Make

sure all wire harnesses are clean, securely fastened and providing a good ground path.

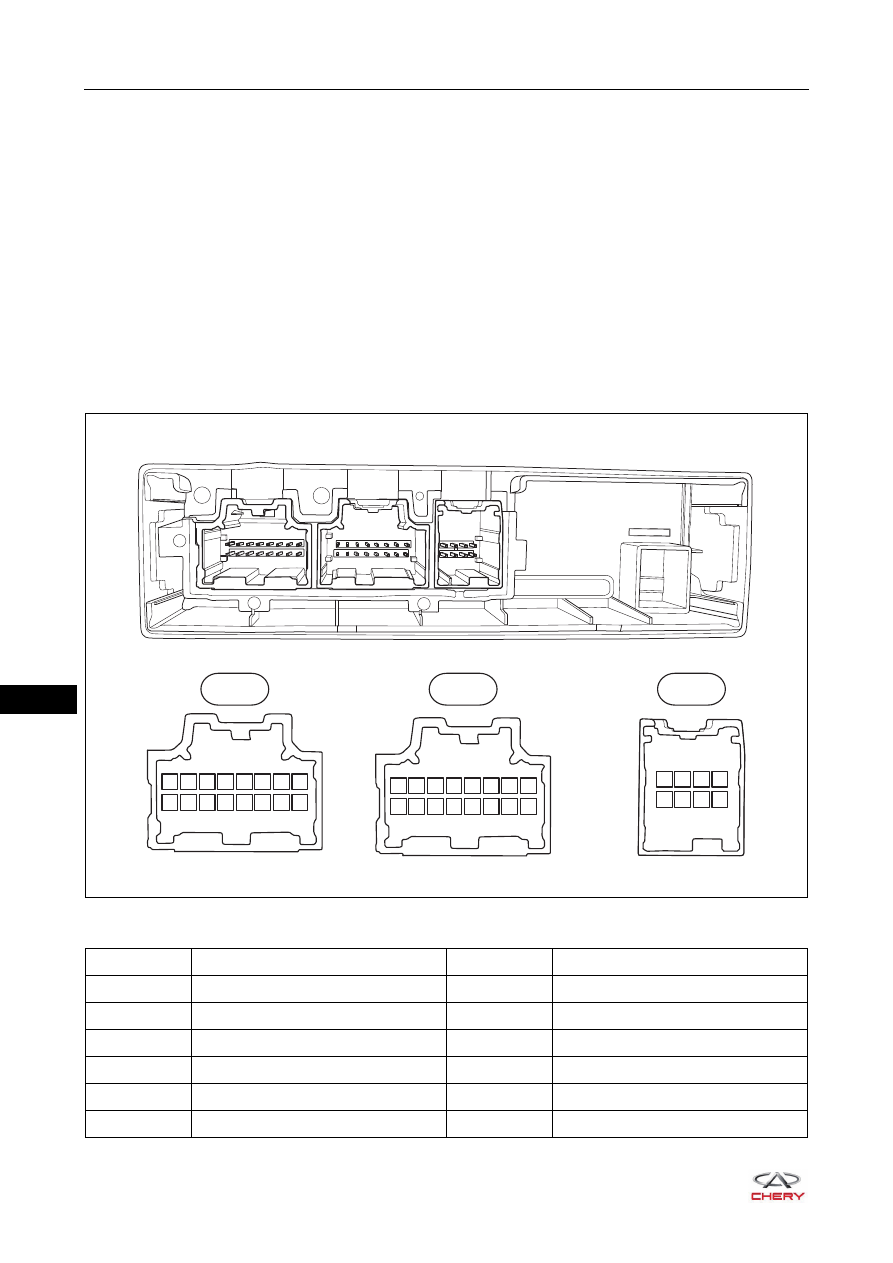

Passive Entry & Passive Start (PEPS) Controller Terminal List

Connector J1 Terminal Definition

RT21150050

J1

J2

J3

J101 J102 J103 J104 J105 J106 J107 J108

J109 J110 J111 J112 J113 J114 J115 J116

J1

J201 J202 J203 J204 J205 J206 J207 J208

J209 J210 J211 J212 J213 J214 J215 J216

J2

J301 J302 J303 J304

J305 J306 J307 J308

J3

Terminal No.

Terminal Definition

Terminal No.

Terminal Definition

J101

Battery Power Supply

J109

Clutch Switch Signal

J102

IG1 Relay Drive (High)

J110

Starter Relay Inspection

J103

ACC Relay Drive (High)

J111

Ignition Signal

J104

IG2 Relay Drive (High)

J112

-

J105

CAN-L

J113

Starter Relay (High)

J106

CAN-H

J114

Gear Position Signal

15–

21

15

Connector J2 Terminal Definition

Connector J3 Terminal Definition

J107

Hard Wire Speed Signal

J115

-

J108

-

J116

GND

Terminal No.

Terminal Definition

Terminal No.

Terminal Definition

Terminal No.

Terminal Definition

Terminal No.

Terminal Definition

J201

Anti-theft Coil Positive

J209

-

J202

Anti-theft Coil Negative

J210

Engine Switch Ground

J203

Engine Switch Indicator (Green)

J211

Engine Switch 1

J204

Engine Switch Backlight (White)

J212

-

J205

Engine Switch Indicator (Amber)

J213

Engine Switch 2

J206

Low Frequency Antenna 1 Negative

J214

Low Frequency Antenna 1 Positive

J207

Low Frequency Antenna 2 Negative

J215

Low Frequency Antenna 3 Negative

J208

Low Frequency Antenna 2 Positive

J216

Low Frequency Antenna 3 Positive

Terminal No.

Terminal Definition

Terminal No.

Terminal Definition

J301

Back Door Unlock Signal

J305

-

J302

Front Left Door Handle Sensor (Low
Frequency Antenna) Negative

J306

Front Right Door Handle Sensor
(Low Frequency Antenna) Negative

J303

Front Left Door Handle Sensor (Low
Frequency Antenna) Positive

J307

Front Right Door Handle Sensor
(Low Frequency Antenna) Positive

J304

Back Door Low Frequency Antenna
Negative

J308

Back Door Low Frequency Antenna
Positive

15–

22

15

Diagnostic Trouble Code (DTC) Chart

DTC Code

DTC Definition

B1500-13

Driver Door Outside LF Antenna Circuit Open

B1501-13

Passenger Door Outside LF Antenna Circuit Open

B1502-13

Front Internal LF Antenna Circuit Open

B1503-13

Middle Internal LF Antenna Circuit Open

B1504-13

Rear Internal LF Antenna Circuit Open

B1505-13

Bumper LF Antenna Circuit Open

B1506-00

Abnormality ON Switches of Engine Switch No Subtype Information

B1507-00

Abnormality in IG Circuit No Subtype Information

B1508-00

Abnormality in ACC Circuit No Subtype Information

B1509-00

Abnormality in Brake Signal No Subtype Information

B150A-00

Abnormality in Vehicle Speed Signal No Subtype Information

B150C-00

Clutch Switch Signal Error No Subtype Information

B150D-00

Abnormality on ESCL LCK_GND No Subtype Information

B150E-00

Abnormality on ESCL LCK_PS No Subtype Information

B150F-00

ESCL Anti-scanning No Subtype Information

B1510-00

Abnormality on Wheel Speed Signal No Subtype Information

B1511-00

Abnormality in ESCL Lock No Subtype Information

B1512-00

Abnormality in ESCL Unlock No Subtype Information

B1513-00

ESCL External Failure No Subtype Information

B1514-00

Abnormality on STAR Power Supply No Subtype Information

B1515-45

ROM for Checksum Failure

B1516-19

HSU Overload

B1517-23

HSU Switch Continuously Pressed Failure

U0073-88

Control Module Communication Bus Off

U0100-87

Lost Communication with EMS Missing Message

U0101-87

Lost Communication with TCM Missing Message

U0129-87

Lost Communication with BSM Missing Message

U0140-87

Lost Communication with BCM Missing Message

U0329-87

Lost Communication with ESCL Missing Message

U1300-55

Software Configuration Error Not Configured
